RAB EZPANFA1X4 40W LED 1X4 Drop Ceiling Selectable CCT

RAB EZPANFA1X4 40W LED 1X4 Drop Ceiling Selectable CCT

$149.00
$149.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

EZPAN EDGELIT PANEL 1X4 FA 25-30-40W 35K-4K-5K 120-277V


  • Field-adjustable light output (3 discrete steps)
  • Selectable wattage
  • White tunable (3 discrete color temperatures)
  • Can be changed before, during or after installation
  • 75,000-Hour LED lifespan

Spec Sheets

Spec Sheet

Installation Instructions

Info
Wattage 25W/30W/40W
Lumen 2960-4560
Color Temp. 3500K-5000K
Efficacy 107 lm/W
CRI 81
L70 Lifespan 75,000
Finish  Formulated for high durability and long-lasting color
Lens Frosted polystyrene

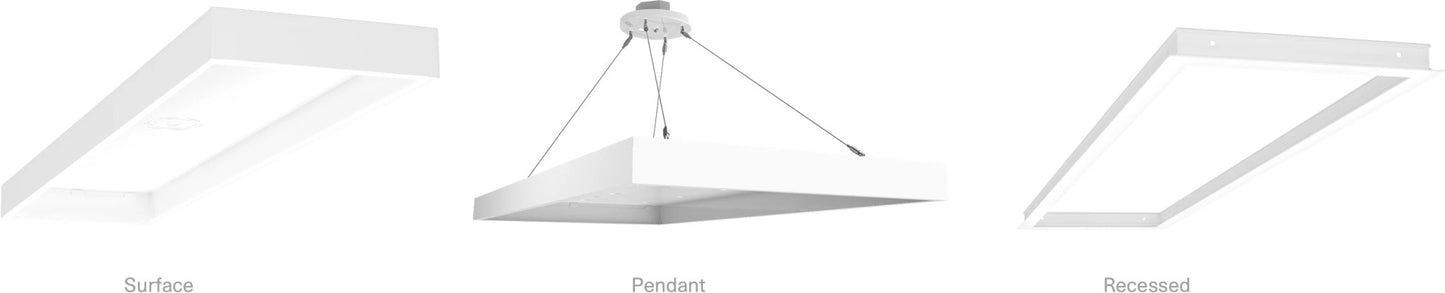

Mounting Recessed ceiling
Housing Lightweight aluminum housing
Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Environment/Fixture Rating Damp Location
IC Rated Suitable for direct contact with insulation
DLC Listed Yes:This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PEQ7BMXZ
Electrical
THD 5.48% at 120V, 11.22% at 277V
Power Factor 99.5% at 120V, 92.9% at 277V
Input Voltage 120-277V
Operating Frequency 60Hz
Operating Temperature -30°C (-22°F) to 40°C (104°F)
Dimming 0-10V Dimming
