RAB Lighting

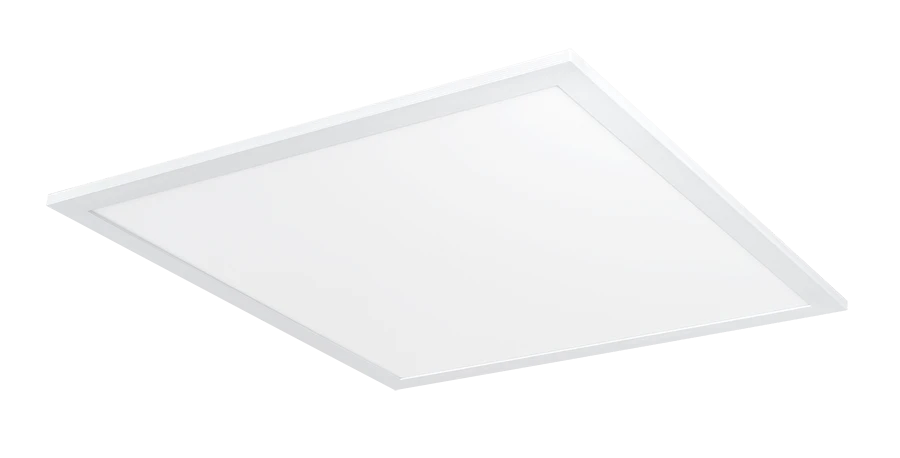

RAB EZPANFA2X2 40W LED 2X2 Drop Ceiling Selectable CCT

RAB EZPANFA2X2 40W LED 2X2 Drop Ceiling Selectable CCT

$93.25
$93.25
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

EZPAN EDGELIT PANEL 2X2 FA 25-30-40W 35K-4K-5K 120-277V


  • Field-adjustable light output (3 discrete steps)
  • Selectable wattage
  • White tunable (3 discrete color temperatures)
  • Can be changed before, during or after installation
  • 75,000-Hour LED lifespan

Spec Sheets

Spec Sheet

Installation Instructions

Info
Wattage 25W/30W/40W
Lumen 3117-4802
Color Temp. 3500K-5000K
Efficacy 106.6-127.5 lm/W
CRI 81
L70 Lifespan 75,000
Finish  Formulated for high durability and long-lasting color
Lens Frosted polystyrene

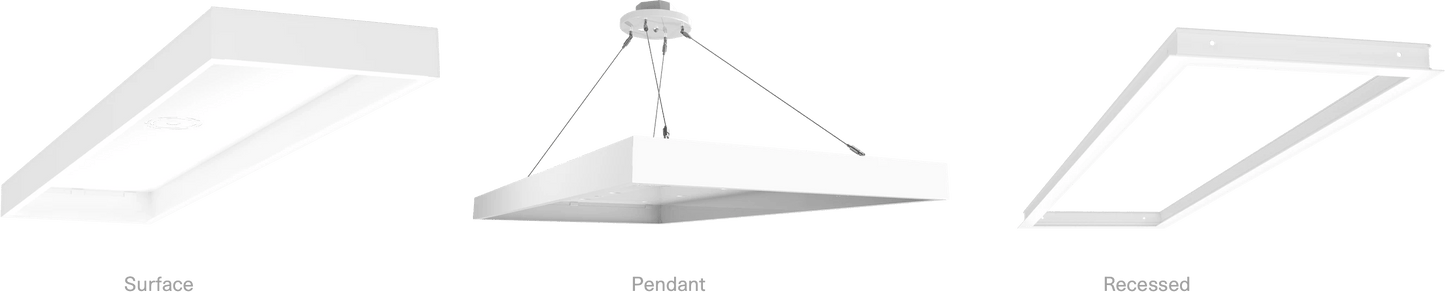

Mounting Recessed ceiling
Housing Lightweight aluminum housing
Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Environment/Fixture Rating Damp Location
IC Rated Suitable for direct contact with insulation
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PB45PSA0
Electrical
THD 5.8% at 120V, 11.03% at 277V
Power Factor 99.4% at 120V, 92.3% at 277V
Driver
 Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
Operating Temperature -30°C (-22°F) to 40°C (104°F)
Dimming 0-10V Dimming
