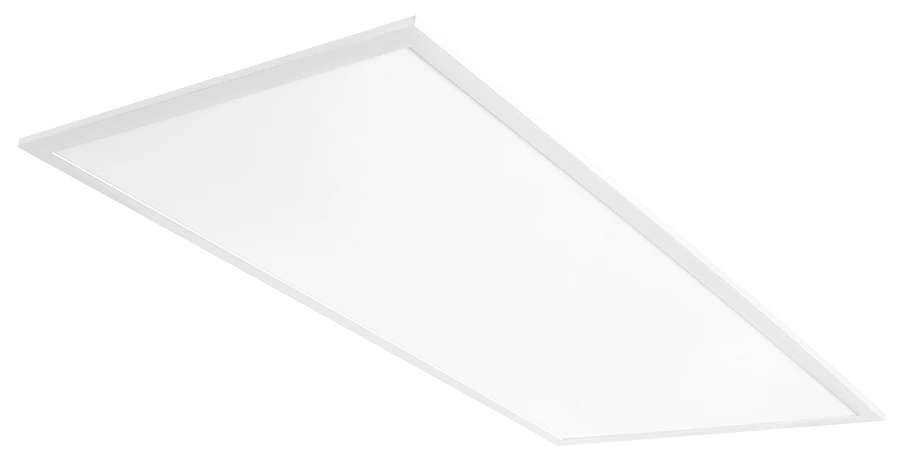

RAB EZPANFA2X4 50W LED 2X4 Drop Ceiling Selectable CCT

RAB EZPANFA2X4 50W LED 2X4 Drop Ceiling Selectable CCT

$124.75
$124.75
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

EZPAN EDGELIT PANEL 2X4 FA 30-40-50W 35K-4K-5K 120-277V


  • Field-adjustable light output (3 discrete steps)
  • Selectable wattage
  • White tunable (3 discrete color temperatures)
  • Can be changed before, during or after installation
  • 75,000-Hour LED lifespan

Spec Sheets

Spec Sheet

Installation Instructions

Info
Wattage 30W/40W/50W
Lumen 3745-5365
Color Temp. 3500K-5000K
Efficacy 110.4-126.5 lm/W
CRI 79-81
L70 Lifespan 75,000
Finish  Formulated for high durability and long-lasting color
Lens Frosted polystyrene
Mounting Recessed ceiling
Housing Lightweight aluminum housing
Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Environment/Fixture Rating Damp Location
IC Rated Suitable for direct contact with insulation
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PL3725S1
Electrical
THD 8.51% at 120V, 8.95% at 277V
Power Factor 99.3% at 120V, 95.2% at 277V
Driver
 Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A
Operating Temperature -30°C (-22°F) to 40°C (104°F)
Dimming 0-10V Dimming
