RAB Lighting

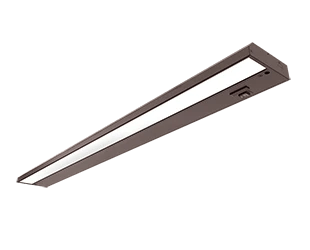

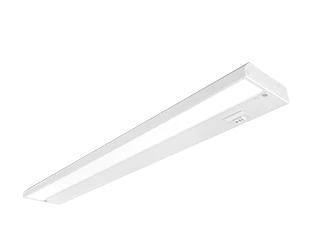

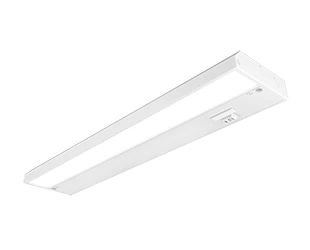

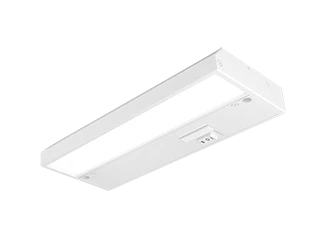

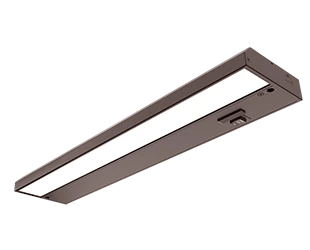

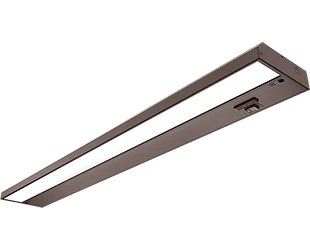

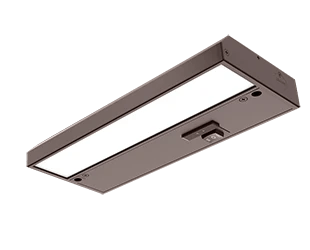

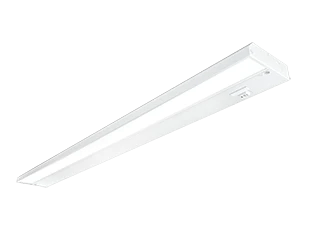

RAB 4W-16W KNOOK Undercabinet Lighting Selectable CCT

RAB 4W-16W KNOOK Undercabinet Lighting Selectable CCT

$43.00
$43.00
Sale Sold out
Shipping calculated at checkout.
Size
Color
Color Temperature

KNOOK Undercabinet 8"/16"/24"/32" Field Adjustable

  • Field-adjustable light output & color temperature
  • Designed to provide soft, uniform lighting on work surfaces
  • Simple to connect multiple fixtures
  • Occupancy sensor accessory controls on/off, and includes a switch to manually turn off fixtures
  • TRIAC and ELV dimming down to 5%*
  • Available in four sizes (8"/4W, 16"/9W, 24"/13W and 32"16W) and two color finishes (white & brown)
Spec Sheet

Spec Sheet

Installation Instructions


Info
Product Type  Undercabinet Lighting
Wattage 4W 9W 13W 16W
Lumen 250-1300
Color Temp. 27K 30K 35K
CRI 90
LED Long-life, high-efficacy, surface-mount LEDs
L70 Lifespan 50,000
Housing Material Die-formed steel with injection-molded endcaps
Housing Finish  White | Brown
Lens Polycarbonate lens
Mounting Undercabinet Surface


Additional Info
                                               Compliance
Safety Listing UL Listed
Environment/Fixture Rating Dry Location Only
T24 JA8 Compliant Can be used to comply with 2020 Title 24 Part 6 high-efficacy LED light source requirements.
IC Rated Yes
Energy Star Compliant Yes
Air Tight Yes
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
Driver Class 2, constant current, 60 Hz, 120V
Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -30°C to 40°C
Dimming TRIAC and ELV dimming compatibility
