RAB Lighting

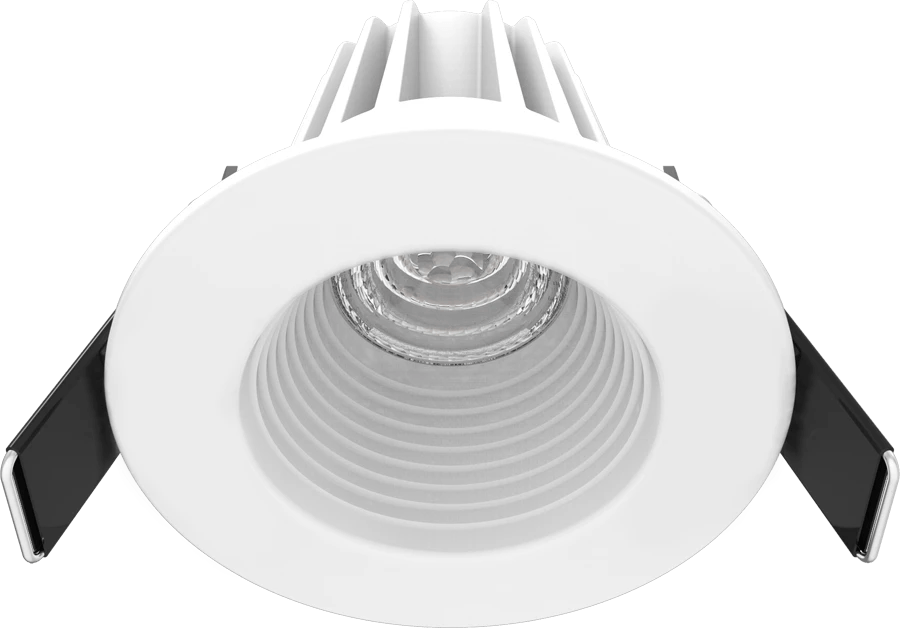

RAB 8W LED 2" Deep Regress Recessed Downight 27K/40K

RAB 8W LED 2" Deep Regress Recessed Downight 27K/40K

$39.00
$39.00
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

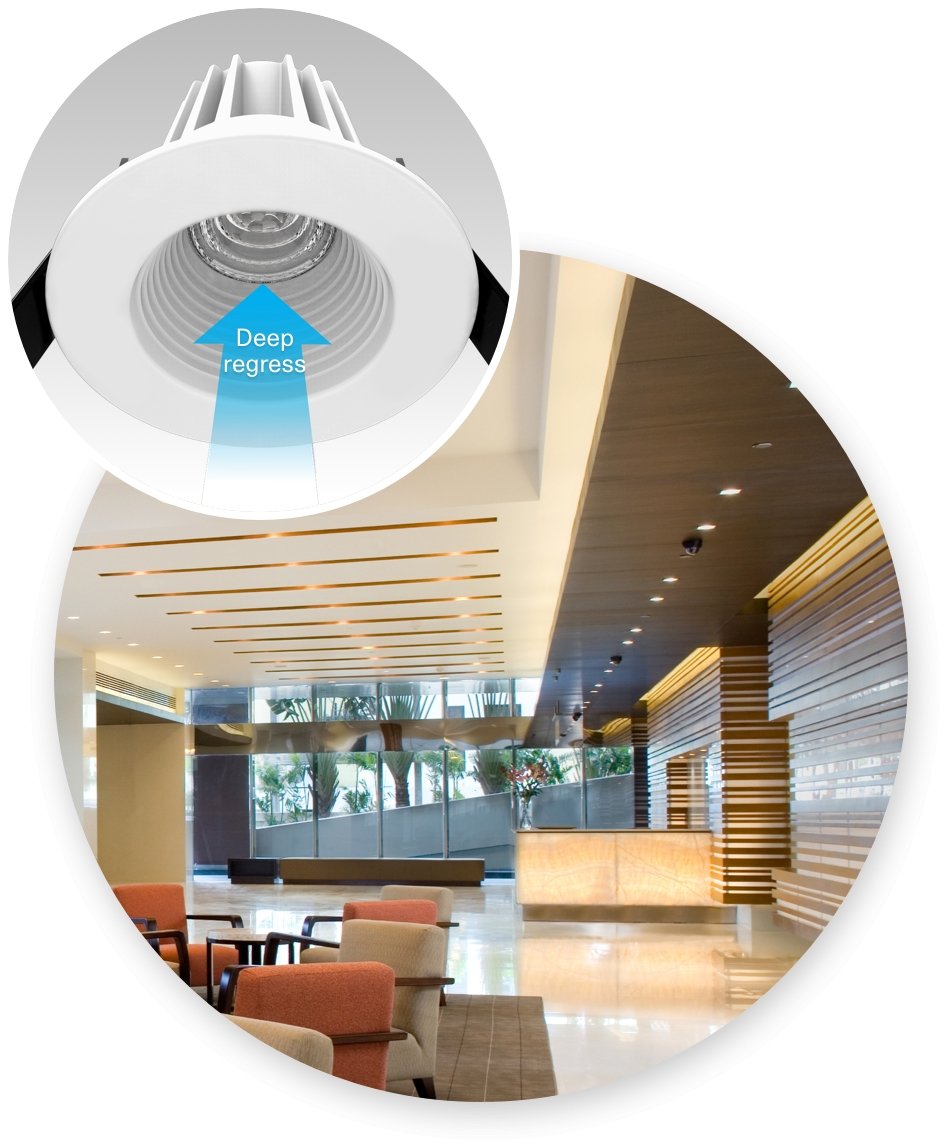

2" Deep Regress Recessed Downlight

These items are being discontinued. The 27K/30K version is out of stock. The 40K color temps depend on stock. Please call before ordering. Here is the link for the updated items. Please note they are 3".

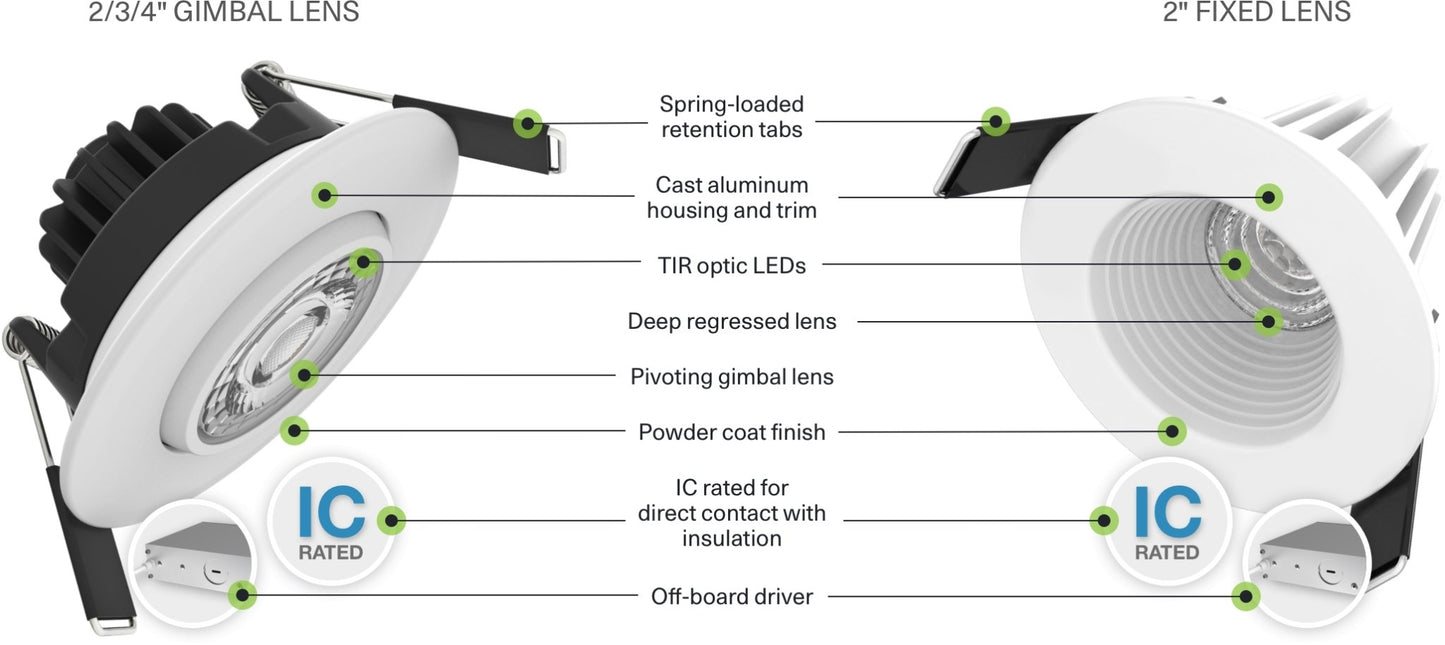

  • No recessed housing or J-box required
  • New construction or retrofit applications
  • UL wet location rated
  • Spring loaded retention clips
  • Robust, die cast aluminum construction
  • IC and airtight rated
  • 5-Year, No-Compromise Warranty
  • Replaces up to 60W Incandescent
Spec Sheets

27K 40K

Installation Instructions

Info
Product Type  Recessed Downlights
Wattage 8W
Lumen 600
Color Temp. 27K 40K
CRI 90
L70 Lifespan 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Housing Material Precision die-cast aluminum
Finish  Matte White
Style Baffle Trim
LED Long-life, high-efficacy, surface-mount LEDs
Beam Angle
 38° narrow beam spread for accent lighting
Lens Diffuse Polystyrene lens produces smooth uniform light that is glare free

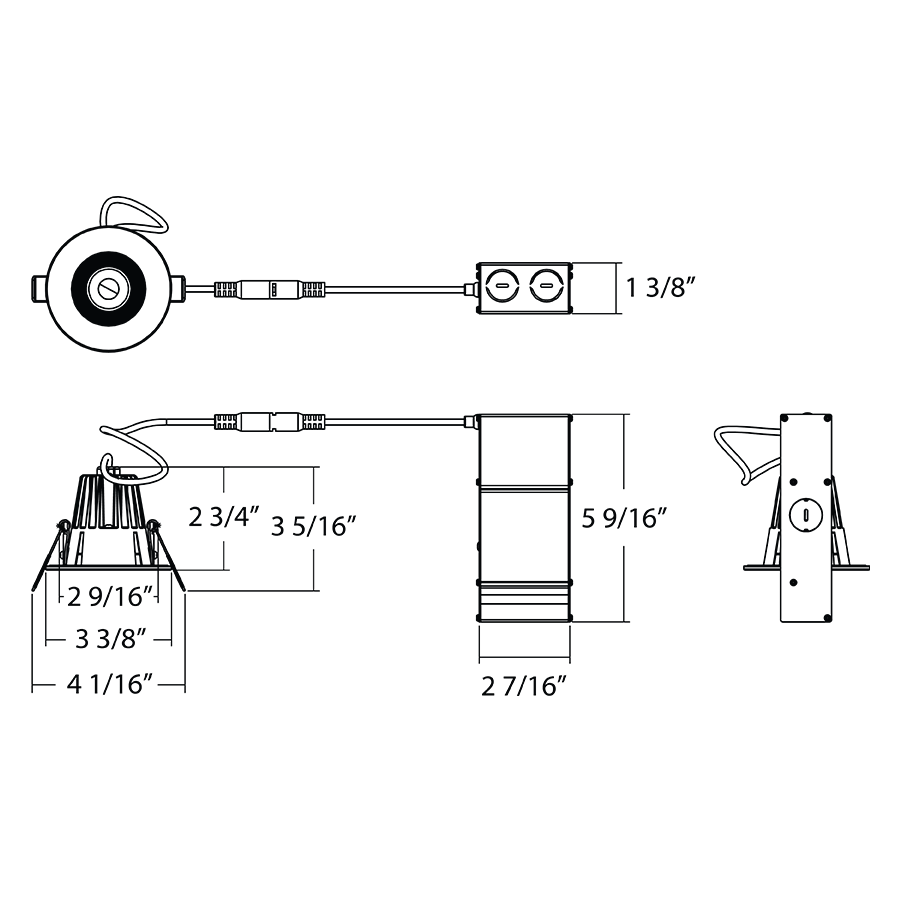

Mounting Robust retention clips spring loaded tabs ensure the fixture is securely installed. Can be installed in 1/4" to 1 1/2" thick ceilings
Remote Driver Die-cast metal driver / junction box with a hinged cover. Listed for 12AWG and 14AWG conduit. Includes two metal knockouts for wiring. Quick connectors included. Plenum rated cable connector to connect from module to remote driver box.
Additional Info
                                               Compliance
 Safety Listing UL Listed
 Environment/Fixture Rating Wet Location
T24 JA8 Compliant Yes
Lawful for sale in California Yes
IC Rated Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Compliant Yes
Air Tight Housing certified Air Tight as per ASTM E283
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
 Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -30°C to 40°C
Dimming TRIAC compatible dimmer with dimming as low as 5%


  Note All values are typical (tolerance +/- 10%)
