RAB Lighting

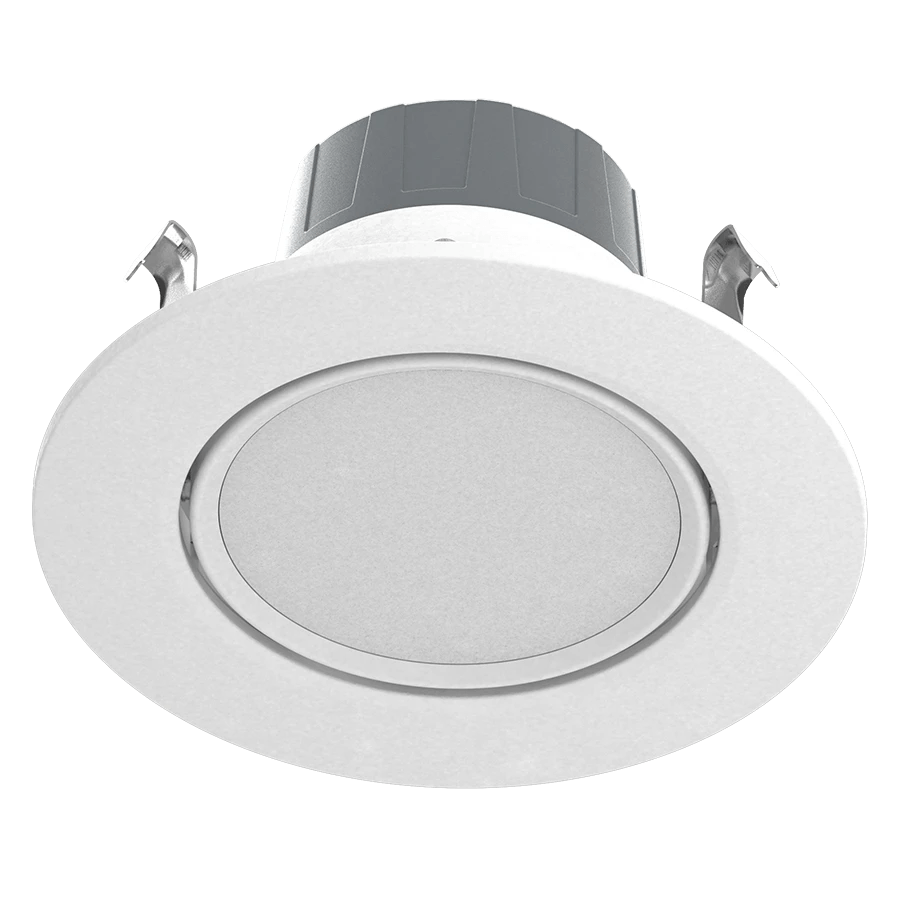

RAB 8W LED 4" Round Retrofit Downlight Adjustable Gimbal Selectable CCT

RAB 8W LED 4" Round Retrofit Downlight Adjustable Gimbal Selectable CCT

Regular price $27.80
Regular price Sale price $27.80
Sale Sold out
Shipping calculated at checkout.
Color Temperature

4" Retrofit Downlight Adjustable Gimbal - Field Adjustable

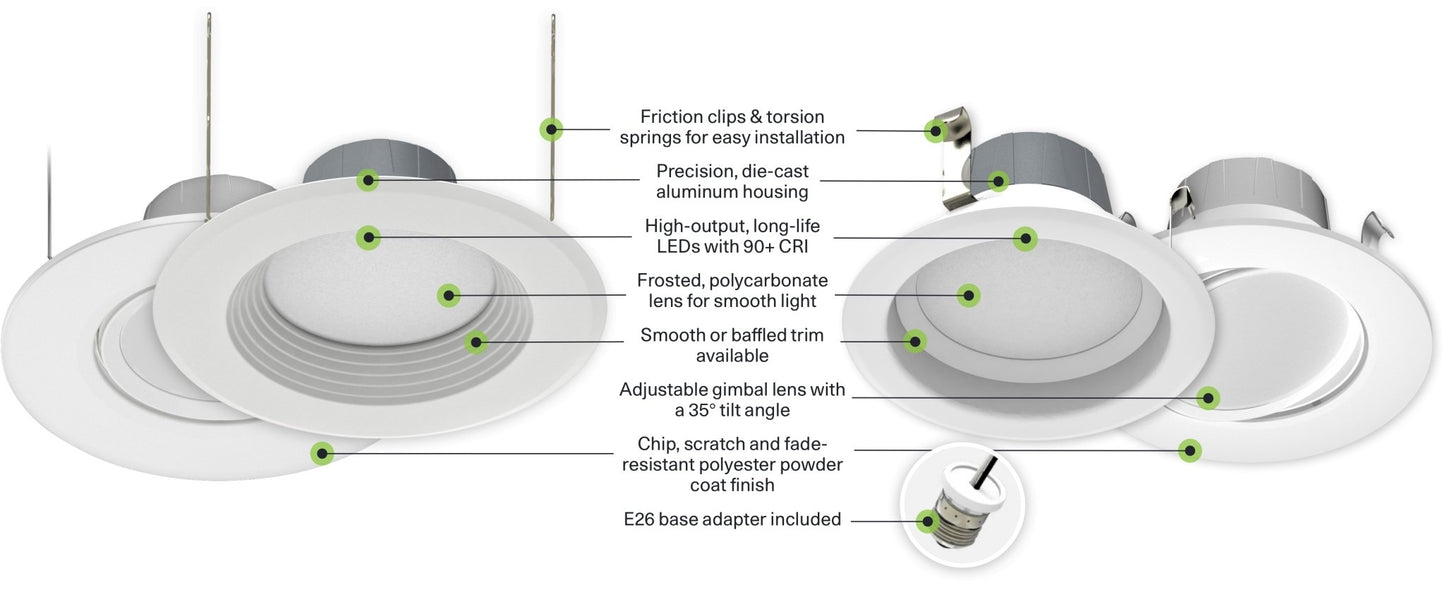

  • Adjustable gimbal lens with a 30 degree tilt angle
  • Use to replace up to 75W traditional light sources
  • Durable metal construction: dent and scratch resistant
  • UL wet location rated Compatible with most standard recessed housings
  • Dimmable down to 5% on compatible dimmers

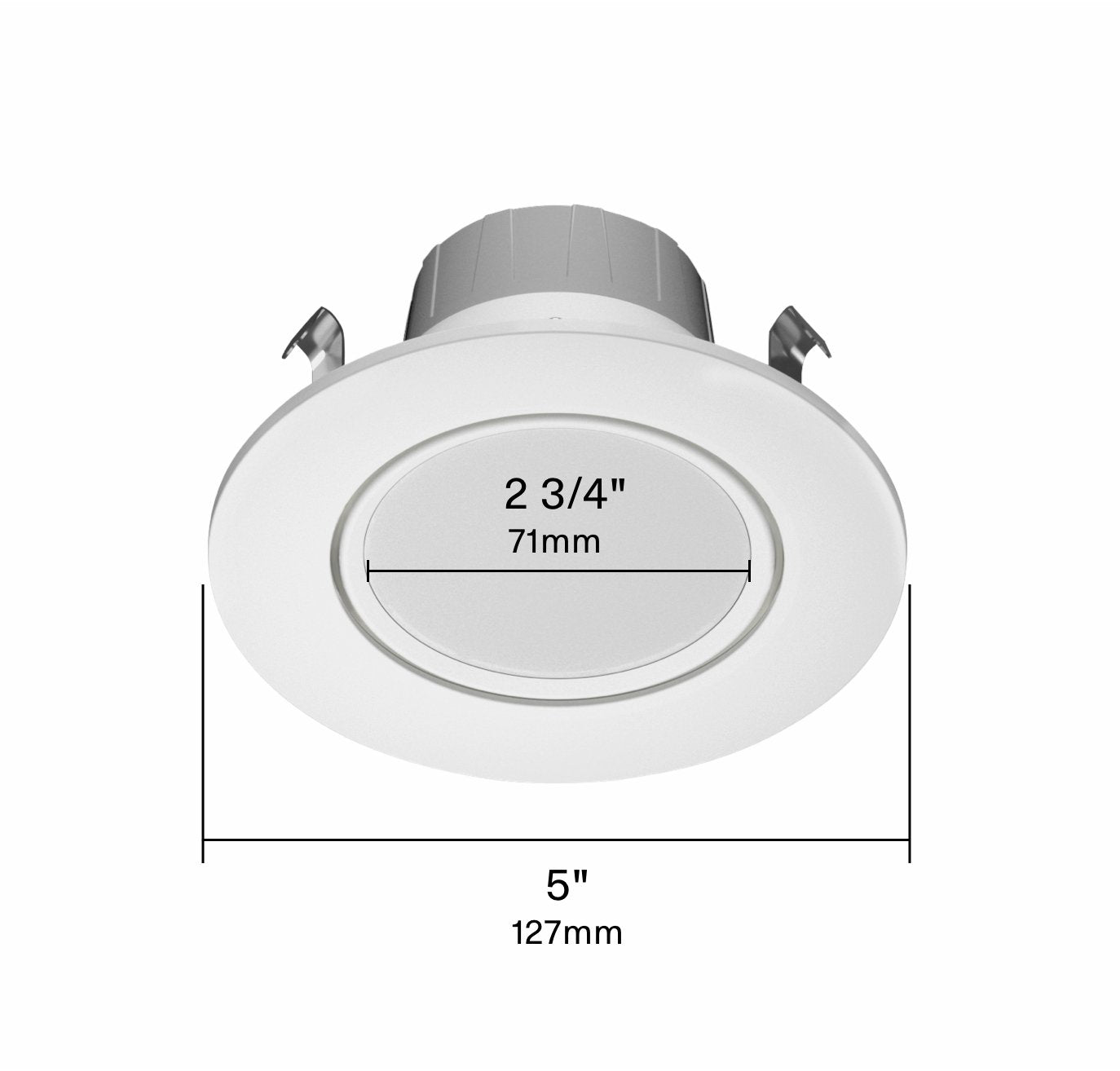

  • Available in Round 4" 700lm and 6" 750lm and 950lm
  • 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K
  • Color designer trims as optional accessories available
  • 5-Year, No-Compromise Warranty
Spec Sheets

Spec Sheet

Installation Instructions

Product Type  Retrofit Gimbal
Wattage 8W
Lumen 700
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Housing Material Constructed from durable steel sheet metal
Finish  White Trim
Style Smooth
LED Long-life, high-efficacy, surface-mount LEDs
Base Type
Beam Angle Adjustable Gimbal with 35° tilt angle
Lens Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution
Mounting Pre-installed friction clips are designed to fit 4" compatible recessed housings
Gaskets Achieve restrictive airflow requirements without additional caulking
Additional Info
 Safety Listing UL Listed
 Environment/Fixture Rating Wet Location
T24 JA8 Compliant Can be used to conform with the requirements of California Title 24 Part 6.
IC Rated Yes
Energy Star Compliant Yes
Air Tight Yes
FCC Complies with Part 15 of the FCC Rules
RoHS Mercury and UV free. RoHS-compliant components
THD ≤20%
 Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -30°C to 40°C
Dimming TRIAC and ELV (at 120V only)

View full details
