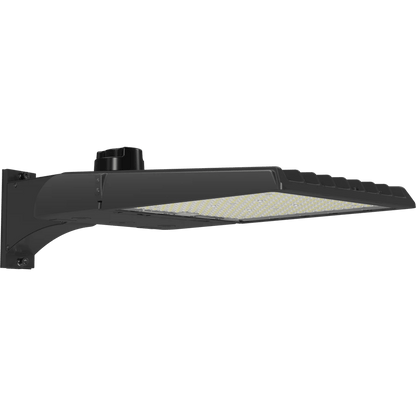

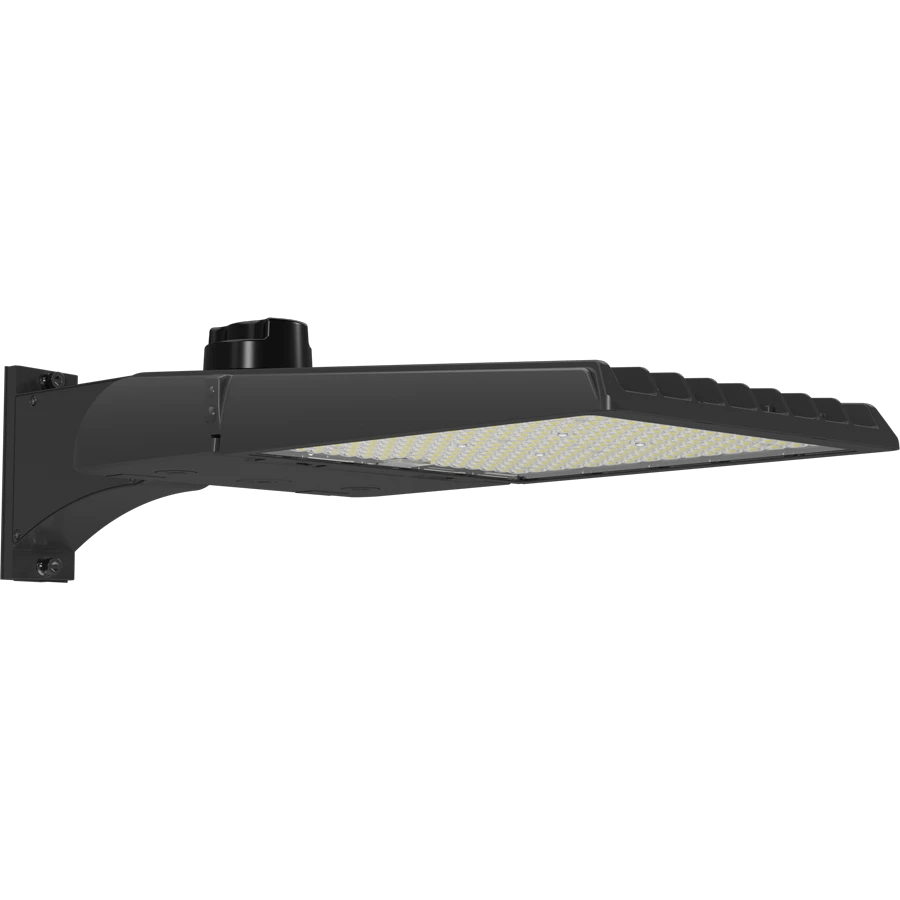

RAB AL22-150 150W Area Light Adjustable Throw + Selectable Wattage

$308.00

Sale Sold out

Shipping calculated at checkout.

Color: Bronze

Color Temperature Selectable CCT

Distribution Adjustable Throw

Quantity

RAB AL22 300W Field/Throw Adjustable Area Light

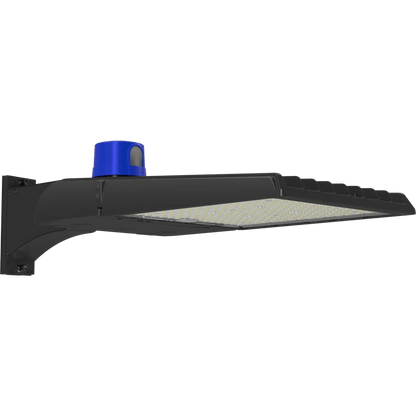

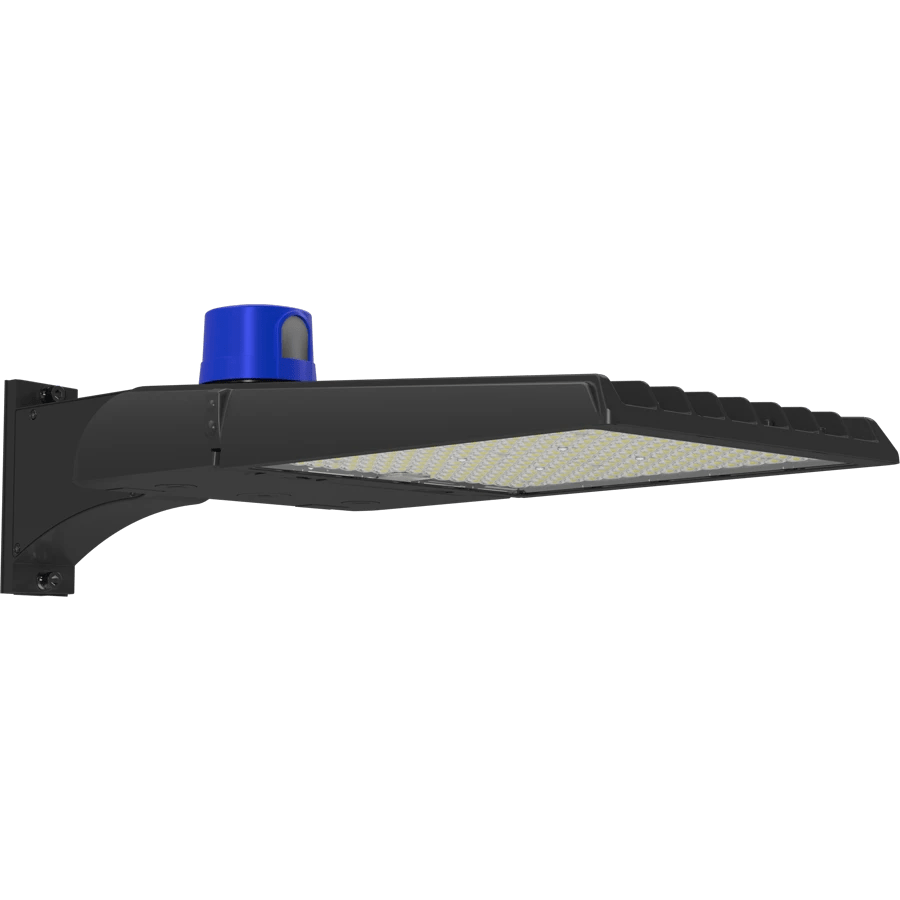

This versatile RAB AL22-150 area light offers adjustable throw angles and selectable wattages of 80W, 100W, or 150W, providing tailored illumination for various outdoor spaces. Choose from 3000K, 4000K, or 5000K color temperatures and three distribution types (III, IV, V) to perfectly suit roadway, parking lots, or perimeter lighting needs. With a durable die-cast aluminum housing, IP65 rating, and a 100,000-hour lifespan, it ensures reliable performance. Integrated dimming, surge protection, and wireless control compatibility make it a smart, energy-efficient solution for any large outdoor lighting application.

Field-adjustable optics and wattage
IP66 rated for weather resistance
Smart controls available for enhanced functionality
Designed to minimize light pollution
5-year limited warranty with a 100,000-hour LED lifespan

Info

Product Type	Throw, CCT, Wattage Adjustable Area Light

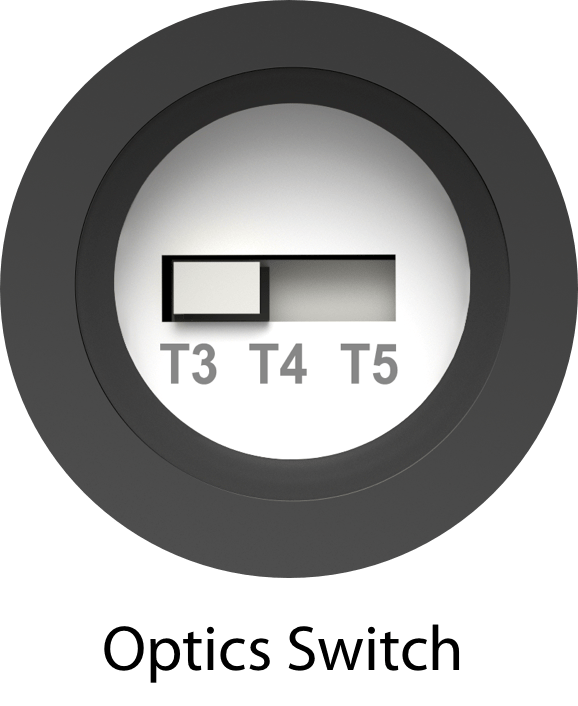

Field Adjustability	Field Adjustable Light Output: 150W/100W/80W (factory default 150W) CCT selectable by 30K/40K/50K (factory default 40K) Distribution selectable by Type III, Type IV, and Type V (factory default Type III)
Wattage	150W/100W/80W
Lumen	12720-22951 lm
Efficacy	138.6-170.2 lm/W
Color Temp.	3000K/4000K/5000K
CRI	83-86 CRI
L70 Lifespan	100,000 Hours
Housing	Precision die-cast aluminum

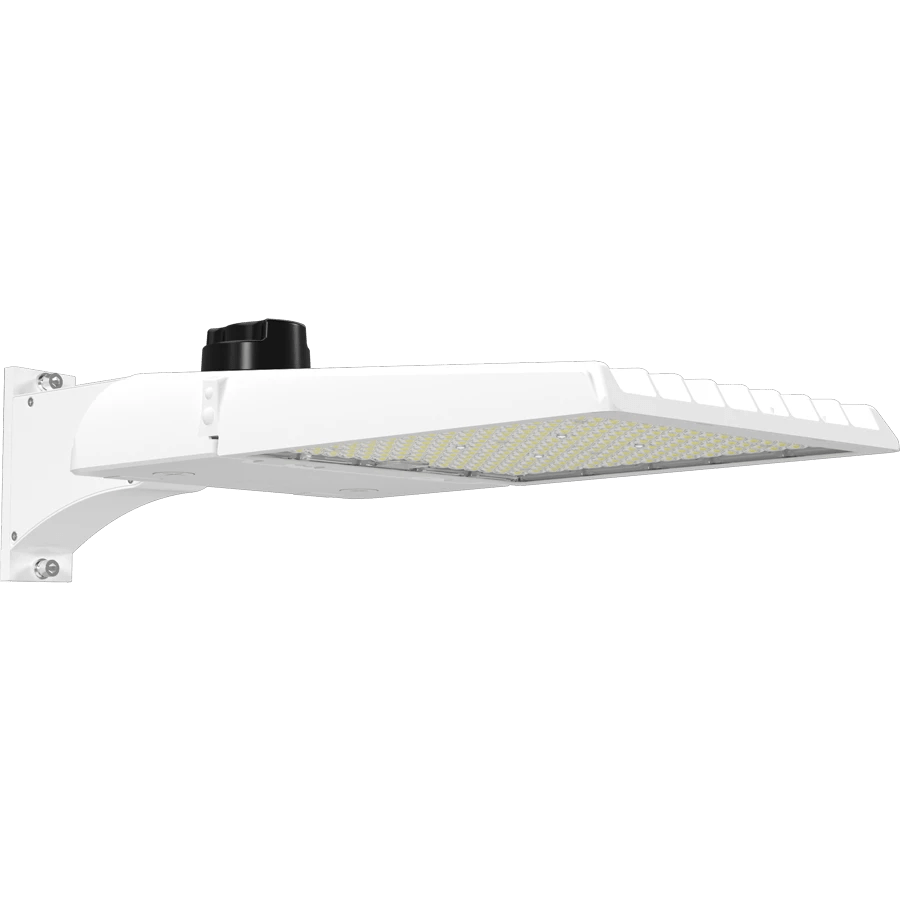

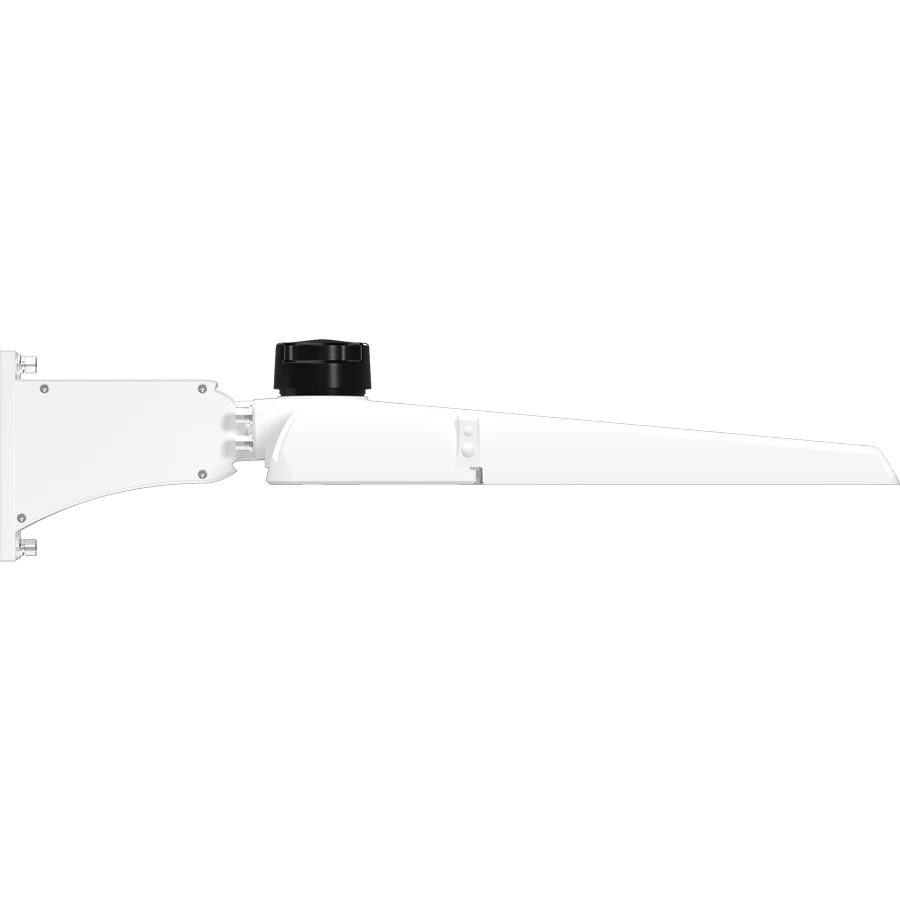

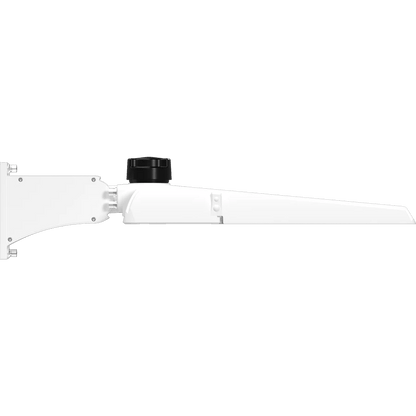

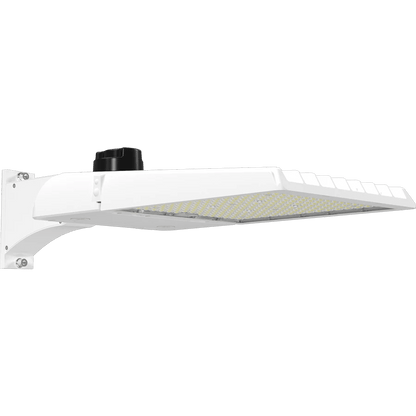

Finish	Bronze \| White
Vibration Rating	3G vibration rating per ANSI C136.31
Lens	Clear polycarbonate lens
Beam Angle	Type III/IV/V Distribution Adjustable:
IP Rating	Ingress protection rating of IP65 for dust and water

Additional Info

Driver	Constant Current, Class1, 120-277V, 50/60 Hz: 150W: 120V: 1.30A, 208V: 0.80A, 240V: 0.70A, 277V 0.60A 100W: 120V: 0.90A, 208V: 0.50A, 240V: 0.45A, 277V 0.40A 80W: 120V: 0.70A, 208V: 0.40A, 240V: 0.35A, 277V 0.30A
Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	5.6% at120V, 11.5% at 277V
Power Factor	99.8% at 120V, 96.4% at 277V
Aux Power Supply	Yes
Dim to Off	Yes
Surge Protection	L/N-PE: 6 kV, L-N: 6 kV
7-Pin Receptacle with Shorting Cap	ANSI C136.41 7-pin receptacle, compatible with wireless control systems
Photocell	120V-277V 3-Pin Twistlock photocell included. Photocell is compatible with 120V - 277V.

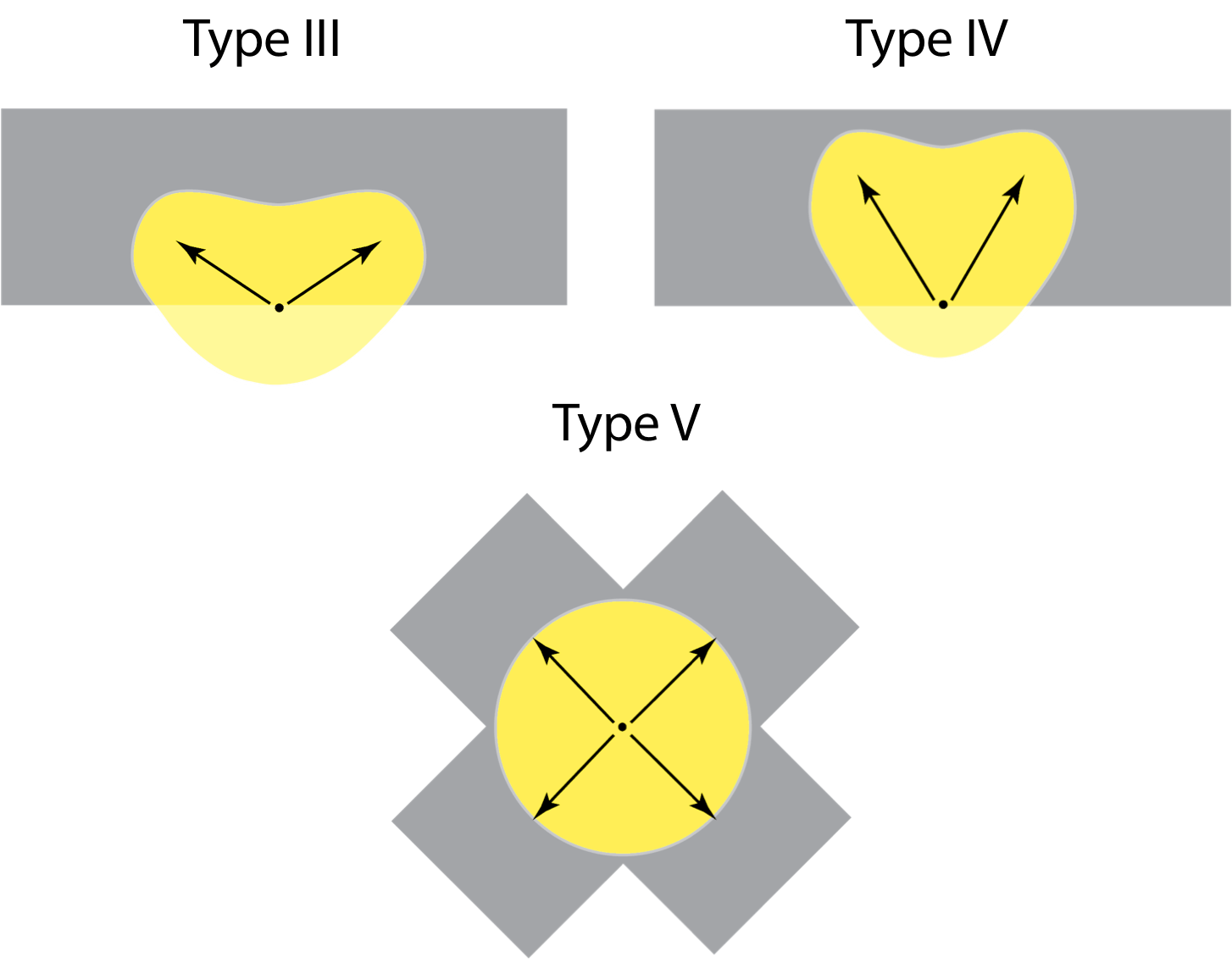

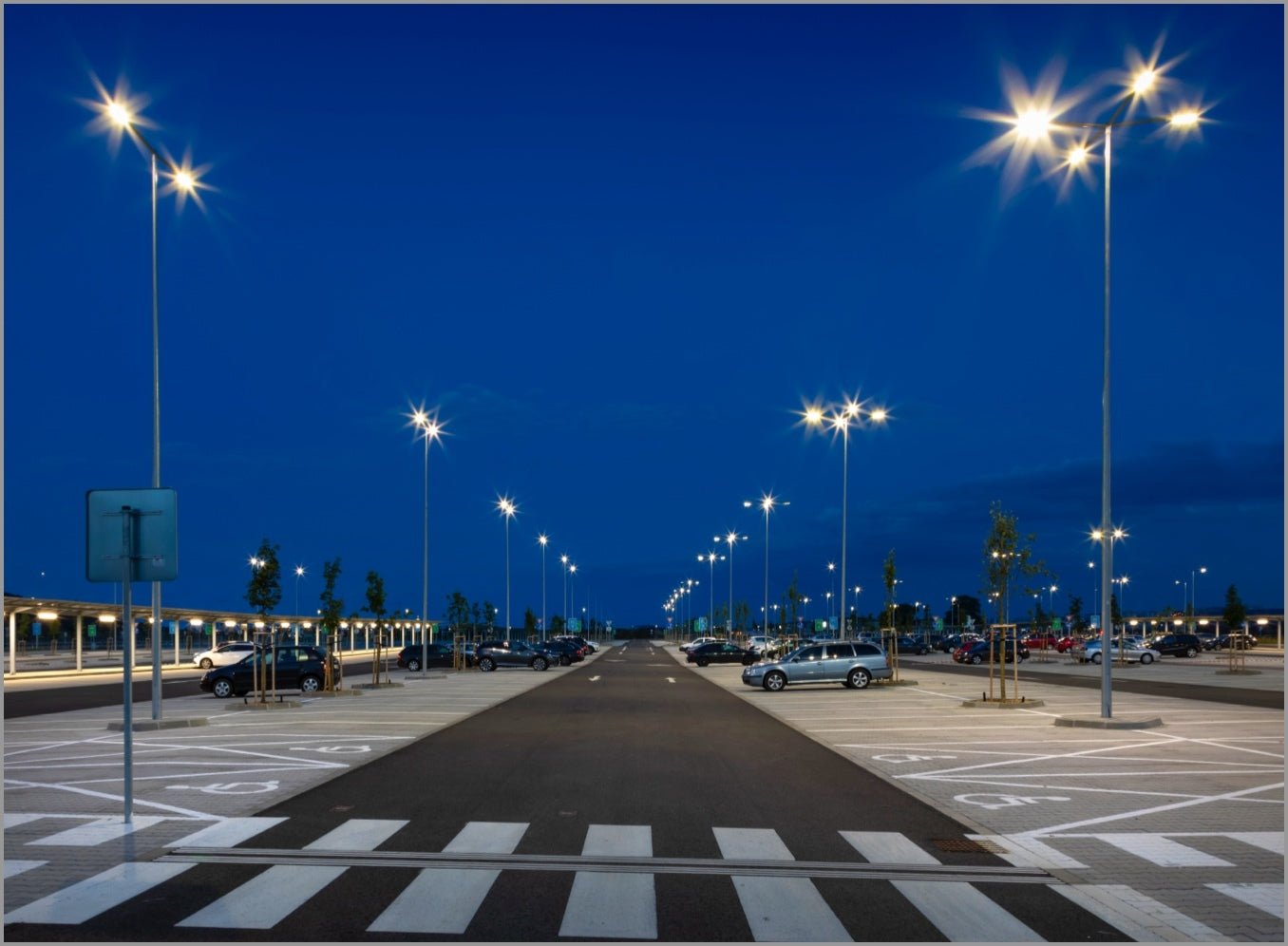

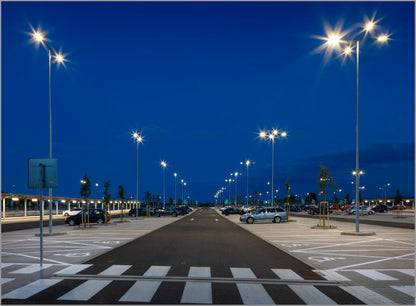

IES Classification	Type III/IV/V Distribution Adjustable: The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area. The Type IV distribution (also known as a Forward Throw) is especially suited for illuminating the perimeter of parking areas and for intersections. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°. The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings
