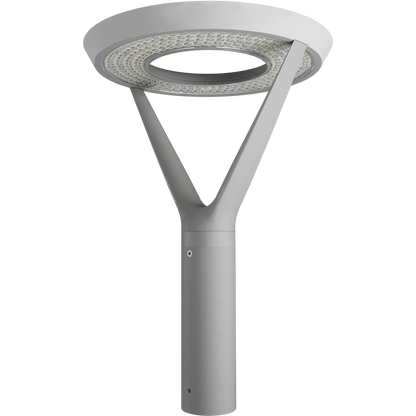

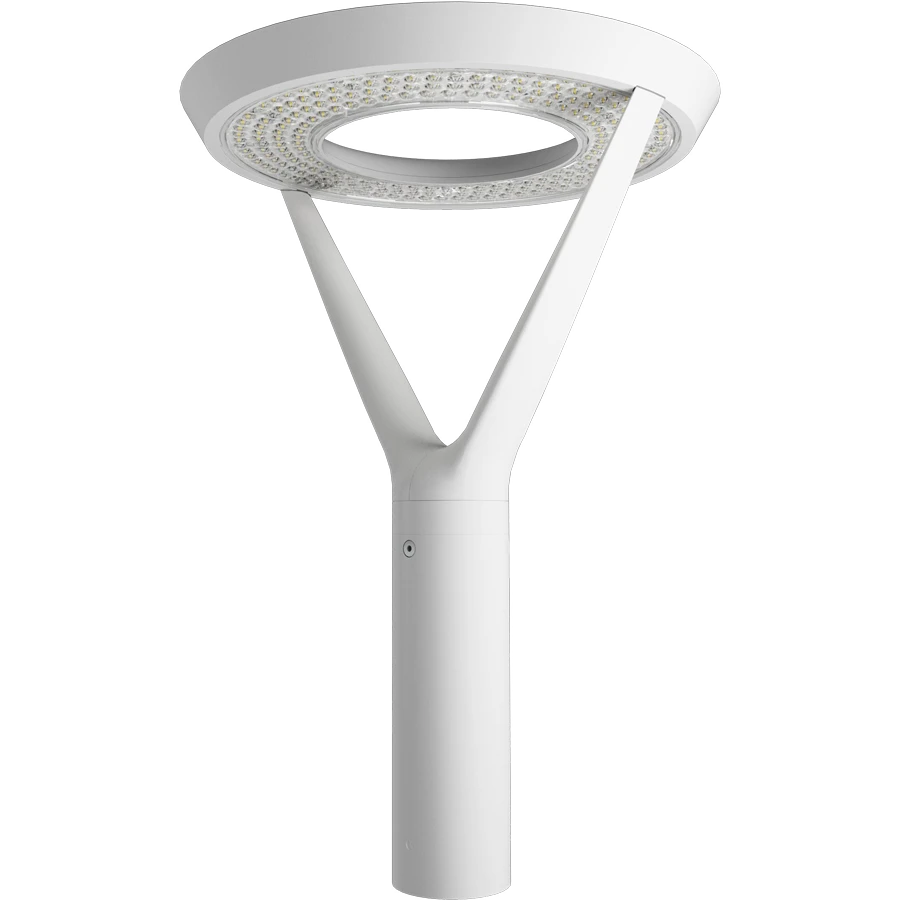

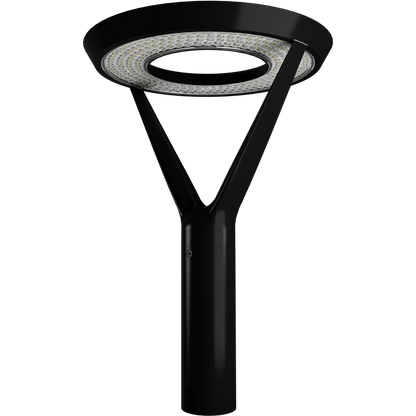

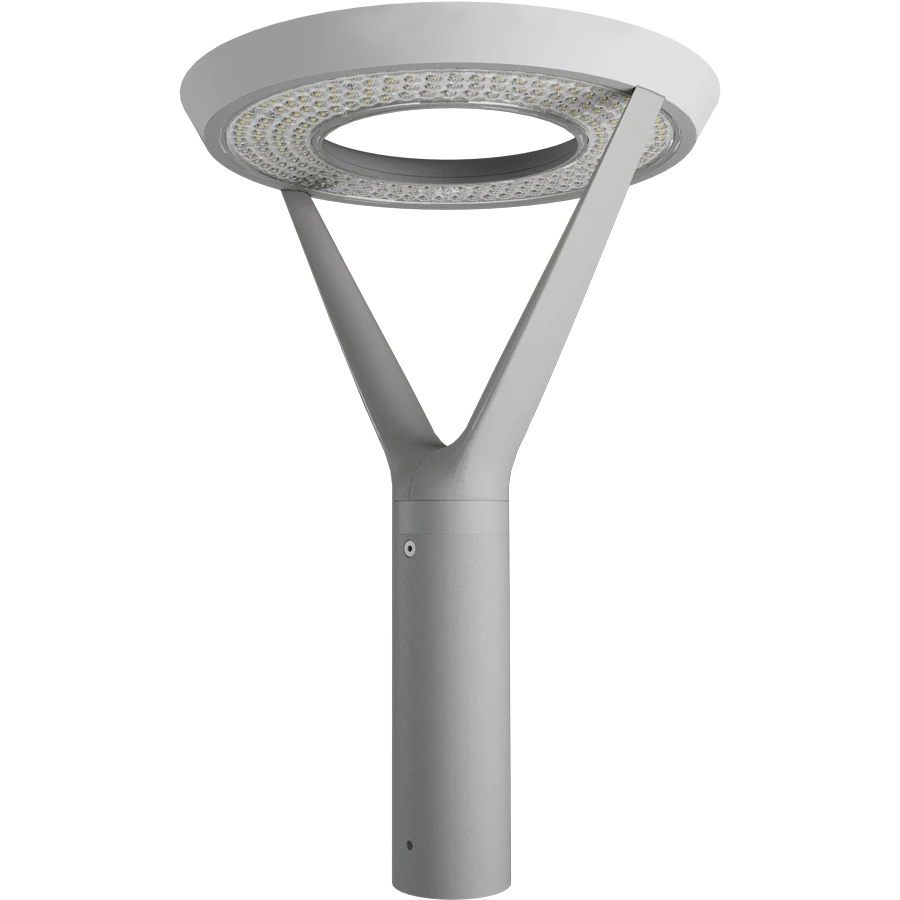

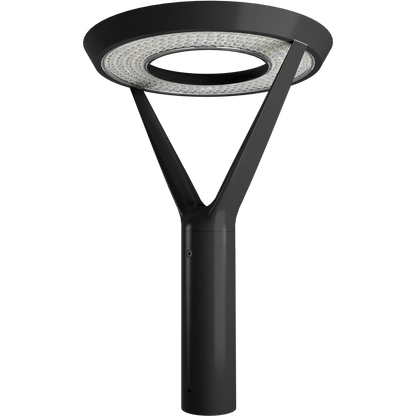

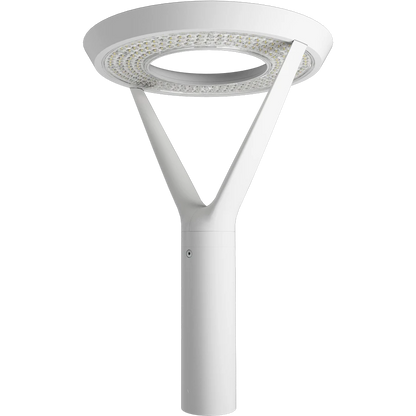

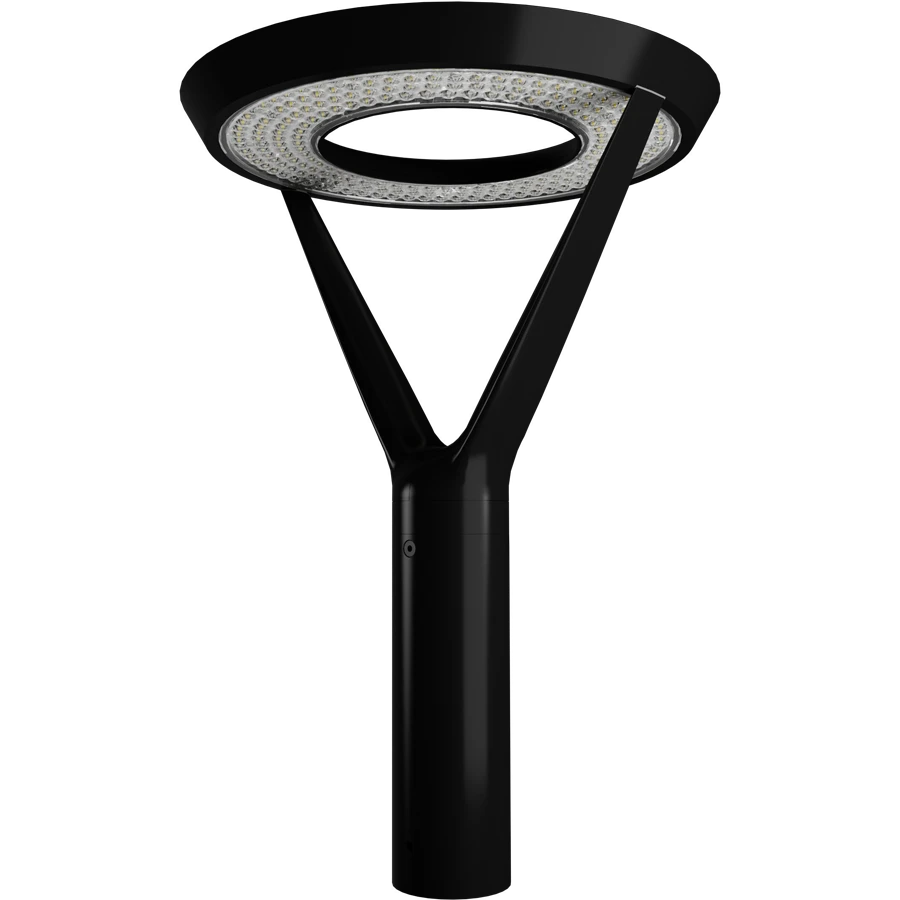

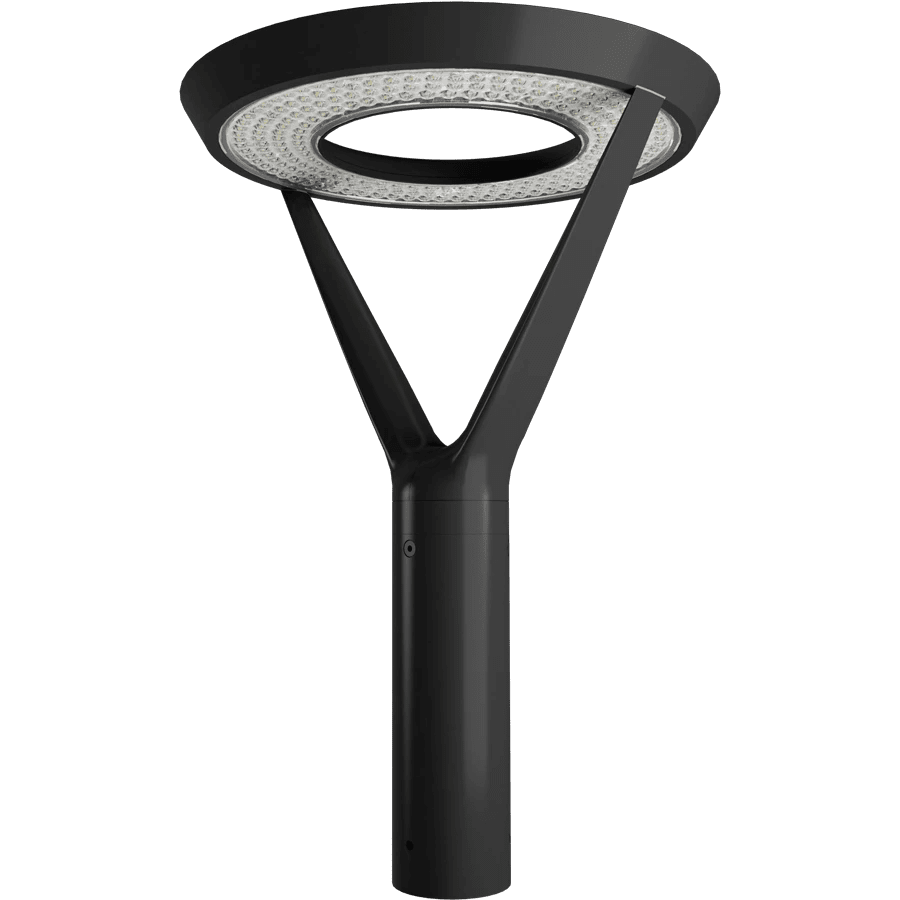

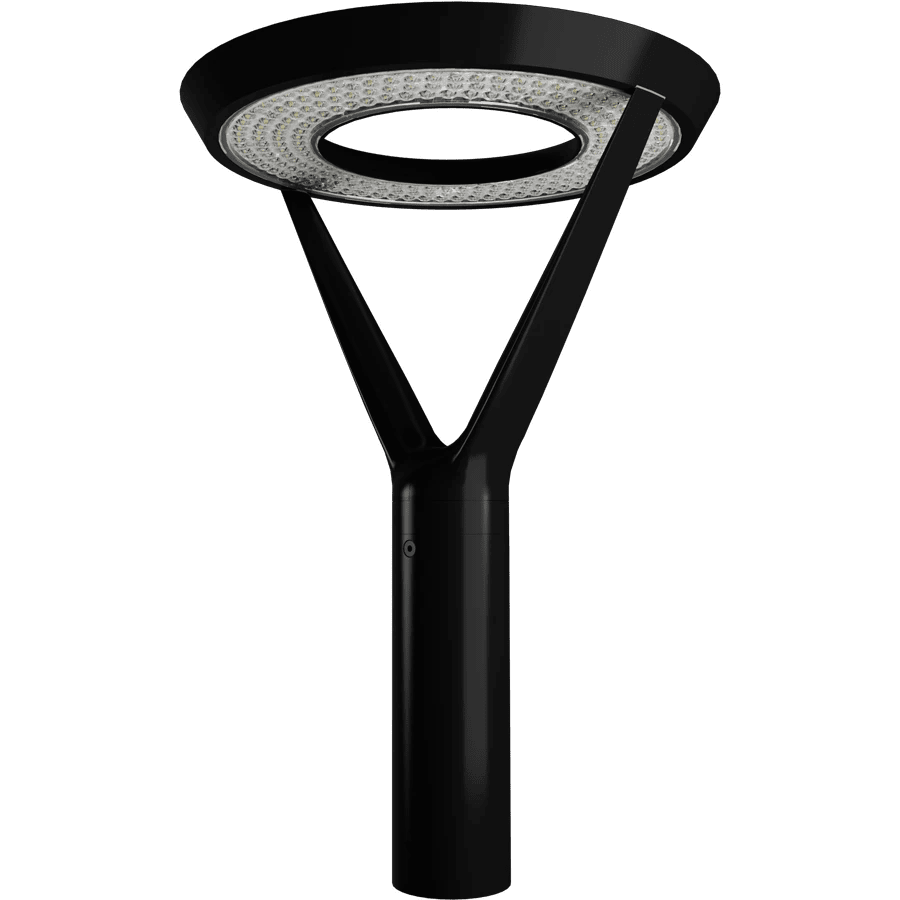

RAB AL5 120W Post Top Area Light Selectable CCT + Wattage

$428.00

Sale Sold out

Shipping calculated at checkout.

Color: Bronze

Wattage 120W

Color Temperature Selectable CCT

AL5 120W Post Top Light

The RAB AL5 Field-Adjustable LED Area Light delivers powerful, energy-efficient outdoor illumination with the flexibility to adapt to virtually any commercial application. Available in both round (AL5) and square (AL5S) designs, this architectural area light features field-selectable wattages (30W, 60W, or 120W) and adjustable color temperatures (3000K, 4000K, or 5000K), allowing installers to customize light output without changing fixtures.

Designed for parking lots, campuses, pathways, and other outdoor spaces, the AL5 provides a Type V wide distribution for uniform 360° illumination, delivering up to 18,224 lumens with efficacy reaching 161.7 lm/W. Its rugged die-cast aluminum housing, IP65 wet-location rating, 100,000-hour LED lifespan, and 5-year warranty ensure dependable long-term performance.

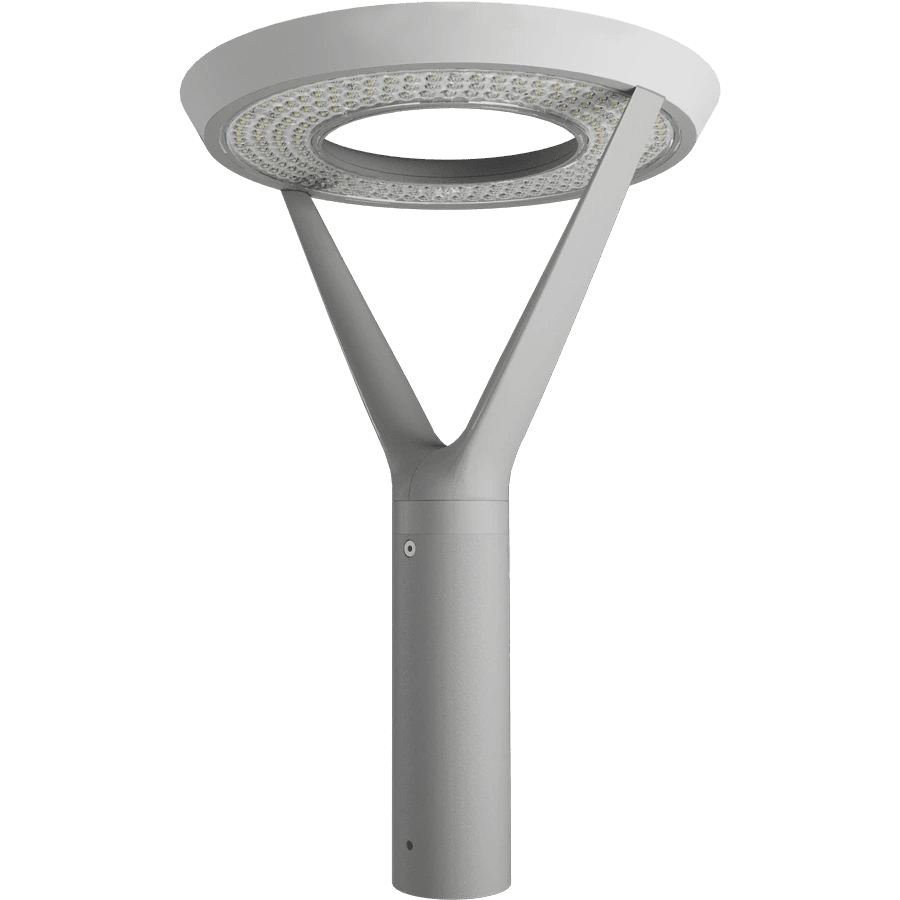

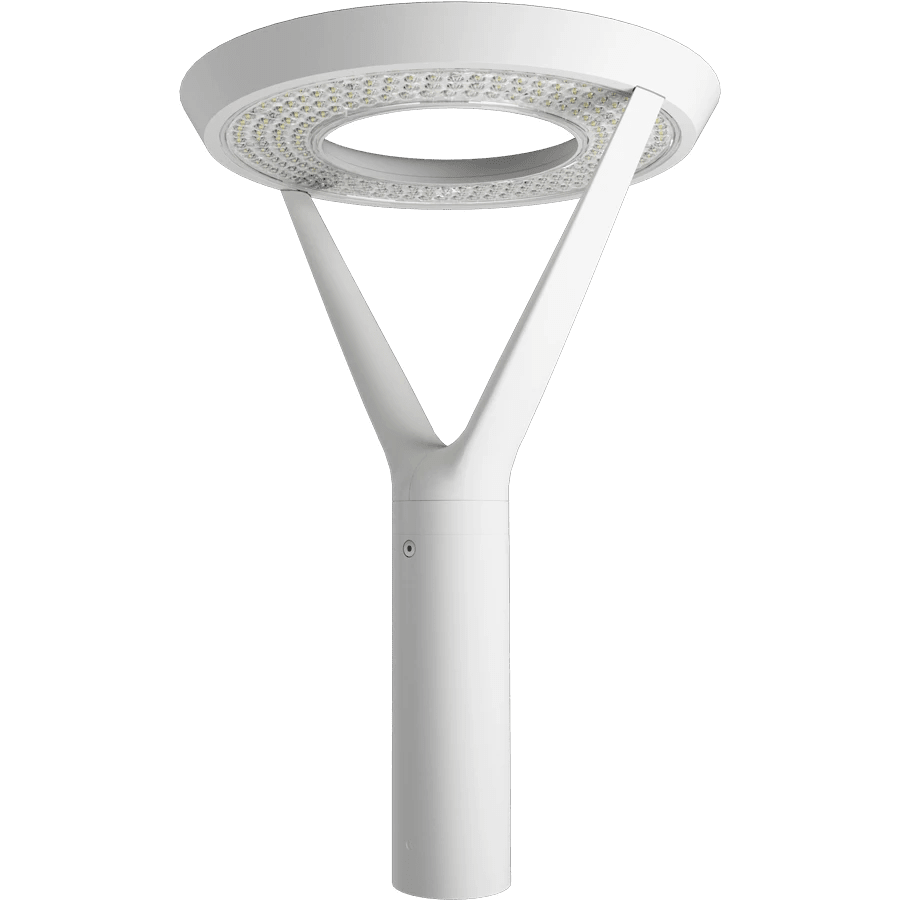

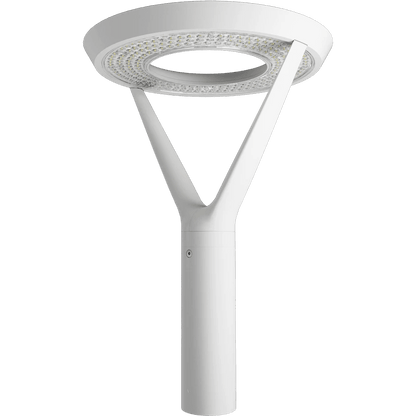

Additional features include 0-10V dimming, optional 120-277V or 480V operation, sensor-ready models compatible with twist-lock photocells or motion sensors, and multiple finish options including bronze, black, white, and roadway gray.

Field-adjustable 30W / 60W / 120W wattage
Selectable 3000K / 4000K / 5000K color temperature
Available in round (AL5) and square (AL5S) housing styles
Up to 18,224 lumens
High efficacy up to 161.7 lm/W
Type V wide light distribution
120-277V and 480V models available
0-10V dimming standard
Sensor-ready options for photocells and occupancy sensors
IP65 rated for wet locations
100,000-hour rated LED lifespan
5-year manufacturer warranty

Info

Product	Field Adjustable Post Top Area Light
Watts	120/60/30W (factory default 60W)
Color Temp	3000K/4000K/5000K (factory default 4000K)
Lumens	4575-17208 lm
Efficacy	136.5-159.4 lm/W
Color Accuracy	83-86 CRI
L70 Lifespan	100,000 Hours
Aux Power Supply	Yes
Dim to Off	Yes
Effective Projected Area (EPA)	Effective Projected Area (EPA)
Housing	Die-cast aluminum
Reflector	White Polyethylene Terephthalate (PET)
Lens	Frosted polycarbonate lens
Gaskets	Ethylene Propylene Diene Monomer (EPDM)
Vibration Rating	3G vibration rating per ANSI C136.31
Shape	Round
Finish	Formulated for high durability and long-lasting color

Additional Info

Compliance

UL Listed	Suitable for wet locations
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed	This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PXFTQ735
Dark Sky Conformance	Conforms to (allows for conformance to) the requirements for the IDA's "Fixture Seal of Approval" as of March 1, 2016

Electrical

Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD	6% at 120V, 11.3% at 277V
BUG Rating	B1 U0 G2
