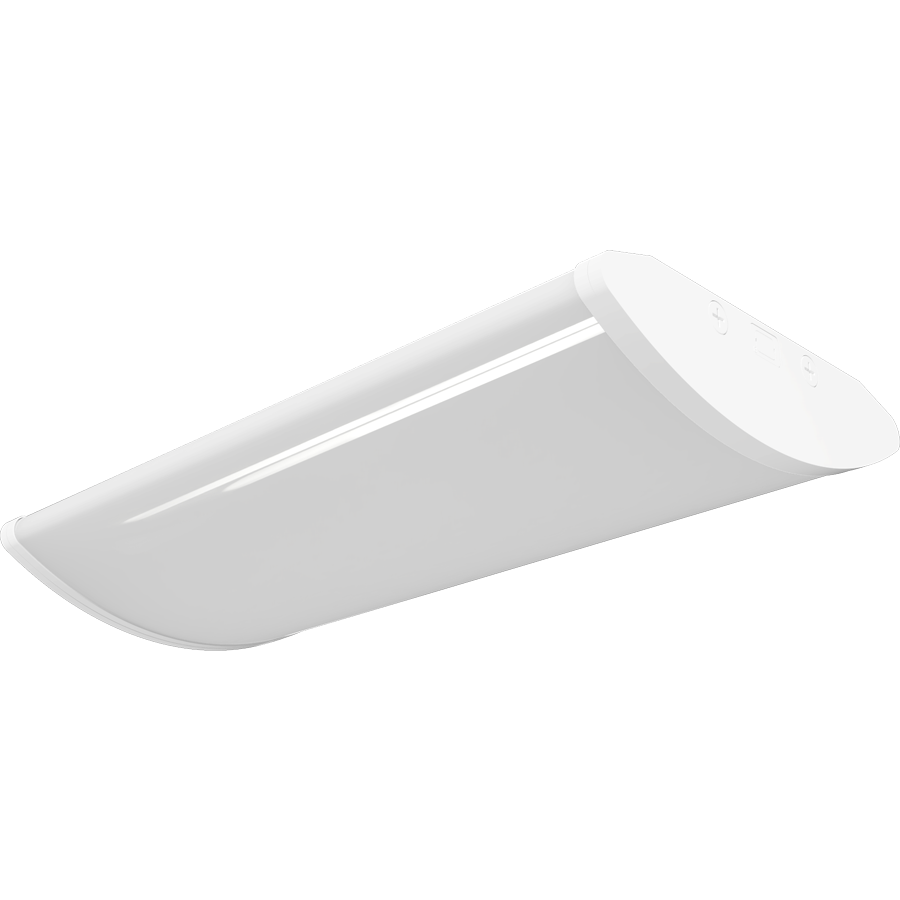

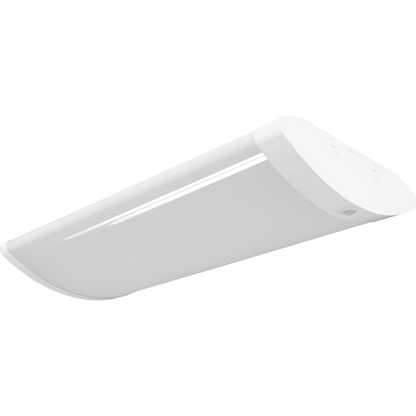

ALBERT Two-Foot Field-Adjustable LED Wraparound Light

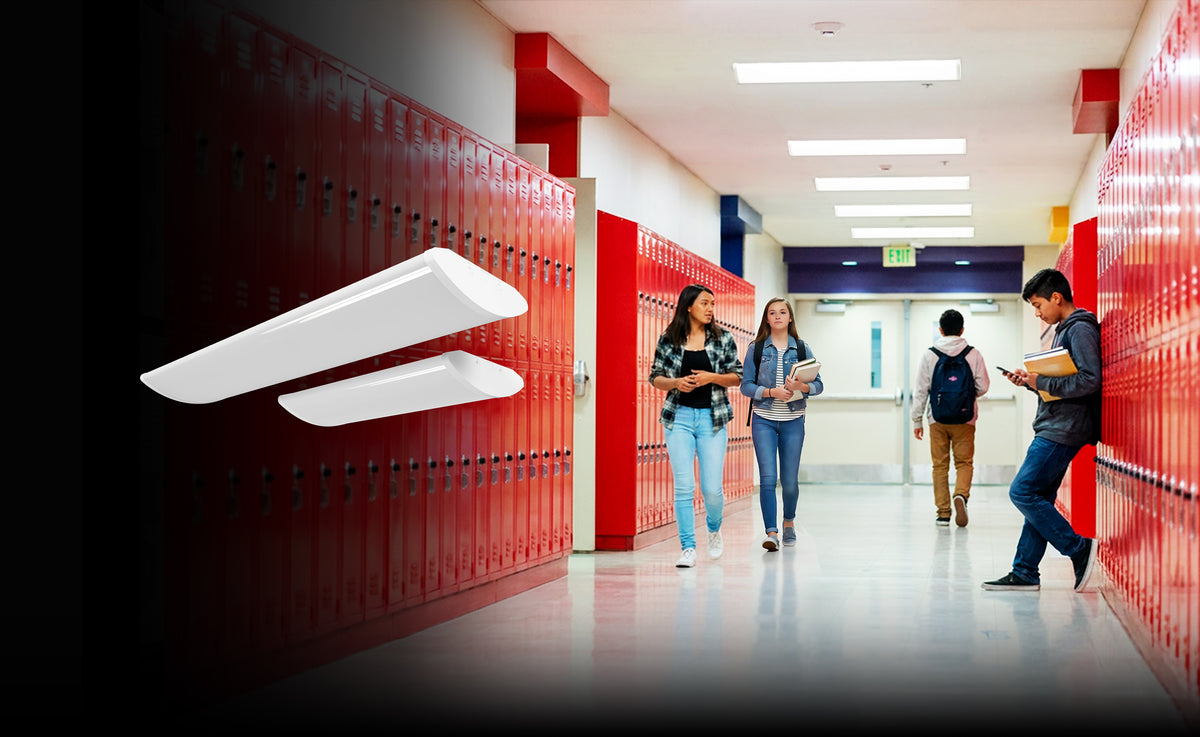

RAB ALBERT pairs a wide, low-profile body with field-adjustable output for corridors, offices and utility spaces. Its white steel housing and frosted polycarbonate lens spread light across the room while the hinged lens opens for access during mounting and wiring. Select 25W, 20W or 15W and choose the color temperature on site.

• Selectable CCT: 30K, 35K, 40K, 50K or 65K; factory set to 40K.
• 25/20/15W selectable output; factory set to 25W. Light output ranges from 2,322 to 3,601 lumens.
• 120-277V input with 0-10V dimming.

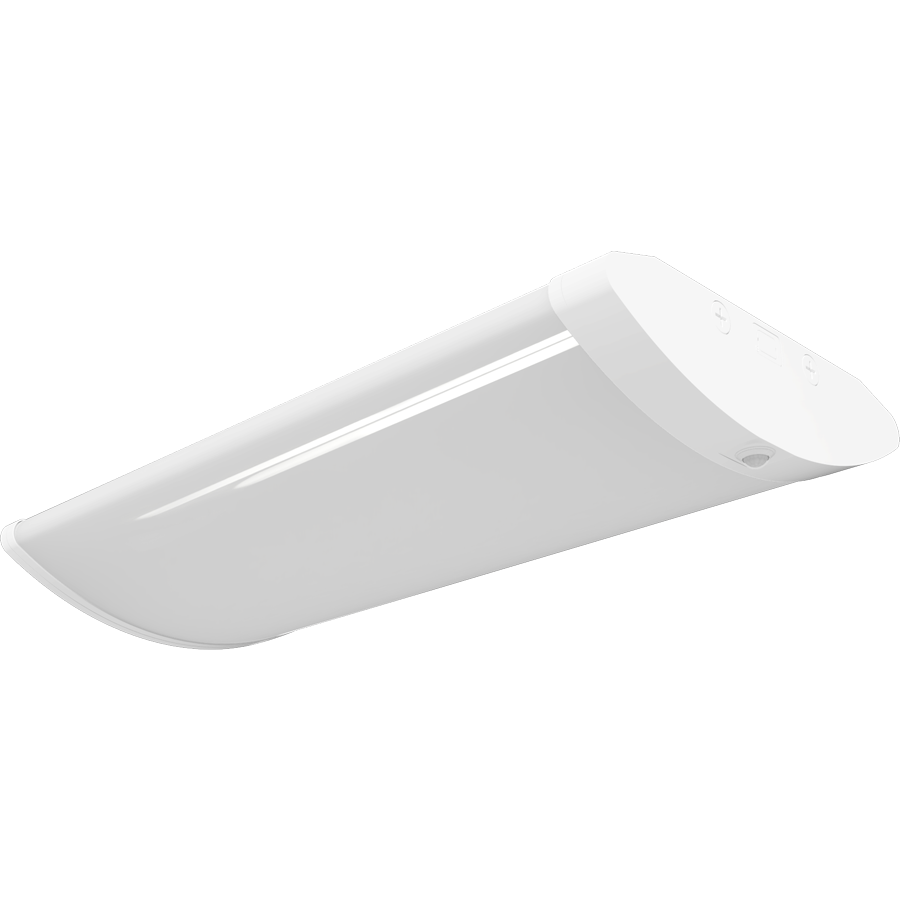

• Choose no sensor, an integrated microwave occupancy sensor (MVS) or a passive infrared sensor (PIR). No Lightcloud Blue connectivity is included in these variants.
• Emergency battery backup is available on the no-sensor model and provides at least 90 minutes of reduced illumination when normal power fails.
• Surface mounting standard. V-hook/chain kit and continuous-run join kit are sold separately.
• 6-pin connector for daisy chaining; up to 16 ALB2 fixtures in a continuous run per the installation instructions.
• UL Listed for dry and damp locations; 80+ CRI and 100,000-hour L70 LED lifespan.
• RAB 5-year limited warranty, subject to manufacturer terms.

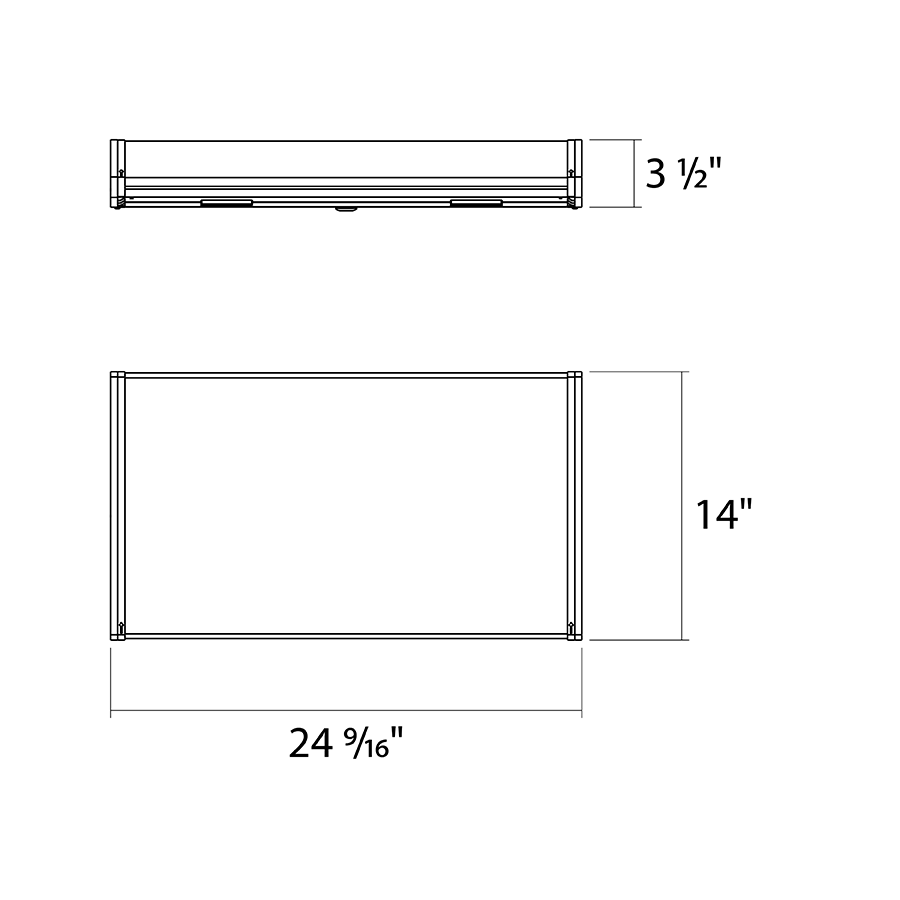

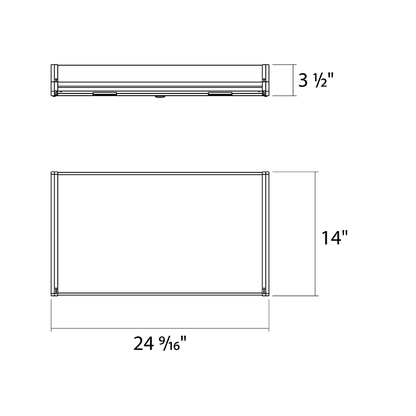

Dimensions: 24 9/16" L x 14" W x 3 1/2" H.

Sensor setup: The optional non-networked MVS or PIR sensor is configured with the MSR1 remote, sold separately. Emergency models require an unswitched AC power source.
