RAB Lighting

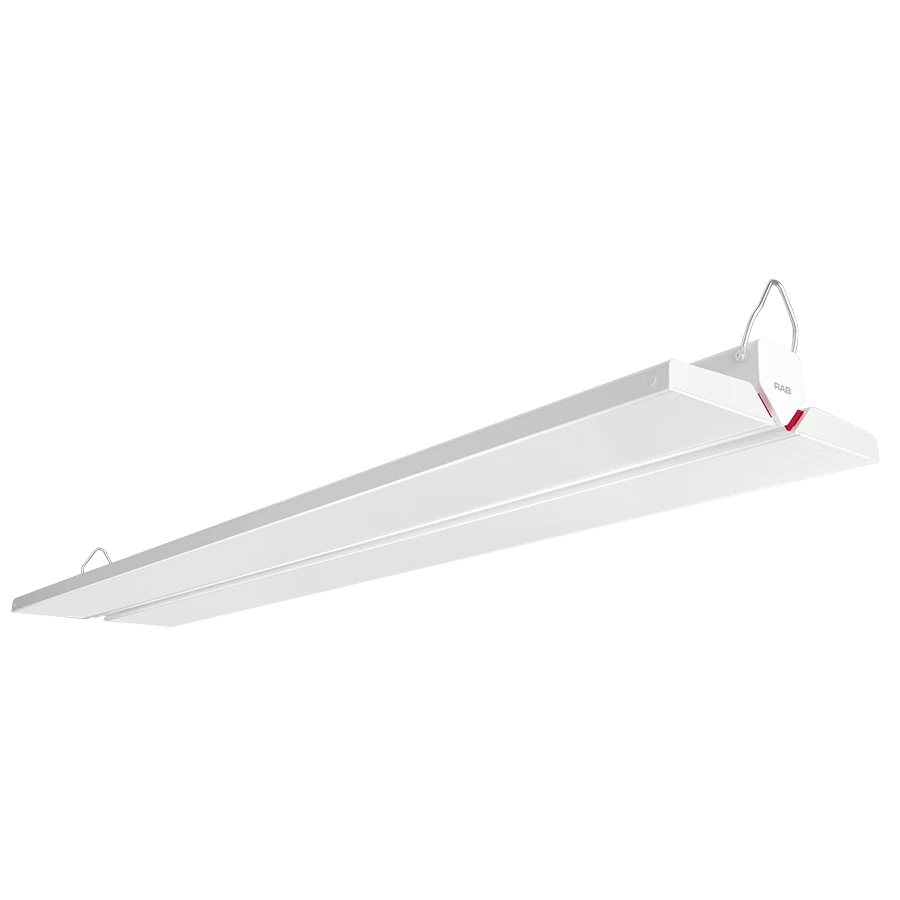

RAB ARL 360W 4' AEROBAY Linear High Bay Selectable CCT/Wattage
RAB ARL 360W 4' AEROBAY Linear High Bay Selectable CCT/Wattage
Regular price
$185.00
Regular price
Sale price
$185.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
ARL Aerobay 4FT 360W Hi-Bay Warehouse Light
The AEROBAY offers incredible versatility with options for 4 different sizes, adjustable power and CCT. Perfect for industrial settings, these lights can replace up to 750W MH and can be mounted as high as 50 feet. With an impact-resistant lens, no additional wire guards are necessary. Integrated battery backup is available for standard 120-277V models in case of power loss. Though V-hooks are standard, pendant mount kits can also be used with all models (pendant by others). Carefully select your mounting option when ordering to ensure compatibility.
- Available in following power selectable wattages/sizes:
ARL: 360W/270W/180W (4') - Default 360W
- Adjustable CCT: 4000K/5000K - Default CCT: 4000K
- Voltage rating: 120-277V. 480V available.
- Available with smart control
- Battery backup available
- Pendant mounting kits available for the fixtures and for the battery backup
- 5-year, no compromise warranty
Spec Sheet
Spec Sheet
Family Spec Sheet
Installation Instructions
Sell Sheet
Info
| Product Type | Hi-Bay Lighting |
| Wattage | 180/270/360W |
| Lumen | 27,222-49,779 lm |
| Efficacy | 137.2-155.6 lm/W |
| Color Temp. | 4000K/5000K |
| CRI | 83-86 CRI |
| L70 Lifespan | 100,000 Hours |
| LED's | Long-life, high-efficacy, discrete, surface-mount LEDs |
| Housing | Aluminum |
| Finish | Formulated for high durability and long-lasting color |
| Mounting | Comes standard with V-hooks for chain mounting. Accessories available for pendant and surface mounting (purchased separately). |
| Lens | Polycarbonate lens |
| Reflector |
Polyethylene Terephthalate (PET) |
Additional Info
| Dimming Driver |
100% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.98A, 208V: 1.73A, 208V: 1.50A, 277V: 1.27A 75% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.12A, 208V: 1.30A, 208V: 1.13A, 277V: 0.94A 50% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.52A, 208V: 0.87A, 208V: 0.75A, 277V: 0.70A |
| THD | 9.78% at 120V, 7.98% at 277V |
| Power Factor | 99.5% at 120V, 96.5% at 277V |
| Surge Protection | 6kV |
