RAB ARM 275W 3' AEROBAY Linear High Bay Selectable CCT/Wattage
RAB ARM 275W 3' AEROBAY Linear High Bay Selectable CCT/Wattage
Regular price
$370.00
Regular price
Sale price
$370.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

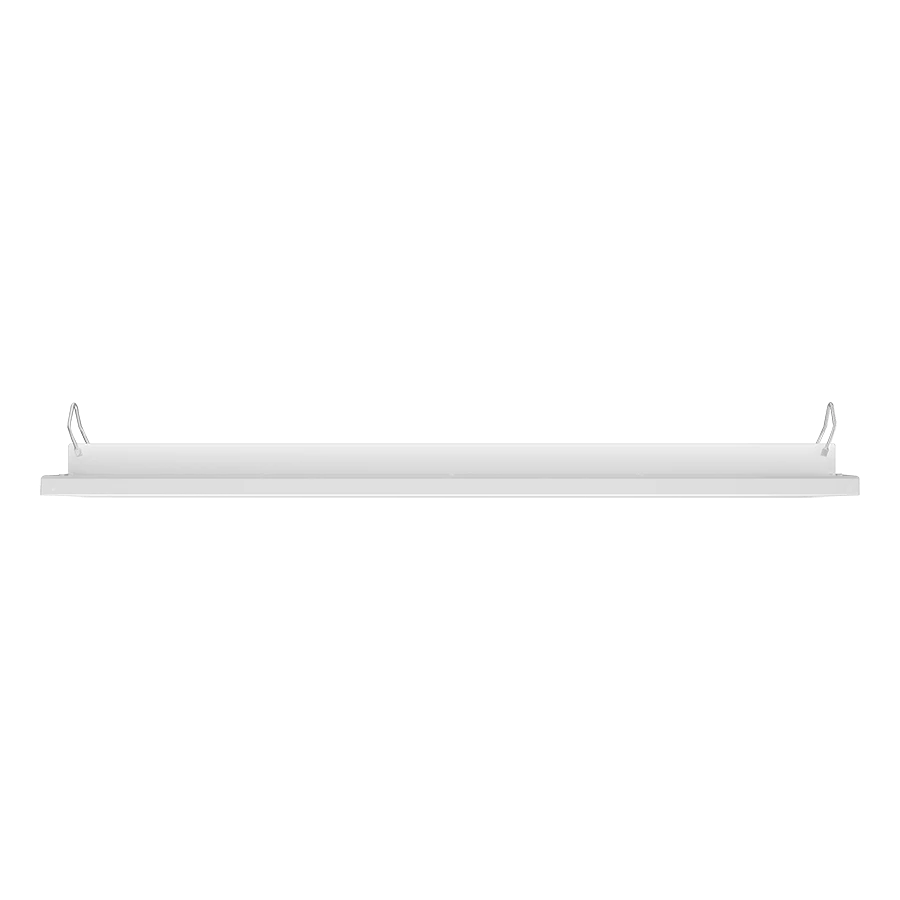

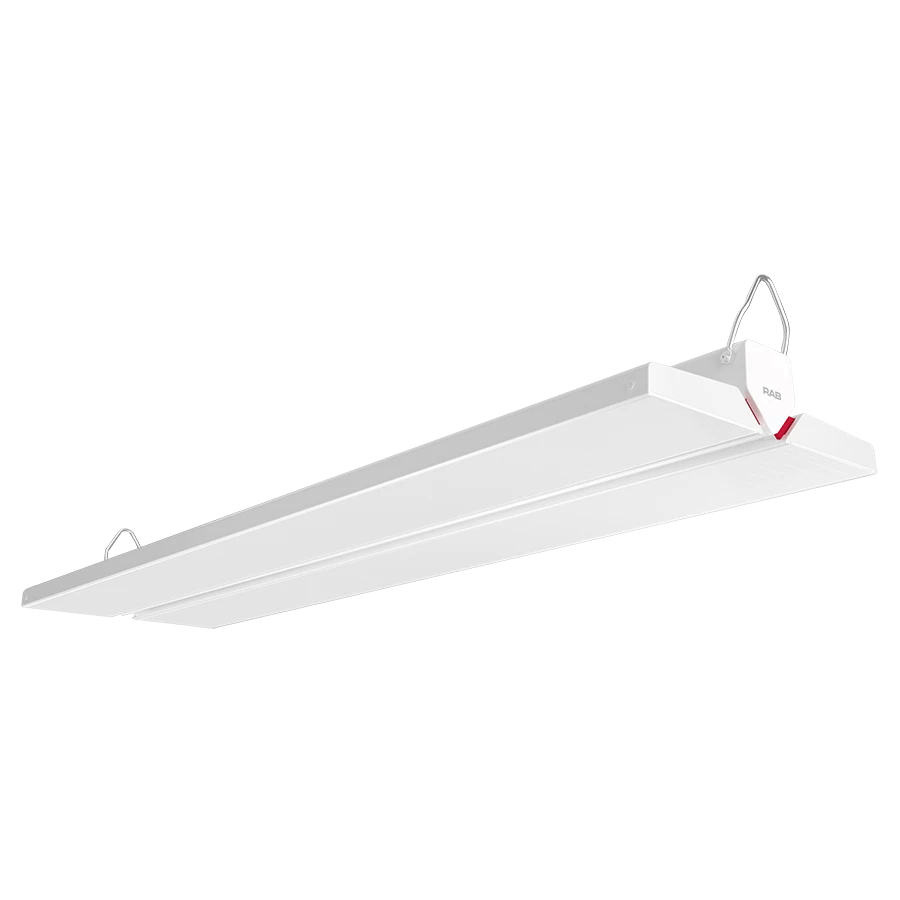

ARM Aerobay 3FT 275W Hi-Bay Warehouse Light
The AEROBAY offers incredible versatility with options for 4 different sizes, adjustable power and CCT. Perfect for industrial settings, these lights can replace up to 750W MH and can be mounted as high as 50 feet. With an impact-resistant lens, no additional wire guards are necessary. Integrated battery backup is available for standard 120-277V models in case of power loss. Though V-hooks are standard, pendant mount kits can also be used with all models (pendant by others). Carefully select your mounting option when ordering to ensure compatibility.
- Available in following power selectable wattages/sizes:
ARM: 275W/206W/138W (3') - Default 275W
- Adjustable CCT: 4000K/5000K - Default CCT: 4000K
- Voltage rating: 120-277V. 480V available.
- Available with smart control
- Battery backup available
- Pendant mounting kits available for the fixtures and for the battery backup
- 5-year, no compromise warranty
Spec Sheet
Spec Sheet
Family Spec Sheet
Installation Instructions
Sell Sheet
Info
| Product Type | Hi-Bay Lighting |
| Wattage | 130/206/275W |
| Lumen | 20,673-38,786 lm |
| Efficacy | 139.3-161.9 lm/W |
| Color Temp. | 4000K/5000K |
| CRI | 83-86 CRI |
| L70 Lifespan | 100,000 Hours |
| LED's | Long-life, high-efficacy, discrete, surface-mount LEDs |
| Housing | Aluminum |
| Finish | Formulated for high durability and long-lasting color |
| Mounting | Comes standard with V-hooks for chain mounting. Accessories available for pendant and surface mounting (purchased separately). |
| Lens | Polycarbonate lens |
| Reflector |
Polyethylene Terephthalate (PET) |
Additional Info
| Dimming Driver |
100% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.27A, 208V: 1.33A, 208V: 1.15A, 277V: 0.96A 75% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.65A, 208V: 0.99A, 208V: 0.86A, 277V: 0.72A 50% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.10A, 208V: 0.67A, 208V: 0.58A, 277V: 0.50A |
| THD | 3.24% at 120V, 9.37% at 277V |
| Power Factor | 99.4% at 120V, 97.3% at 277V |
| Surge Protection | 6kV |
