RAB Lighting
RAB ARS 160W 2' AEROBAY Linear High Bay Selectable CCT/Wattage
RAB ARS 160W 2' AEROBAY Linear High Bay Selectable CCT/Wattage
Regular price
$258.00
Regular price
Sale price
$258.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

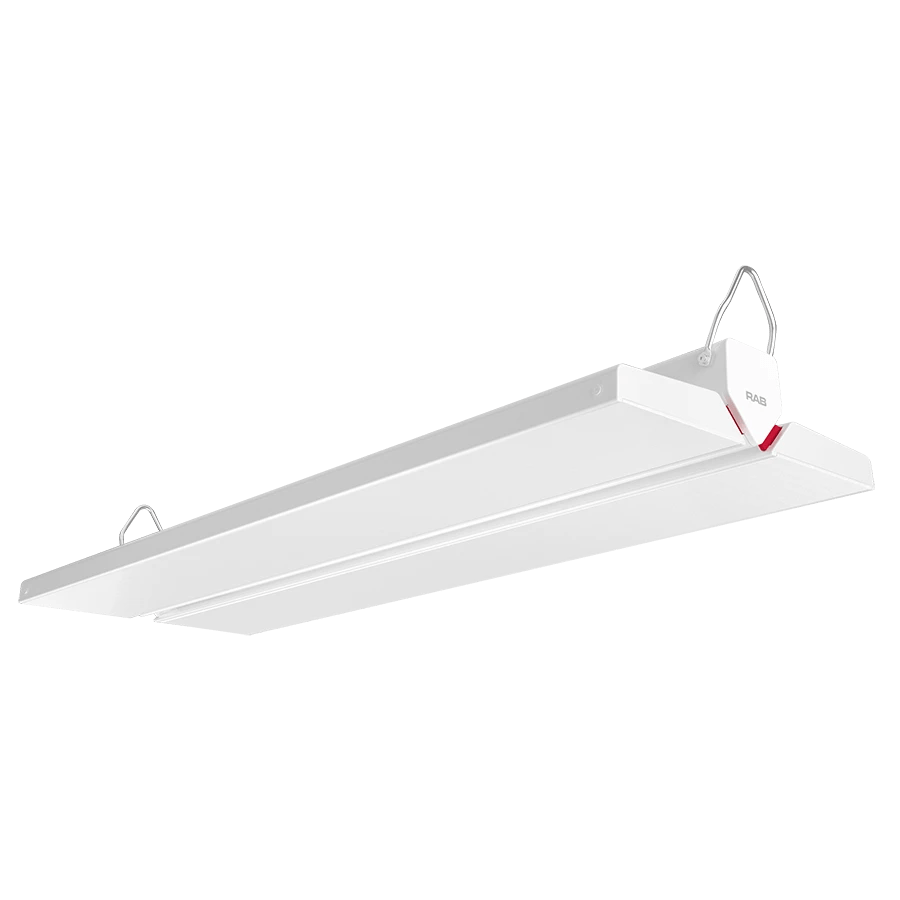

ARS Aerobay 2FT 160W Hi-Bay Warehouse Light
The AEROBAY offers incredible versatility with options for 4 different sizes, adjustable power and CCT. Perfect for industrial settings, these lights can replace up to 750W MH and can be mounted as high as 50 feet. With an impact-resistant lens, no additional wire guards are necessary. Integrated battery backup is available for standard 120-277V models in case of power loss. Though V-hooks are standard, pendant mount kits can also be used with all models (pendant by others). Carefully select your mounting option when ordering to ensure compatibility.
- Available in following power selectable wattages/sizes:
ARS: 160W/120W/80W (2') - Default 160W
- Adjustable CCT: 4000K/5000K - Default CCT: 4000K
- Voltage rating: 120-277V. 480V available.
- Available with smart control
- Battery backup available
- Pendant mounting kits available for the fixtures and for the battery backup
- 5-year, no compromise warranty
Spec Sheet
Spec Sheet
Family Spec Sheet
Installation Instructions
Sell Sheet
Info
| Product Type | Hi-Bay Lighting |
| Wattage | 80/120/160W |
| Lumen | 11,855-22,991 lm |
| Efficacy | 143.6-164.7 lm/W |
| Color Temp. | 4000K/5000K |
| CRI | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| LED's | Multi-chip, high-output, long-life LEDs |
| Housing | Aluminum |
| Finish | Formulated for high durability and long-lasting color |
| Mounting | Comes standard with V-hooks for chain mounting. Accessories available for pendant and surface mounting (purchased separately). |
| Lens | Polycarbonate lens |
| Reflector |
Polyethylene Terephthalate (PET) |
Additional Info
| Dimming Driver |
100% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.31A, 208V: 0.77A, 208V: 0.67A, 277V: 0.55A 75% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.98A, 208V: 0.58A, 208V: 0.50A, 277V: 0.41A 50% Power: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.62A, 208V: 0.39A, 208V: 0.34A, 277V: 0.28A |
| THD | 3.24% at 120V, 9.37% at 277V |
| Power Factor | 99.9% at 120V, 99.5% at 277V |
| Surge Protection | 6kV |
