RAB Lighting

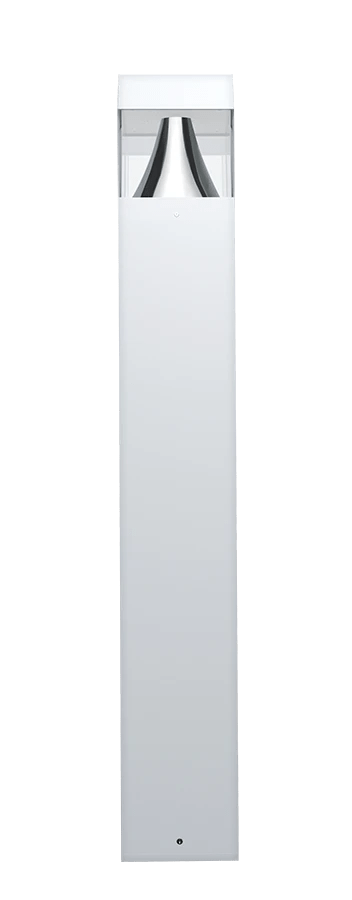

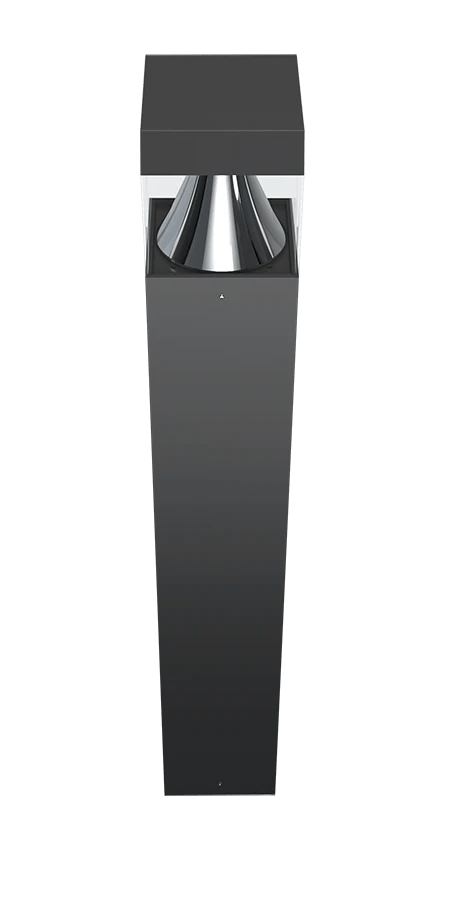

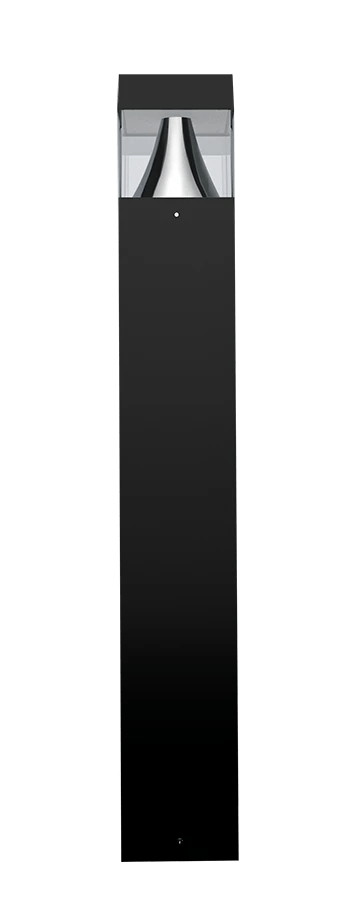

RAB B17 Square Bollard Selectable Wattage Selectable CCT

RAB B17 Square Bollard Selectable Wattage Selectable CCT

$408.00
$408.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Style
Color Temperature

Field Adjustable Bollard Selectable CCT

Some Items are Lower Stock. Please call for Availability

When you want to maximize installation flexibility in the field, B17s clear the path! With selectable wattage (24W/19W/14W) and selectable CCT (3000/4000/5000K), these bollards keep your options wide open. They also include an integrated on/off photocell for an additional level of control. The B17 family is available in various shapes and colors to suit your aesthetic. Choose from square or round, with either flat or domed top available on the round models. All shapes are available in either black, bronze, or white finishes

  • Mounting Hardware Included
  • 50,000-Hour LED lifespan
  • DLC Premium Listed
  • 0-10V dimming, standard
  • Selectable Wattages: 24/19/14W, factory default: 24W
  • Selectable CCT: 5000/4000/3000K, factory default: 4000K
  • Selectable photocell that can be turned on and of
  • 5-Year, limited warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info
Product Type  Outdoor Accent Bollard
Wattage Selectable (14/19/24W)
Lumen 1949-3409lm
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Housing Material Die-cast Aluminum
Housing Finish  Bronze, White, Black
Head Style Flat Square
LED Long-life, high-efficiency, surface-mount LEDs
Lens Polycarbonate lens
Mounting 3 (Three) anchors for round version B17 and B17D. 4 (Four) anchors bolts for square version B17S. Internal base doesn't have leveling screws.
Additional Info
                                               Compliance
 Safety Listing UL Listed
 Environment Rating IP65 Wet Location
Green Technology
 Mercury and UV free. RoHS-compliant components
                                               Electrical
THD 4.89% at 120V, 9.32% at 277V 4.89% at 120V, 9.32% at 277V
Driver
 Constant Current, Class 2, Class P, 120-277V, 50/60 Hz 24W: 120V: 0.20A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A 19W: 120V: 0.16A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A 14W: 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor 99.3% at 120V, 95.5% at 277V
Operating Temperature -30°C to 40°C
Photocell
 Integrated photocell included with on/off switch




View full details
