RAB Lighting

RAB BOAE BOA Edge Mounting Kits

$122.00

Sale Sold out

Shipping calculated at checkout.

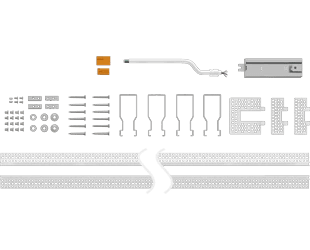

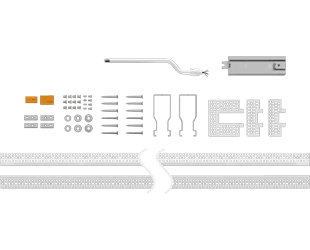

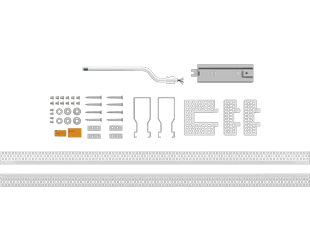

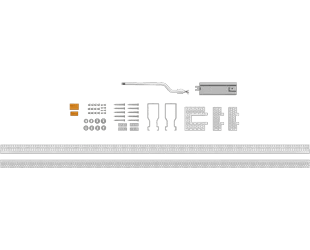

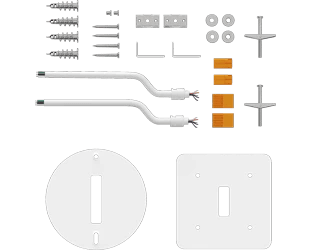

Size 8FT Recessed Mount Kit 4FT Recessed Mount Kit 3FT Recessed Mount Kit 2FT Recessed Mount Kit Surface Mount Kit T Grid Mount (2 Pack)

RAB BOA Edge Pendant Linear Light Mounting Kits

Explore the RAB BOA Edge Collection, featuring ultra-slim, field-adjustable LED linear lighting designed for modern commercial and architectural spaces. Available in multiple lengths and configurations, BOA Edge fixtures deliver a clean, contemporary appearance while providing powerful, energy-efficient illumination for offices, conference rooms, retail environments, educational facilities, and hospitality applications.

The BOA Edge series offers selectable wattages and adjustable color temperatures (3000K/3500K/4000K), allowing installers and designers to customize performance directly on-site. Choose from downlight-only or uplight/downlight configurations to create the ideal lighting environment for any project.

Built with high-performance LEDs, smooth 0-10V dimming, and up to 100,000 hours of rated life, BOA Edge fixtures combine flexibility, efficiency, and long-term reliability. The collection also supports continuous row mounting with connector accessories for seamless linear lighting layouts.

Info

Watts	80/56/48/40/24W (default 80W)
Color Temp	3000/3500/4000K (default 35K)
Lumens	3410-10962 lm
Efficacy	134.7-150 lm/W
Color Accuracy	94-95 CRI
L70 Lifespan	100,000 Hours
Mounting	94" of aircraft cable provided with cable grippers for easy adjustment after installation.(All pendant mount BOAs come standard with hardware that can accommodate dry wall, concrete, or T-bar mounting. Accessory kits are available for surface mounting (ceilings and/or walls), recessed mounting into T-grids, and recessed mounting into a ceiling
Continuous Runs	Yes, connect multiple fixtures (up to 600W) end-to-end for continuous illumination.

Additional Info

Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection	1 kV L-L 2kV L/N-G
Continuous Runs	Maximum wattage for a continuous run should not exceed 600W
Housing	Sheet metal and extruded aluminum
Lens	Frosted polycarbonate lens
Reflector	Polyethylene Terephthalate (PET)
Finish	Formulated for high durability and long-lasting color
