RAB BOAE4P 4' 40W BOA Edge Pendant Downlight Selectable CCT+ Wattage

$243.00

Sale Sold out

Shipping calculated at checkout.

Color: White

Size 4FT

Wattage 40W

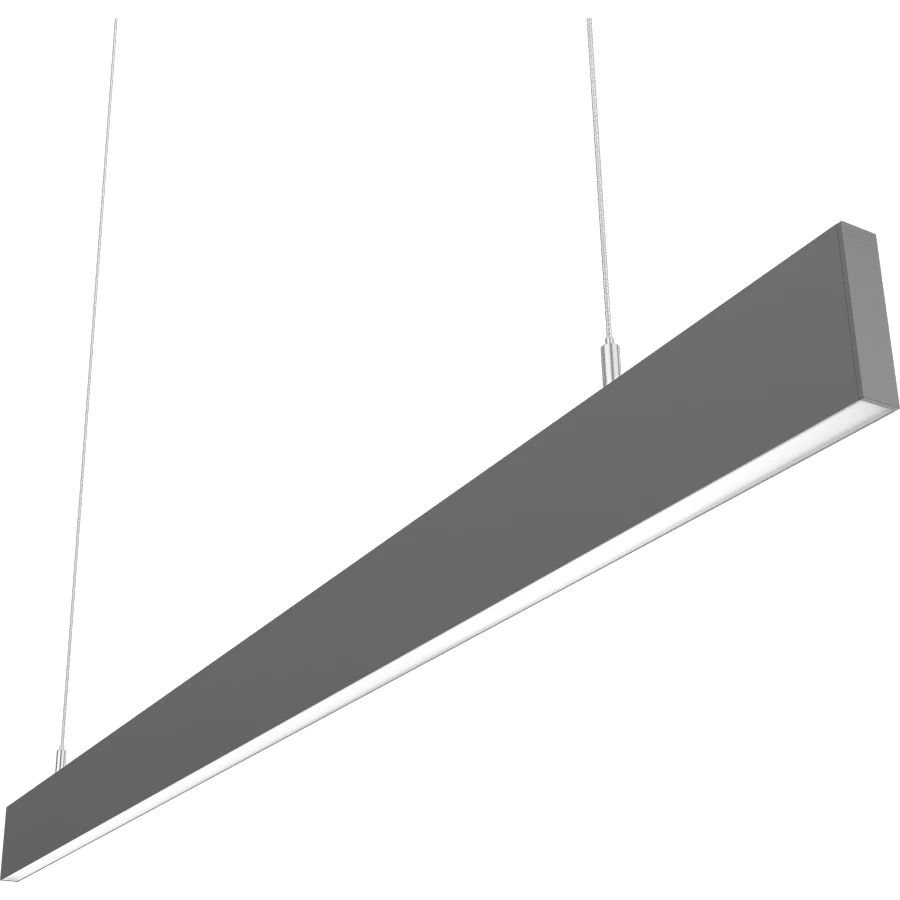

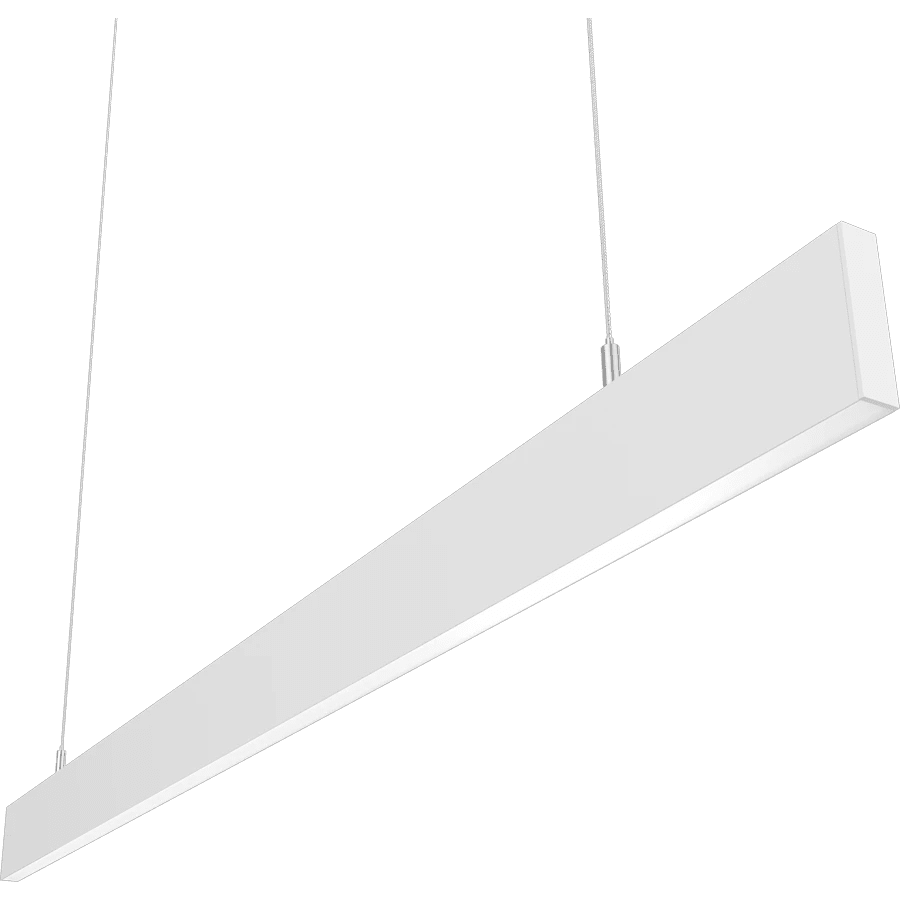

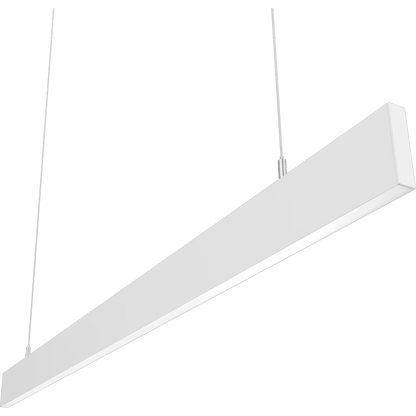

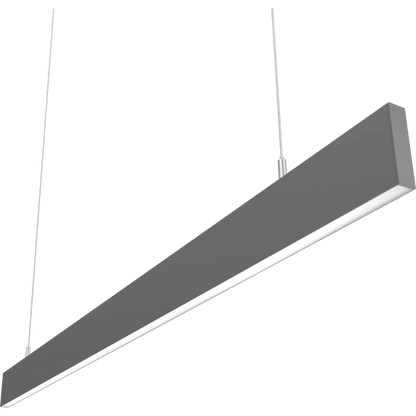

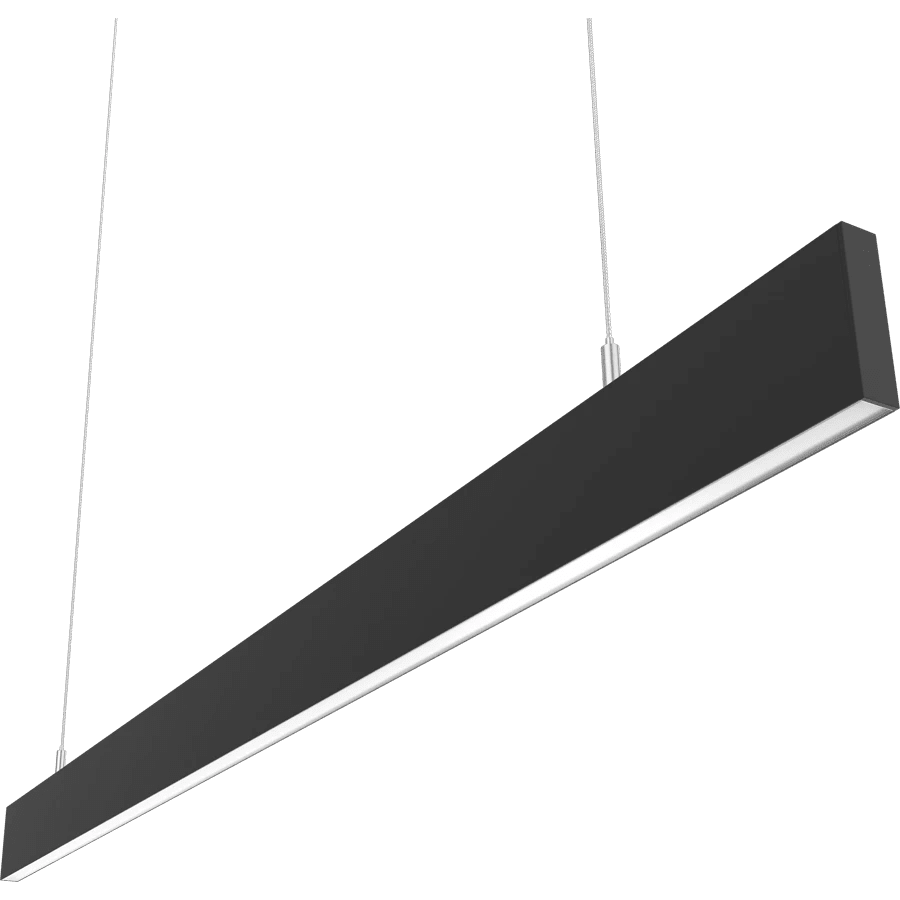

RAB BOA Edge 4FT LED Pendant Linear Light – Downlight Only

The RAB BOA Edge 4FT Pendant Linear Light delivers sleek architectural style with powerful, field-adjustable LED performance. Designed with a super slim profile and clean modern lines, this fixture is ideal for offices, conference rooms, retail spaces, educational facilities, and contemporary commercial interiors.

Featuring selectable wattages (40/28/24/20/12W) and adjustable color temperatures (3000K/3500K/4000K), the BOA Edge provides exceptional flexibility to customize light output and ambiance directly on-site. The downlight-only configuration delivers focused illumination with up to 10,962 lumens and excellent 90+ CRI color rendering for bright, accurate lighting.

The fixture includes standard pendant mounting hardware with adjustable aircraft cables and supports seamless continuous runs using optional quick-link connectors. Built for long-term reliability, the BOA Edge offers 0-10V dimming, a 100,000-hour lifespan, and a durable aluminum housing suitable for demanding commercial environments.

4 ft: 40/28/24/20/12W
Direct & recessed lighting: 100% power
Field-adjustable CCT: 3000/3500/4000K (Default: 3500K)
Voltage rating 120-277V
Ceiling, wall, and recessed mount kits sold separately
PIR, MVS and Lightcloud Blue sensors sold separately
Quick-link connectors available for easy, continuous runs without any tools
All models are 90CRI
5-year, limited warranty

Info

Watts	40/28/24/20/12W (default 40W)
Color Temp	3000/3500/4000K (default 35K)
Lumens	1657-5265 lm
Efficacy	130.5-144 lm/W
Color Accuracy	94-95 CRI
L70 Lifespan	100,000 Hours
Mounting	94" of aircraft cable provided with cable grippers for easy adjustment after installation.(All pendant mount BOAs come standard with hardware that can accommodate dry wall, concrete, or T-bar mounting. Accessory kits are available for surface mounting (ceilings and/or walls), recessed mounting into T-grids, and recessed mounting into a ceiling
Continuous Runs	Yes, connect multiple fixtures (up to 600W) end-to-end for continuous illumination.

Additional Info

Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection	1 kV L-L 2kV L/N-G
Continuous Runs	Maximum wattage for a continuous run should not exceed 600W
Housing	Sheet metal and extruded aluminum
Lens	Frosted polycarbonate lens
Reflector	Polyethylene Terephthalate (PET)
Finish	Formulated for high durability and long-lasting color
