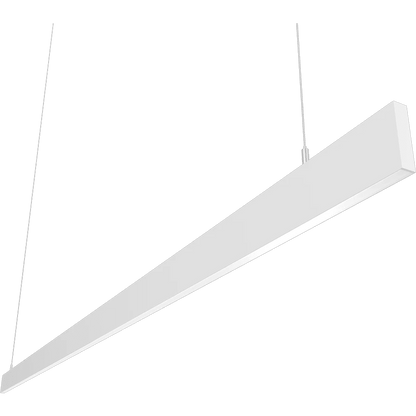

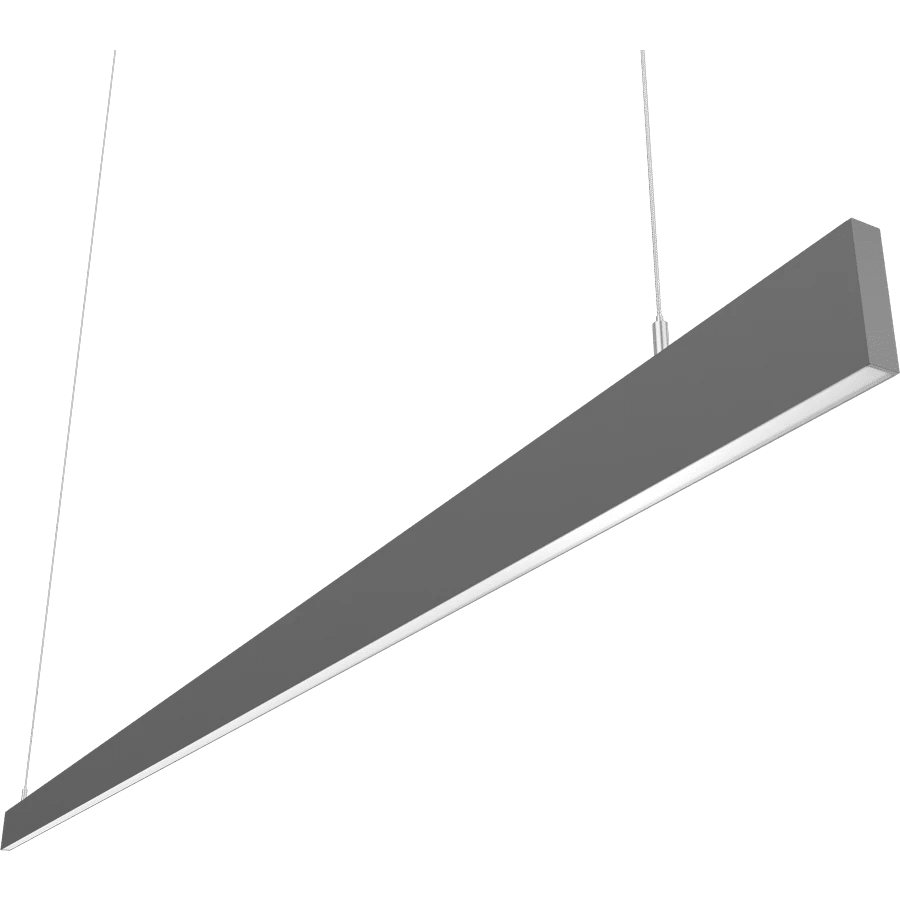

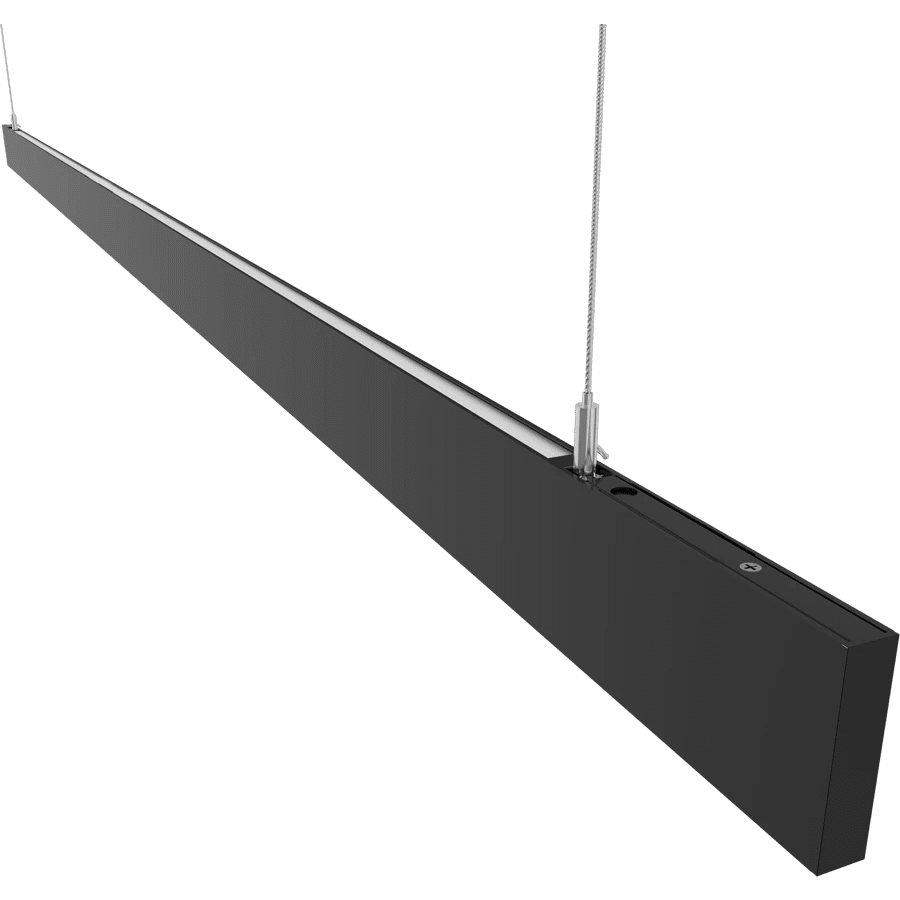

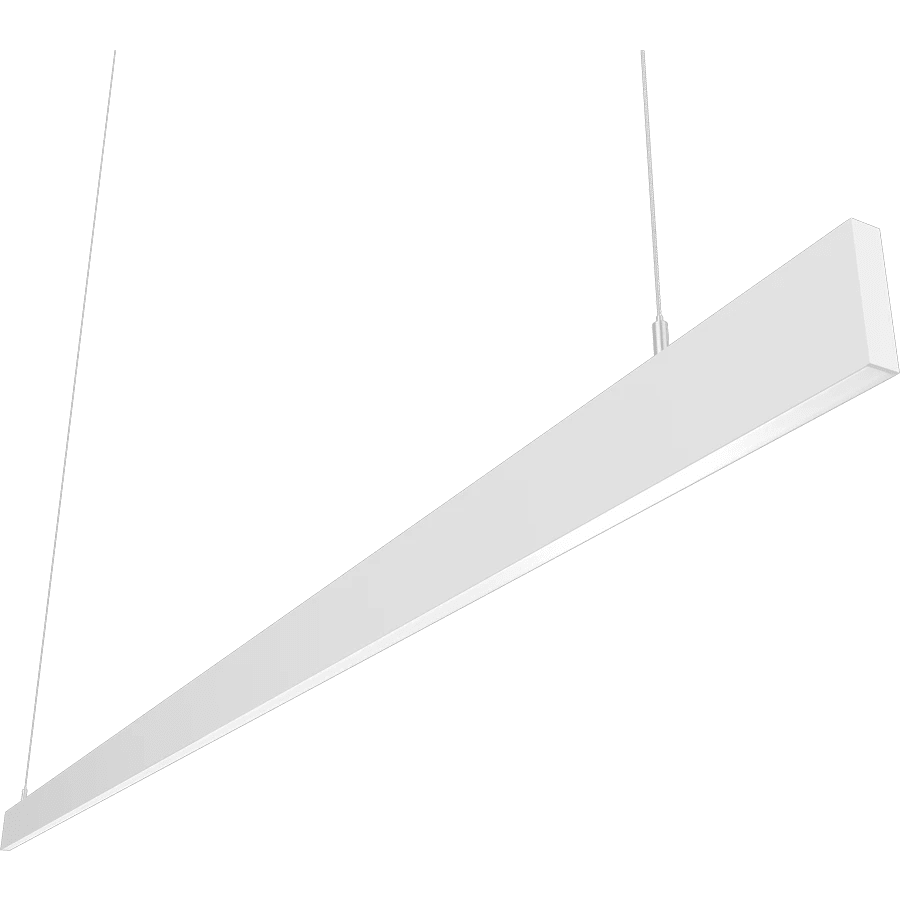

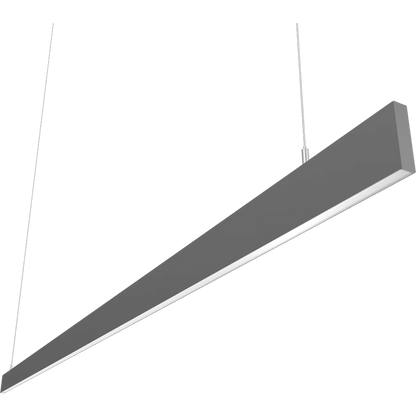

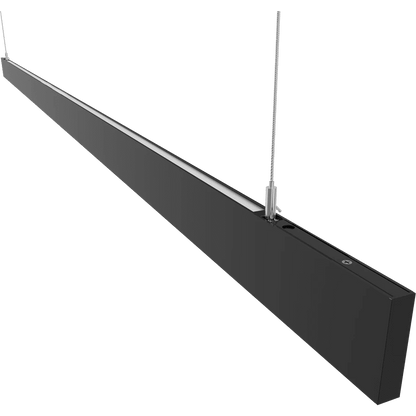

RAB BOAE8PUW 8' 80W BOA Edge Pendant Up/Downlight Selectable CCT+ Wattage

$486.00

Sale Sold out

Shipping calculated at checkout.

Color: White

Size 8FT

Wattage 80W

BOAE8PUW 8FT LED Up/Down Pendant Linear Light

The RAB BOAE8PUW BOA Edge 8FT Linear Pendant combines sleek architectural styling with flexible, field-adjustable LED performance for modern commercial spaces. Designed with both uplight and downlight capability, this ultra-slim fixture allows you to customize light distribution to create the perfect balance of ambient and task lighting.

Featuring field-adjustable wattage with selectable 80W or 40W output, the BOAE8PUW also offers five adjustable uplight/downlight distribution presets, giving installers and designers complete flexibility directly on-site:

100% / 0% – Downlight Only
70% / 30%
60% / 40%
50% / 50%
0% / 100% – Uplight Only

The fixture also includes selectable color temperatures of 3000K, 3500K, and 4000K, allowing you to tailor the lighting environment for offices, conference rooms, retail spaces, hospitality settings, and other architectural applications.

Built for long-term performance, the BOA Edge series features smooth 0-10V dimming, excellent 90+ CRI color rendering, and a durable aluminum construction with a rated lifespan of up to 100,000 hours.

8FT architectural LED linear pendant fixture
Adjustable uplight/downlight distribution
Field-selectable wattage: 80W / 40W
Selectable CCT: 3000K / 3500K / 4000K
Five light distribution presets
0-10V dimming standard
90+ CRI for accurate color rendering
120-277V universal voltage
Ultra-slim modern design
Pendant mounting hardware included
Rated for 100,000 hours
5-year limited warranty

Perfect for modern commercial interiors requiring customizable architectural lighting with both direct and indirect illumination.

Info

Watts	80/40W (factory default 80W)
5 Power Preset	100%/0% (Downlight Only) 70%/30% 60%/40% 50%/50 ,0%/100% (Uplight Only)
Color Temp	3000/3500/4000K (default 40K)
Lumens	3410-10962 lm
Efficacy	134.7-150 lm/W
Color Accuracy	94-95 CRI
L70 Lifespan	100,000 Hours
Mounting	94" of aircraft cable provided with cable grippers for easy adjustment after installation.(All pendant mount BOAs come standard with hardware that can accommodate dry wall, concrete, or T-bar mounting. Accessory kits are available for surface mounting (ceilings and/or walls), recessed mounting into T-grids, and recessed mounting into a ceiling
Continuous Runs	Yes, connect multiple fixtures (up to 600W) end-to-end for continuous illumination.

Additional Info

Dimming Driver	Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection	1 kV L-L 2kV L/N-G
Continuous Runs	Maximum wattage for a continuous run should not exceed 600W
Housing	Sheet metal and extruded aluminum
Lens	Frosted polycarbonate lens
Reflector	Polyethylene Terephthalate (PET)
Finish	Formulated for high durability and long-lasting color
