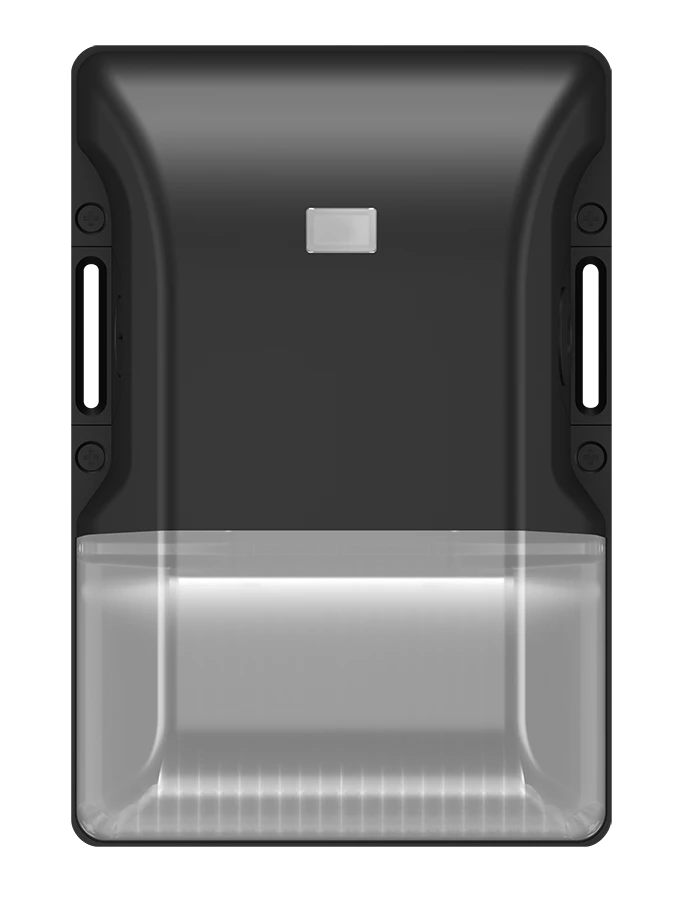

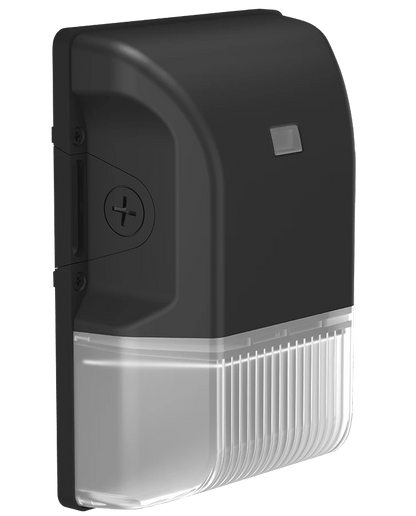

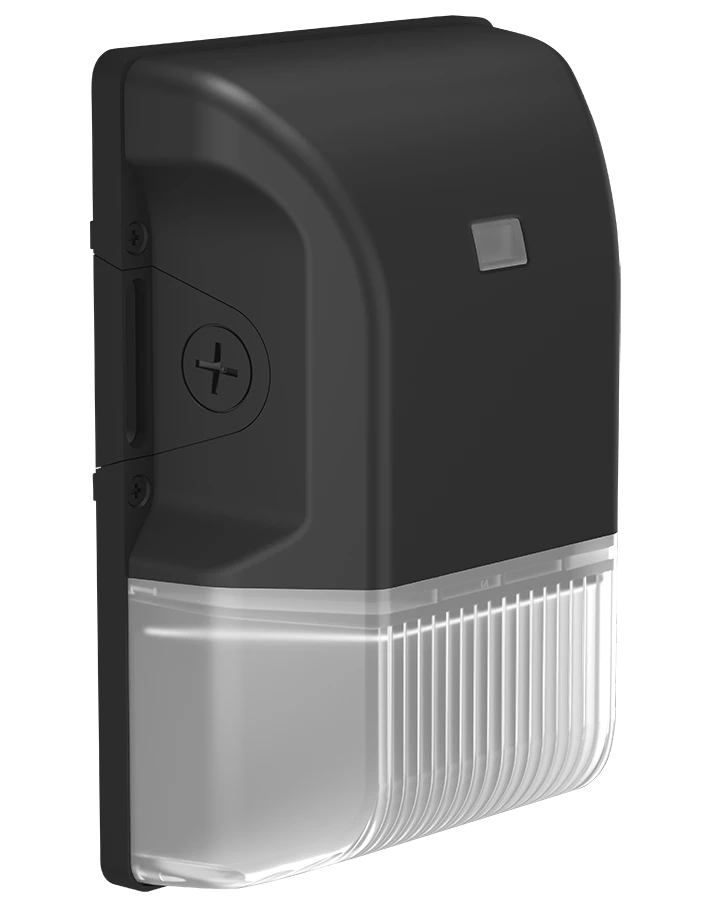

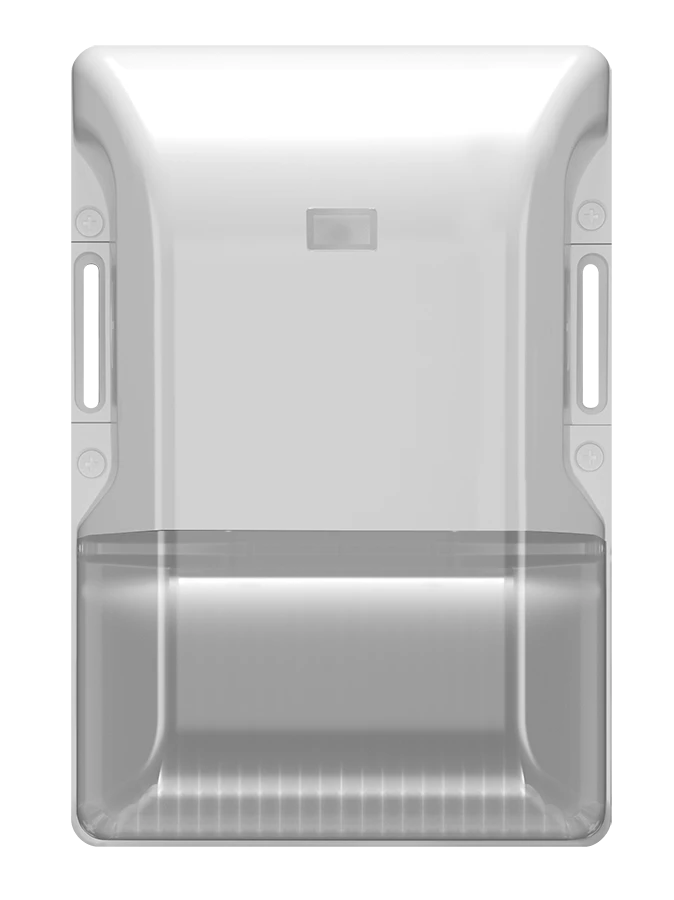

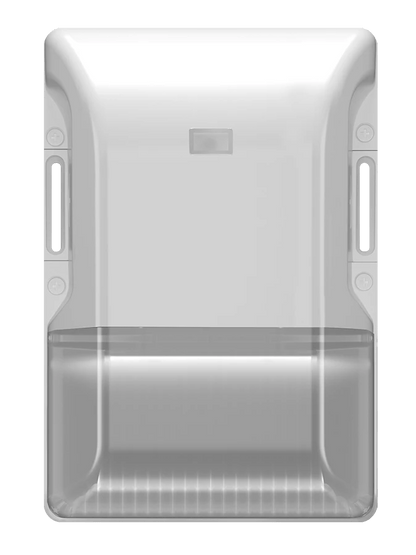

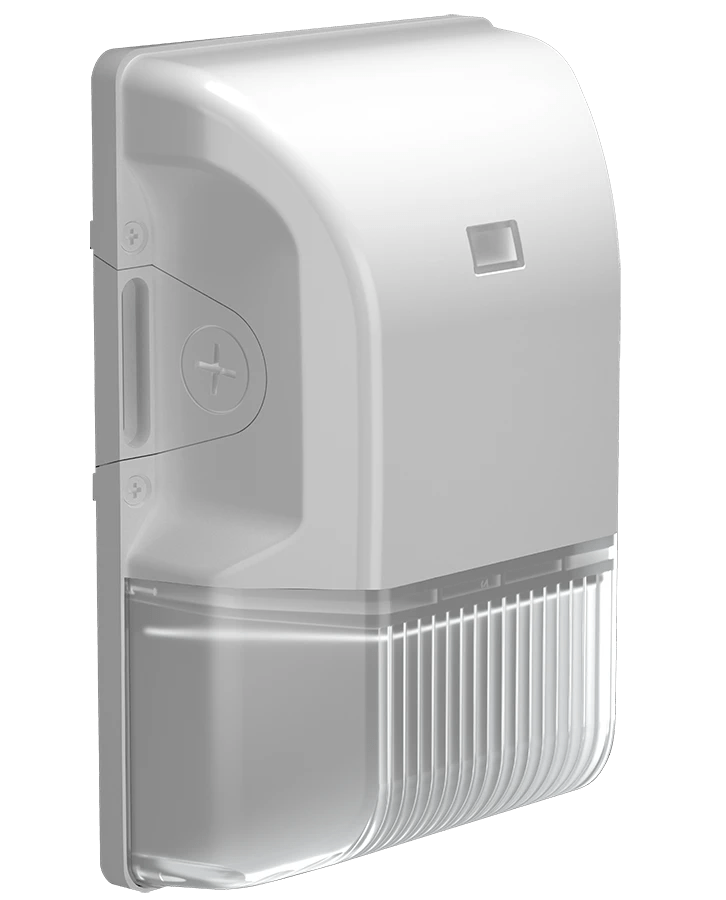

RAB BRISK17FA30 30W LED Wall Pack Entry Light Selectable CCT

RAB BRISK17FA30 30W LED Wall Pack Entry Light Selectable CCT

$72.00
$72.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Color Temperature
Wattage

30W Wall Pack Entry Light

Introducing the RAB BRISK17FA30 30W LED Wall Pack Entry Light Selectable CCT - a powerful, energy-efficient solution with customizable color temperature and advanced photocell technology. With a 4200 lumens, evenly distributed light, this compact bronze fixture is perfect for illuminating any outdoor space. Say goodbye to costly replacements and hello to long-lasting, reliable lighting with the Brisk Mini.

  • DLC Premium listed
  • IP65 Rated
  • 100,000-Hour LED lifespan
  • 5-Year, limited warranty
Spec Sheet

Bronze Spec / White Spec

Installation Instructions


Info
Product Type  LED Wallpack
Wattage 30W
Lumen 3947/4362/4207 lm
Color Temp. 3000K 4000K 5000K
CRI 81-83 CRI
L70 Lifespan 100,000 Hours
Housing Precision die-cast aluminum
Finish  White | Bronze
Mounting Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)
IP Rating Ingress protection rating of IP65 for dust and water
Additional Info



                                                Compliance
UL Listed Suitable for wet locations. Suitable for ground mounting
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-J0FC5L
                                                  Electrical
Driver Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.20A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Photocell 120-277V Discreet, integrated button photocell included. Photocell is compatible with 120V-277V.
