RAB Lighting

RAB C-SWISH1X4 30W 1FT X 4FT Center Basket Selectable CCT/Wattage

RAB C-SWISH1X4 30W 1FT X 4FT Center Basket Selectable CCT/Wattage

$99.00
$99.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

1X4 Center Basket

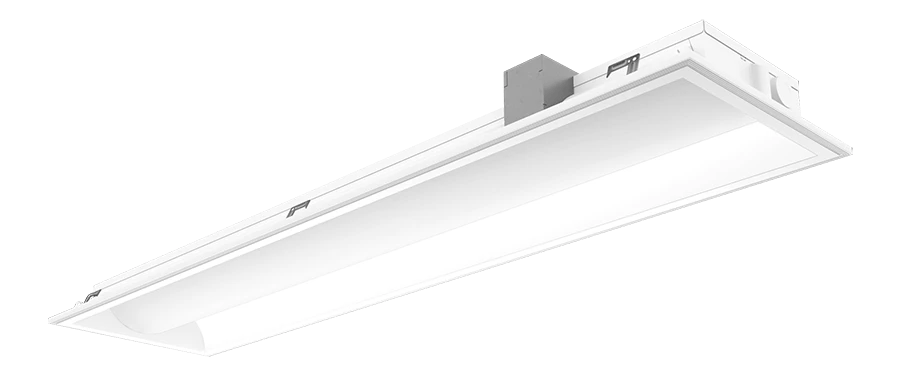

The C-SWISH is a sustainable and versatile lighting fixture with a biocomposite resin housing made from recycled materials. Its proprietary design creates a gentle, glare-free illumination and offers additional options for battery backup, sensor control, and compatibility with Lightcloud systems. Trust in its longevity and performance with RAB's 5-year warranty and enjoy big rebates for DLC Premium and Standard listings. Complete control of lighting is possible with the included 0-10V dimming driver.

​​​​


  • Field-Adjustable CCT: 3500/4000/5000K - Factory default: 4000K
  • Voltage rating: 120-277V
  • Suitable for damp locations
  • Suitable for direct contact with insulation
  • Available with smart controls. Multi-sensor remote sold seperately.
  • Battery backup available
  • 5-year, no compromise warranty
Spec Sheets

Spec Sheet

Installation Instructions

Info


Wattage 30/25/20W
Lumen 2,661-4,028 lm
Color Temp. 35K-50K
Efficacy 130.9-138.4 lm/W
CRI 84-85
L70 Lifespan 100,000
Mounting Recessed ceiling
Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Fixture Rating Damp Location
IC Rating Suitable for direct contact with insulation


Electrical
Dimming Driver Driver includes dimming control wiring for 0-10V
dimming systems. Requires separate 0-10V DC
dimming circuit. Dims down to 10%.
THD 6.86% at 120V, 12.76% at 277V
Power Factor 99.7% at 120V, 97.2% at 277V
Operating Temperature -20°C - 40°C (-4°F - 104°F)





View full details
