RAB Lighting

RAB C-WALLS 32W Wallpack Selectable Wattage/CCT

RAB C-WALLS 32W Wallpack Selectable Wattage/CCT

$99.00
$99.00
Sale Sold out
Shipping calculated at checkout.
Color
Wattage
Color Temperature

32W Wallpack 120-277V On-Off Photocell

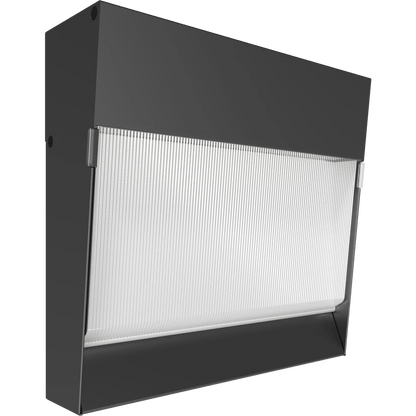

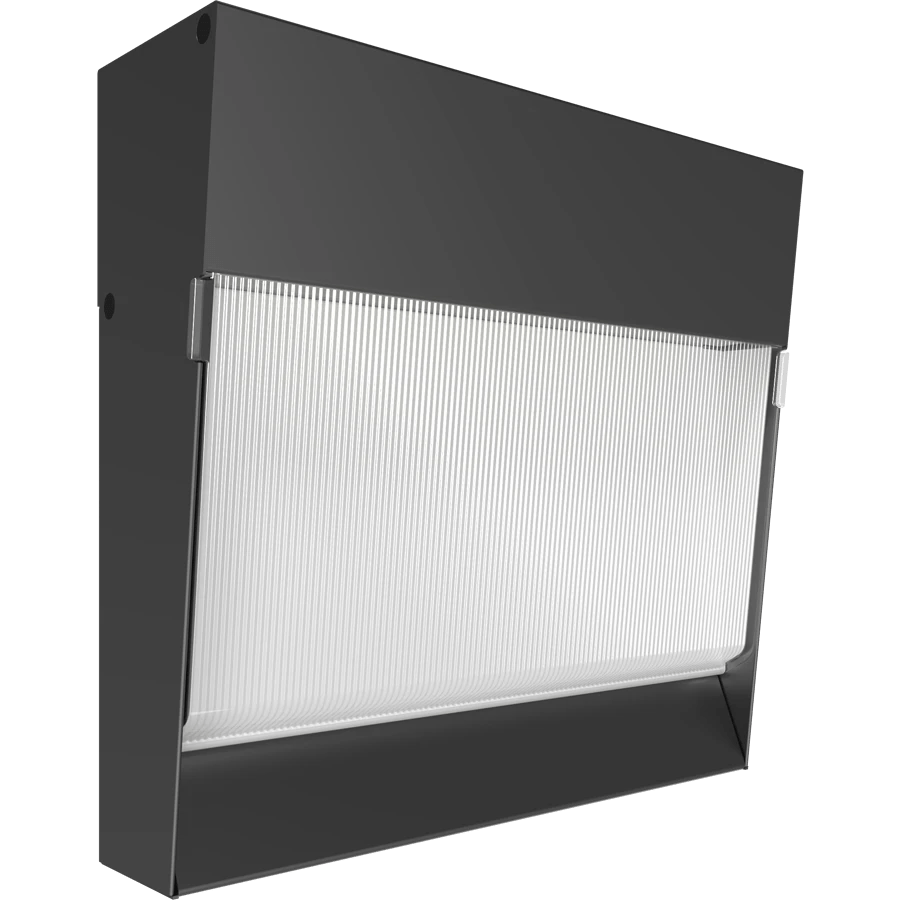

The RAB C-WALLS 32W Wallpack combines eco-friendly materials with adjustable lighting options to fit any space. Its low-profile design uses recycled aluminum and a natural resin lens, cutting its carbon footprint by over half compared to similar products. Easy to install with multiple conduit entries and simple wiring access, it features an automatic photocell for dusk-to-dawn operation. The fixture directs light downward to reduce glare and improve visibility, making it a smart, sustainable choice for efficient outdoor lighting.

  • C-WALLS: 32/25/17W (Default 25W)
  • Field-adjustable CCT: 3000/4000/5000K (Default 4000K)
  • Standard On/Off photocell
  • 120-277V
  • 0-10V dimming
  • Suitable for wet locations
  • 5-Year, no-compromise warranty

   Field Adjustable Logo



Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Product Type  Wall Pack
Wattage
 17/25/32W
Efficacy 123.2-137.2 lm/W
Lumen 2066-4349 lm
Color Temp. 3000K/4000K/5000K
CRI 81-84 CRI
Lifespan 100,000 Hours
Finish  Bronze



    Additional Info
     Construction
    Housing Recycled aluminum and sheet metal
    Mounting
    Surface mount for recessed junction box; 3 conduit entry points
    Lens Bio-based Polymethy Methacrylate (PMMA) lens
    Reflector
    Aluminum
    Max/Min Temperature
    The minimum starting temperature is -40°C (-40°F)
    Suitable for use in up to 40°C (104°F)
    Gaskets High-temperature silicone
    Finish
    Formulated for high durability and long-lasting color
                                                    Compliance
    UL Listed Suitable for wet locations
                                                      Electrical
    Driver Constant Current, Class II, 120-277V, 50/60 Hz:
    32W: 120V: 0.27A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A
    25W: 120V: 0.20A, 208V: 0.13A, 240V: 0.11A, 277V: 0.10A
    17W: 120V: 0.14A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
    Dimming Driver
    Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
    Photocell
    Integrated photocell included with on/off switch
    Surge Protection
    4kV
