RAB Lighting
RAB C8R82 82W LED 8" Commercial Downlight 120/277V
RAB C8R82 82W LED 8" Commercial Downlight 120/277V
Regular price
$150.90
Regular price
Sale price
$150.90
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

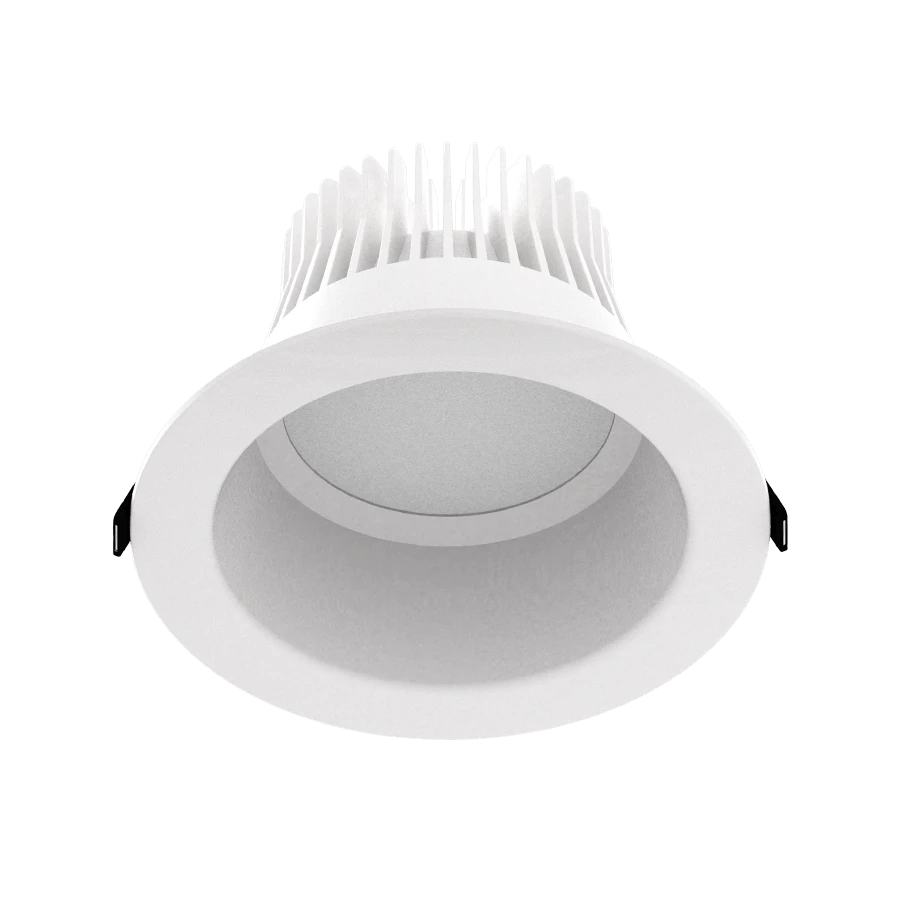

8" 82W Commercial Downlight
High-output 82W Commercial Downlight. These high-performance downlights are optimized for new construction and retrofit applications. Adjustable, spring-loaded retention tabs keep fixtures secure after installation, and extension ring accessories make it easy to use 8” models in 10” and 12” housings. Our commercial downlights have a diffuse polystyrene lens that creates smooth, uniform light and reduces glare without sacrificing lumen output. All use a universal, 120-277V onboard driver with 0-10V dimming, and 80+ CRI models are available for the accurate color rendering often vital in commercial applications.
- High-performance LEDs for commercial application
- Replacement for traditional compact fluorescent recessed downlights
- Retrofit and new construction applications
- UL wet and Energystar rated
- Meets air-tight requirements
- Matte white smooth trim finish
- Available in 4 color temperatures: 3000K, 3500K,4000K, 5000K
- 0-10V dimmable
- Spring-loaded retention clips
- 25-inch flexible conduit
- 5-Year, No-Compromise warranty
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Product Type | Commercial Downlight |
| Wattage | 82W |
| Lumen | 8100 lm |
| Color Temp. | 3000K/3500K/4000K/5000K |
| CRI | 80 |
| L70 Lifespan | 50,000 |
| Enclosure Material | Metal |
| Finish | White |
| Style | Smooth Trim |
| Size | 8" |
| Shape | Round |
| Finish | White |
| Lens | Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications |
| Air Tight |
Housing certified Air Tight as per ASTM E283
|
Additional Info
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | ≤20% |
| Power Factor | ≥0.9 |
| Dimmable | Yes, 0-10V dims down to 10%. See Dimmer Compatibility List. |
| Input Voltage | 120-277V |
