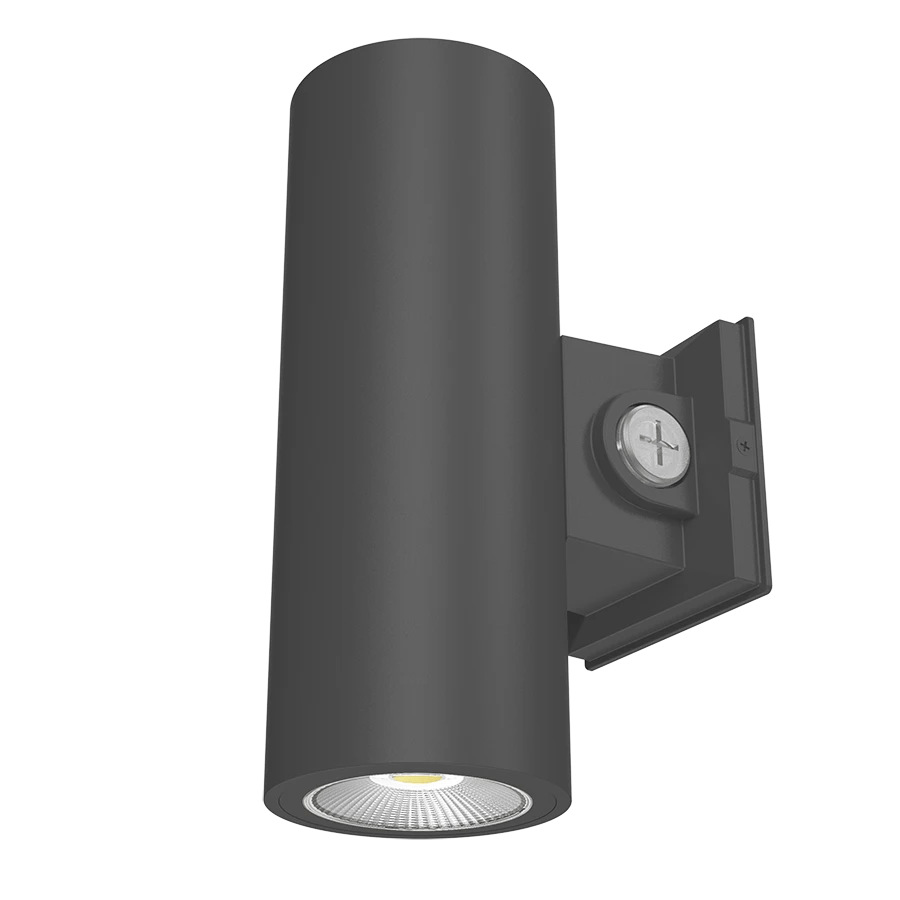

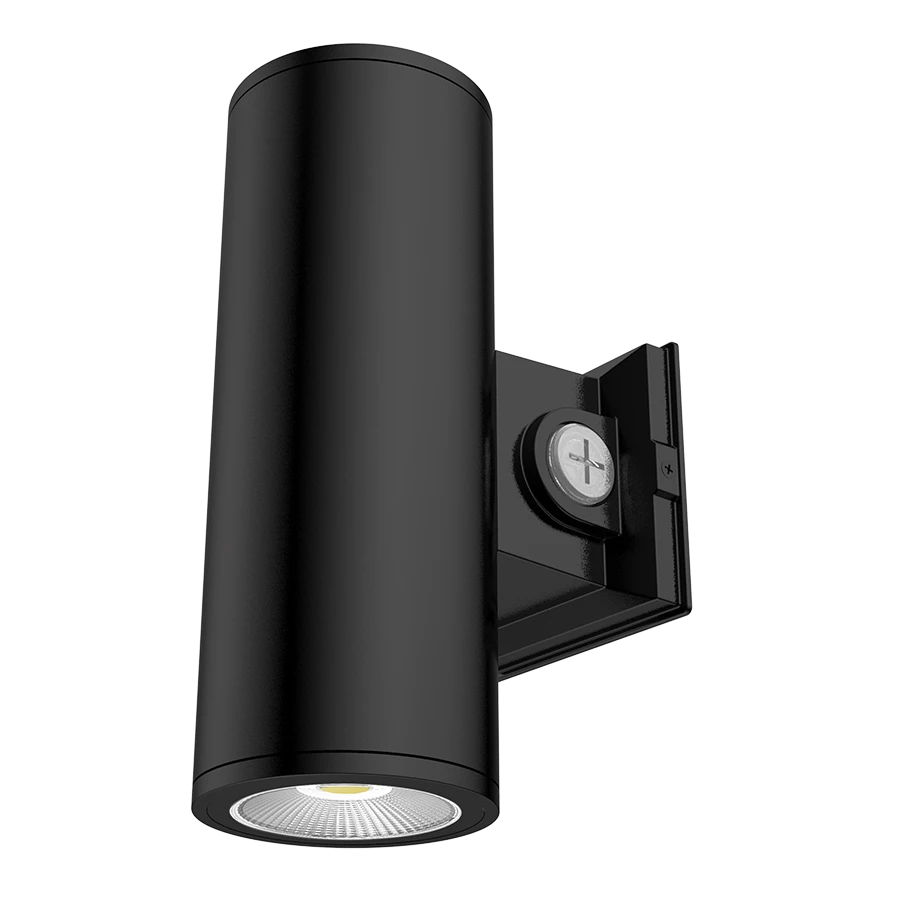

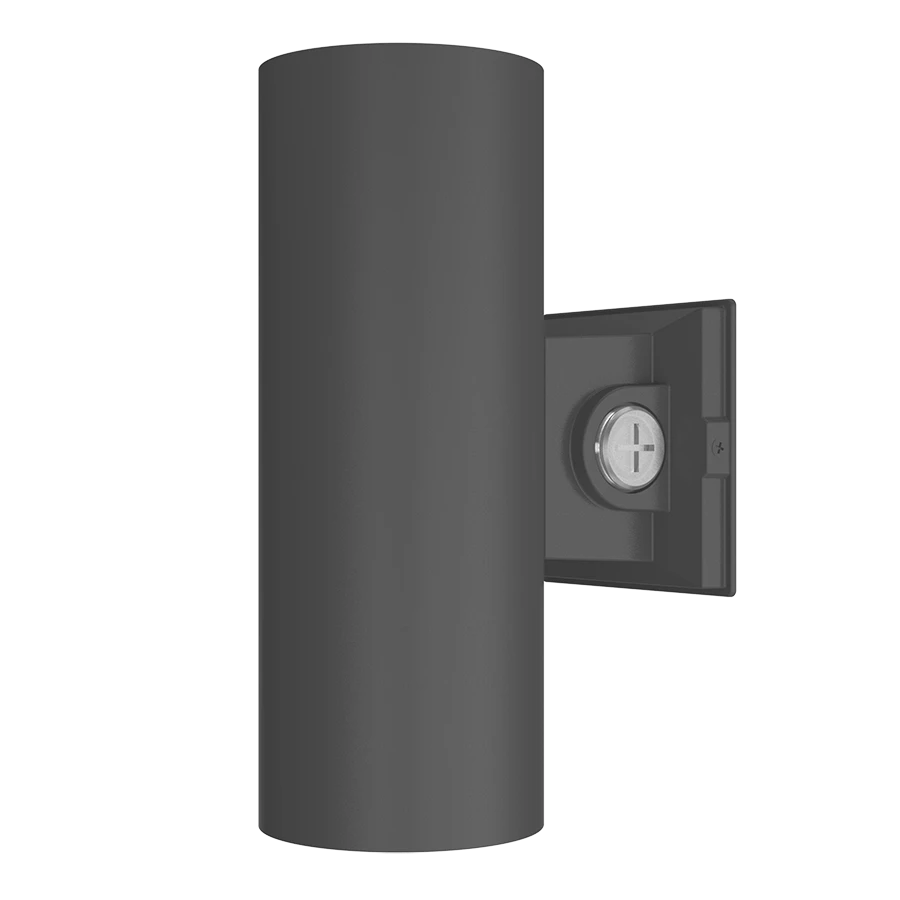

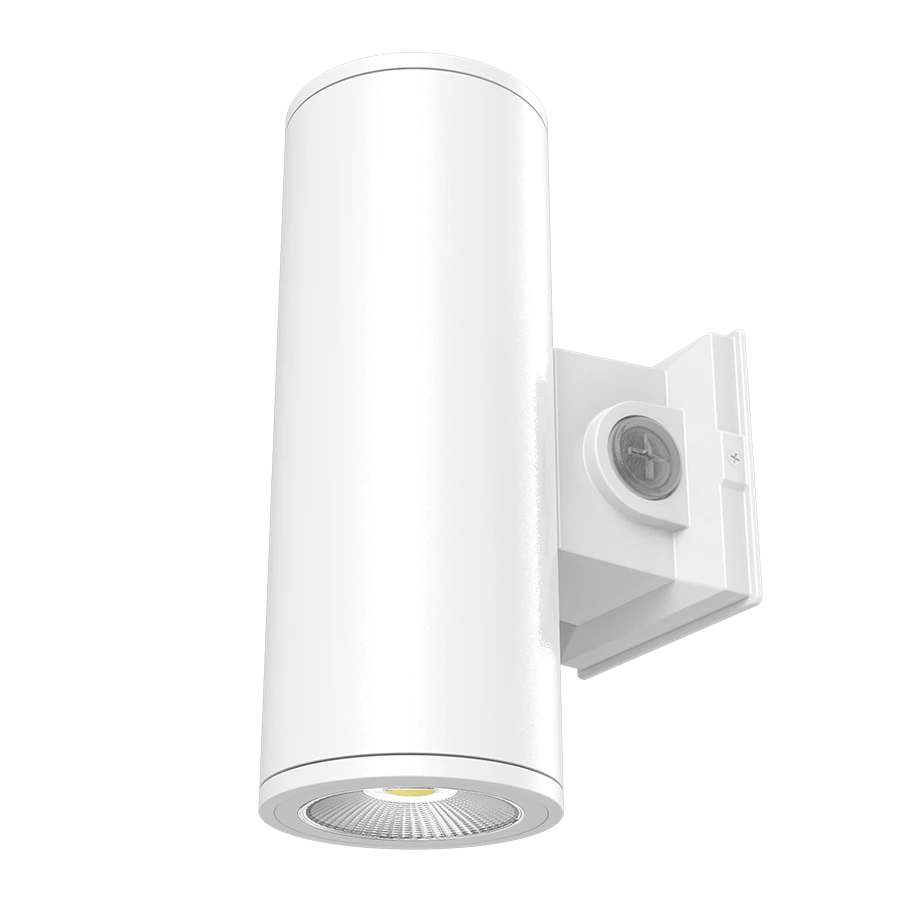

RAB CD34-4W 20W 4" Cylinder Wall Mount Selectable Wattage/CCT

$113.00

Sale Sold out

Shipping calculated at checkout.

Color: White

Wattage 20W

Color Temperature Selectable CCT

Quantity

20W 4" Wall Mount Selectable Wattage/CCT

Enhance versatility and value with greater flexibility. The new CD34 has interchangeable optics, offering a sleek 25° beam, a 40° distribution, or a wide 60° option. Easily switch between these options with a simple lens change (sold separately). Optics vary by size, with 25° included for 3", 40° for 4", and 60° for 6". Additional accessories are available for all sizes and distributions. The UL listed CD34 is suitable for both indoor and outdoor use, making it perfect for kitchens, conference rooms, and more. Convert surface mount cylinders to pendant mounts with the included accessory kits, which feature four connectable 12" stems. Clear glass lenses are standard, but frosted options can be purchased for all sizes and finishes.

Aluminum extrusion housing and die-cast covers available in black, bronze, or white
Field interchangeable optics sold separately for 25°/40°/60° beam angle
Field-adjustable color temperature 3000/4000/5000K (indoor); 2700/3000/3500/4000/5000K (outdoor).
Dimmable on 0-10V systems (indoor); integrated photocell (outdoor)

Spec Sheets

White / Black / Bronze

Info

Product Type	Cylinder Wall Mount
Wattage	12/16/20W
Lumen	1200/1600/2000
Color Temp.	Field Adjustable (3K/4K/5K)
CRI	90
L70 Lifespan	50,000
Light Distribution	Selectable dip switch for up, down, or up/down light
Beam Angle	40° (installed) Field swappable optics sold separately for 25°/40°/60° beam angle
Lens	Clear (installed) Frosted lens accessory sold separately
Mounting	Wall Mount
Housing Material	Die-casting aluminum + PC

Additional Info

THD	≤20%
Driver	Constant Current, 50-60 Hz, 120V-277V
Power Factor	≥0.9
Input Voltage	120-277V
Photocell	Integrated photocell included with on/off switch
Dimming	Yes, dimmable down to 5% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
