• RAB-CD34FA6SP-30-709-WCRAB CD34FA 30W 6" Cylinder Surface/Pendant Mount Selectable CCT
  • RAB-CD34FA6SP-30-709-ZCRAB CD34FA 30W 6" Cylinder Surface/Pendant Mount Selectable CCT
1 2

RAB Lighting

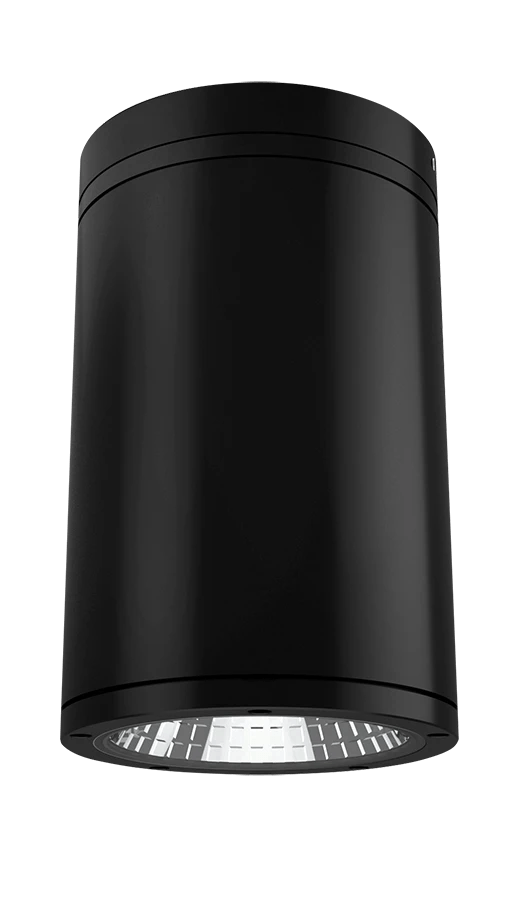

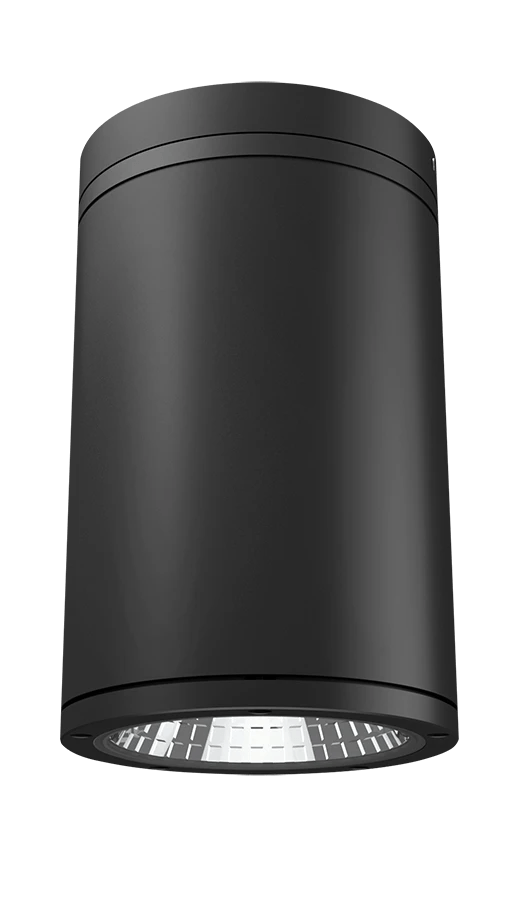

RAB CD34FA 30W 6" Cylinder Surface/Pendant Mount Selectable CCT

RAB CD34FA 30W 6" Cylinder Surface/Pendant Mount Selectable CCT

$136.50
$136.50
Sale Sold out
Shipping calculated at checkout.
Color: White
Lens
Color Temperature

30W 6" Surface/Pendant Mount Selectable CCT

This 6-inch CD34 cylinder is dimmable and ideal for surface or pendant mounting in indoor applications. This fixture provides superior downward facing light with a clear or frosted lens and field adjustable color temperature from 27K-50K

Click Here for Adjustable Stem Mount

  • Aluminum extrusion housing and die-casting covers
  • Field adjustable color temperatures between 27K-50K
  • Smooth, diffused downward light output
  • Pendant mount accessory sold separately
  • 0-10V dimming
  • 90 CRI provides high color rendering



    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
     Product Type  Economy Cylinder
    Wattage 30W
    Lumen 2350
    Color Temp. Field Adjustable (27K-50K)
    CRI 90
    L70 Lifespan 100,000
    Material Metal
    Style Smooth
    Beam Angle 70°
    LED LED array provides a uniform source with high efficiency and no pixilation
    Lens
    		 Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution
    Mounting Surface Mount. Pendant mount accessories available sold separately
    Housing Material
    		 Cylinder aluminum extrusion/cover aluminum die casting
    Additional Info
                                                   Compliance
     Safety Listing UL Listed
    Environment Rating Suitable for use in dry, damp, and wet environments
    California Energy Commission (CEC) Status: Not lawful for sale in California
    Energy Star ID

    White- CD1017

    Black- CD1016

    Bronze- CD1018
    Energy Star Compliant This product is ENERGY STAR® Version 2.2 Certified.
    IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
    FCC Complies with Part 15 of the FCC Rules
                                                   Electrical
    THD ≤20%
    Driver Constant Current, Non-Isolated Driver, 50/60 Hz, 120-277V, 120V: 0.27A, 208V: 0.17A, 240V: 0.14A, 277V: 0.12A
    Dimming Driver
    		 Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
    Input Voltage 120-277V
    Operating Frequency 60Hz
    Dimming Yes, 0-10V continuous dimming




    View full details
