RAB Lighting
RAB CR8 30W LED 8" Commercial Downlight Selectable Wattage/CCT
RAB CR8 30W LED 8" Commercial Downlight Selectable Wattage/CCT
Regular price
$57.20
Regular price
Sale price
$57.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

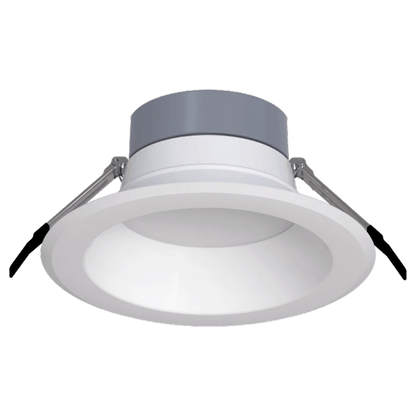

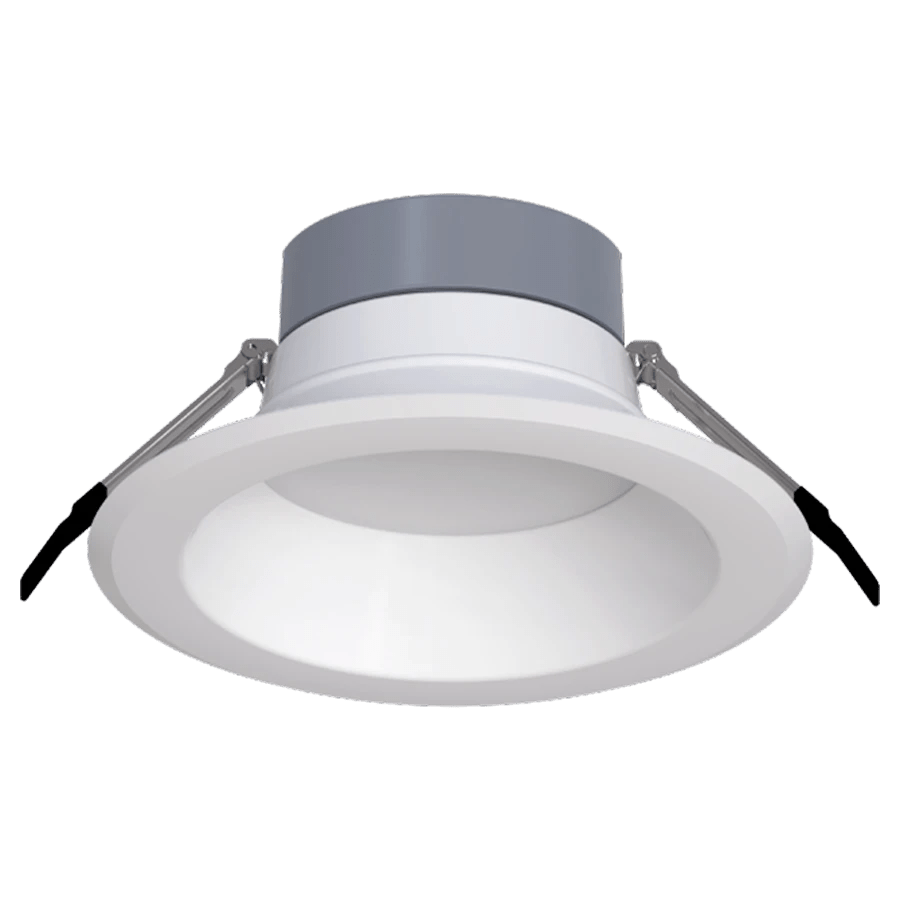

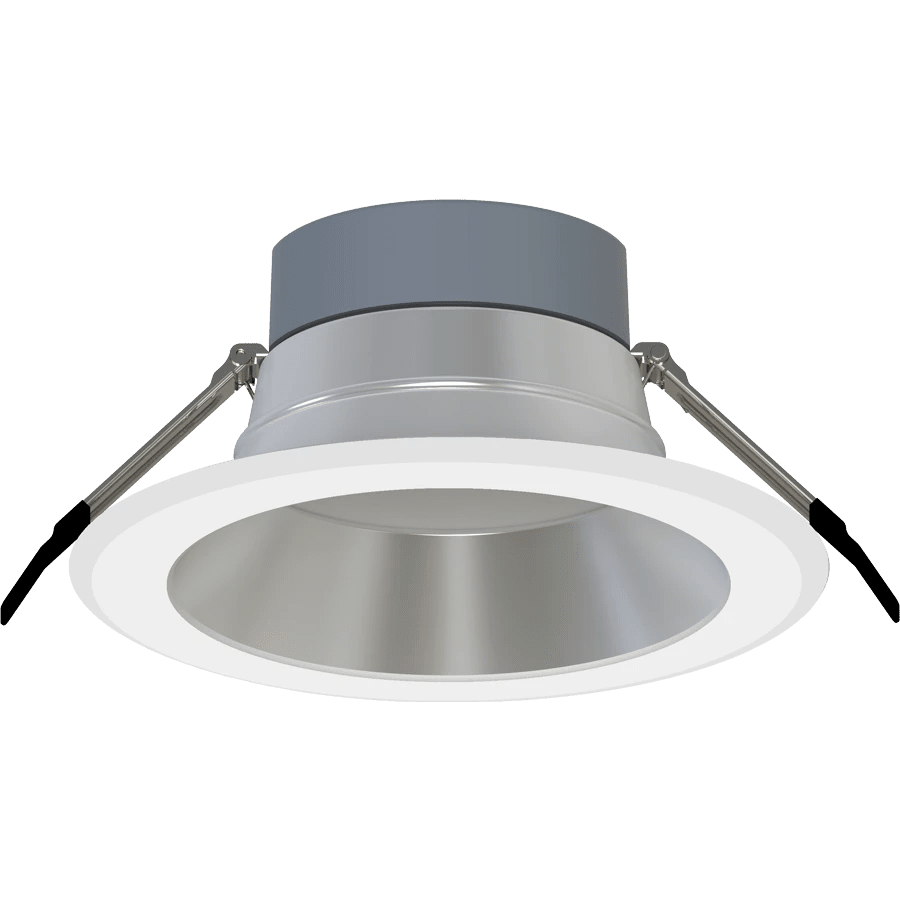

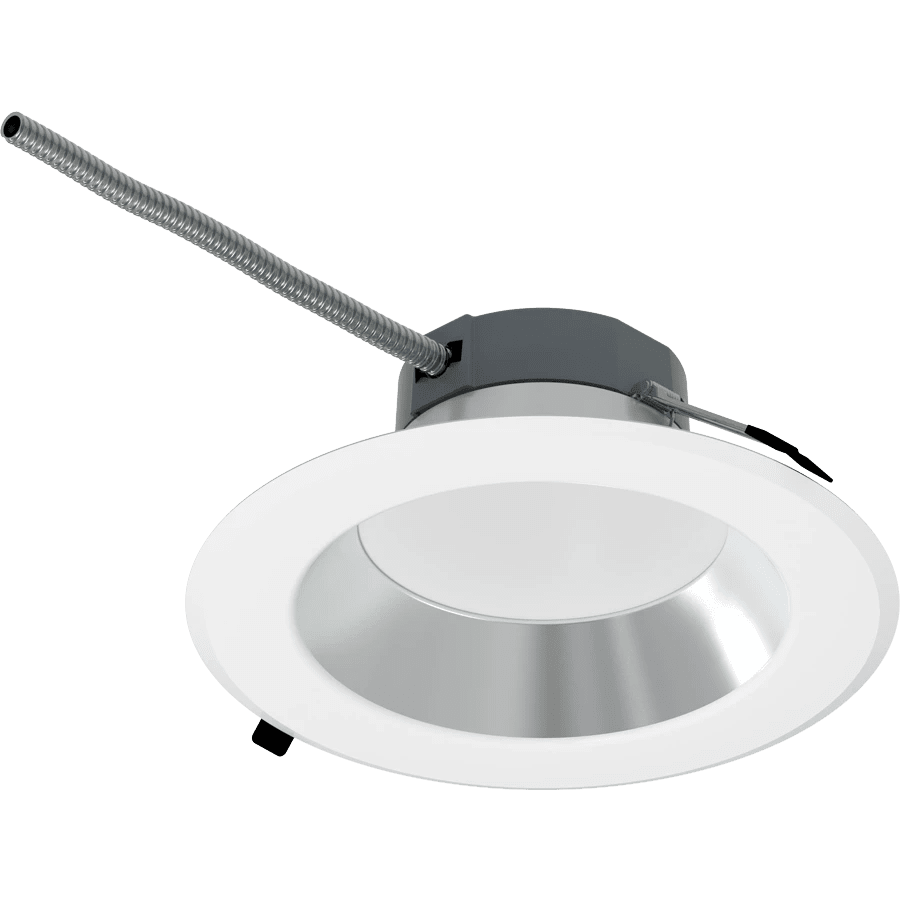

8" 30W Commercial Downlight
The CR commercial downlight offers best-in-class flexibility by adding universal dimming, which allows for both TRIAC & 0-10V dimming, making it a great choice for residential & commercial installations.
- Universal dimming allows for both 120V TRIAC/ELV dimming and 0-10V dimming in 1 SKU for incredible design flexibility

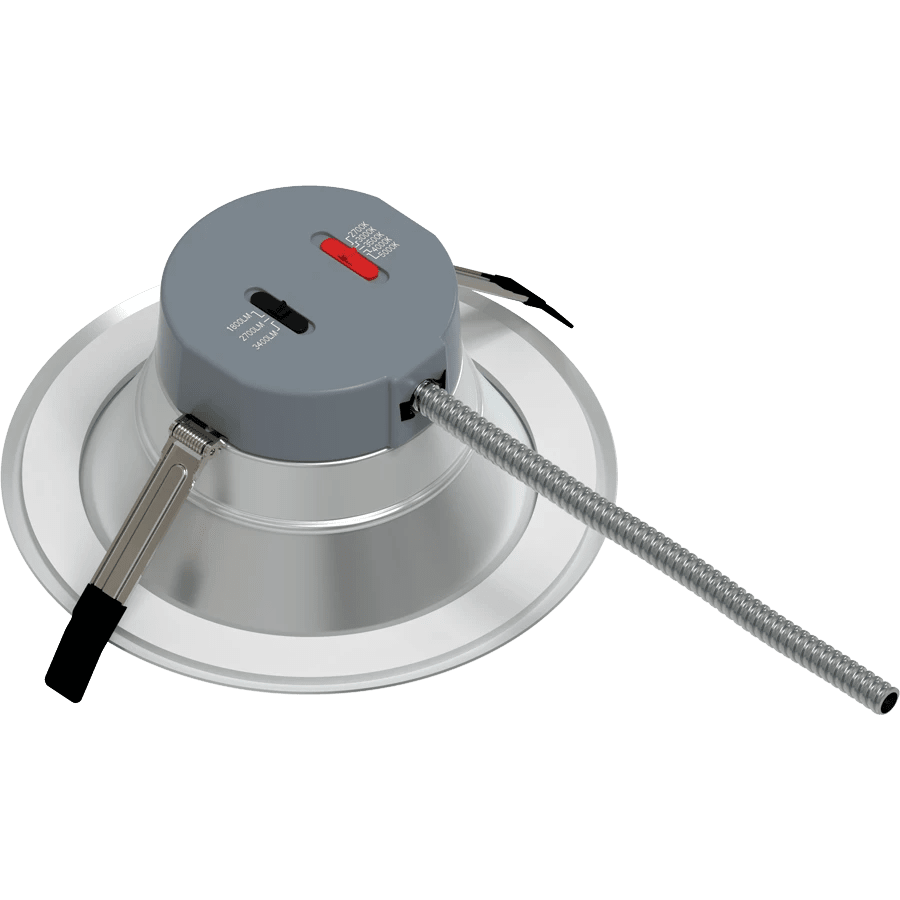

- 3 selectable brightness levels & 5 selectable CCTs
(2700/3000/3500/4000/5000K)
- Suitable for new construction & remodel installations
- Deep regress lens for optimal glare control
- Multiple accessories available, including color trims and new
construction mounting plates
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Product Type | Commercial Downlight |
| Wattage | 16/24/30W |
| Lumen | 3,400/2,700/1,800 lm |
| Color Temp. | 2700K/3000K/3500K/4000K/5000K |
| CRI | 90 |
| L70 Lifespan | 50,000 |
| Enclosure Material | Metal |
| Finish | White |
| Style | Smooth Trim |
| Size | 8" |
| Shape | Round |
| Finish | White |
| Lens | Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications |
| Air Tight |
Housing certified Air Tight as per ASTM E283
|
Additional Info
| Driver | Constant Current, Class A, 50/60 Hz, 120V-277V, 120V: 0.11A, 277V: 0.04A |
| THD | ≤20% |
| Power Factor | ≥0.9 |
| Dimmable | Yes, dimmable down to 10% on compatible TRIAC/ELV and 0-10V dimming systems. See Dimmer Compatibility List. |
| Input Voltage | 120-277V |
