RAB Lighting

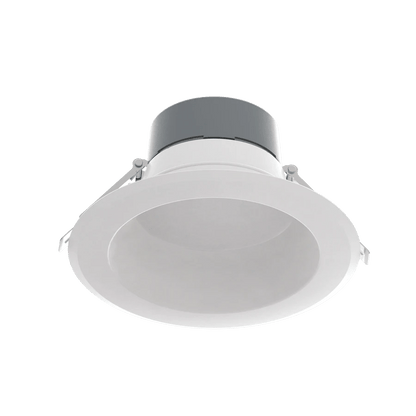

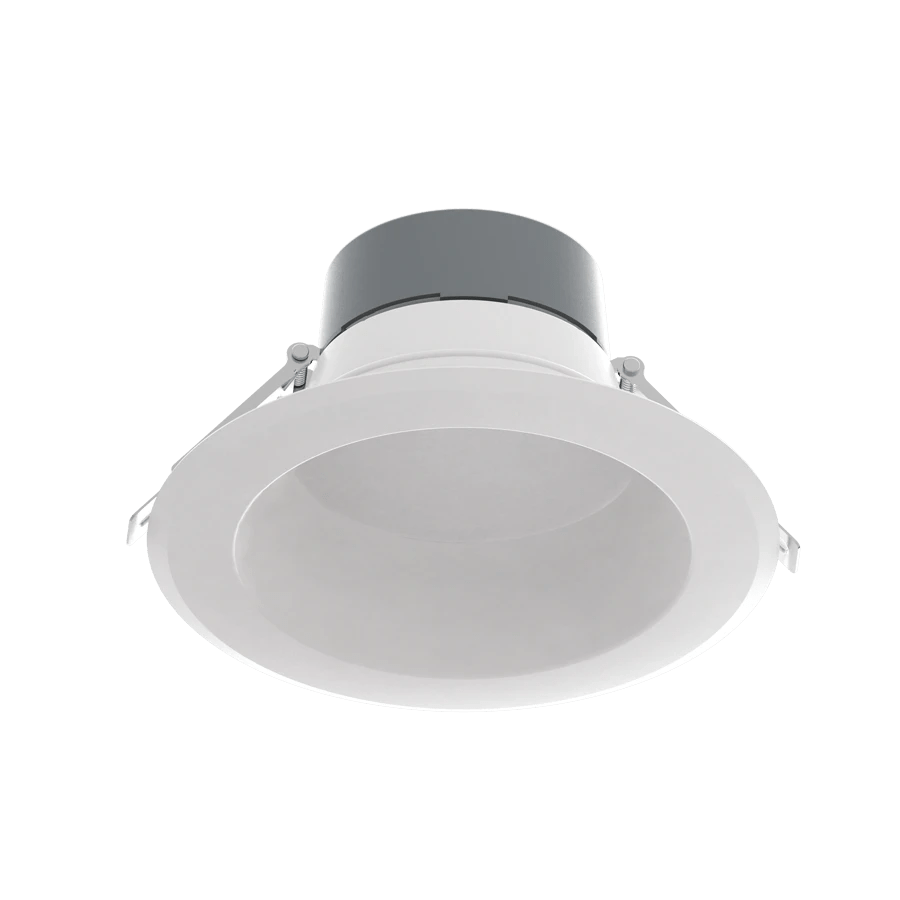

RAB CRLEDFA-8R 33W LED 8" Commercial Downlight Selectable CCT
RAB CRLEDFA-8R 33W LED 8" Commercial Downlight Selectable CCT
Regular price
$62.35
Regular price
Sale price
$62.35
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
8" Commercial Downlight Selectable Wattage Selectable CCT
Light up your life with wattage and color temperature control. Bring modern functionality to any space, whether you're remodeling or starting from scratch.
- Mounts directly into ceiling, no housing required
- Field-adjustable "set and forget" color temperature
- High-performance LEDs for commercial applications
- Meets air-tight requirements
- 0-10V dimming, see Dimmer Compatibility List
- Suitable for wet and damp locations
- Replacement for traditional compact fluorescent recessed downlights
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Product Type | Commercial Downlight |
| Wattage | 25/29/33W |
| Lumen | 2400/2700/3000 lm |
| Color Temp. | 3000K/3500K/4000K/5000K |
| CRI | 90 |
| L70 Lifespan | 50,000 |
| Enclosure Material | Metal |
| Finish | White |
| Style | Smooth Trim |
| Size | 8" |
| Shape | Round |
| Finish | White |
| Lens | Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications |
| Air Tight |
Housing certified Air Tight as per ASTM E283
|
Additional Info
| Driver | Constant Current, Class 2, 60 Hz, 120V-277V, 120V: 0.30A, 277V: 0.13A |
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. |
| THD | ≤20% |
| Power Factor | ≥0.9 |
| Dimmable | Yes, 0-10V dims down to 10%. See Dimmer Compatibility List. |
| Input Voltage | 120-277V |
| Listings | UL Listed, UL Classified |
| Environment | Suitable for use in dry, damp, and wet environments. |
| IC Rated | No |
| Energy Star Approved | This product is ENERGY STAR® Version 2.2 Certified |
| Energy Star ID | 2389592 |
| Model Number for Certification |
CRLEDFA-8R-33S-9CCT-UNV-WS
|
| T20 Compliant | Not Compliant |
| California Title 24 JA8 Compliant | Can be used to conform with the requirements of California Title 24 Part 6 |
| California Energy Commission (CEC) Status | Lawful for Sales in California |
| NEC Compliant |
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
|
| RoHS | Mercury and UV free. RoHS-compliant components. |
| FCC |
Complies with Part 15B of the FCC Rules
|
