RAB Lighting

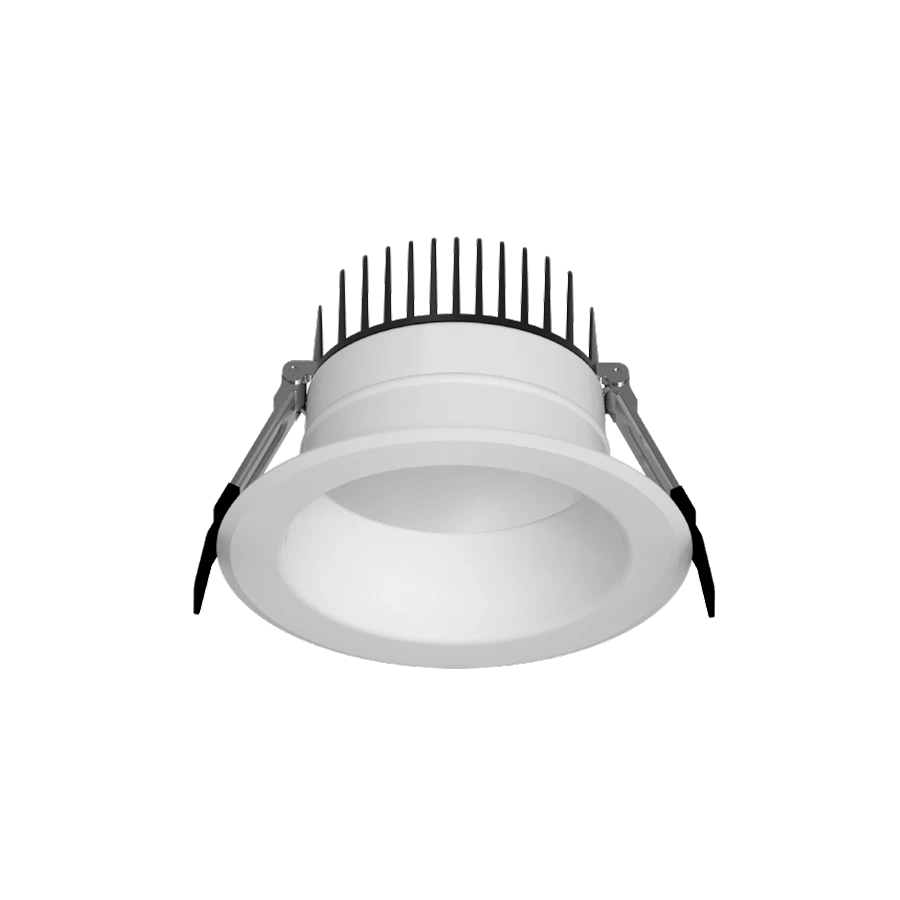

RAB CRX4 20W LED 4" Commercial Downlight Selectable Wattage/CCT Hi Output

RAB CRX4 20W LED 4" Commercial Downlight Selectable Wattage/CCT Hi Output

$49.99
$49.99
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

4" 20W Commercial Downlight Hi Output

The CRXLED family is a high output and flexible commercial downlight system that covers a wide range of applications without the need for stocking multiple SKUs.


    • CCT Selectable and Lumen Adjustable switches for greater stocking convenience and control

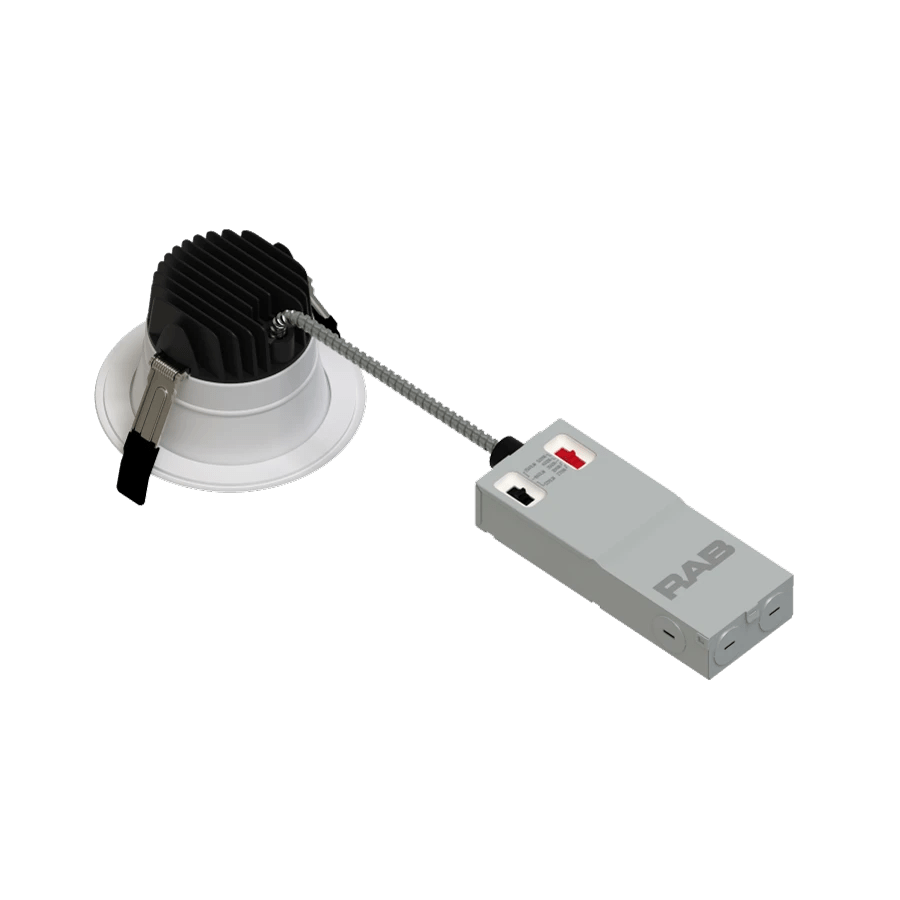

    • Comes with a remote driver with built-in junction box and quick disconnect; Eliminates the need for a traditional, multi-piece fixture setup
    • Ideal for new construction, remodel, and retrofit applications
    • Interchangeable trims available in matte black, brushed nickel, and bronze
    • Universal Dimming that can be used on 120V Triac and ELV Dimmer or 0-10V dimming
    Spec Sheets

    Family Spec Sheet

    Spec Sheet

    Sell Sheet

    Installation Instructions

    Info
    Product Type  Commercial Downlight
    Wattage 12/16/20W
    Lumen 1200/1600/2000lm
    Color Temp. 2700K/3000K/3500K/4000K/5000K
    CRI 90
    L70 Lifespan 50,000
    Enclosure Material Metal
    Finish  White
    Style Smooth Trim
    Size 4"
    Shape Round
    Beam Angle 85°±10°



    Additional Info
    Driver Constant Current, Class A, 50/60 Hz, 120V-277V, 120V: 0.19A, 208V: 0.10A; 240V: 0.07A, 277V: 0.09A
    THD ≤20%
    Power Factor ≥0.9
    Dimmable Yes, dimmable down to 10% on compatible 0-10V or TRIAC/ELV dimming systems. See Dimmer Compatibility List.
    Input Voltage 120-277V
