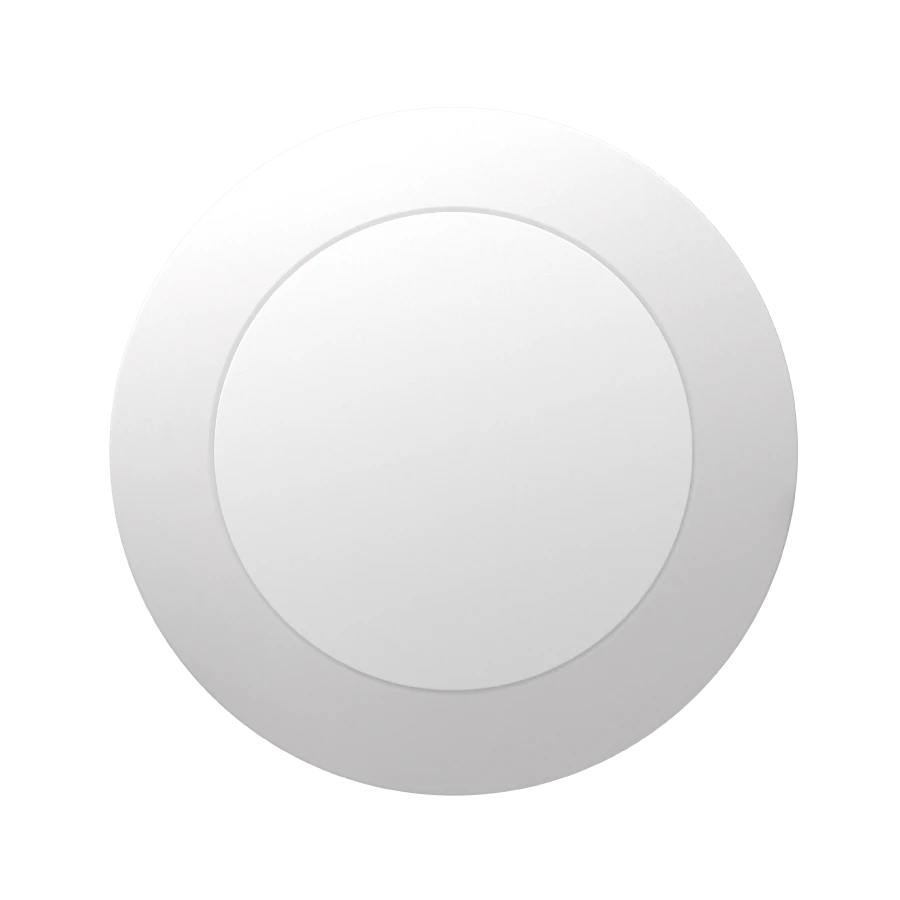

RAB DISK34 LED 4"/6" Disk Surface Mount Selectable CCT

RAB DISK34 LED 4"/6" Disk Surface Mount Selectable CCT

Regular price $21.10
Regular price Sale price $21.10
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature

10W/15W 4"/6" Surface Mount Field Adjustable

  • Low-profile, back-lit design made of durable thermoplastic housing with frosted lens
  • 5 Color temperature selectable: 2700K, 3000K, 3500K, 4000K, & 5000K
  • New construction or retrofit applications
  • Installs on standard junction boxes
  • Suitable for indoor/outdoor use in dry, damp, and wet locations
Spec Sheets

4" Spec Sheet

6" Spec Sheet

Installation Instructions

Info
Product Type  Disk Surface Mount
Wattage 10W/15W
Lumen 700/1000lm
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Housing Material Plastic Housing
Housing Finish  White
Style Smooth
Beam Angle 110°±10°
Base Type E26 Socket with ideal connector and wire leads included
Lens Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Mounting Surface Mount + Recessed
Additional Info
                                               Compliance
Safety Listing UL Listed
Environment Rating Suitable for indoor and outdoor applications in dry, damp, and wet environments.
T24 JA8 Compliant Can be used to conform with the requirements of California Title 24 Part 6
T20 Compliant
Not Applicable
Lawful for sale in California Yes
IC Rated No
FCC Complies with Part 15 of the FCC Rules
RoHS Mercury and UV free. RoHS-compliant components.
                                               Electrical
Driver Constant Current, 60 Hz, 120V, 120V: 0.09A
THD ≤20%
Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Operating Temperature -30°C to 40°C
Dimming Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems
