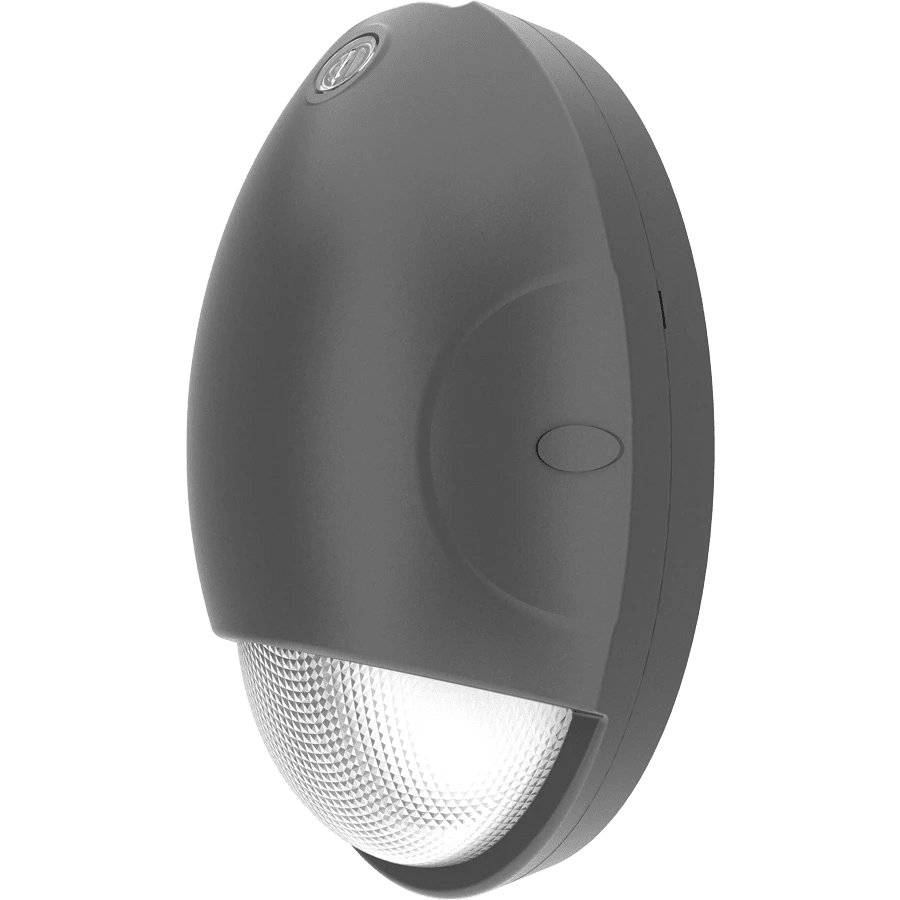

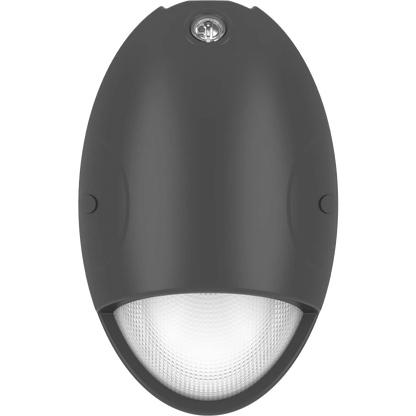

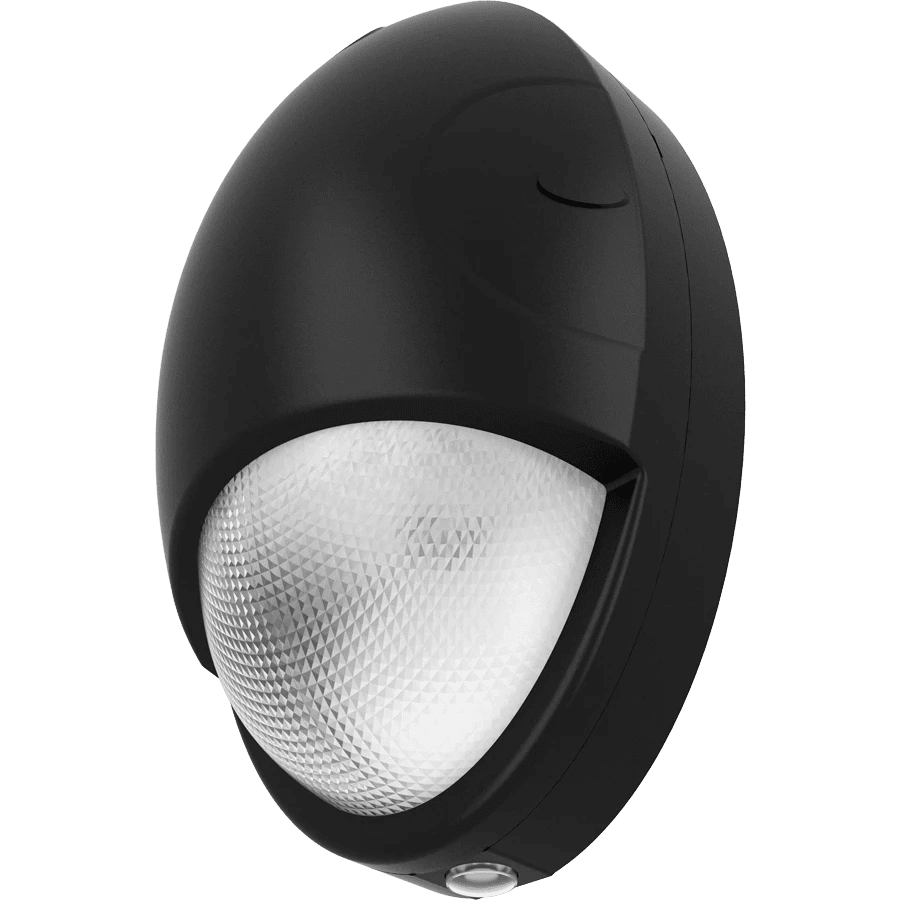

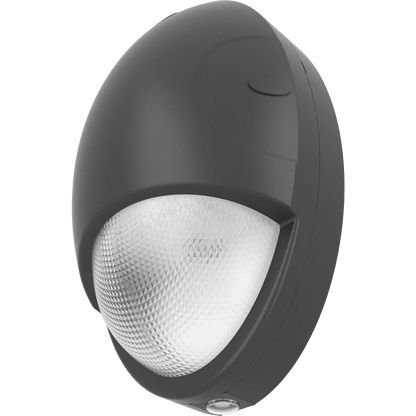

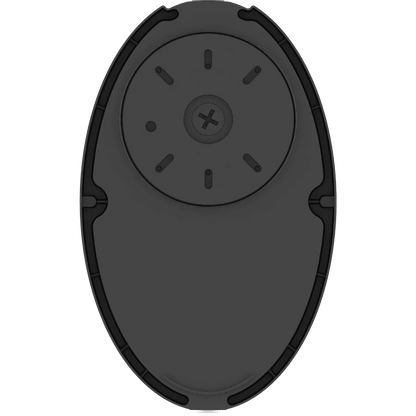

RAB DROP 15W Mini Teardrop Wallpack Selectable CCT
RAB DROP 15W Mini Teardrop Wallpack Selectable CCT
Couldn't load pickup availability

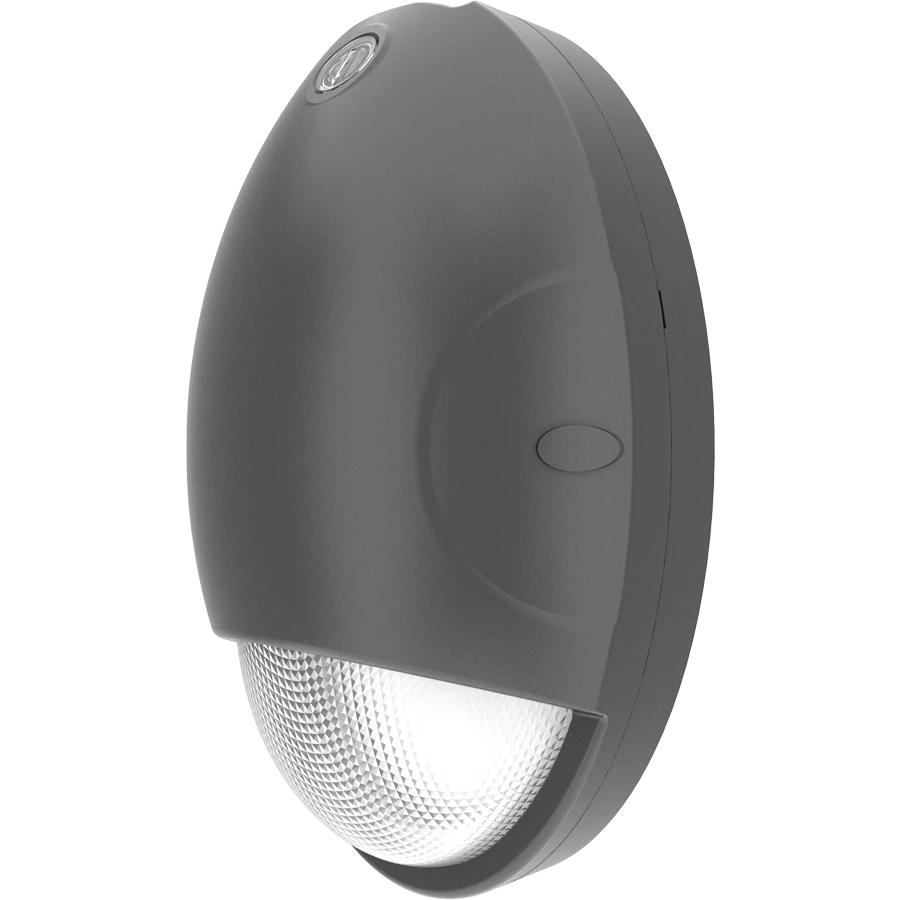

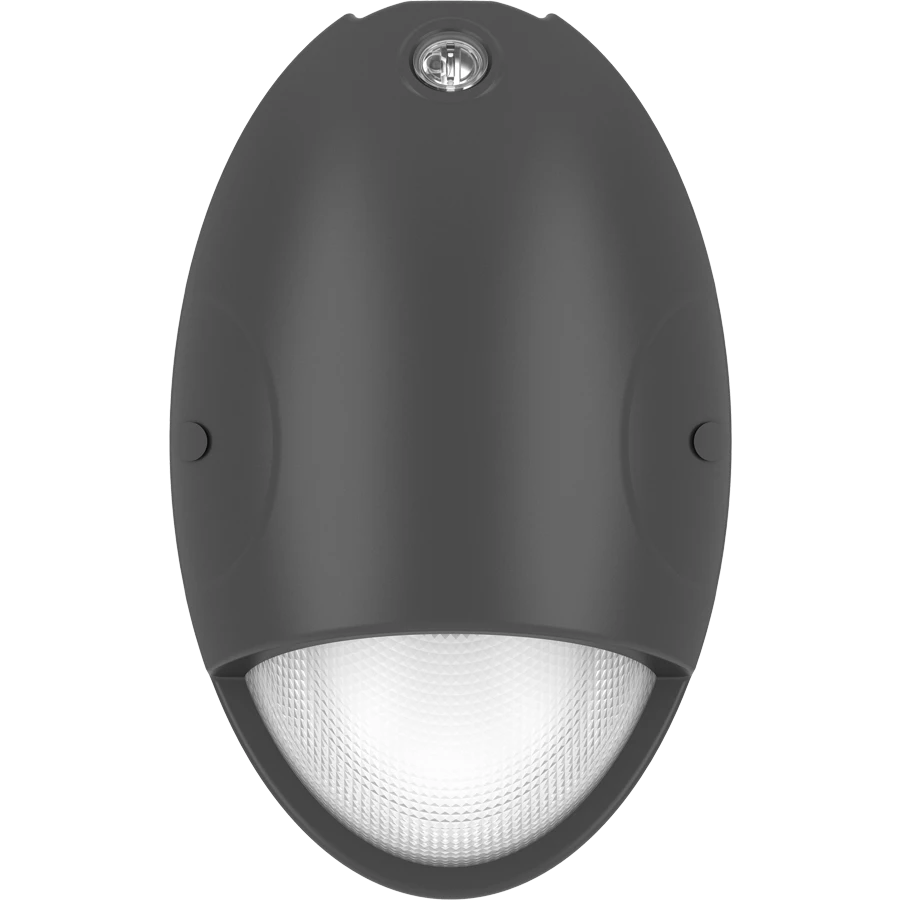

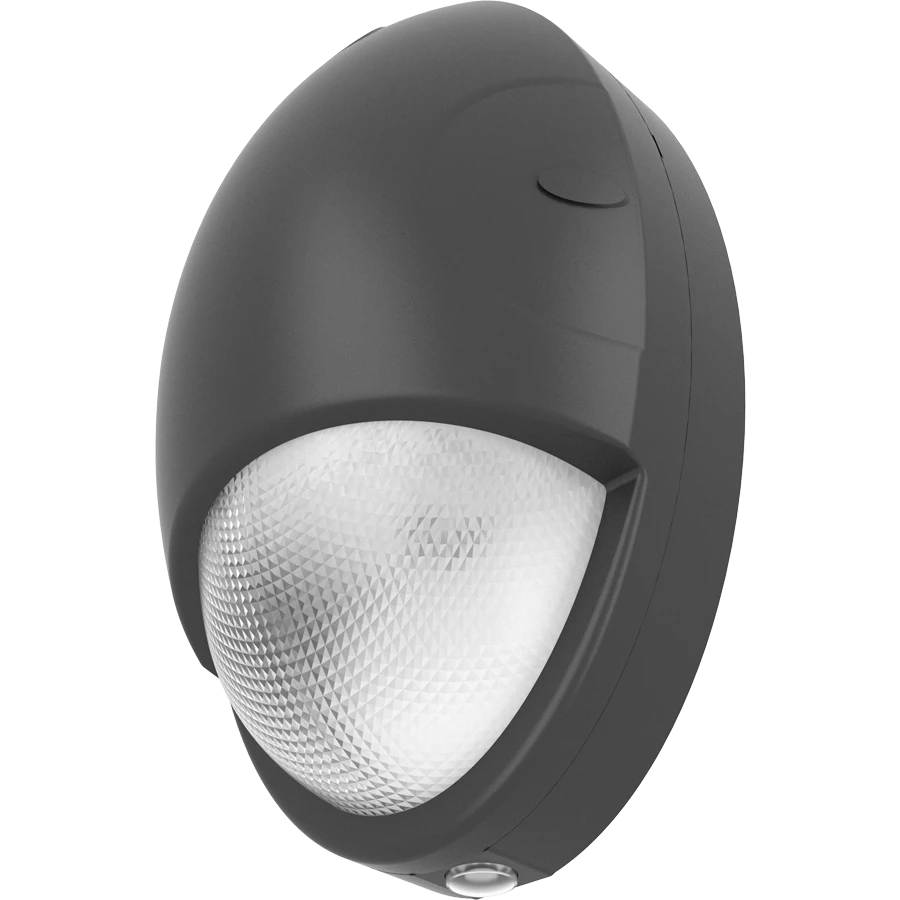

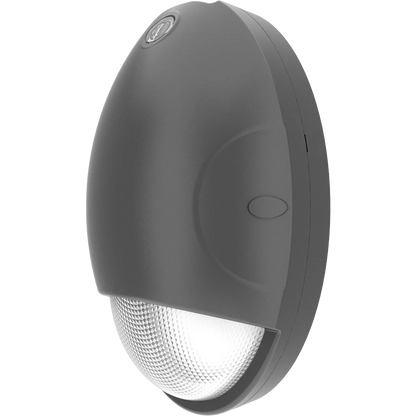

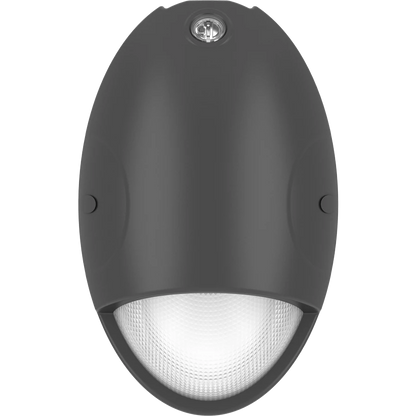

RAB DROP Mini LED Wall Pack – Field Adjustable CCT with Photocell
The RAB DROP Mini Wall Pack combines decorative styling with rugged performance, making it an ideal outdoor lighting solution for building perimeters, walkways, entrances, and commercial exteriors. Featuring a low-profile teardrop design and durable anti-corrosion die-cast aluminum housing, the DROP delivers reliable illumination with a modern architectural appearance.
Designed for maximum flexibility, the fixture features three selectable color temperatures (3500K, 4000K, and 5000K), allowing installers to customize the light output on-site. An integrated selectable dusk-to-dawn photocell provides automatic operation and increased energy savings.
Producing up to 1,815 lumens while consuming only 15 watts, the DROP delivers excellent efficiency of up to 138 lm/W. A glass prismatic lens provides smooth light distribution, while 0-10V dimming offers additional control capabilities.
Available in bronze, black, and white finishes, with optional battery backup models featuring an integrated test switch, the DROP is built for demanding environments. Its IP65 rating, UL924 listing, and DLC 5.1 qualification make it suitable for wet locations and eligible for many utility rebates.
- Decorative mini wall pack with low-profile teardrop design
- 15W LED with up to 1,815 lumens
- Selectable color temperatures: 3500K / 4000K / 5000K
- Integrated selectable dusk-to-dawn photocell

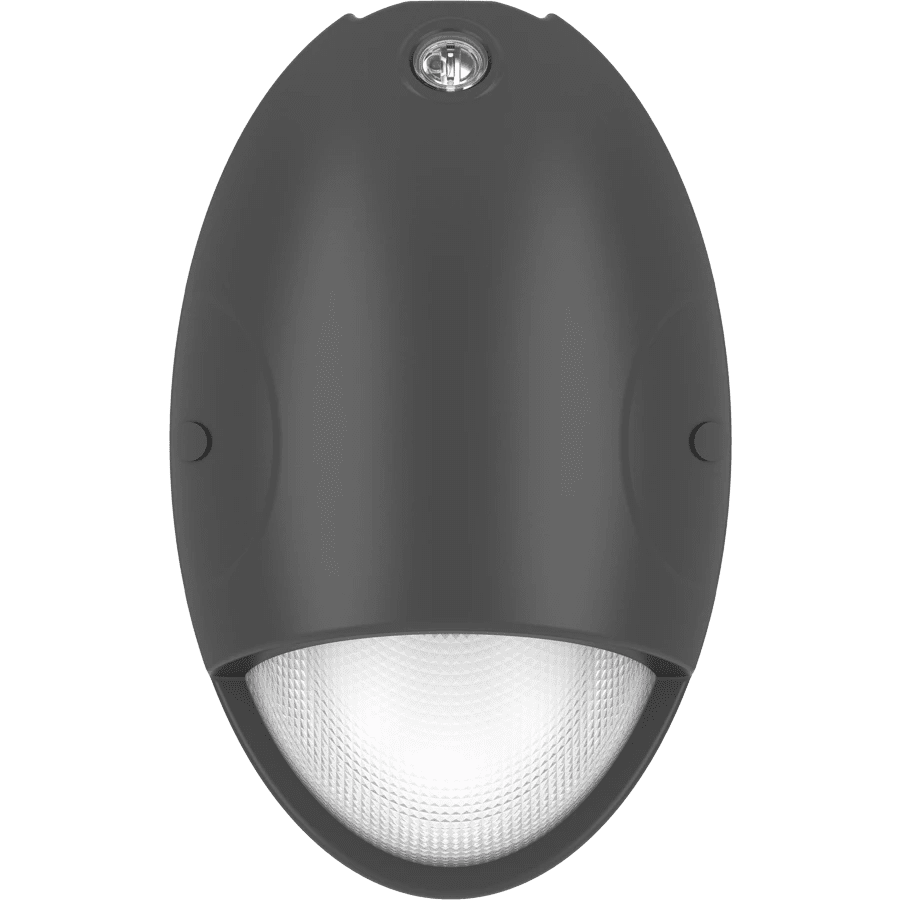

- Available with emergency battery backup and integrated test switch
- Durable anti-corrosion die-cast aluminum housing
- Glass prismatic lens
- 0-10V dimming down to 10%
- 120-277V universal voltage
- 100° beam angle

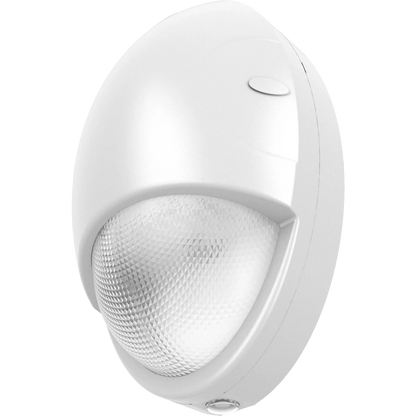

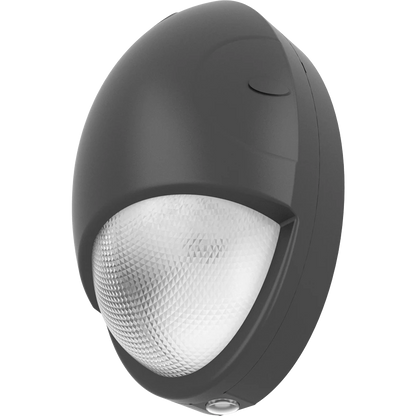

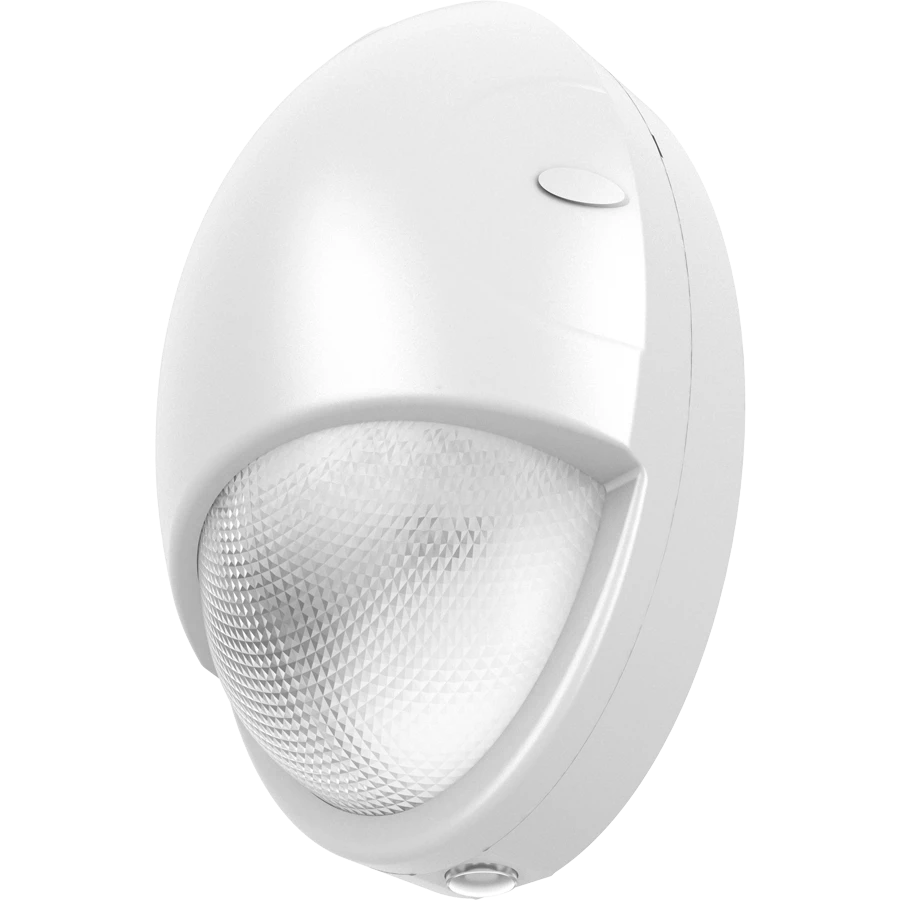

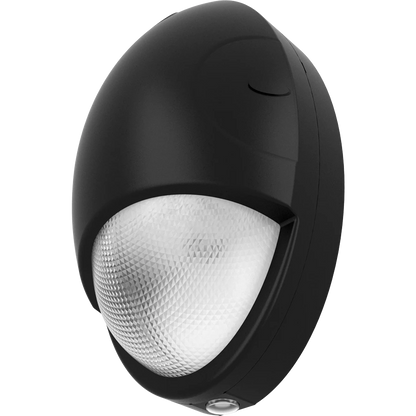

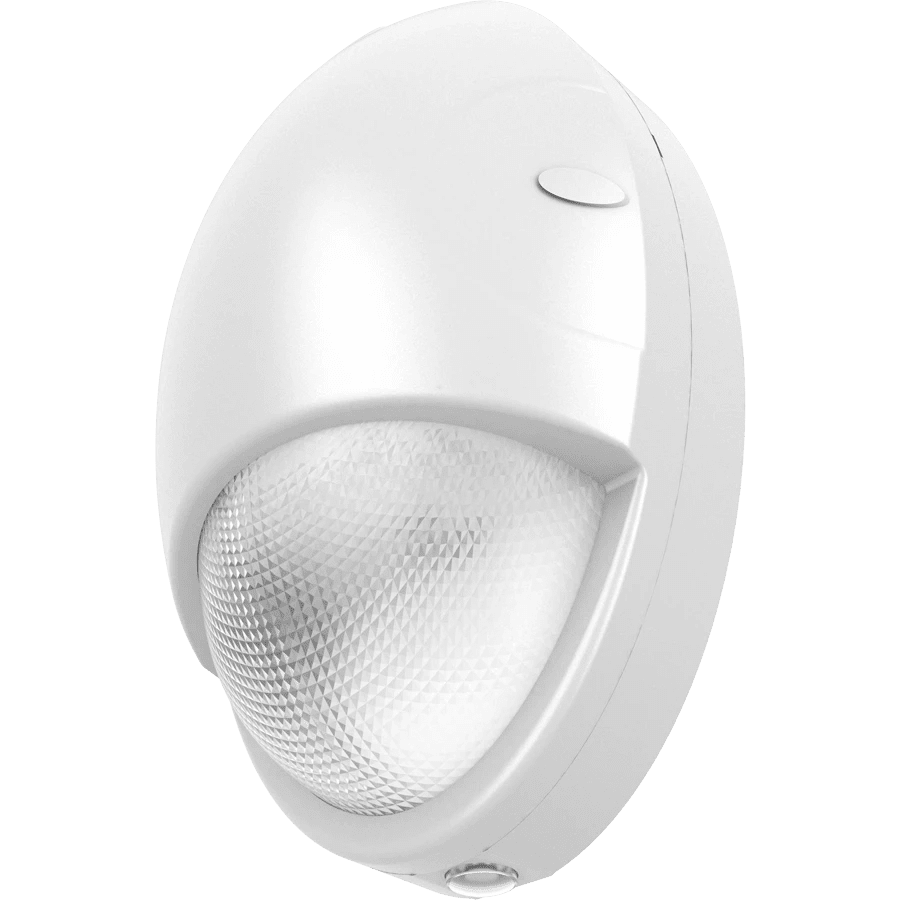

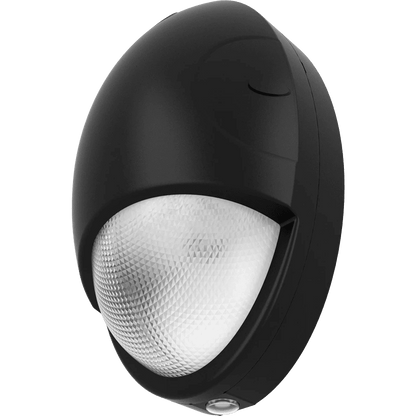

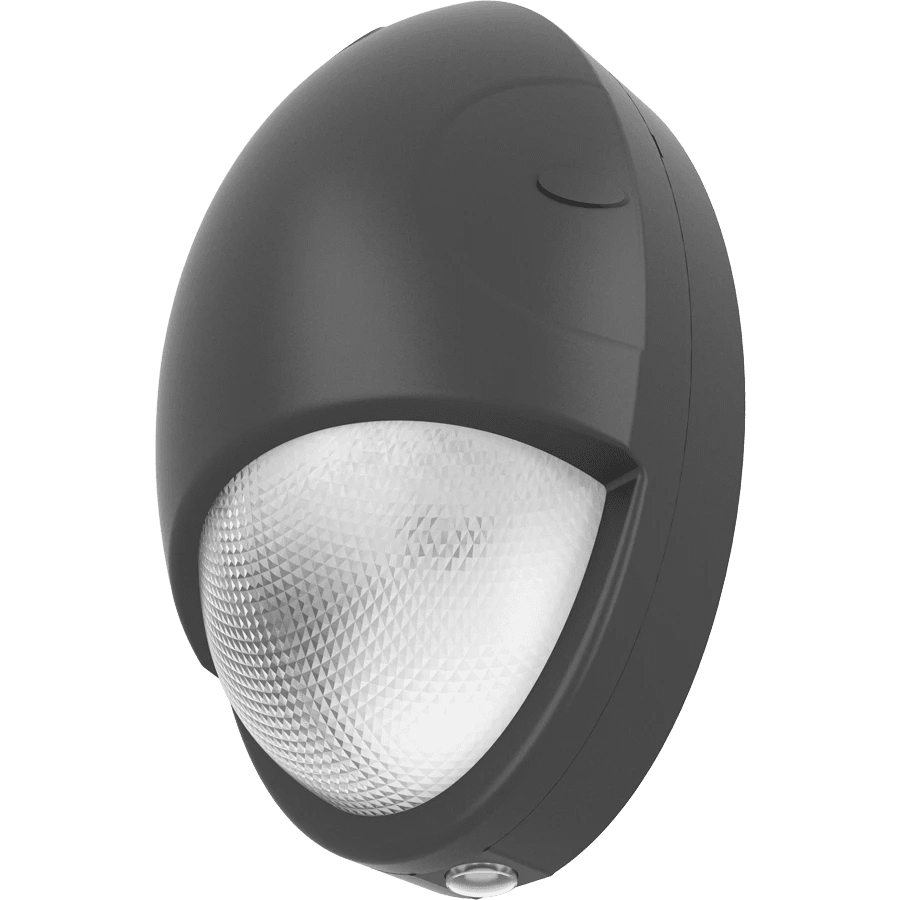

- Available in bronze, black, and white finishes
- IP65 wet location rated
- UL924 listed and DLC 5.1 qualified
- 50,000-hour rated life
- 5-year warranty
Perfect for exterior walls, entrances, pathways, apartment buildings, and commercial facilities requiring dependable and energy-efficient outdoor lighting.
Spec Sheet
Spec Sheet
Family Spec Sheet
Installation Instructions
Info
| Product Type | Teardrop Mini Wall Pack |
| Wattage | 15W |
| Efficacy | 130.3 / 138.5 / 133.8 lm/W |
| Lumen | 1740 / 1815 / 1776 lm |
| Color Temp. | 3500K / 4000K / 5000K |
| CRI | 80 CRI |
| Beam Angle | 100° |
| Lifespan | 50,000-hour LED lifespan |
| Finish | Bronze, Black, White |
| CCT Selectable | 3500K, 4000K and 5000K (default 4000K) |
| Photocell | Integrated selectable dusk-to-dawn photocell |
| Emergency Backup | Optional battery backup with integrated test switch |
| Voltage | 120-277V |
| IP Rating | IP65 |
| UL Listed | Suitable for wet locations |
Additional Info
| Dimming Driver | Driver includes dimming control wiring for 0-10V dimming systems. Requires a separate 0-10V DC dimming circuit. Dims down to 10%. |
| Driver | Constant Current, Class 2, 120-277V, 50/60 Hz |
| Housing | Anti-corrosion die-cast aluminum housing |
| Lens | Glass prismatic lens |
| Photocell | Selectable integrated photocell via dip switch |
| Emergency Operation | Battery backup models provide 700 lumens for 90 minutes |
| Battery Type | Ni-Cad battery |
| Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
| DLC Listed | DLC 5.1 Qualified |
| Warranty | 5-Year Limited Warranty |
