• RAB-ECOMBO34-RGRAB ECOMBO34 LED Exit Combo Sign Red/Green
1 1

RAB Lighting

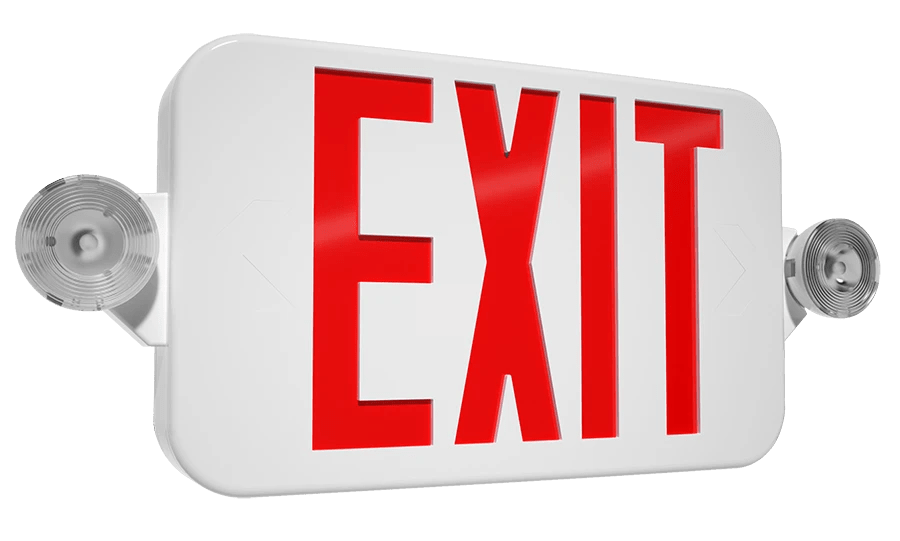

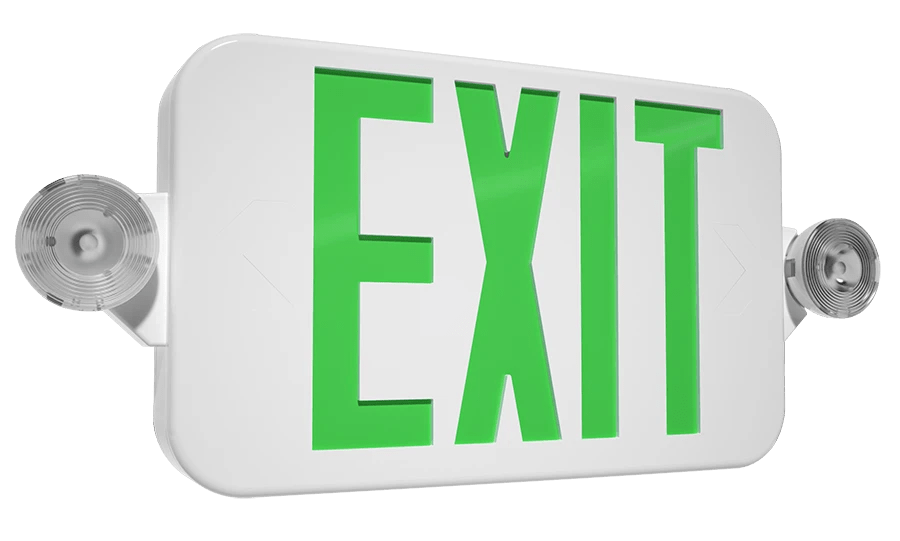

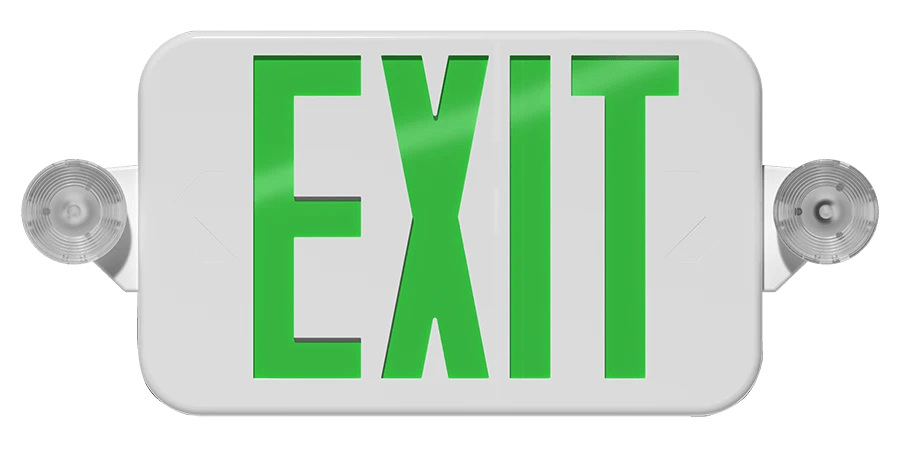

RAB ECOMBO34 LED Exit Combo Sign Red/Green

RAB ECOMBO34 LED Exit Combo Sign Red/Green

$58.00
$58.00
Sale Sold out
Shipping calculated at checkout.
Style
Color

ECOMBO34


Experience maximum efficiency from this ultra-economical exit sign combo with 90-minute emergency battery backup unit. Select from standard red, green, or red/green colors, and benefit from the additional options of a remote head capacity or 10FT mounting height.

    Spec Sheets

    		 Standard
    Red

    Spec Sheet
    Green

    Spec Sheet
    Red/Green

    Spec Sheet

    Installation Instructions


    Info
    Product Type  Emergency Exit Combo Sign
    Wattage 1W @120V and 277V
    Maximum Mounting Height 8FT
    Arrow Direction Field installable chevrons included
    Mounting
    		 Back/Top/End
    Mounting Type
    		 Wall/Ceiling Mount
    Battery Backup

    90 Min Battery Backup
    Housing Material Thermoplastic
    Number of Faces Universal Single/Double Face
    Letter Color

    Depending on trim

    • Red
    • Green
    • Red/Green

    Emergency Egress Coverage(ft)

    Mounting at height of 7.5ft:

    		 14 ft. x 3 ft. mounted @ 7.5 ft
    Remote Capacity Depending on trim option
    No. of Heads 2 Heads
    Shape Round
    Remote Head Lumens (Lm) 42 Lm
    Remote Heads Replaceable No
    Additional Info
    Compliance
    Safety Listing UL924 Listed
    Environment Suitable for indoor use in dry and damp environments
    IP Rating Indoor
    Electrical
    Input Wattage 1.4W @120V; 1.7W @277V
    Power Factor 0.14@120V; 0.05@277V
    Input Voltage Dual 120/277 Voltage
    Operating Temperature 32°F to 122°F (0°C to 50°C)
