RAB Lighting

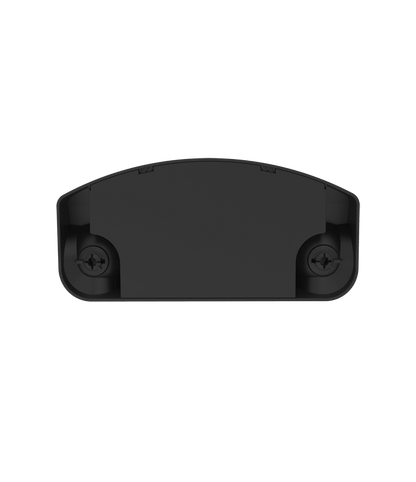

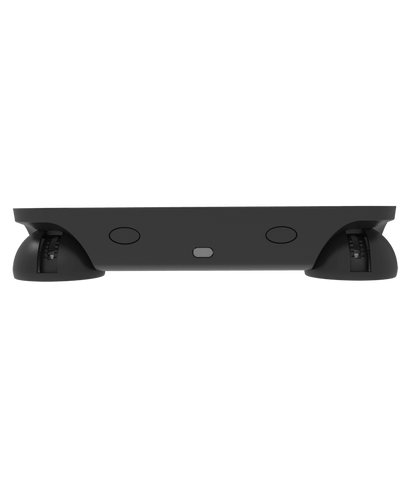

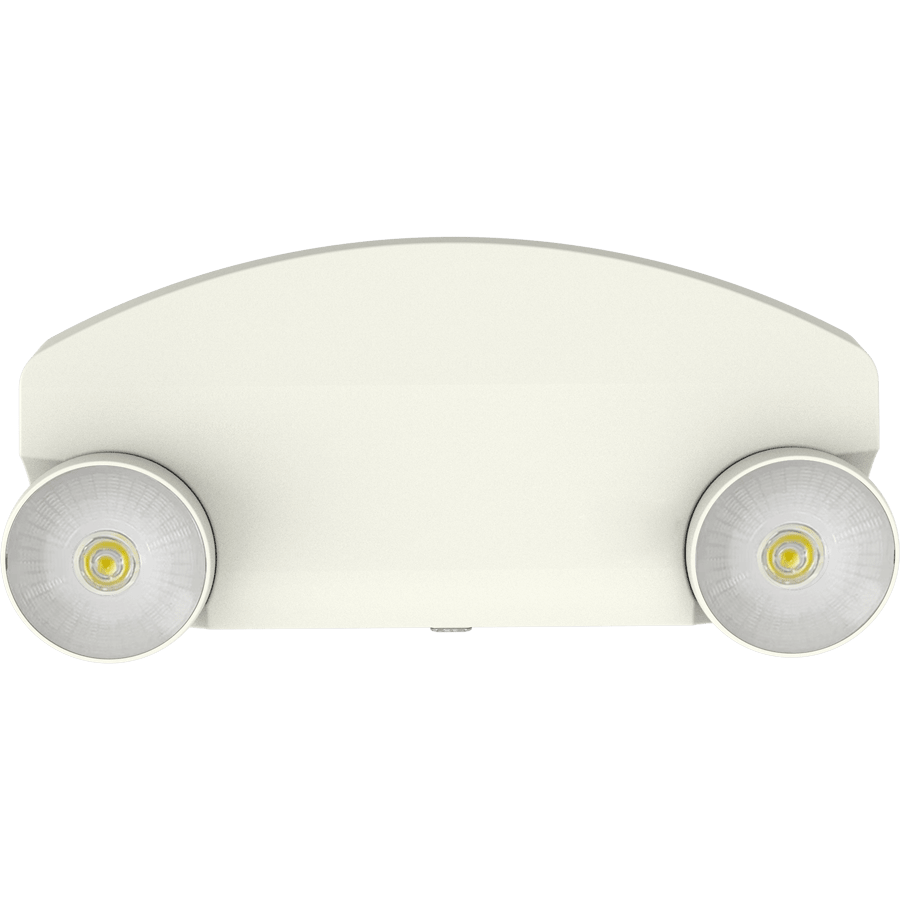

RAB EM34 LED Low Profile Emergency Light with Round Heads and Battery Backup
RAB EM34 LED Low Profile Emergency Light with Round Heads and Battery Backup
Regular price
$24.00
Regular price
Sale price
$24.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
EM34 Low Profile LED Emergency Light

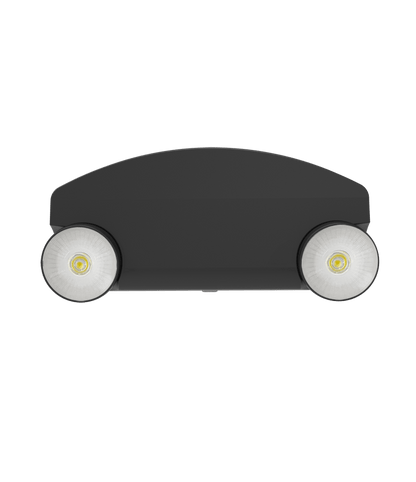

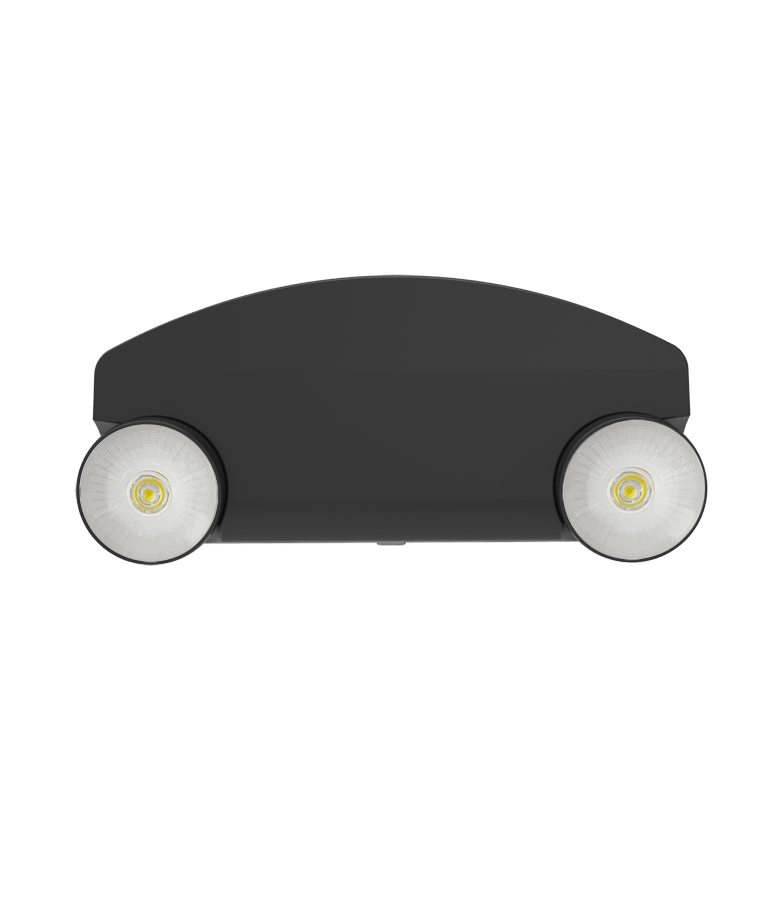

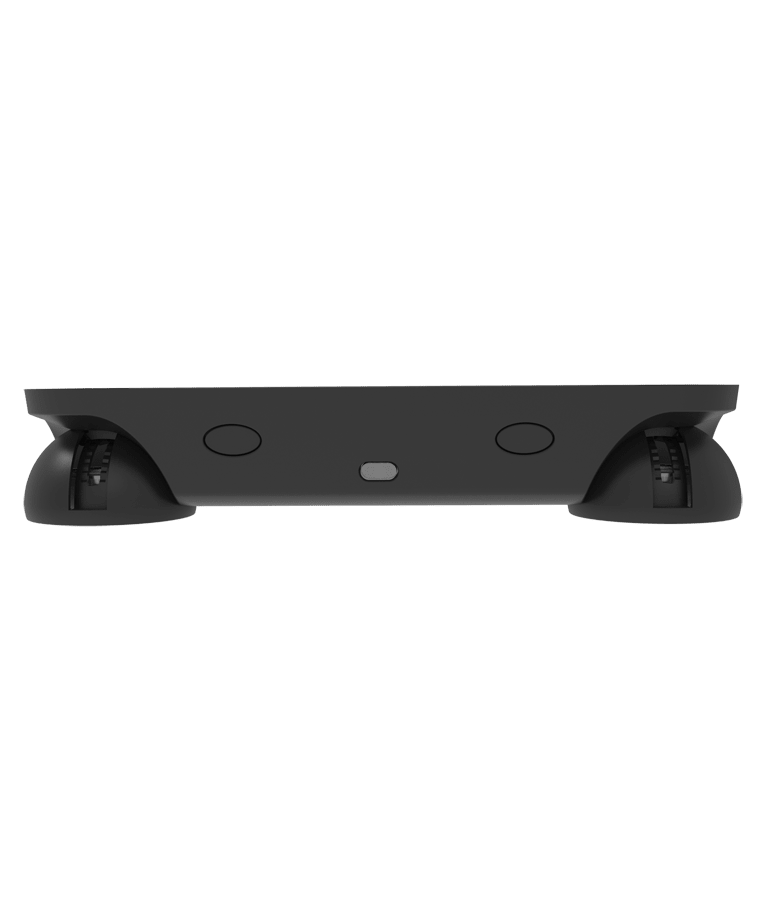

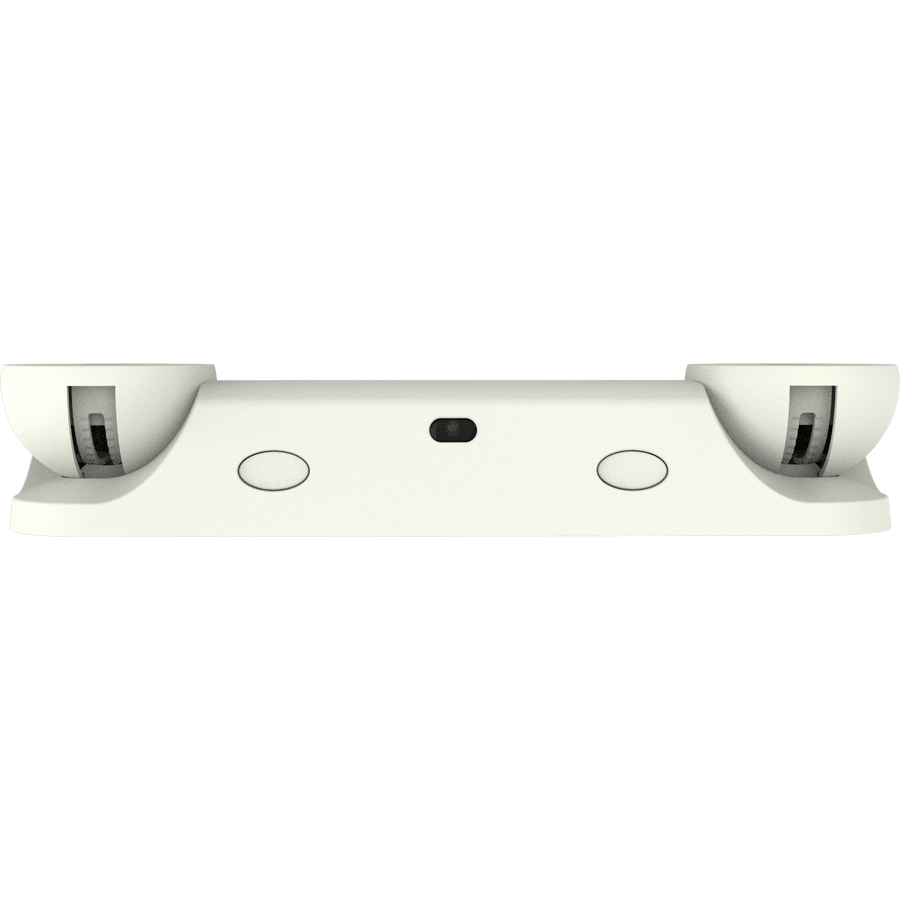

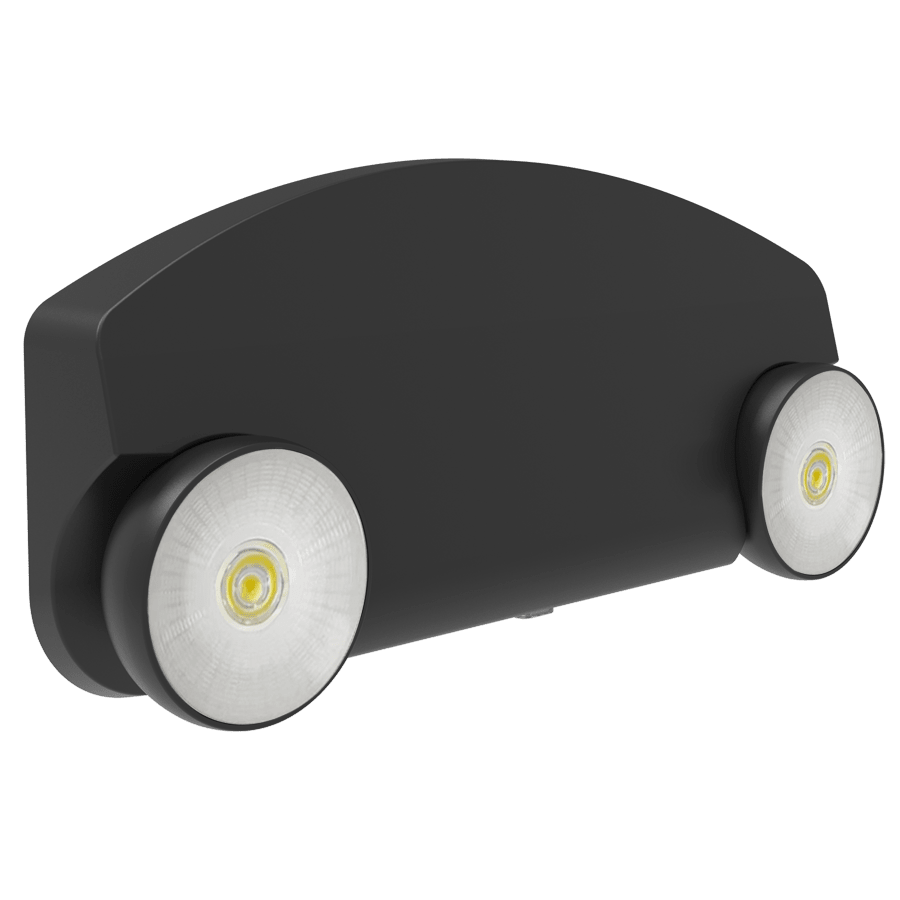

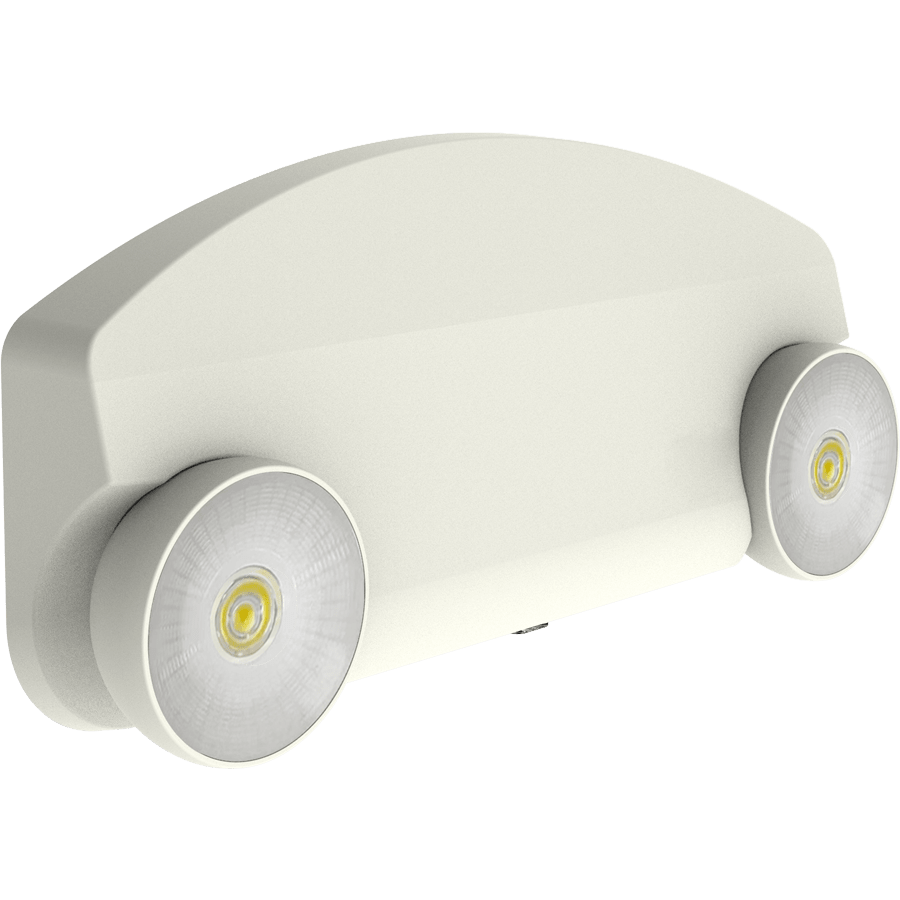

The RAB EM34 is a low profile thermoplastic emergency light with two adjustable round LED heads and a built-in 90 minute battery. It mounts on a wall or ceiling and fits a standard junction box. Choose white or black housing, and standard or remote capable models that can power two 3.6V remote heads.
- Two adjustable round LED heads, 330° rotation and 40° tilt
- 90 minutes of emergency operation, 120-277V universal input
- White or black housing, UL 94V-0 thermoplastic
- Remote capable models support up to two single or one double 3.6VDC remote heads

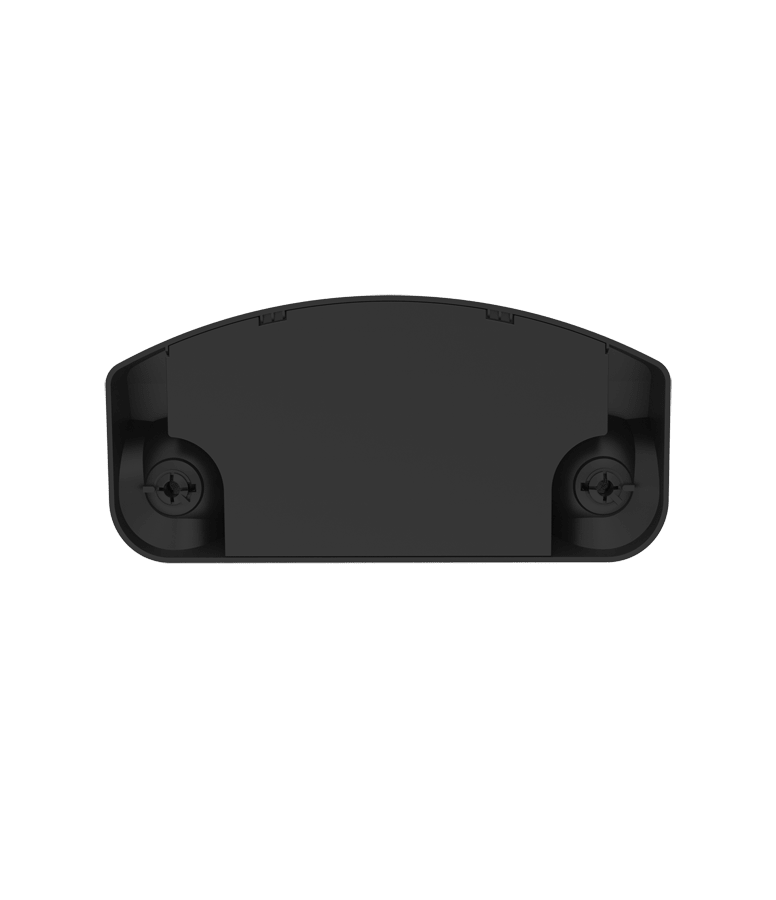

- Wall or ceiling mount with universal J-box pattern
- UL924 listed, meets NFPA 101 and NEC, California Title 20 compliant
Spec Sheets
Family Spec Sheet
Spec Sheet
Installation Instructions
Info
| Product Type | Low Profile Emergency Light |
| Input Power | 1.8W |
| Lumens | 160lm |
| Maximum Output Wattage | 2W standard, 4W remote capable |
| Color Temperature | 6500K |
| Input Voltage | Universal 120-277V |
| Heads | 2 adjustable round LED heads |
| Battery | Built-in 3.6V Ni-MH, 90 minutes |
| Remote Capable | R models only: up to two 3.6VDC remote heads |
| Housing | Thermoplastic ABS, UL 94V-0 |
| Mounting | Wall or ceiling, universal J-box pattern |
| Emergency Egress Coverage | 14 ft x 3 ft at 7.5 ft mounting height |
| Listing | UL924 Listed |
| Environment | Suitable for indoor use in dry and damp environments |
| IP Rating | IP20 |
| California Title 20 | Compliant |
| Warranty | 3 years |
