RAB EZP1X4 40W LED 1X4 Drop Ceiling Selectable CCT + Wattage

RAB EZP1X4 40W LED 1X4 Drop Ceiling Selectable CCT + Wattage

$93.00
$93.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

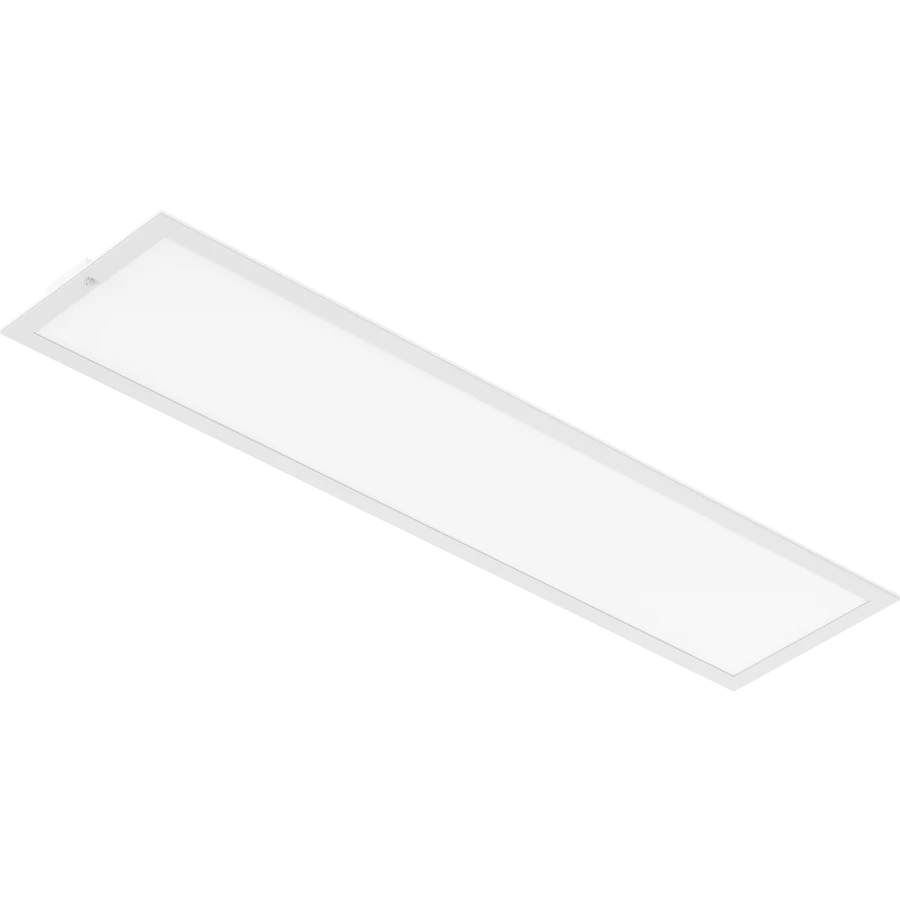

40W Drop Ceiling 1FT X 4FT Panel

The upgraded EZPAN Panels have superior color stability and can be easily adjusted for wattage and color temperature. This makes them a top choice for healthcare facilities, offices, and classrooms with varying lighting preferences. The panels have a high light output and improved durability thanks to their PMMA light guide plate. They also have excellent UV stability to prevent yellowing over time and save energy with an efficiency of up to 155 lm/W.


  • EZP1X4: 40/30/25W
  • CCT Selectable: 3500/4000/5000K
  • Voltage ratings: 120-277V
  • Battery backup, Lightcloud Blue and, smart control options available
  •  0-10V dimming
  • Suitable for damp locations
  • 5-years, no-compromise warranty


Spec Sheets

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info


Wattage 25W/30W/40W
Lumen 3,013-4,639 lm
Color Temp. 3500K-5000K
Efficacy 110.1-120.9 lm/W
CRI 83-85
L70 Lifespan 100,000
Finish  Formulated for high durability and long-lasting color
Lens Precision engineered polystyrene diffuser provides high uniformity, and reduced glare. No visible diodes, hot-spots, or shadows.
Reflector TPET reflective paper
Housing Aluminum+Iron
Mounting
Surface, suspended & recessed mounting. The mounting accessories sold separately.
Installation Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation

Additional Info

 Compliance

Safety Listing UL Listed Suitable for damp locations
Environment/Fixture Rating Damp Location
IC Rated Suitable for direct contact with insulation
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-CN5JZS
Electrical
Power Factor 99.3% at 120V, 97.4% at 277V
Driver
 Constant Current, Class II, 120-277V, 50/60 Hz:
40W: 120V: 0.33A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A
30W: 120V: 0.25A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
25W: 120V: 0.21A, 208V: 0.12A 240V: 0.10A, 277V: 0.09A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Dim to Off Yes
Surge Protection 2kV + 4kV
