RAB FGIMBAL6 14W LED 6" Downlight Gimbal Selectable CCT Fire Resistant

$67.14

Sale Sold out

Shipping calculated at checkout.

Color Temperature Selectable CCT

Wattage 14W

Size 6"

Quantity

6" Gimbal Field Adjustable Fire Resistant

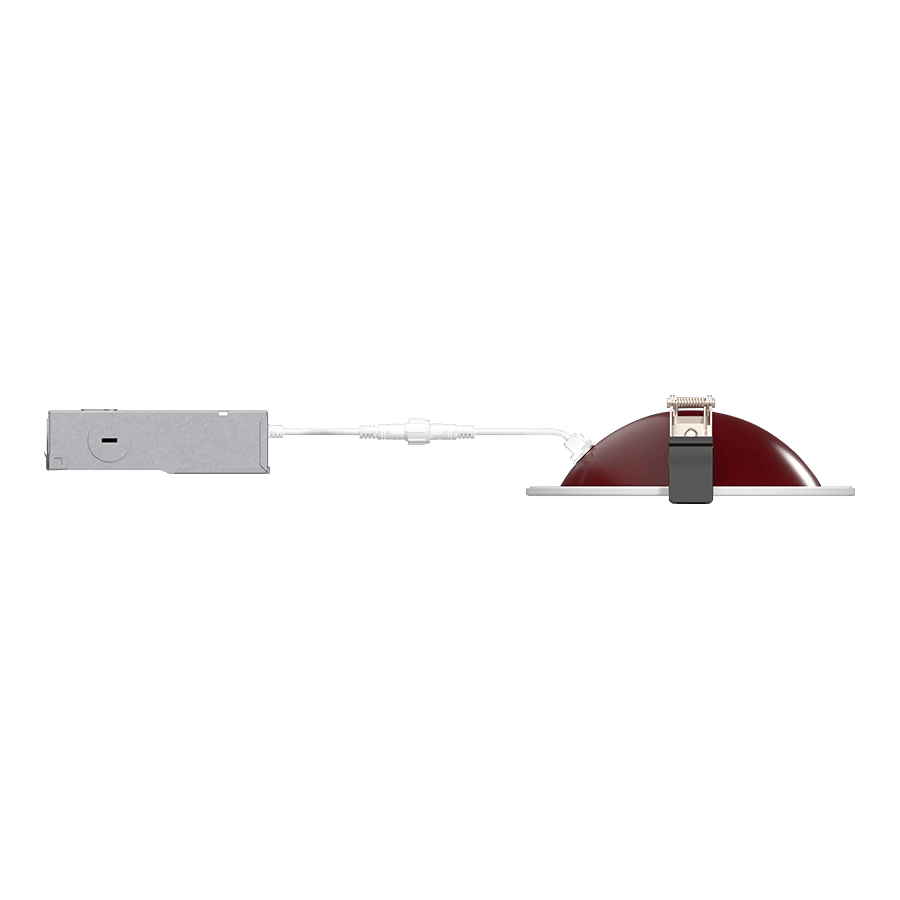

Crafted to withstand high temperatures, the RAB FGIMBAL6 14W LED 6" Downlight Gimbal Selectable CCT Fire Resistant is the perfect solution for customizable lighting in any environment. This field-adjustable downlight has been tested to UL 263 and ASTM E119 standards for 2-hour fire resistance, ensuring safety and reliability in any setting. With 5 selectable color temperatures, this gimbal downlight allows for easy adjustment at the flick of a switch, making it ideal for both new construction and retrofit applications. The low-profile design features an off-board driver that minimizes installation height and maximizes thermal management, eliminating the need for a traditional recessed housing. The downlight module can easily be linked to the remote driver with a plenum-rated cable connector and snapped into place with adjustable, spring-loaded retention clips. For maximum flexibility, the remote driver box has quick connectors, knockouts

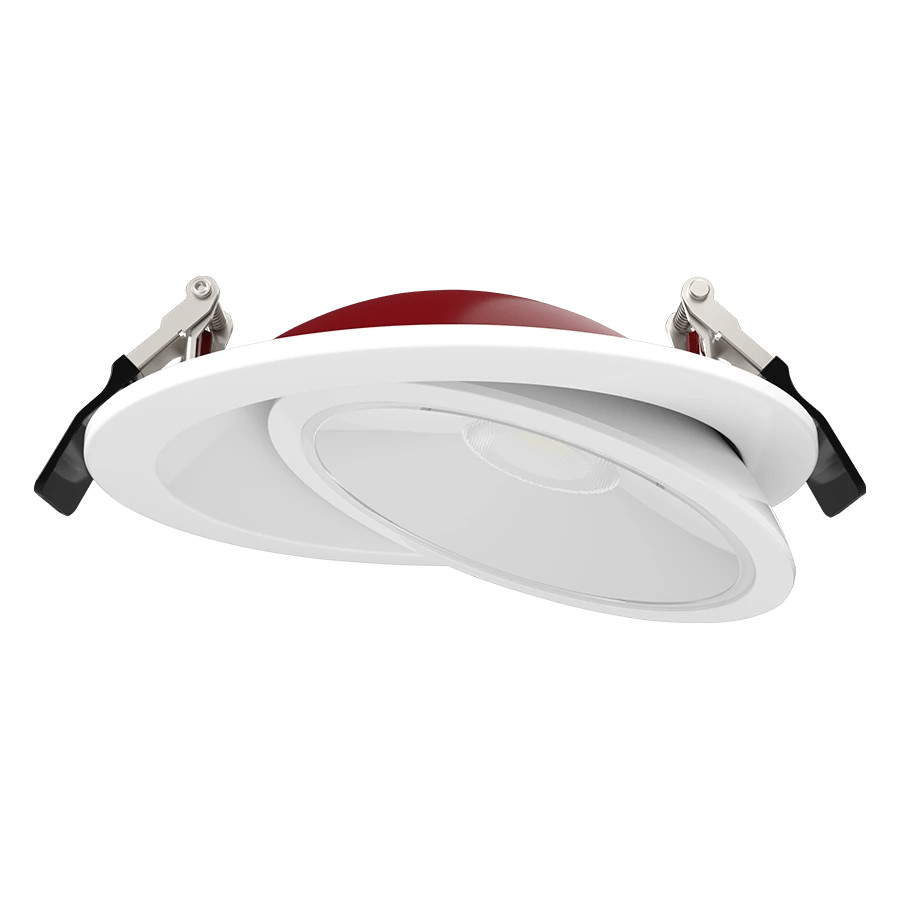

Adjustable gimbal with 90° tilt and 360° rotation
5 color temperatures in 1 SKU (2700/3000/3500/4000/5000K)
Spring-loaded retention clips
New construction or retrofit applications
No recessed housing or j-box required
Tested to UL 263 and ASTM E119 standards for 2-hour fire resistance.
TRIAC/ELV dimming (see Dimmer Compatibility List)
50,000-Hour lifespan

Info

Product Type	Fire Resistant Wafer
Wattage	14W
Lumen	1300
Color Temp.	Field Adjustable
CRI	90
L70 Lifespan	50,000
Enclosure Material	Metal
Finish	White+Red
Style	Smooth
Fire Rating	Tested to UL 263 and ASTM E119 standards for 2-hour fire resistance.

Additional Info

Listings	UL Listed
Environment	Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated	Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight	Housing certified Air Tight as per ASTM E283
Energy Star Approved	This product is ENERGY STAR® Certified.
DLC Listed	No
California Title 24 JA8 Compliant	Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission	Lawful for Sales in California
NEC Compliant	Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing	RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS	Mercury and UV free. RoHS-compliant components.
FCC	Complies with Part 15 of the FCC Rules
