RAB Lighting

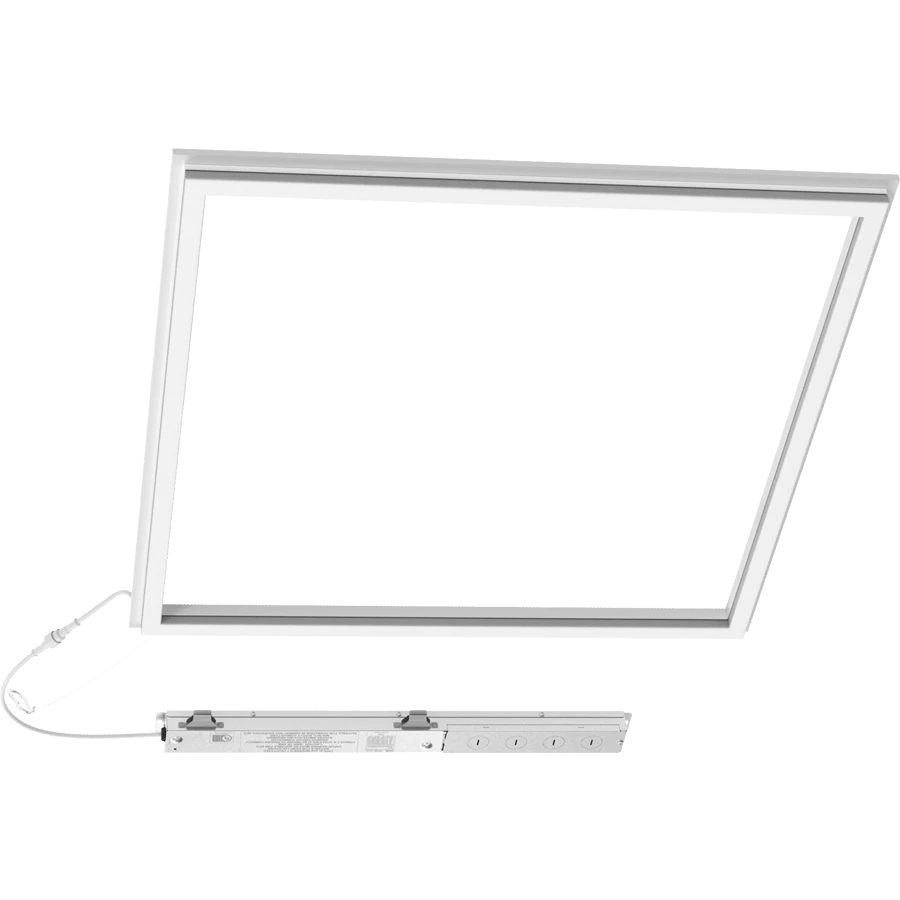

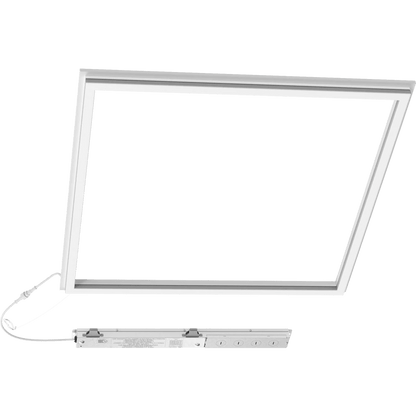

RAB FR2X2 40W 2FT X 2FT LED Frame Panel Selectable CCT/Wattage

RAB FR2X2 40W 2FT X 2FT LED Frame Panel Selectable CCT/Wattage

$138.00
$138.00
Sale Sold out
Shipping calculated at checkout.
Style
Color Temperature
Wattage

40W 2X2 Frame Panel Light

Sold in packs of 2

Experience a fresh perspective with FRAME. Combining contemporary elegance with unmatched versatility, this revolutionary lighting solution pushes boundaries. With its minimalist design, FRAME sets a new standard for commercial lighting. Though it may seem simple- just an edge-lit frame- don't be fooled. Its sleek appearance makes it perfect for modern office settings, retail environments, and any space where clean lines and high-quality lighting are crucial. Maximum flexibility. Available in 2x2, 1x4, and 2x4 sizes, easily installable in existing t-grids, each model offers five adjustable CCTs and wattages, ensuring a seamless integration into any space.



  • 2X2: 40/35/30/25/20W (Default 40W)
  • Selectable CCT: 3000/3500/4000/5000/6500K (Default 4000K)
  • Voltage rating: 120-277V
  • Battery backup option available with an off-board battery that mounts directly onto the t-grid bracket
  • Available with smart controls
  • IC rated
  • 5-year, limited warranty
Spec Sheets

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Wattage 20/25/30/35/40W
Lumen 2,637-5,081 lm
Color Temp. 3000/3500/4000/5000/6500K
Efficacy 126.8-131.4 lm/W
CRI 83-85
L70 Lifespan 50,000
Mounting
Recessed into existing T-grid brackets
Additional Info

Driver 40W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.16A
35W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.32A, 208V: 0.19A, 240V: 0.16A, 277V: 0.14A
30W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.28A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A
25W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.23A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
20W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.18A, 208V: 0.11A, 240V: 0.08A, 277V: 0.08A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.82% at 120V, 12.04% at 277V
Power Factor 9.79% at 120V, 99.80% at 277V
Aux Power Supply Yes
Dim to Off Yes
