RAB Lighting

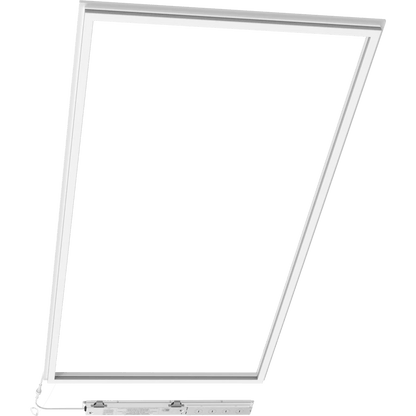

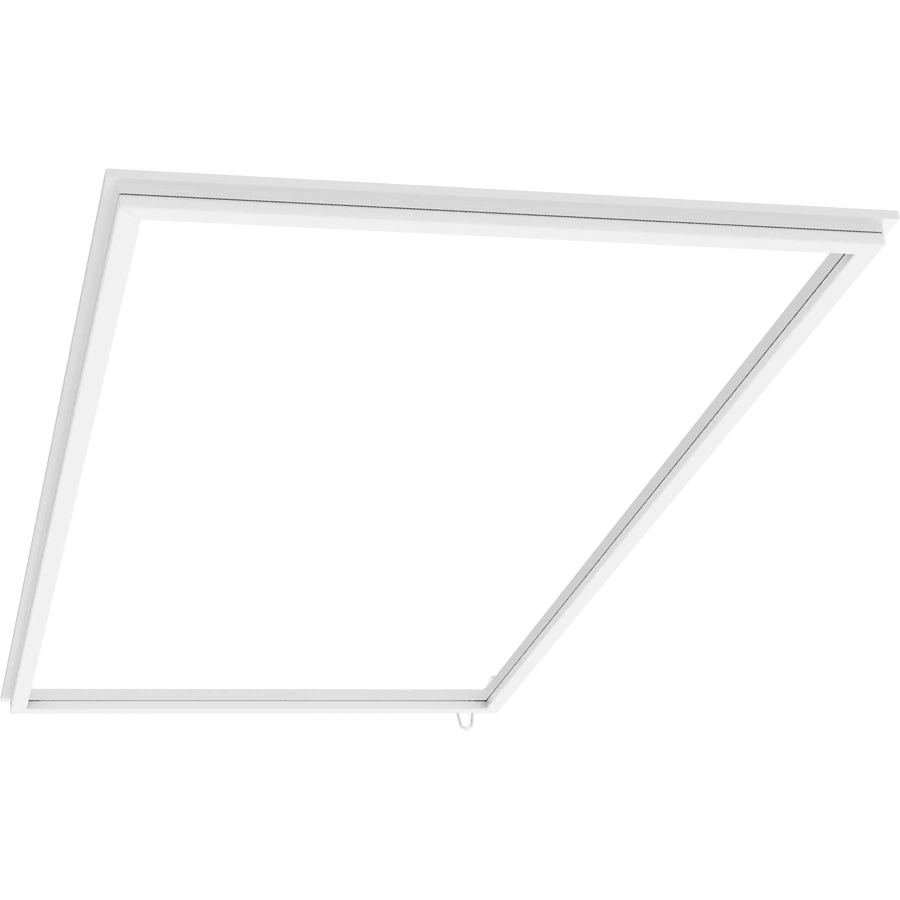

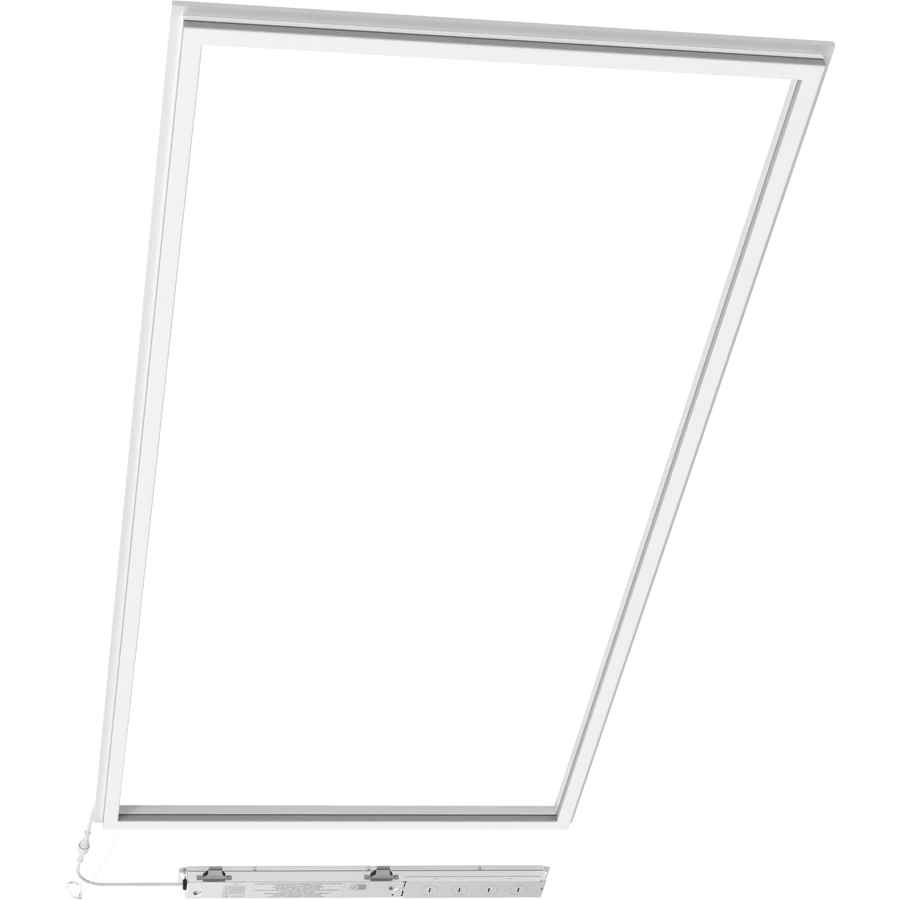

RAB FR2X4 50W 2FT X 4FT LED Frame Panel Selectable CCT/Wattage

RAB FR2X4 50W 2FT X 4FT LED Frame Panel Selectable CCT/Wattage

$196.00
$196.00
Sale Sold out
Shipping calculated at checkout.
Style
Color Temperature
Wattage

50W 2X4 Frame Panel Light

Sold in packs of 2

Experience a fresh perspective with FRAME. Combining contemporary elegance with unmatched versatility, this revolutionary lighting solution pushes boundaries. With its minimalist design, FRAME sets a new standard for commercial lighting. Though it may seem simple- just an edge-lit frame- don't be fooled. Its sleek appearance makes it perfect for modern office settings, retail environments, and any space where clean lines and high-quality lighting are crucial. Maximum flexibility. Available in 2x2, 1x4, and 2x4 sizes, easily installable in existing t-grids, each model offers five adjustable CCTs and wattages, ensuring a seamless integration into any space.



  • 2X4: 50/45/40/35/30W (Default 50W)
  • Selectable CCT: 3000/3500/4000/5000/6500K (Default 4000K)
  • Voltage rating: 120-277V
  • Battery backup option available with an off-board battery that mounts directly onto the t-grid bracket
  • Available with smart controls
  • IC rated
  • 5-year, limited warranty
Spec Sheets

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info
Wattage 30/35/40/45/50W
Lumen 3,764-6,203 lm
Color Temp. 3000/3500/4000/5000/6500K
Efficacy 130.3-145 lm/W
CRI 83-85
L70 Lifespan 50,000
Mounting
Recessed into existing T-grid brackets
Additional Info

Driver 50W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.46A, 208V: 0.26A, 240V: 0.23A, 277V: 0.20A
45W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.16A
40W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.16A
35W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.32A, 208V: 0.19A, 240V: 0.16A, 277V: 0.14A
30W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.28A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.02% at 120V, 13.31% at 277V
Power Factor 99.73% at 120V, 99.79% at 277V
Aux Power Supply Yes
Dim to Off Yes
Surge Protection L-N:2.5KV,L/N-GND:2.5KV
