RAB Lighting

RAB FWAFER4B 11W LED 4" Round Baffle Wafer Selectable CCT Fire Resistant

RAB FWAFER4B 11W LED 4" Round Baffle Wafer Selectable CCT Fire Resistant

$34.29
$34.29
Sale Sold out
Shipping calculated at checkout.
Color Temperature
Wattage
Size

4" Wafer Field Adjustable Fire Rated

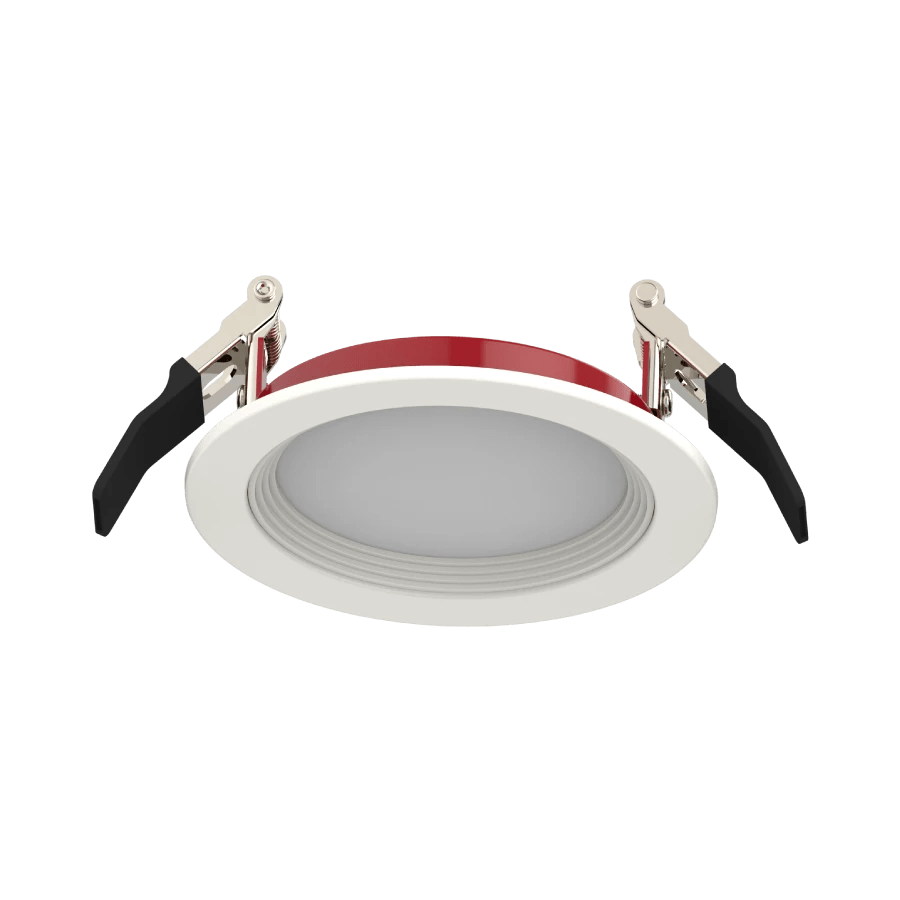

Fire-resistant edge-lit wafer offered in 4" and 6" models with 5 selectable color temperatures in one wafer. The remote driver makes these ideal for new construction and retrofit applications.

  • Tested to UL 263, tested and certified for 2 hours
  • 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
  • Super slim Edge-lit fixture for thin fixture depth
  • No recessed housing or J-box required
  • New construction or retrofit applications

      Spec Sheets

      Spec Sheet

      Installation Instructions

      Info
      Product Type  Fire Resistant Wafer
      Wattage 11W
      Lumen 957
      Color Temp. Field Adjustable
      CRI 90
      L70 Lifespan 50,000
      Enclosure Material Metal
      Finish  White+Red
      Style Baffle
      Fire Rating Complies with UL 263, tested and certified for 2 hours
      Additional Info
      Compliance
      Safety Listing Suitable for indoor and outdoor use in dry, damp, and wet environments
      IC Rated Yes
      ENERGY STAR V2.2 ID DLW0098(BACKDRAFT4B)
      Air Tight Housing certified Air Tight as per ASTM E283
      Electrical
      Driver Constant Current, Class 2, 60 Hz, 120V, 120V: 0.14A
      THD ≤20%
      Power Factor ≥0.9
      Input Voltage 120V
      Operating Temperature -30°C to 40°C
      Dimming Yes, using compatible TRIAC/ELV dimming systems. Dimmable down to 10%.

      Note All values are typical (tolerance +/- 10%)
