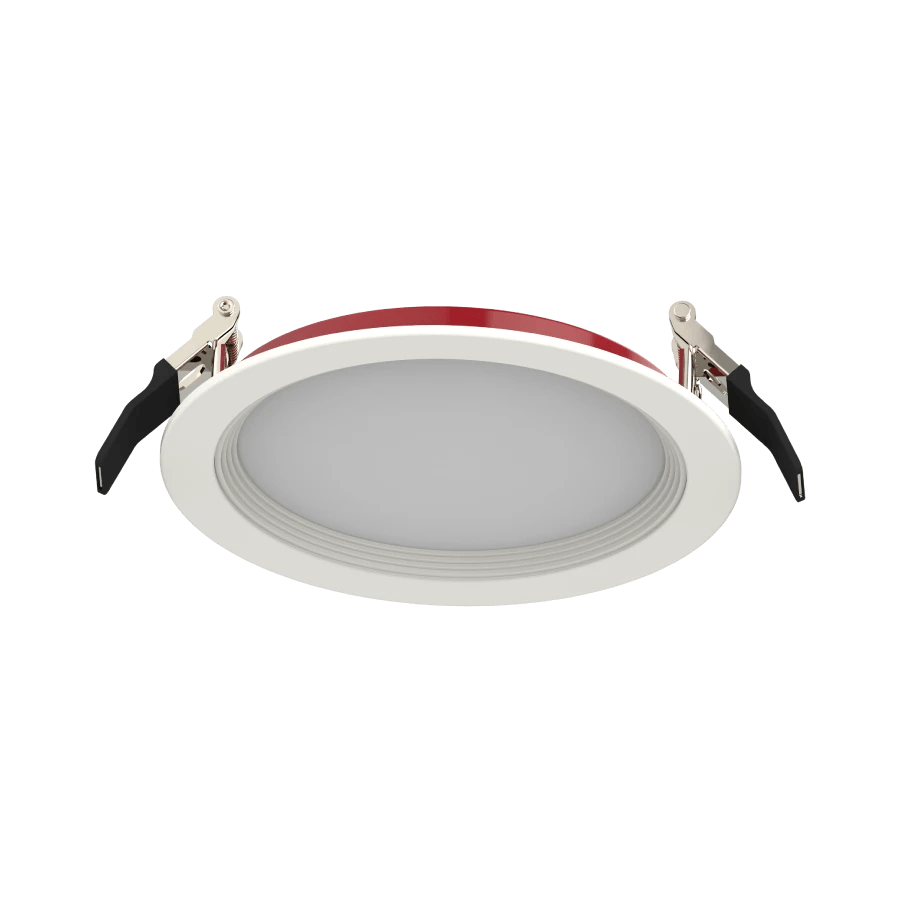

RAB FWAFER6B 15W LED 6" Round Baffle Wafer Selectable CCT Fire Resistant

RAB FWAFER6B 15W LED 6" Round Baffle Wafer Selectable CCT Fire Resistant

$40.00
$40.00
Sale Sold out
Shipping calculated at checkout.
Color Temperature
Wattage
Size

6" Wafer Field Adjustable Fire Resistant

Fire-resistant edge-lit wafer offered in 4" and 6" models with 5 selectable color temperatures in one wafer. The remote driver makes these ideal for new construction and retrofit applications.

  • Tested to UL 263, tested and certified for 2 hours
  • 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
  • Super slim Edge-lit fixture for thin fixture depth
  • No recessed housing or J-box required
  • New construction or retrofit applications

    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
    Product Type  Fire Resistant Wafer
    Wattage 15W
    Lumen 1330
    Color Temp. Field Adjustable
    CRI 90
    L70 Lifespan 50,000
    Enclosure Material Metal
    Finish  White+Red
    Style Baffle
    Fire Rating Complies with UL 263, tested and certified for 2 hours
    Additional Info
    Compliance
    Safety Listing Suitable for indoor and outdoor use in dry, damp, and wet environments
    IC Rated Yes
    ENERGY STAR V2.2 ID DLW0099(BACKDRAFT6B)
    Air Tight Housing certified Air Tight as per ASTM E283
    Electrical
    Driver Constant Current, Class 2, 60 Hz, 120V, 120V: 0.14A
    THD ≤20%
    Power Factor ≥0.9
    Input Voltage 120V
    Operating Temperature -30°C to 40°C
    Dimming Yes, using compatible TRIAC/ELV dimming systems. Dimmable down to 10%.

    Note All values are typical (tolerance +/- 10%)
