RAB GR3STL 9W LED 3" Square Trimless Gimbaled Downlight Selectable CCT

RAB GR3STL 9W LED 3" Square Trimless Gimbaled Downlight Selectable CCT

$52.90
$52.90
Sale Sold out
Shipping calculated at checkout.
Size
Color: White
Color Temperature

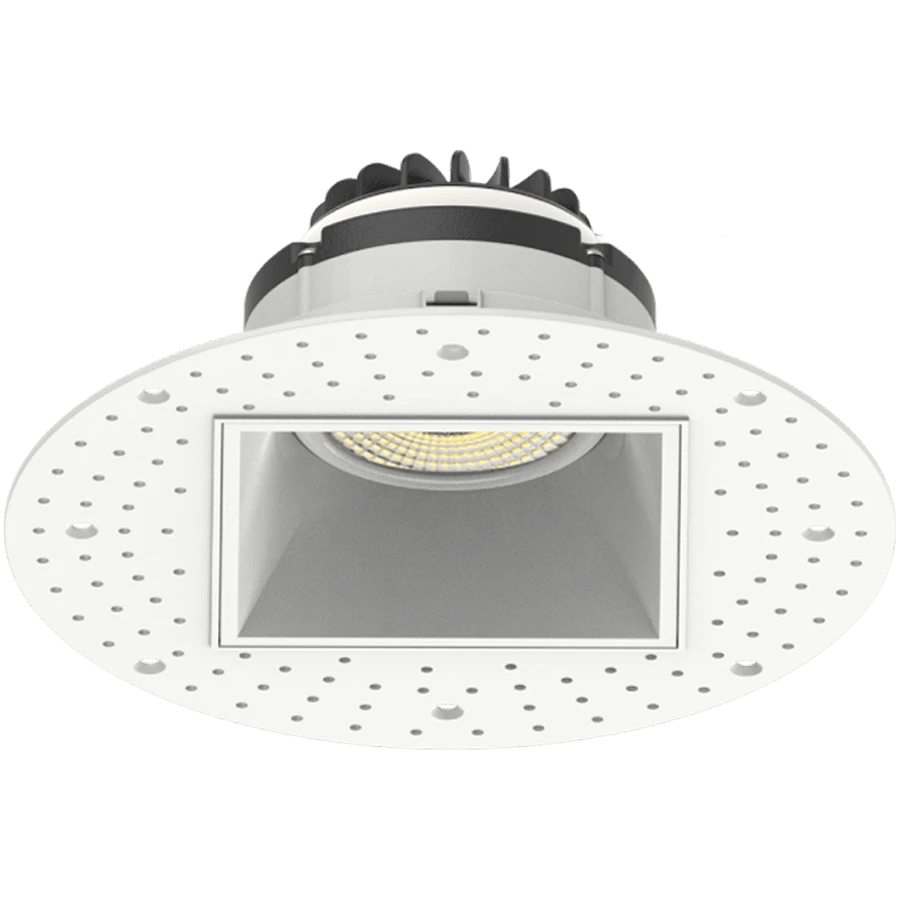

3" 9W Regressed Gimbal Trimless Downlight

Transform any space into a sophisticated oasis with the RAB Trimless Gimbaled Downlights. Ideal for both new and retrofit projects, this versatile downlight is offered in 2", 3" & 4" small apertures and powerful lumen output. With its sleek, high-end design and 5 field-adjustable CCTs, this downlight is a must-have for any modern space. And the best part? No recessed housing or J-box is required thanks to the remote driver design. Plus, the included 120V Triac dimmable driver ensures optimal control over your lighting. Elevate your space with RAB and experience the true definition of luxury.

  • High-end trimless design
  • 5 Field-adjustable CCTs
  • Deep regress, remote driver downlight
  • No recessed housing or J-box required
  • 120V Triac dimmable driver included
Spec Sheets

White / Black

Family Spec Sheet

Installation Instructions

Info
Product Type  Trimless Gimbaled Downlights
Wattage 9W
Lumen 600
Color Temp. Selectable CCT
CRI 90
Mounting Recessed, no housing required
Size 3"
Beam Angle 38°
Shape Square
Finish White, Black
Enclosure Material Metal
Trim Style Smooth


Additional Info
                                               Compliance
Safety Listing Suitable for use in dry, damp, and wet environments.
Listings ETL Listed
IC Rated Suitable for direct contact with insulation. Type IC
inherently protected, suitable for direct contact to
air permeable insulation and cULus listed for damp
locations. Not for use in direct contact with spray
foam insulation, consult NEMA LSD57-2013.
Air Tight Housing certified Air Tight as per ASTM E283
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
Driver Constant Current, Class 2, 60 Hz, 120V 0.07A
Power Factor ≥0.9
Input Voltage 120V
THD ≤25%
Dimming Yes, dims down to 10% on compatible TRIAC/ELV systems.

  Note All values are typical (tolerance +/- 10%)
