RAB GR4 15W LED 4" Regressed Gimbal Downlight Selectable CCT

RAB GR4 15W LED 4" Regressed Gimbal Downlight Selectable CCT

$65.00
$65.00
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

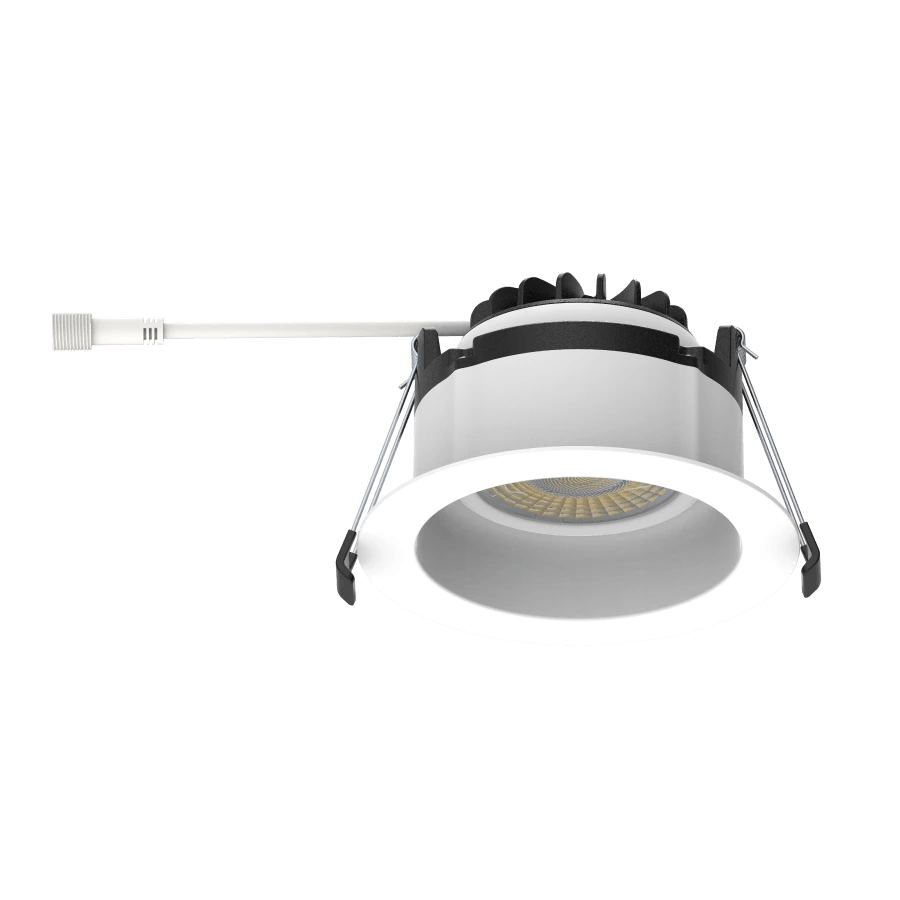

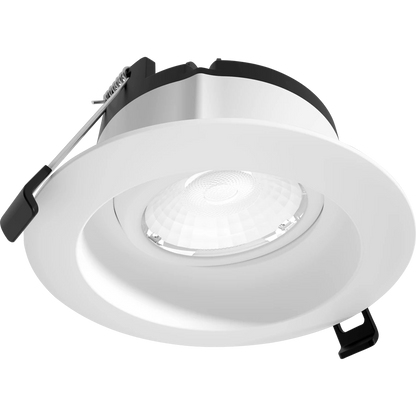

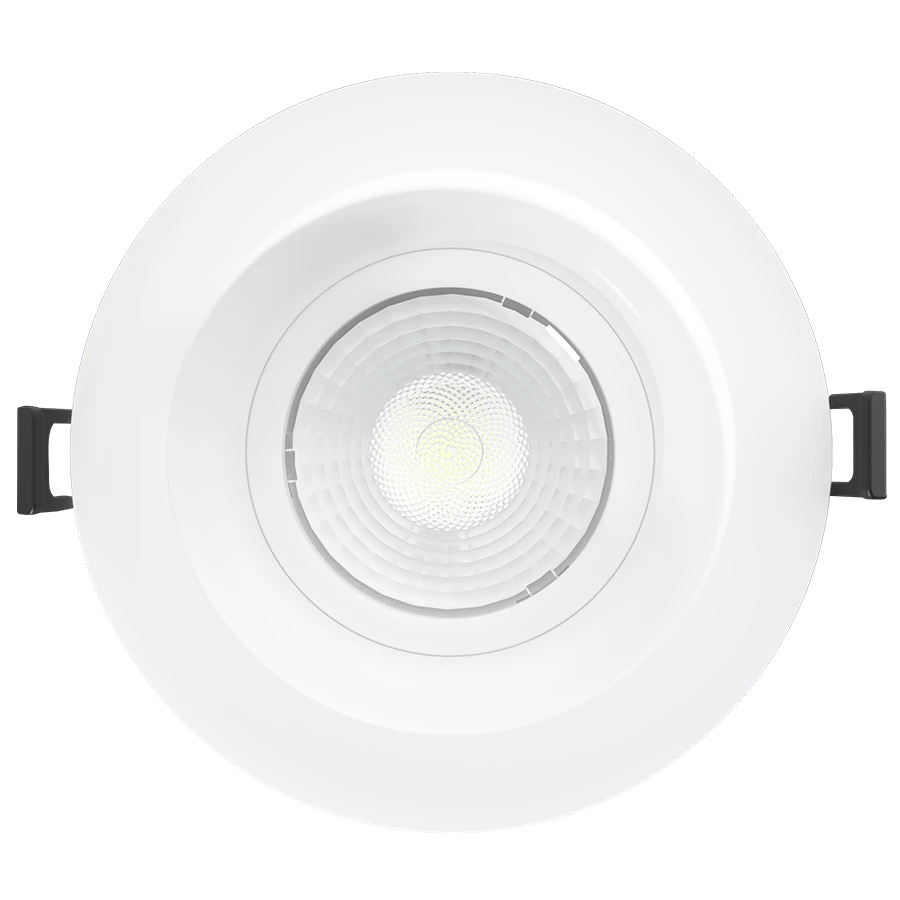

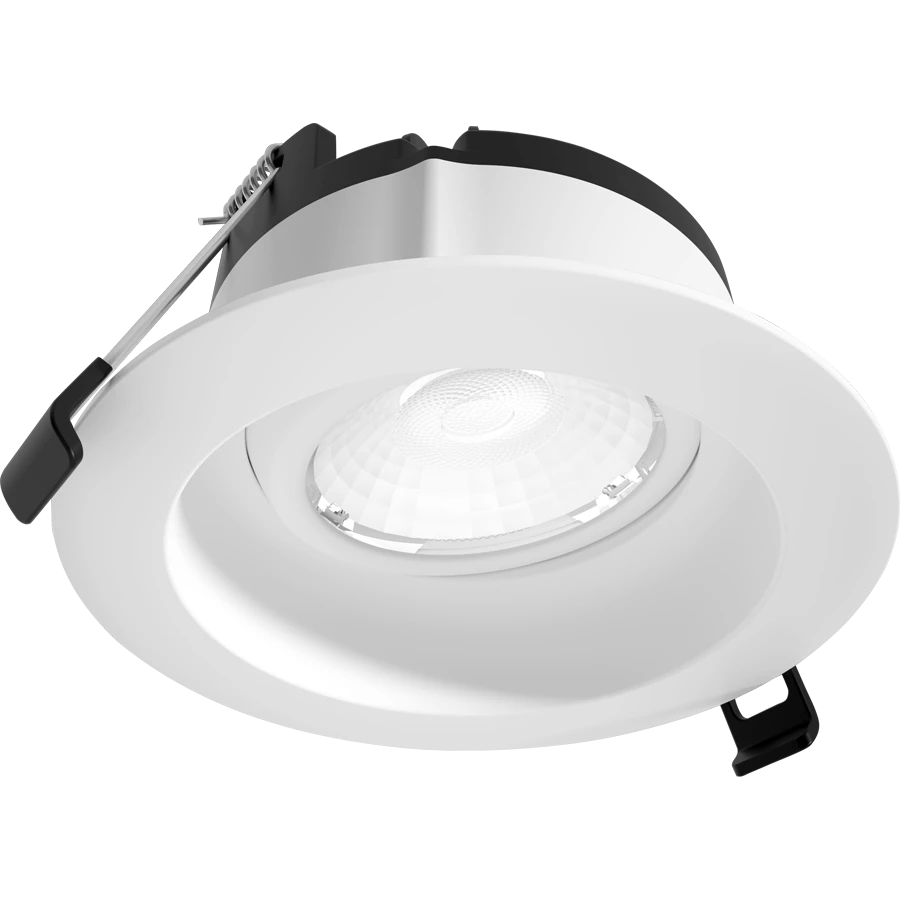

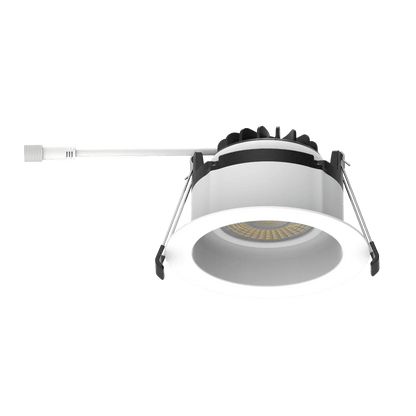

4" Regressed Gimbal  Downlight

The RAB CCT Adjustable Recessed and Gimbal Downlights offer professional-grade versatility for new construction and retrofit projects. Each fixture features five selectable color temperatures (2700K–5000K), allowing you to customize lighting on-site for the perfect ambiance.

Designed for efficiency and performance, these IC-rated, airtight, and Energy Star certified downlights deliver up to 1,270 lumens with a CRI above 90, ensuring vibrant and accurate color rendering. With smooth Triac/ELV dimming, 50,000-hour lifespan, and no housing or junction box required, installation is fast and reliable.

Available in 2", 3", and 4" recessed or gimbal designs (round or square trims), these fixtures are ideal for residential, retail, and commercial applications, providing flexibility for both accent and general lighting needs.

  • 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
  • Deep regress remote driver downlight
  • No recessed housing or J-box required
  • New construction or retrofit applications
  • Spring loaded retention clips
Spec Sheets

Spec Sheet

Installation Instructions

Info
Product Type  Gimbaled Downlights
Wattage 15W
Lumen 1050
Color Temp. Selectable CCT
CRI 90
Mounting Recessed, no housing required
Size 4"

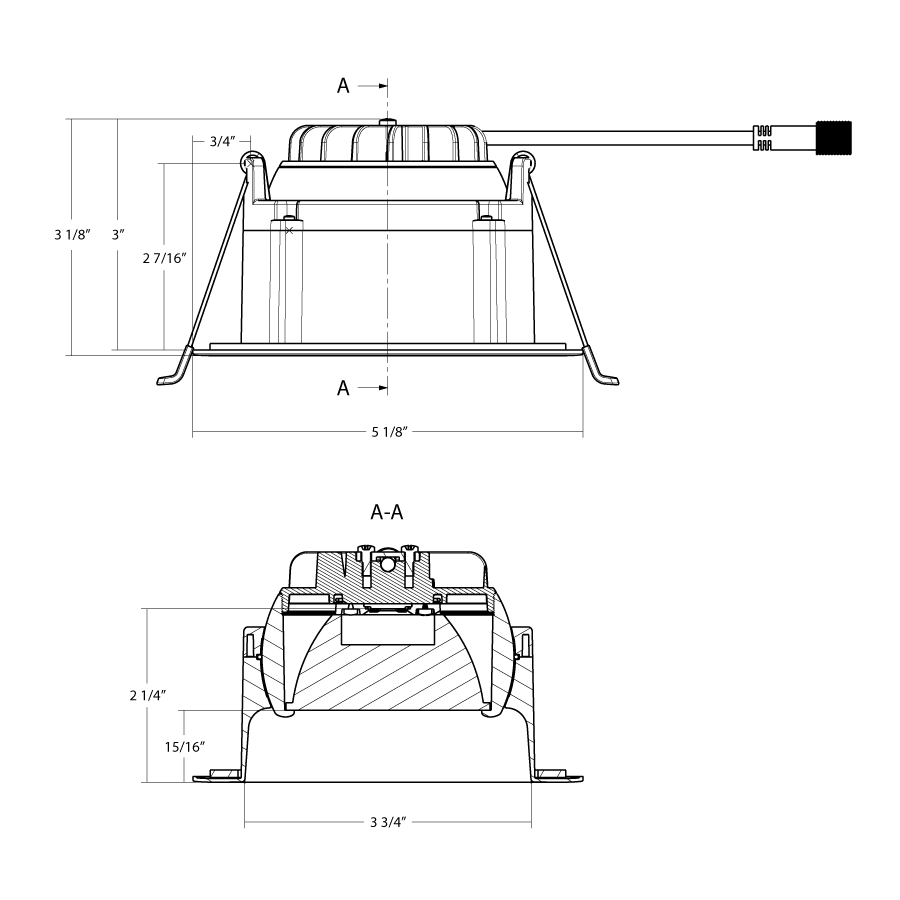

Cut Out Size
4 5/16"
Shape Round
Finish White
Enclosure Material Metal
Trim Style Smooth


Additional Info
                                               Compliance
Safety Listing Suitable for use in dry, damp, and wet environments.
Listings ETL Listed
IC Rated Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Approved This product is ENERGY STAR® Version 2.2 Certified.
Energy Star ID:  2571925
Air Tight Housing certified Air Tight as per ASTM E283
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
Driver Constant Current, Class 2, 60 Hz, 120V 0.07A
Power Factor ≥0.9
Input Voltage 120V
THD ≤25%
Dimming Yes, dims down to 10% on compatible TRIAC/ELV systems.

  Note All values are typical (tolerance +/- 10%)
