RAB Lighting

RAB H15XL 12" 240W LED UFO High Bay Selectable Wattage & CCT

$138.00

Sale Sold out

Shipping calculated at checkout.

Color: Black

Wattage 240W

Color Temperature Selectable CCT

Quantity

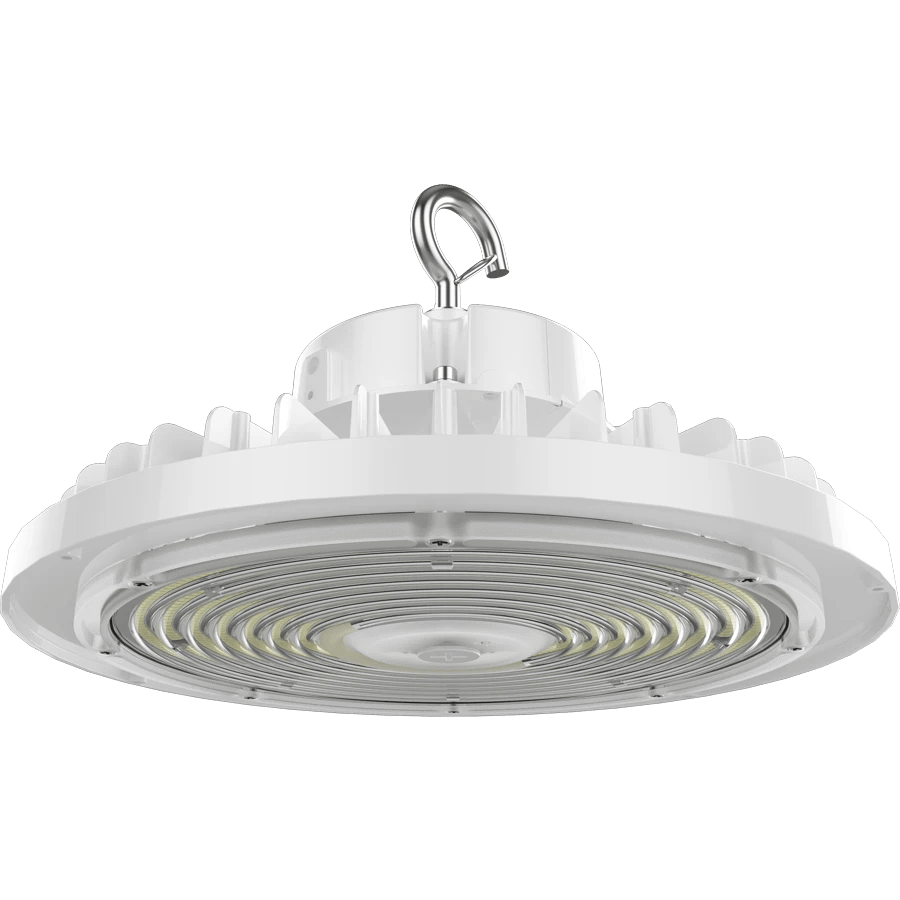

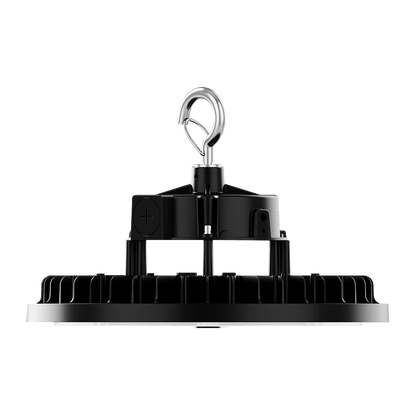

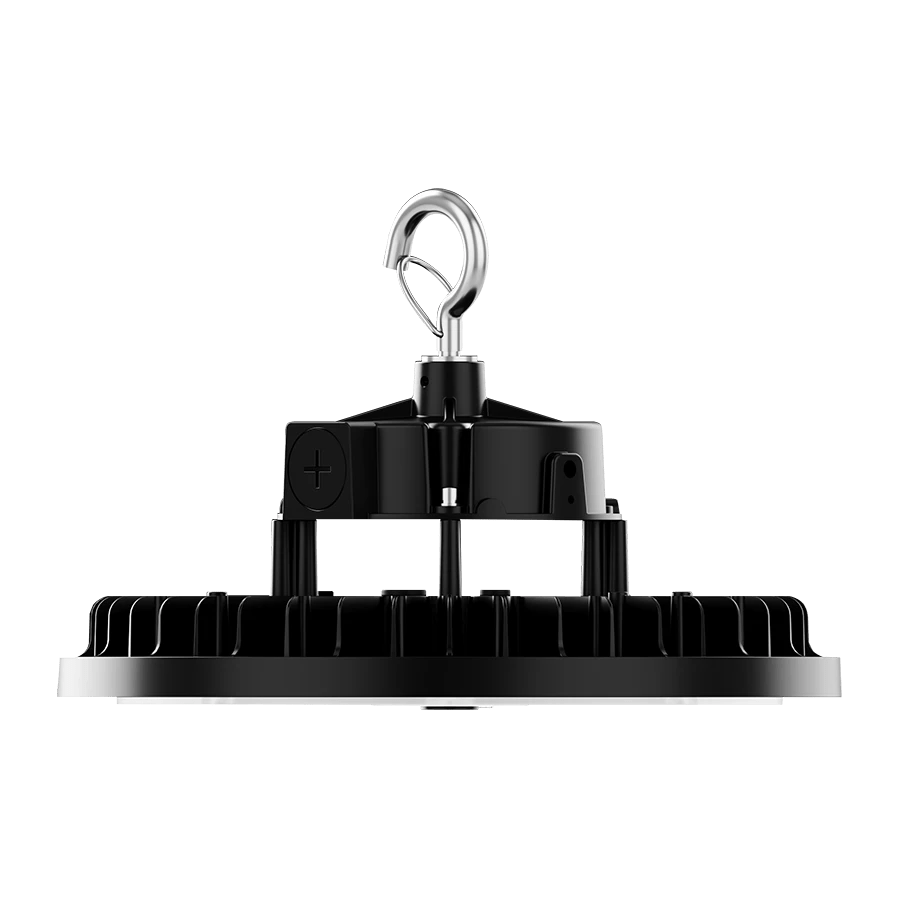

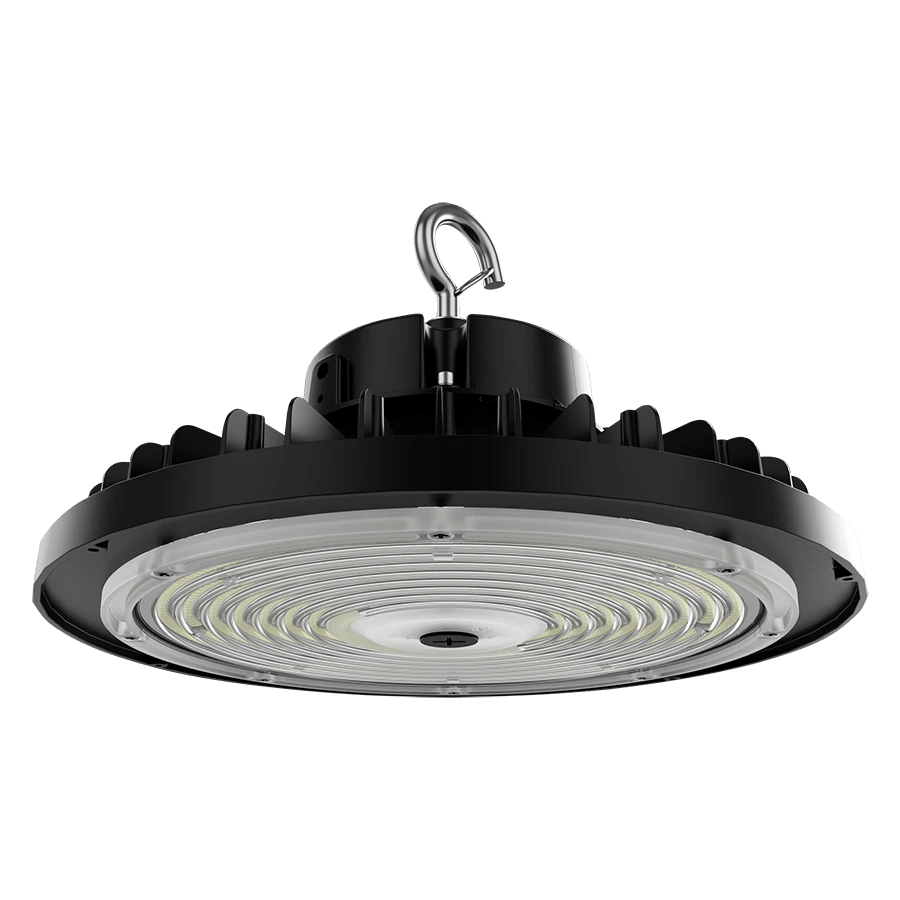

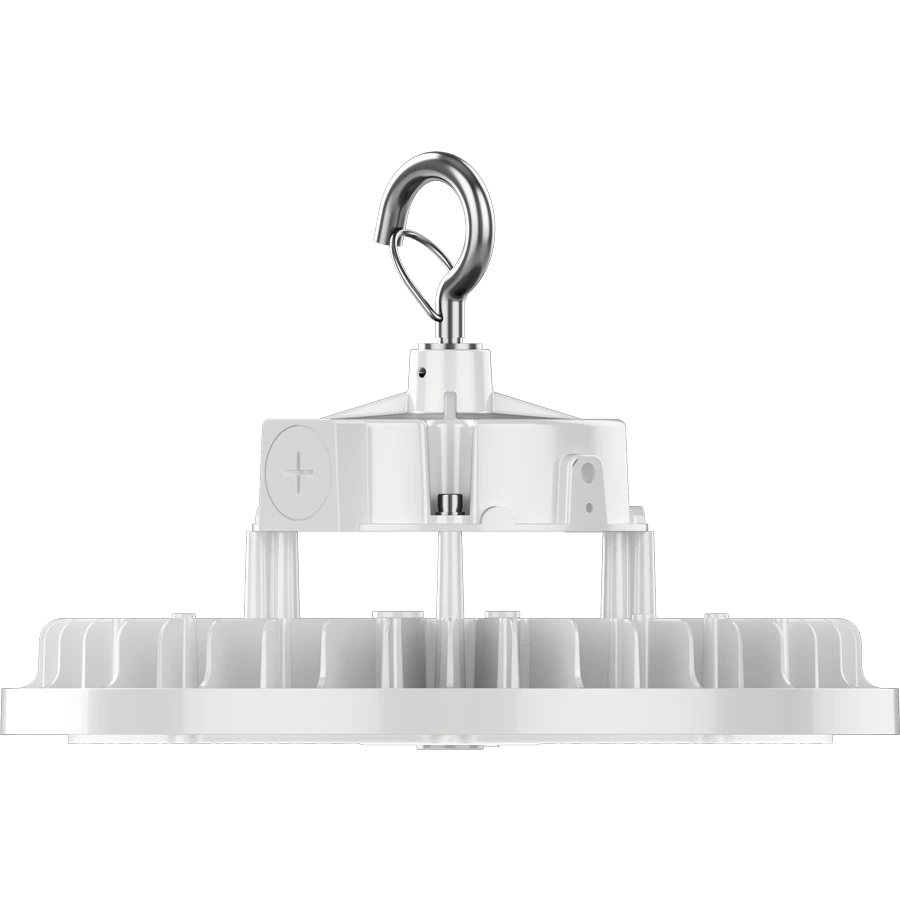

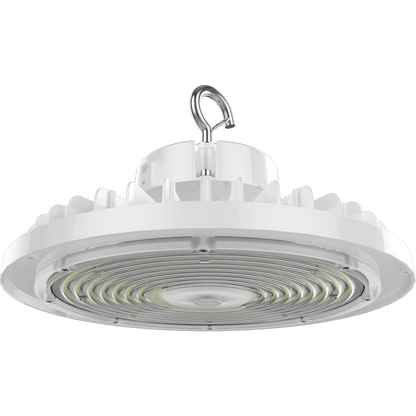

H15XL 240W 12" Round High Bay

The RAB H15 Series delivers high-performance, energy-efficient illumination for warehouses, manufacturing facilities, and large indoor spaces. Engineered for reliability and long life, this linear highbay combines superior light output with advanced field adjustability, offering customizable performance for any application.

Available in multiple wattages and lumen packages, the H15 Series features field-selectable wattage and color temperature, allowing installers to fine-tune brightness and CCT on-site. Its lightweight, durable design simplifies installation, while 0–10V dimming ensures energy savings without sacrificing visual comfort.

Field-Adjustable Wattage & CCT for ultimate flexibility
High Lumen Output: up to 160 lumens per watt
0–10V Dimming standard for energy savings
DLC Premium Listed – qualifies for energy rebates
100,000-Hour Lifespan with 5-Year Warranty
Optional Motion Sensors and Lightcloud Blue wireless control compatibility
Mounting Options: Suspension hooks, surface mount, and conduit mounting available

Ideal for new construction or retrofit projects in warehouses, gymnasiums, workshops, distribution centers, and commercial facilities.

Info

Product Type	UFO High Bay
Wattage	240/200/150W
Lumen	22,427-35,618 lm
Efficacy	135.3-169.9 lm/W
Color Temp.	3000K 4000K 5000K
CRI	81-84 CRI
L70 Lifespan	50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Housing	Precision die-cast aluminum
Finish	Black \| White

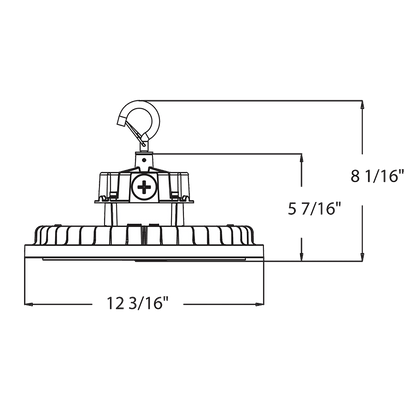

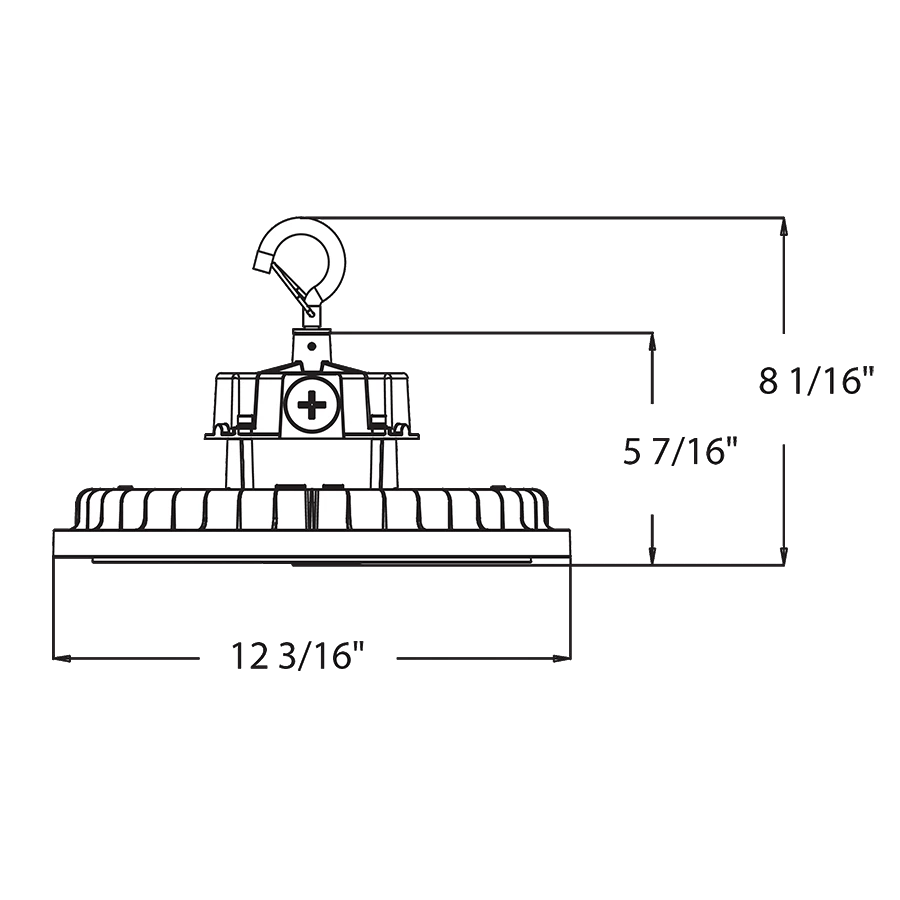

Mounting	Comes standard with a hanging hook and a 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others.)
Reflector	Polycarbonate and Aluminum (Reflector Accessories Sold Separately)
Lens	Polycarbonate lens
IP Rating	Ingress protection rating of IP65 for dust and water

Additional Info

Driver	240W: Constant Current, 120-277V, 50/60Hz,120V: 2.00A, 208V: 1.14A, 240V: 1.00A, 277V: 0.87A 200W: Constant Current, 120-277V, 50/60Hz,120V: 1.65A, 208V: 0.95A, 240V: 0.83A, 277V: 0.72A 150W: Constant Current, 120-277V, 50/60Hz,120V: 1.20A, 208V: 0.71A, 240V: 0.62A, 277V: 0.55A
THD	2.03% at 120V, 7.46% at 277V
Power Factor	99.9% at 120V, 96.2% at 277V
Dimming Driver	Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
Aux Power Supply	Yes
Dim to Off	Yes
Surge Protection	6 kV + 6 kV
