RAB Lighting

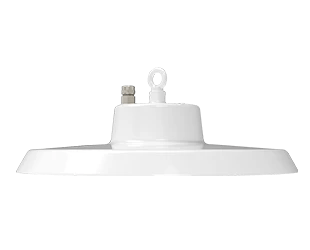

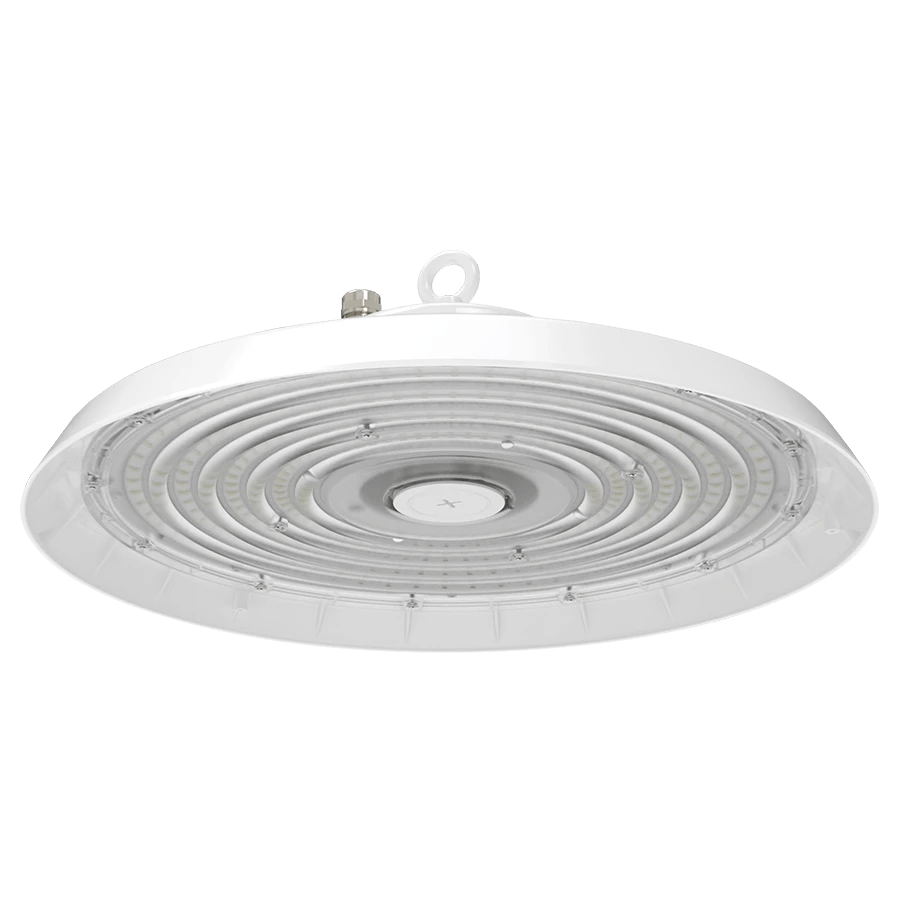

RAB H22XL 240W UFO LED High Bay Selectable Wattage & CCT

RAB H22XL 240W UFO LED High Bay Selectable Wattage & CCT

$228.00
$228.00
Sale Sold out
Shipping calculated at checkout.
Color: White
Wattage
Color Temperature

240W H22 UFO High Bay



The H22 high bay offers unprecedented control with three customizable features at your fingertips. You can easily select your desired beam angle, wattage, and color temperature with the flick of a switch, ensuring the perfect lighting for your space. Built to excel in challenging environments, the H22 holds NSF certification for food processing facilities and has impressive IP69K and IK10 ratings for protection against tough conditions. Its die-cast aluminum construction and UV-stabilized polycarbonate lens can withstand harsh washdowns up to 1500 PSI, and it can operate in temperatures up to 122°F. The H22 also offers added installation versatility with a standard hook mount and optional pendant mount accessory kit. For even more customization, there is an emergency battery backup solution available.



  • 240/200/150W
  • Built in optics adjustable with a switch: 105°/90°/60°
  • 100,000-Hour LED lifespan
  • DLC Premium Listed
  • NSF certified for use in food-preparation facilities
  • IP69K Rating
  • IK10 Rating
  • 5-Year, limited warranty



Spec Sheet

Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions


Info
Product Type  UFO High Bay
Wattage 150/200/240W
Adjustability Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Beam angle selectable by 60°, 90°, and 105° (factory default 90°)
Lumen 22,272-36,092 lmlm
Efficacy 137.1-165.9 lm/W
Color Temp. 3000K 4000K 5000K
CRI 82-85 CRI
L70 Lifespan 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Housing Precision die-cast aluminum
Finish  White
Mounting Comes standard with a hanging hook and a 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others)
Reflector
Polycarbonate and Aluminum (Reflector Accessories Sold Separately)
Lens Polycarbonate lens
IP Rating Ingress protection rating of IP65 for dust and water
Additional Info



                                                Compliance
UL Listed Suitable for wet locations. Ingress protection rating of IP65 for dust and water
IK Rating IK10 Protected against 20 joules impact. Equivalent to impact of 11 lbs (5kg) mass dropped from 15.8" (400mm) above impacted surface.
DLC Listed This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-YBV36Y
                                                  Electrical
Driver 240W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.99A, 208V: 1.12A, 240V: 0.97A, 277V: 0.86A 200W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.66A, 208V: 0.96A, 240V: 0.84A, 277V: 0.74A 150W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.29A, 208V: 0.75A, 240V: 0.65A,, 277V: 0.59A
Dim to Off Yes
Aux Power Supply Yes
Dimming Driver Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Surge Protection 4kV + 6kV
