RAB Lighting

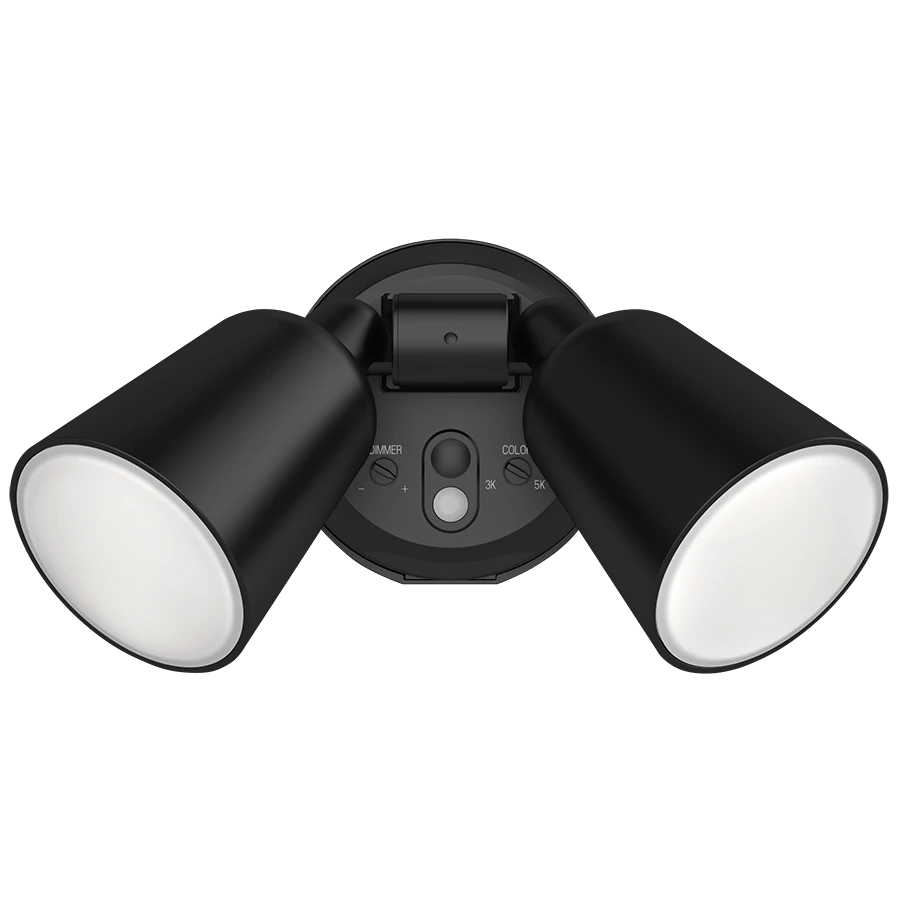

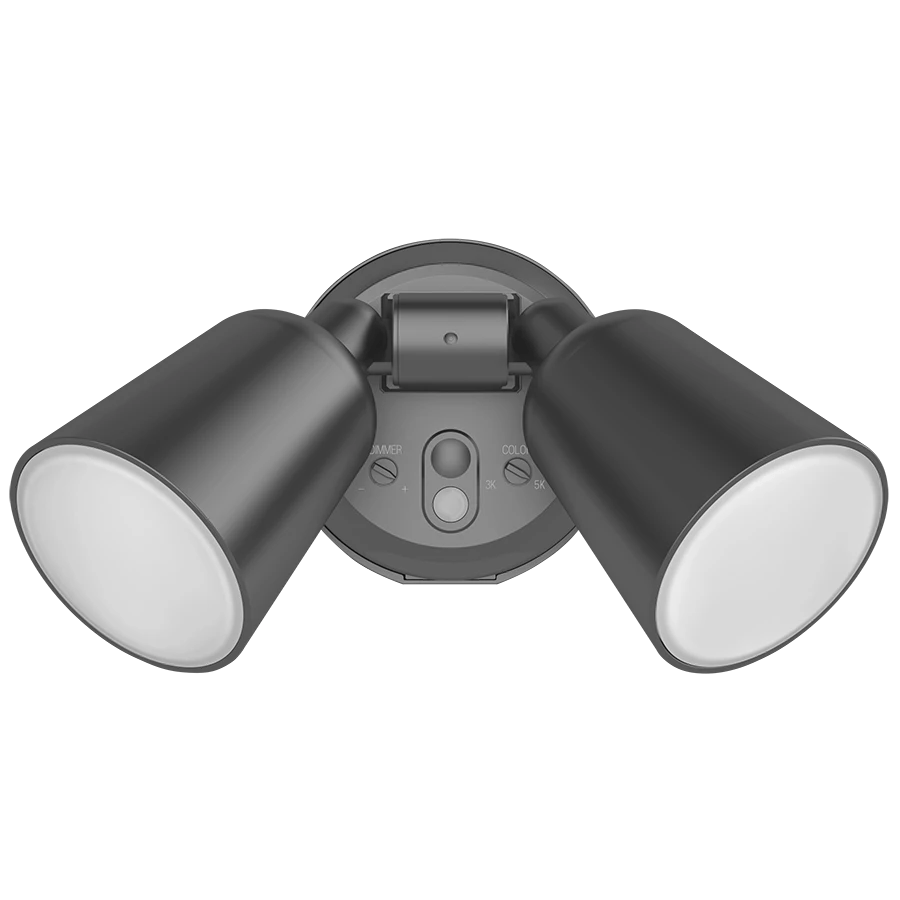

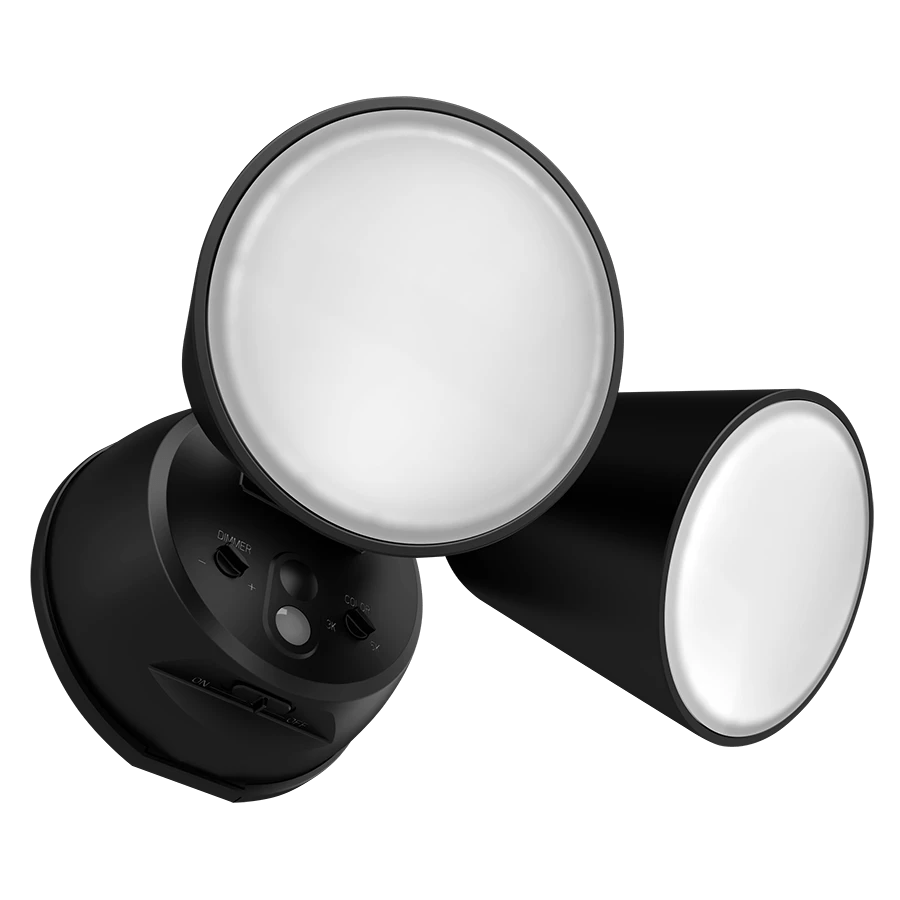

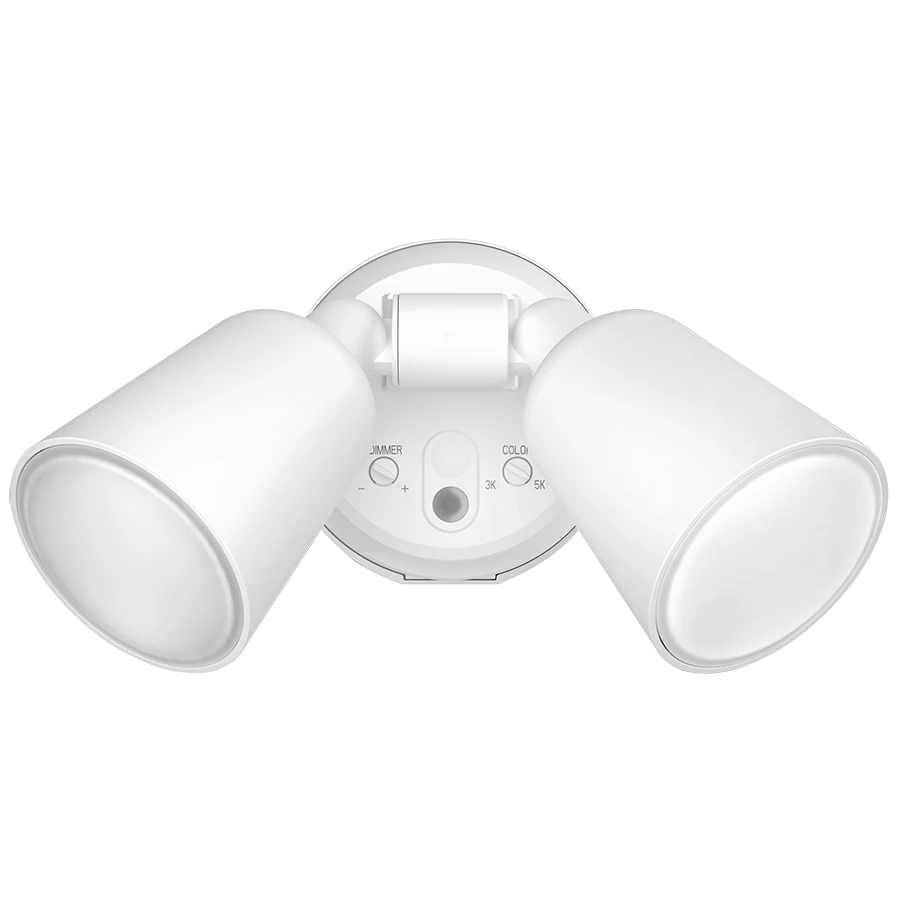

RAB L2X 20W LED Dual Head Security Light Selectable CCT

RAB L2X 20W LED Dual Head Security Light Selectable CCT

$46.00
$46.00
Sale Sold out
Shipping calculated at checkout.
Color: Bronze
Wattage
Color Temperature

20W Dual Head Dusk To Dawn Security Light

The L2X by RAB is a versatile and durable LED dual head security light that offers tunable white technology and stepless dimming capabilities for customizable lighting solutions. With a range of 3000K to 5000K in color temperature and 200 to 2100 lumens, this light can be adjusted to match any setting and meet your specific needs. Its integrated photocell also allows for automatic dawn-to-dusk operation, optimizing efficiency and eliminating scheduling guesswork. Plus, with an IP65 rating and impact-resistant polycarbonate lens, the L2X is designed to withstand harsh weather conditions and seamlessly integrate with any architectural style. Trust in RAB for expertly engineered lighting solutions that provide precise illumination exactly where you need it.



  • Color temperature: Tunable white 3000-5000K (4000K default)
  • On/off photocell (default Off )
  • Suitable for wet locations
  • IP65 rated
  • 5-year, limited warranty

Spec Sheet

Spec Sheet

Sell Sheet

Installation Instructions



Info
Type Dusk to Dawn Security Light
Watt 20W
Lumen 200-2200 lm
Color Temp. 30K-50K
Finish White/Black/Bronze
Efficacy LM/W
 102/105.2/105.8 lm/W
Photoelectric control
 Deactivates lights during daylight
Brightness
 10% - 100%
Effective Projected Area
 2000 ft Sq
Lifespan 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations




Additional Info
Driver 20W: Constant Current, Class 1, 120V, 60 Hz,120V: 0.20A
THD 13.37% at 120V
Power Factor 97.9% at 120V
Dim to Off No
Warranty 5 Yr Limited Warranty
Aux Power Supply No
Photocell Integrated photocell included with on/off switch (factory default: off)
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-PST1KW
