RAB Lighting

RAB LF17X2 16W Landscape Floodlight Selectable Wattage/CCT

RAB LF17X2 16W Landscape Floodlight Selectable Wattage/CCT

Regular price $128.00
Regular price Sale price $128.00
Sale Sold out
Shipping calculated at checkout.

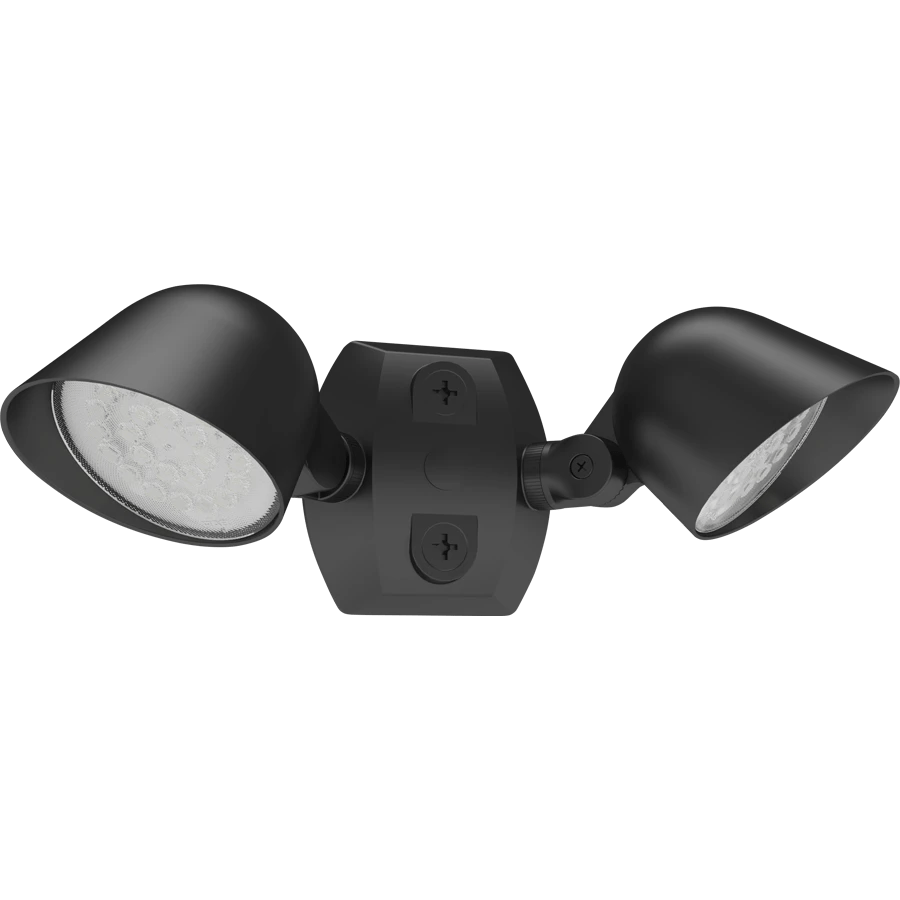

Color: Black
Color Temperature
Motion Sensing

Field Adjustable Landscape Lighting Selectable CCT

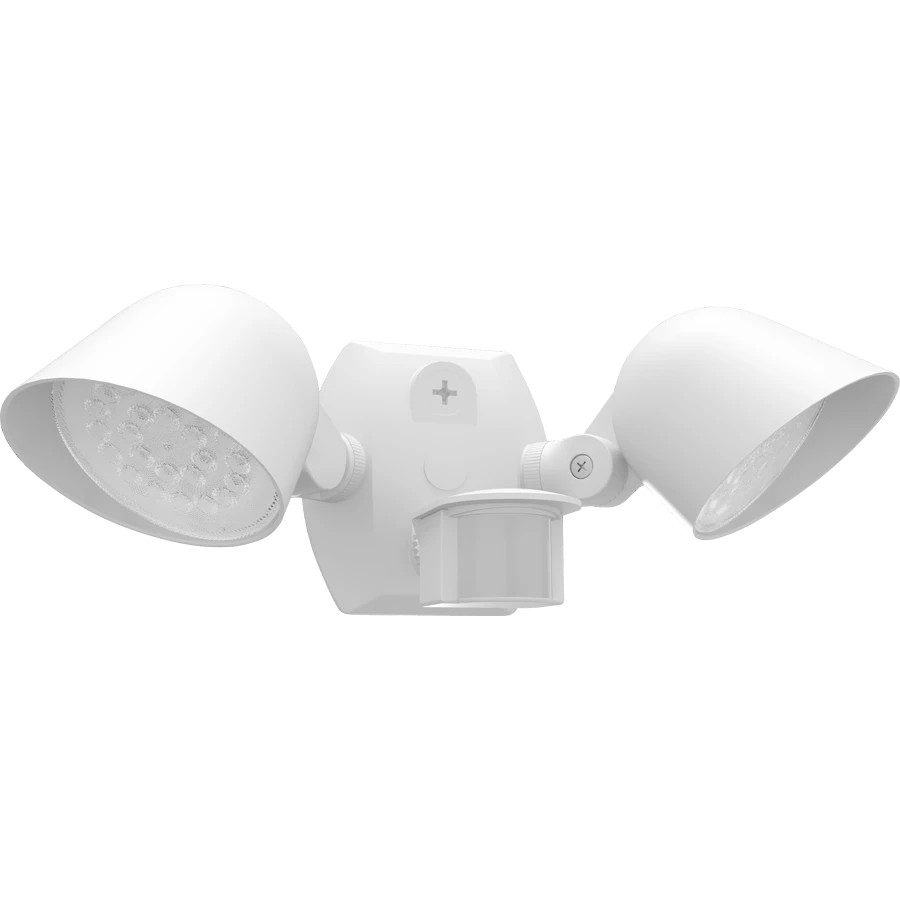

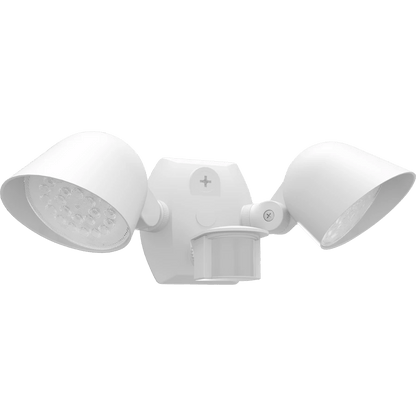

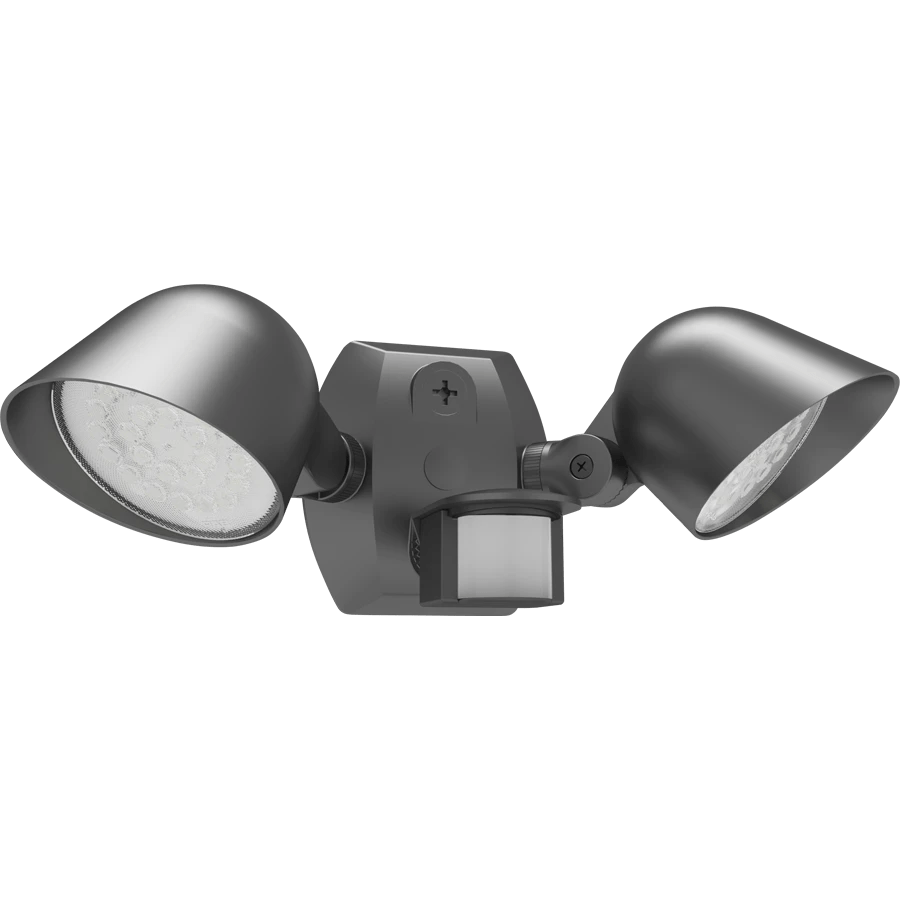

Discover unparalleled value with the RAB LF17X2 16W Landscape Floodlight Selectable Wattage/CCT. Its cutting-edge design and easy-access adjustment make it the perfect choice for residential applications. With completely unique field adjustability, high-performing optics, and 0-10V dimming, the LF17X2 offers unbeatable versatility and efficiency at an unbeatable price. Plus, the LF17X2 is compatible with RAB's Mighty Posts and CU4 covers, making installation a breeze. Experience the power of this extraordinary landscape light today! For optimal coverage, the LF17X2 comes in dual-configuration models with or without a built-in SMS500 motion sensor that can detect movement up to 30 feet away at a 180° angle.

  • Adjustable wattages: 16/10/8/5/3W (16W default)
  • CCT: adjustable 2700/3000/3500/4000/5000K (4000K default)
  • Knuckle arm mounting
  • Available in bronze, white and black finish
  • UL listed for wet location
  • IP65 rated
  • 120V
  • 0-10V dimmable
  • 5-Year limited warranty
Spec Sheets

Spec Sheet

Sell Sheet

Installation Instructions

Info
Product Type  Landscape Floodlight
Wattage Selectable (3/5/8/10/16W)
Lumen 358-2,230
Color Temp. Field Adjustable
CRI 82-86
L70 Lifespan 50,000
Housing Material Die-cast Aluminum

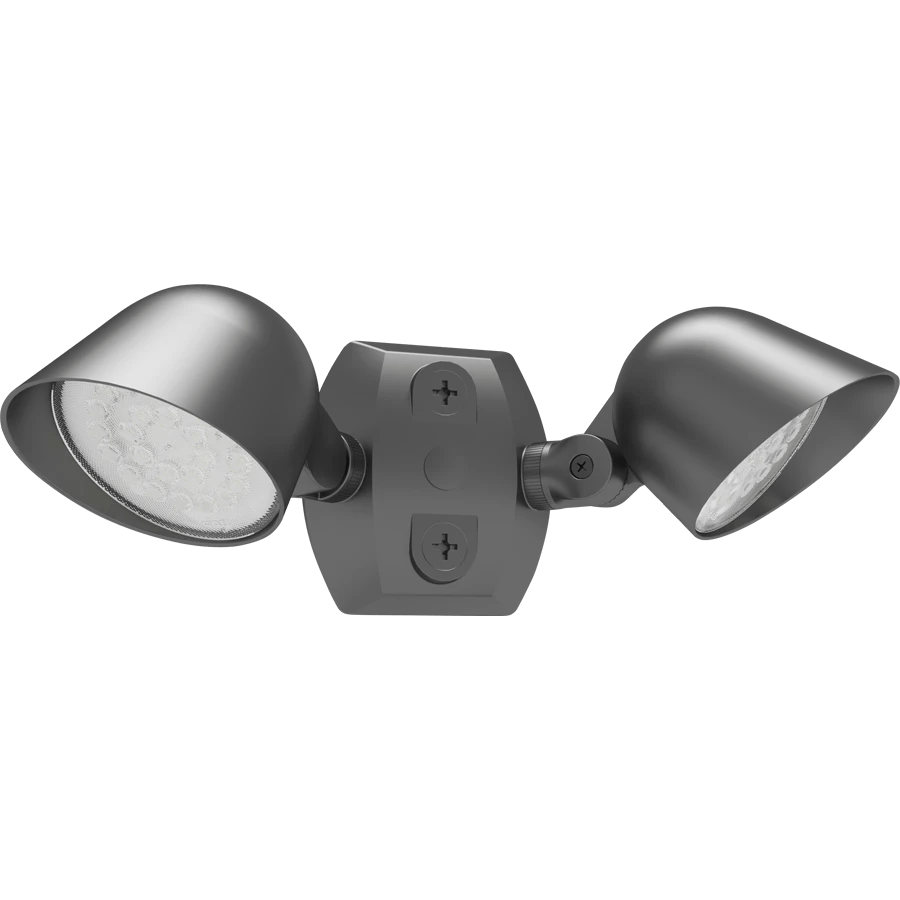

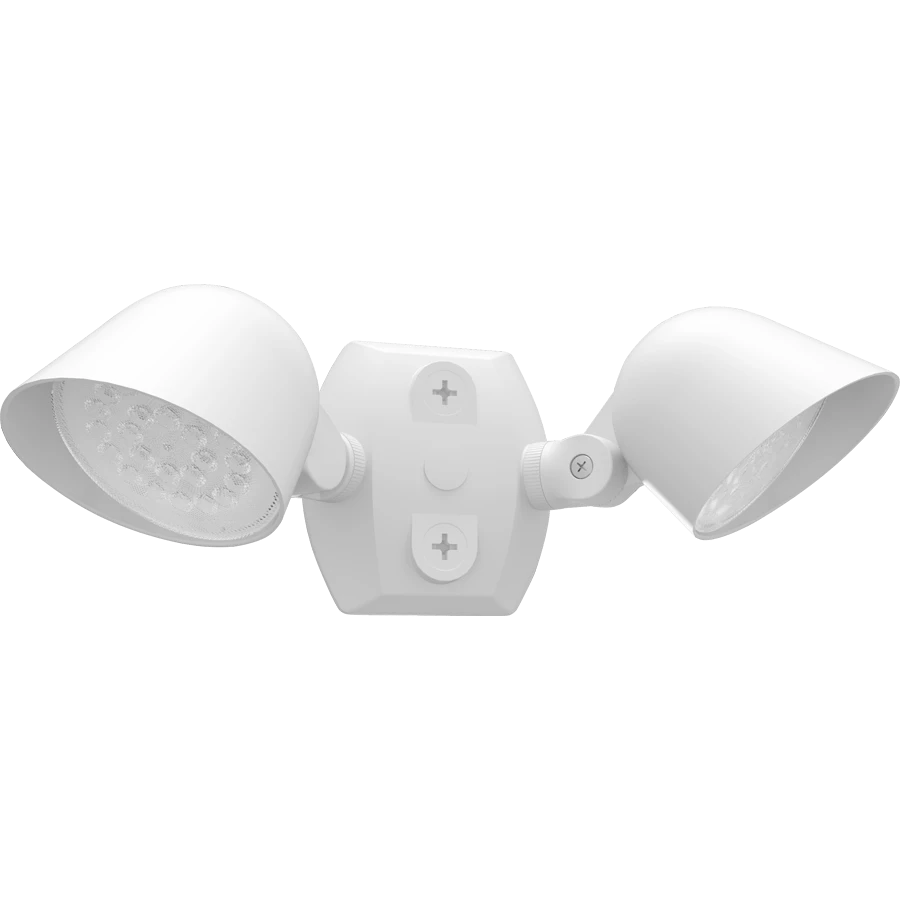

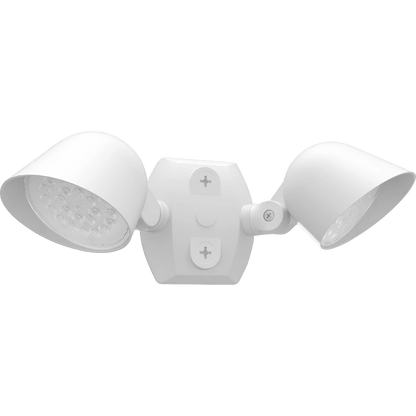

Housing Finish  Bronze, White, Black
LED Long-life, high-efficiency, surface-mount LEDs
Lens Polymethyl Methacrylate (PMMA)
Additional Info
 Safety Listing UL Listed
 Environment Rating IP65 Wet Location
Green Technology
Mercury and UV free. RoHs-compliant components.
THD 7.7% at 120V
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Power Factor 99.7% at 120V

Motion Sensing
Time Adjustment 5 seconds to 15 minutes
Quick Test Time 5 second test time for fast installation. Works day or night.
"No Hands" Auto Testing Auto mode starts after 4 minutes of testing. No adjustment needed.
Photoelectric Control Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
Time Delay 5 seconds to 15 minutes
Ambient Light Sensing Adjustable
Adjustments Time, ambient light & sensitivity
Detection 180° detection pattern
