RAB LMCB3228 22W Defogging Lighted Mirror Cabinet 32" X 28"
RAB LMCB3228 22W Defogging Lighted Mirror Cabinet 32" X 28"
Couldn't load pickup availability

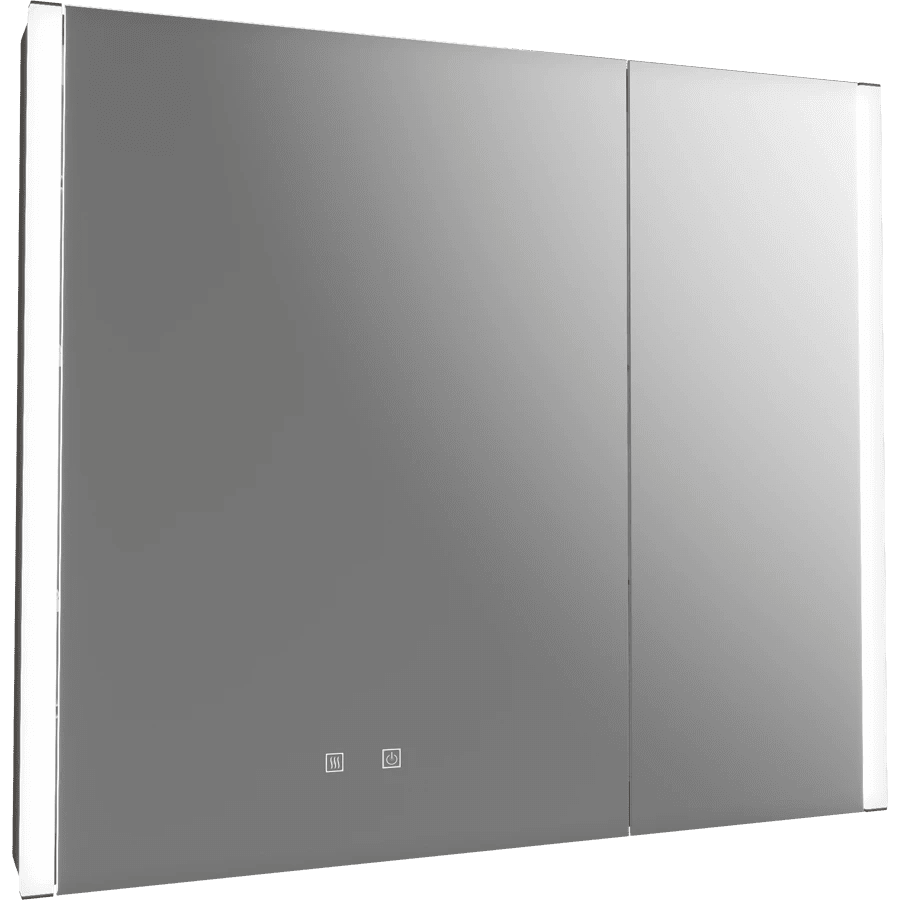

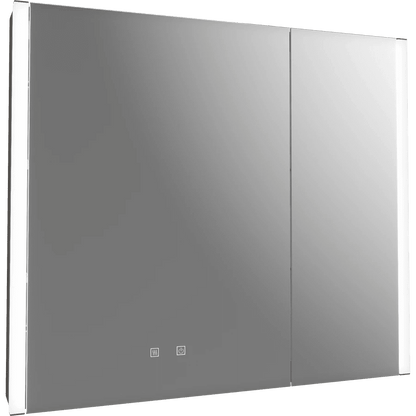

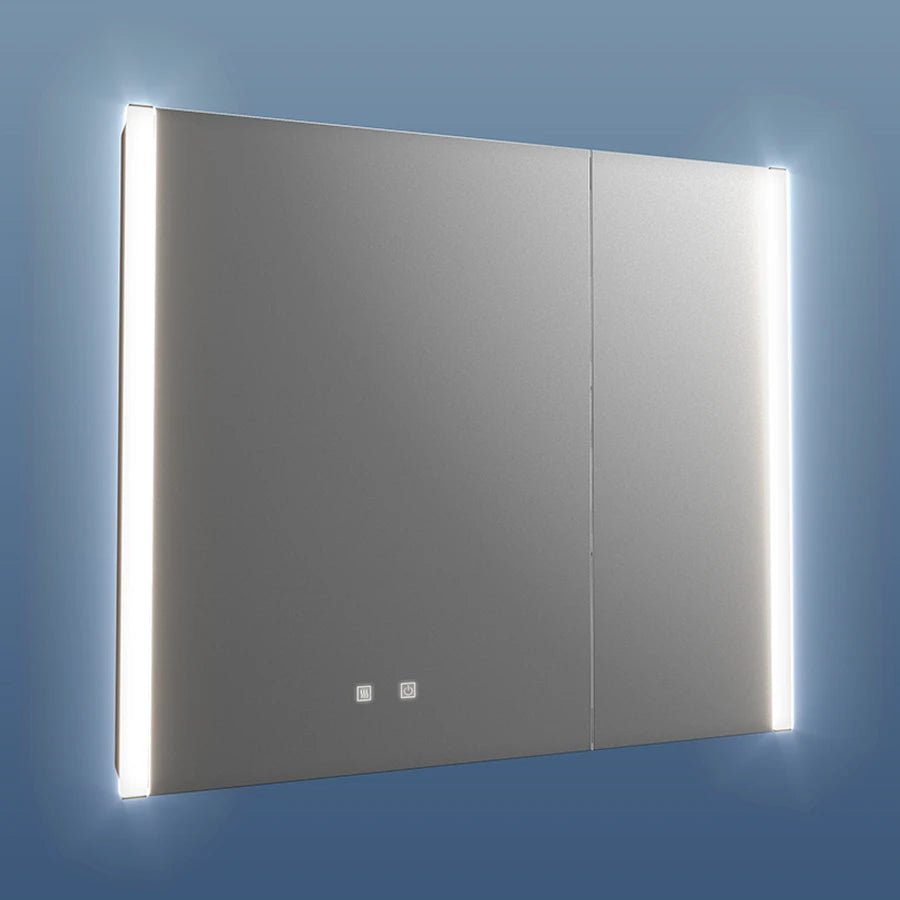

LMCB3228 MIRA LED Lighted Mirror Cabinet
The LMCB3228 MIRA LED Lighted Mirror Cabinet from RAB Lighting combines modern bathroom lighting with convenient built-in storage. Featuring integrated frontlit LEDs, this mirror provides bright, even illumination while casting a soft ambient glow that enhances the overall space.
Designed for everyday functionality, the mirror includes field-adjustable color temperature (2700K / 4000K / 6500K) so you can choose warm, neutral, or daylight lighting depending on your preference. Stepless dimming with memory allows you to fine-tune brightness and automatically return to your preferred lighting level each time it’s turned on.
The integrated anti-fog feature keeps the mirror clear even in steamy bathrooms, while the cabinet design provides practical interior storage behind the mirrored door. Hidden LEDs with diffusers ensure smooth, shadow-free lighting ideal for grooming, shaving, or applying makeup.
With a sleek modern design, long-life LEDs rated for 50,000 hours, and a convenient 20" x 28" size, the MIRA cabinet mirror offers both elegant lighting and functional storage for contemporary bathrooms.
- Field-adjustable color temperature via integrated touch control 2700/4000/6500K
- Touch-activated, anti-fog function keeps mirror clear during and after showers
- Memory function restores last used light level and CCT settings
- Frosted lens for smooth diffused light output
- Double-sided mirror doors; 2 storage shelves included
- 50,000-hr. lifespan, Title 24, 3-year limited warranty
Spec Sheets
Spec Sheet
Family Spec Sheet
Installation Instructions
Sell Sheet
Info
| Product Type | Lighted Mirror |
| Wattage | 22W |
| Lumen | 600 |
| Color Temp. | 27K/40K/65K |
| CRI | 90 |
| L70 Lifespan | 50,000 |
| Housing Material | Aluminum |
| Mounting | Wall Mount |
| Environment |
Suitable for use indoors in dry, damp, or wet environments.
|
Additional Info

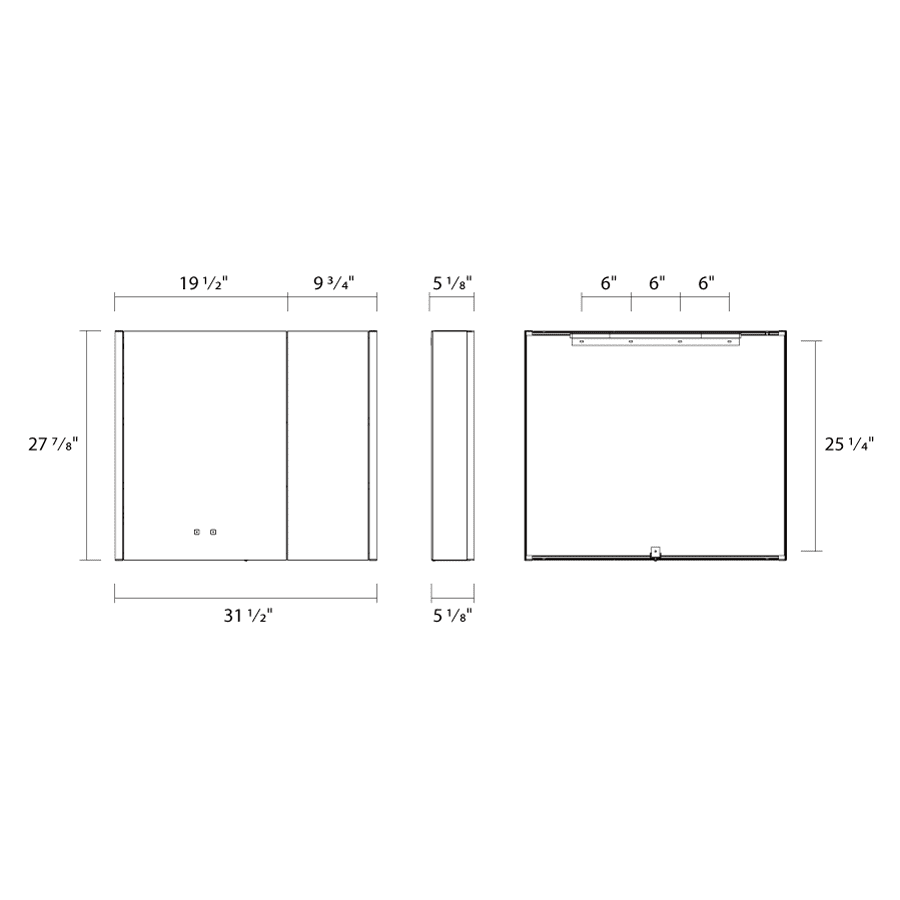

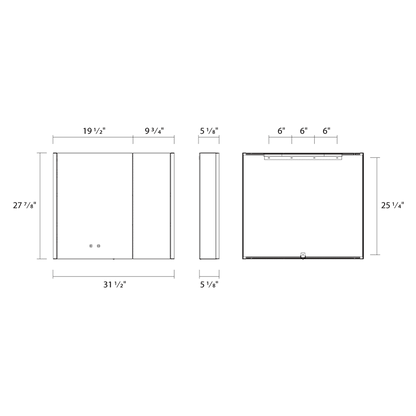

| Size | 20" X 28" X 5.125" |
| Operating Temperature Range | -4°F - 104°F (-20°C - 40°C) |
| Illuminated Width | 1.10" |
| Shape | Rectangle |
| Finnish/Enclosure Material | Aluminum |
| Style | Frameless |
| Lens | Frosted lens for smooth diffused light output |
| Defogger | Yes, integrated touch control activates anti-fog feature to reduce mirror fogging. |
| Memory Function | Yes, memory function allows light level and CCT settings to be stored after 8 seconds. |
| Driver | Constant Voltage, Class 2 120V 50/60; 120V: 192mA |
| Power Factor | ≥0.9 |
| Input Voltage | 120V |
| THD | ≤20% |
| Dimming | Yes, stepless dimming via integrated touch control down to 10%. |
