RAB LU160 20W LED Dual Head Motion Sensing Security Light Selectable CCT
RAB LU160 20W LED Dual Head Motion Sensing Security Light Selectable CCT
Couldn't load pickup availability
20W Dual Head Motion Sensing Security Light
Enhance your outdoor security with LUMINATOR - now offering more versatility, energy efficiency, and superior quality! Choose from a range of color options including bronze and white, both IP65 rated to withstand any weather. Enjoy automatic lighting with the integrated dawn/dusk photocell, saving you energy during the day. The LUMINATOR's passive infrared (PIR) motion sensor, with up to 160° and 50 ft. detection, provides top-notch security. Featuring 2 adjustable LED floodlights with a frosted, polycarbonate lens, emitting over 2000 lumens. Control your lighting with ease and customize your settings with tunable white light from 3000K to 5000K, stepless dimming down to 10%, photocell sensitivity, hold time, and sensing distance. Upgrade to the LUMINATOR for the ultimate outdoor lighting experience!
- Time-adjustable stepless dimming
- Field-adjustable light output and color temperature (Tunable white 3000-5000K)
- 160° Maximum detection angle
- 50ft Maximum detection range

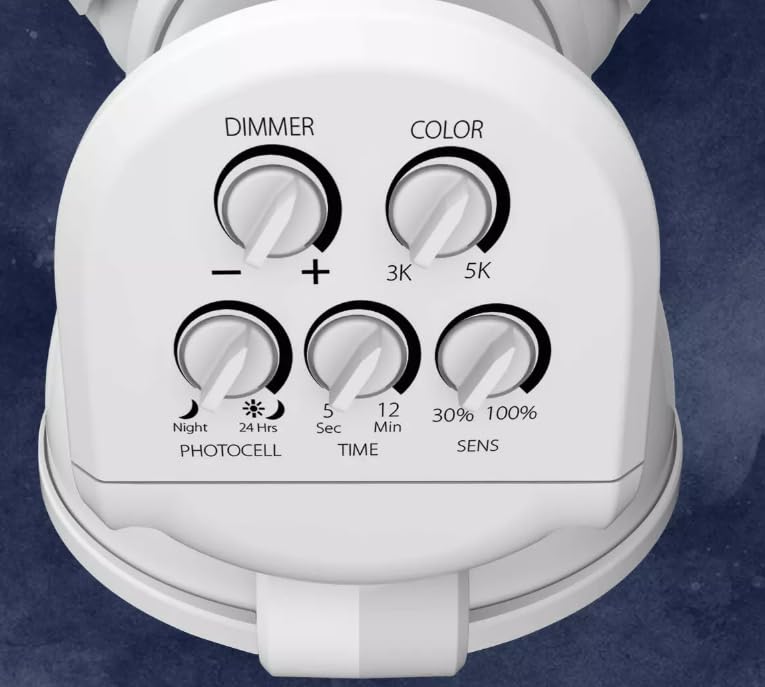

- Customizable threshold daylight sensor (PHOTOCELL), hold time (TIME) and sensor sensitivity (SENS)
- Passive infrared occupancy sensor with mounting up to 50'
- Suitable for wet locations
Spec Sheet
Spec Sheet
Installation Instructions
Info
Type | Motion Sensing Security Light |
Watt | 20W |
Lumen | 2200 |
Color Temp. | 30K-50K |
Finish | White/Bronze |
Mounting Height
|
Max 10 Feet (Wall or Eaves mounted/Ceiling mounted) |
Detection Angle
|
160° |
Detection Range
|
Max radius 50 ft (wall mounted) |
Effective Projected Area
|
2000 square foot |
Lifespan | 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations |
Additional Info
Dimmer |
Minimum Setting (from): 0% brightness Maximum Setting (up to): 100% light output |
Photocell |
Minimum Setting (from): The light turns on only when it is dark enough Maximum Setting (up to):The light will turn on in the daylight, sunset or in the darkness |
Time |
Minimum Setting (from): The light turns OFF after 5 sec. when no motion is detected. Maximum Setting (up to): The light turns OFF after 10 min. when no motion is detected. |
Sens |
Minimum Setting (from): 30% for short detection range (min 10 ft.) Maximum Setting (up to): 100% for long detection range (max 50 ft.) |
Warranty | 5 Yr Limited Warranty |
