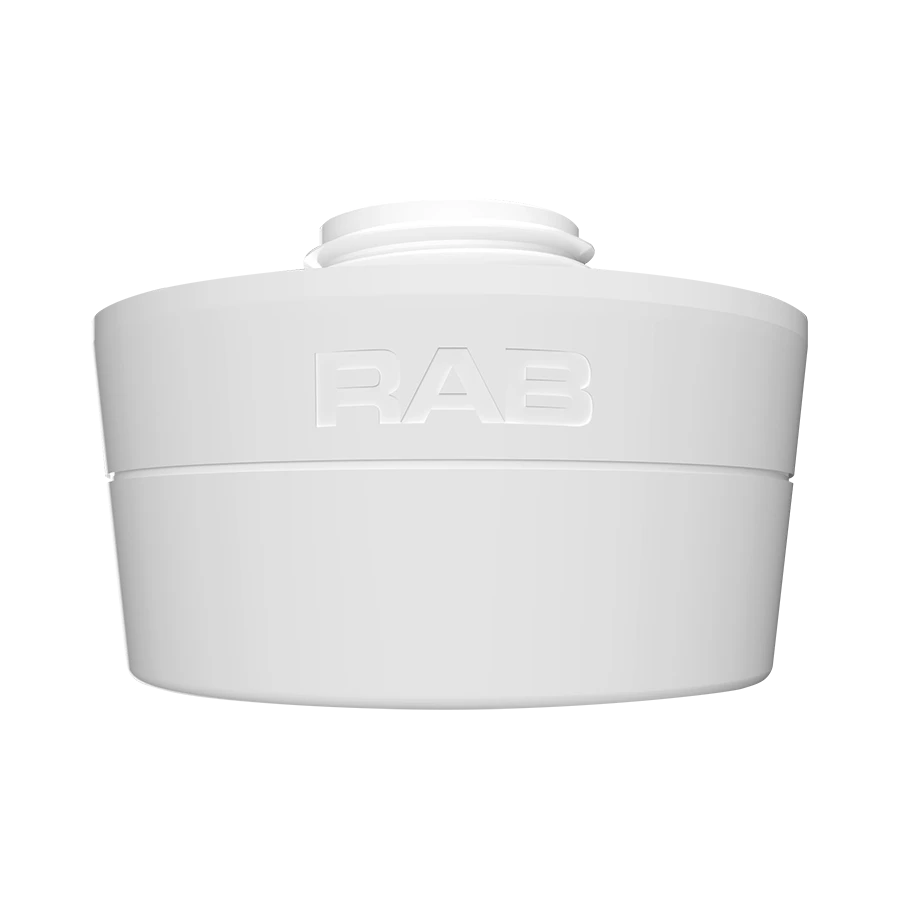

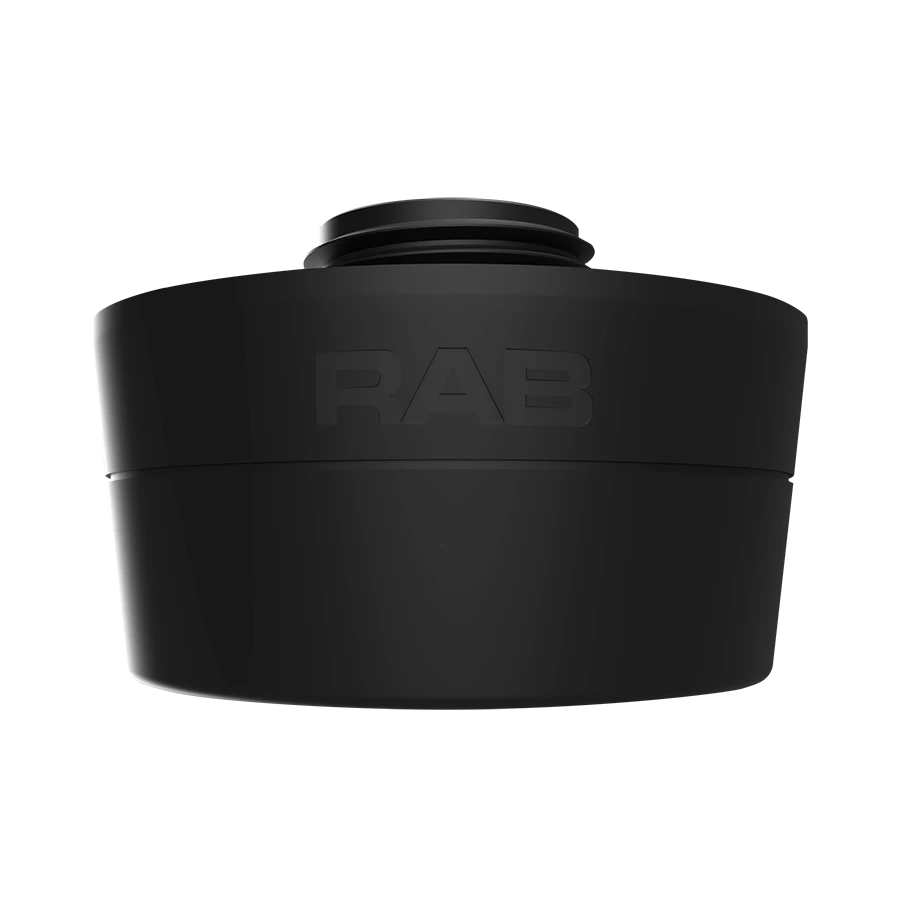

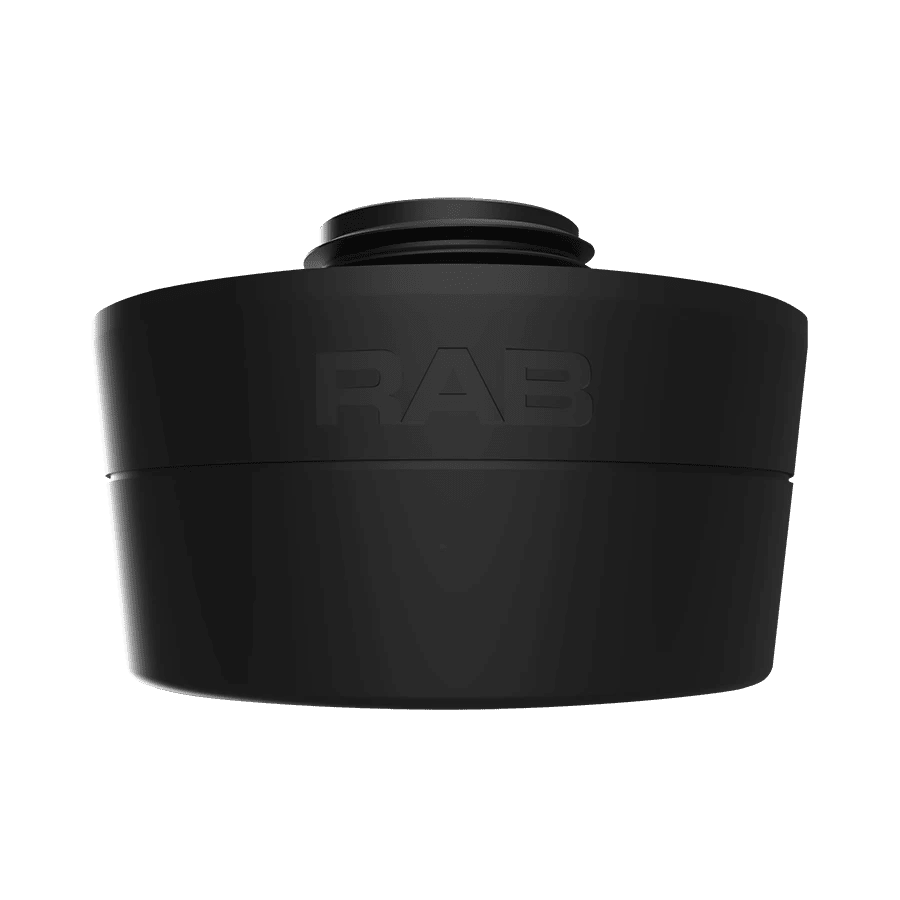

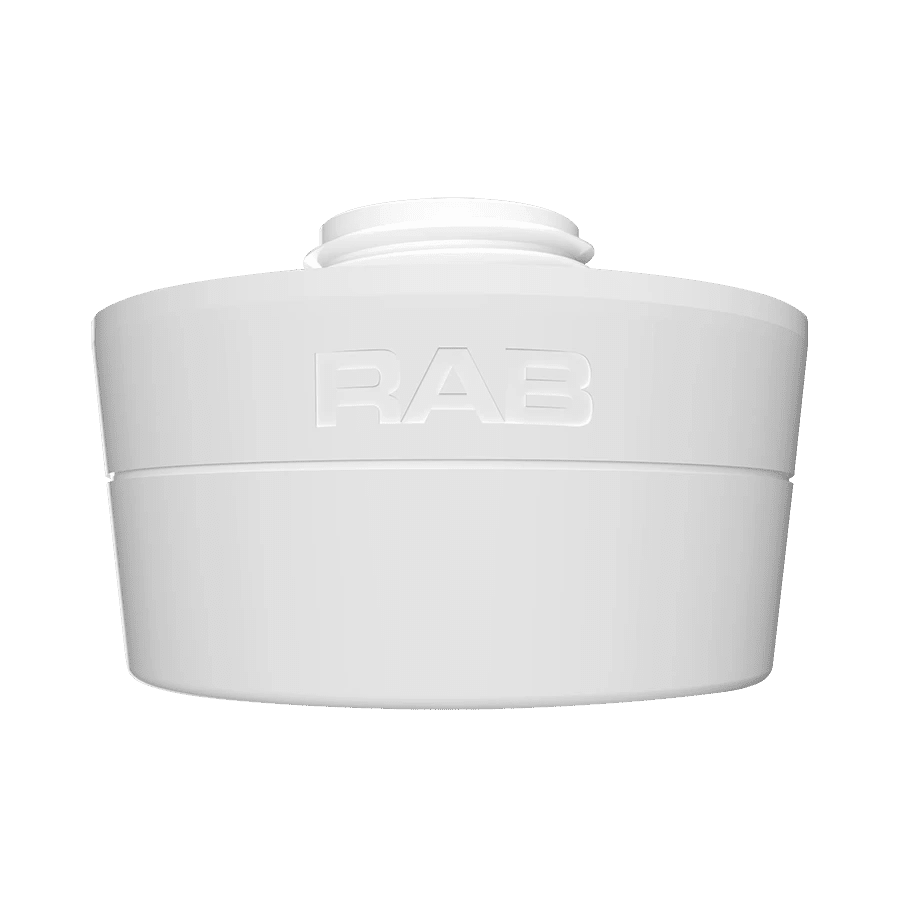

RAB MVS20 Occupancy Sensor: Precision Lighting Control
The RAB MVS20 occupancy sensor offers advanced lighting control, ideal for both indoor and outdoor environments. Designed for lower ceiling applications, this sensor ensures efficient energy usage and optimal lighting management.
Featuring dual-technology detection, the MVS20 accurately senses motion across a 20 ft range. This makes it a reliable choice for spaces requiring precise lighting control at standard mounting heights.
With its low voltage operation and 0-10V dimming capability, the RAB MVS20 integrates seamlessly into modern lighting setups, enhancing both functionality and energy efficiency.
This occupancy sensor is crafted to meet the demands of technical and professional installers, ensuring a straightforward installation process and reliable performance.
- Dual-technology motion detection
- 20 ft sensing range
- 0-10V dimming compatibility
- Designed for 9 ft mounting height
- Indoor and outdoor use
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Sensor Connection Type | Pogo pin |
| Max Mounting Height | 9 ft |
| Detection Range | 20 ft diameter mounted at 9 ft |
| Sensor Technology | Microwave (MVS) |
| Default Setting | Motion Sensitivity: High |
| Brightness when triggered | 100% |
| Hold time | 20 minutes |
| Standby to dim | 20% |
| Standby time | 1 minute |
| When vacant | Off |
| Daylight | Disabled |
| Adjustable Sensor Settings | Yes, using the MSR1 Remote (sold separately) |
| Standby to dim | 10%/20%/30%/50% |
| Standby time | 0s/10s/30s/1min/5min/10min/30min/60min/+∞ |
| Daylight Threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable |
