RAB Lighting
RAB PIR20 PIR Sensor Max 9 ft Height IP66
RAB PIR20 PIR Sensor Max 9 ft Height IP66
Regular price
$32.00
Regular price
Sale price
$32.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

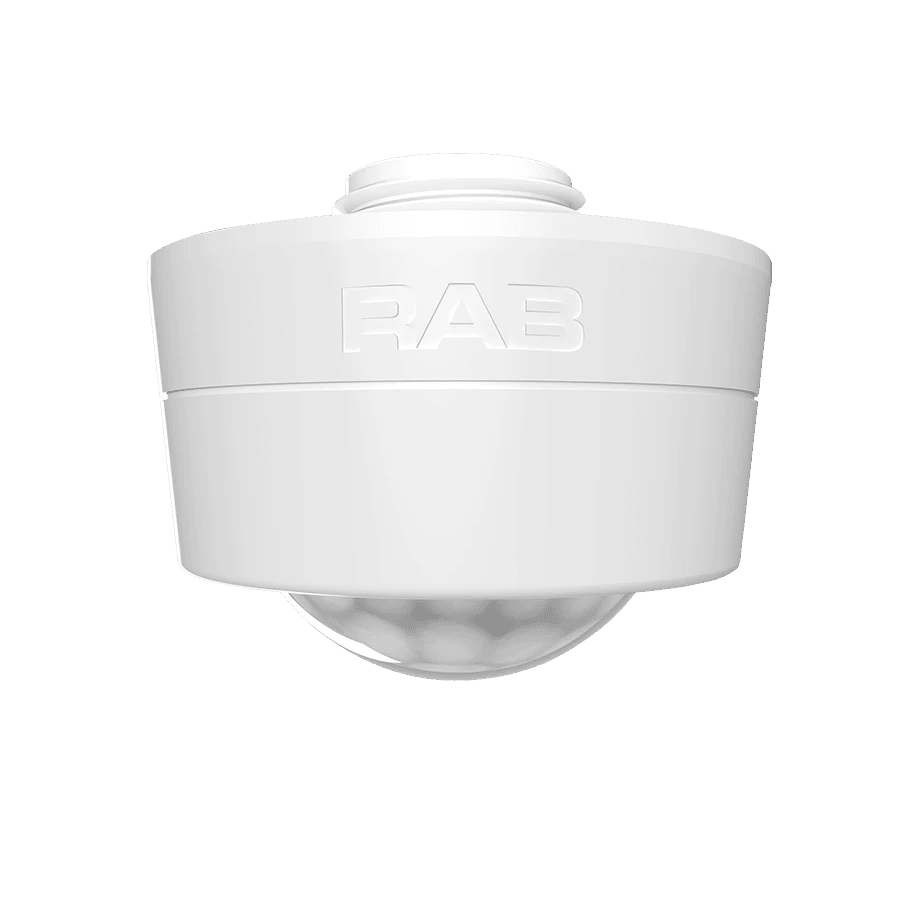

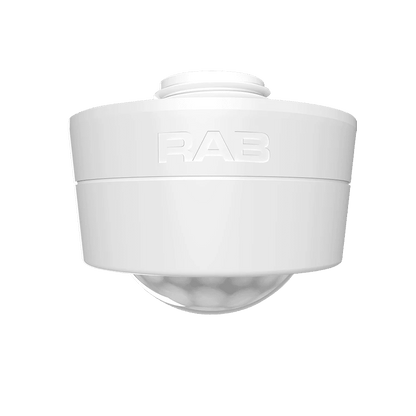

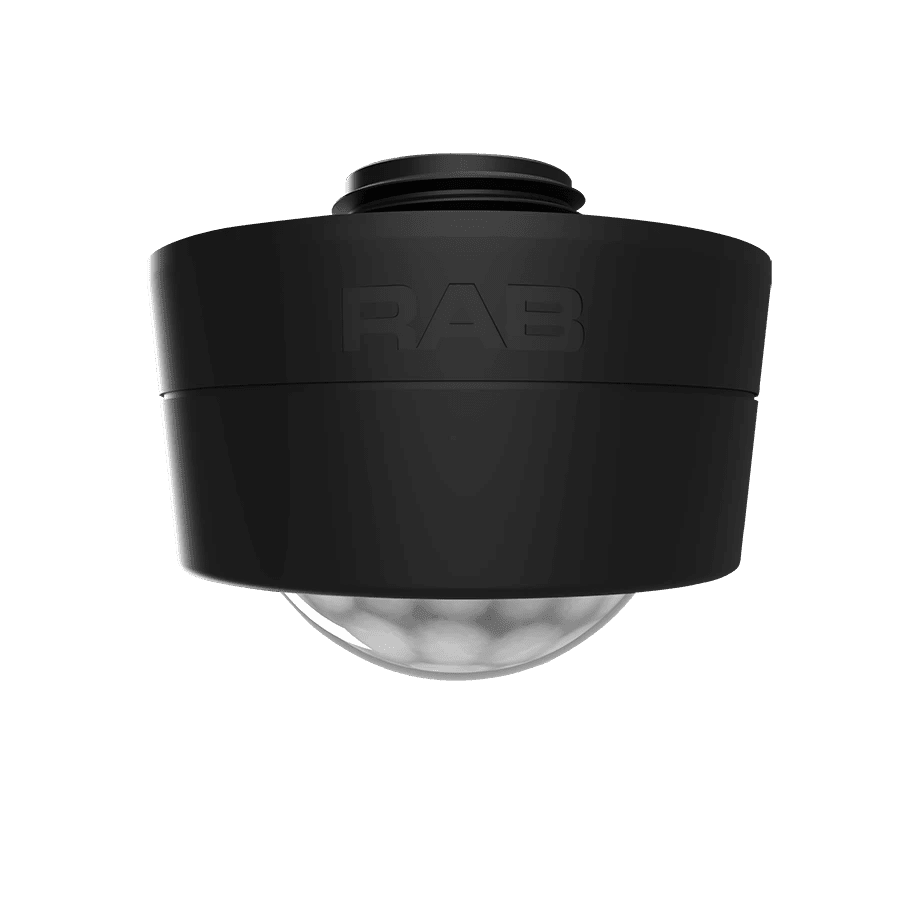

RAB PIR20 PIR Sensor with IP66 Rating
The RAB PIR20 PIR Sensor is designed for both indoor and outdoor applications, providing reliable motion detection in dry, damp, or wet environments. With a maximum mounting height of 9 ft, this sensor integrates dual-technology motion and daylight sensing. It is compatible with 0-10V dimming fixtures and can be fine-tuned using the optional MSR1 remote. Ideal for high bays, washdowns, strips, wraps, wall packs, and area lighting fixtures.
- For use in indoor and outdoor applications in dry, damp or wet environments
- Compatible with 0-10V dimming fixtures with auxiliary power supply
- Integrated dual-technology motion and daylight sensor.
- Adjustable sensor settings using MSR1 remote (sold separately)
- Compatible with various fixtures (high bays, washdown, strips, wraps, wall packs, area, etc.)
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Product Type | Low Voltage Occupancy Sensor |
| Description | Line voltage screw-in sensor, motion detection and daylight sensing. |
| L70 Lifespan | 50,000-Hour LED lifespan based on IES LM-70 results |
| Input Voltage | 12V |
| Operating Frequency | 50/60Hz |
| Input Current @ 120V (mA) | 30mA |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
Additional Info
| Sensor Connection Type | Pogo pin |
| Max Mounting Height | 9 ft |
| Detection Range | 20 ft diameter mounted at 9 ft |
| Sensor Technology | Passive Infrared (PIR) |
| Default Setting | Motion Sensitivity: High |
| Brightness when triggered | 100% |
| Hold time: | 20 minutes |
| Standby to dim | 20% |
| Standby time: | 1 minute |
| When vacant | Off |
| Daylight: | Disabled |
| Adjustable Sensor Settings | Yes, using the MSR1 Remote |
| Standby to dim | 10%/20%/30%/50% |
| Standby time: | 0s/10s/30s/1min/5min/10min/30min/60min/+∞ |
| Daylight Threshold |
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
|
