RAB Lighting

RAB PROTEMP-100 HID Jbox Worklight 100W Selectable Wattage

RAB PROTEMP-100 HID Jbox Worklight 100W Selectable Wattage

Regular price $156.00
Regular price Sale price $156.00
Sale Sold out
Shipping calculated at checkout.
Color Temperature
Watage

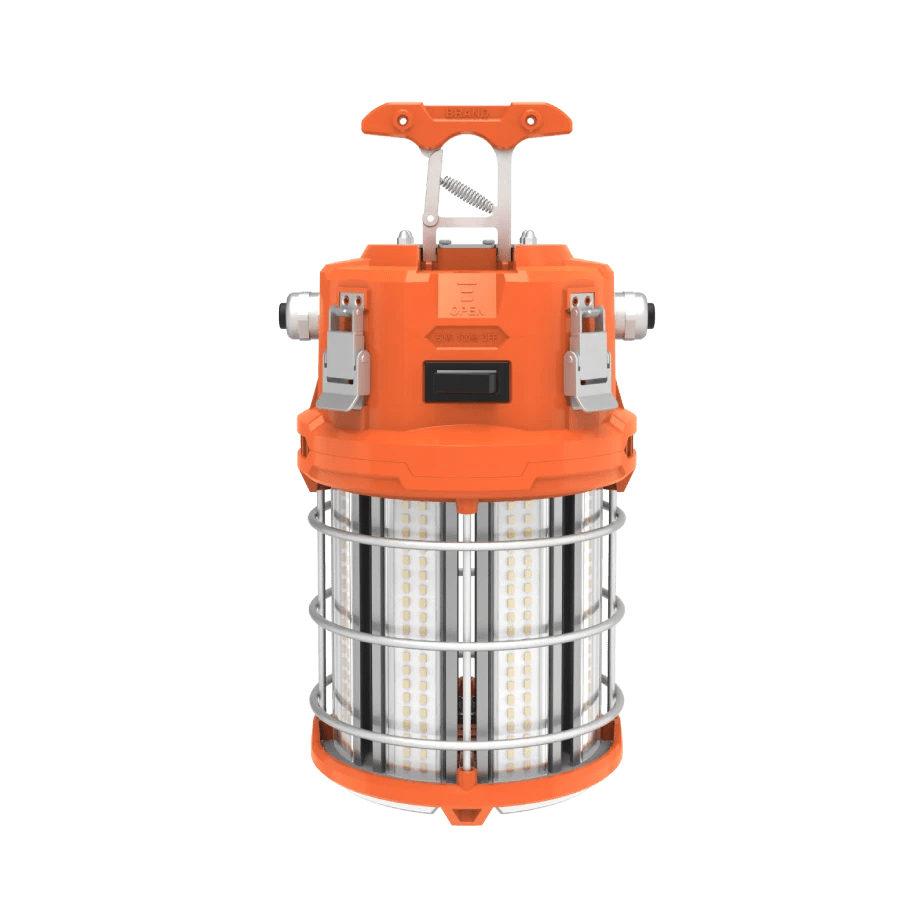

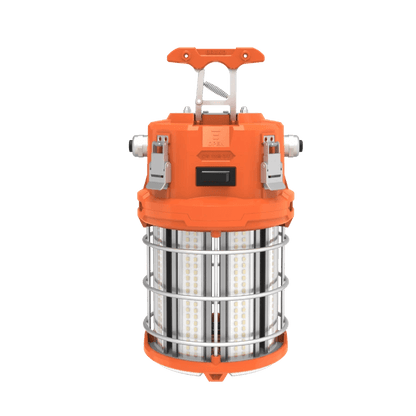

LED Temporary HID Jbox Worklight 100W

The PROTEMP-100 HID Jbox Worklight 100W offers exceptional 360° illumination in two configurations, with versatile power and adjustable brightness settings. Constructed with a durable UV-resistant polycarbonate housing and a metal cage, it can withstand the toughest conditions on job sites. Its custom wiring terminal allows for easy customization with provided strain relief connectors or 1/2" threaded hubs. With a 5000K color temperature and 80 CRI, it provides brilliant output to keep work on track. Its universal voltage operation allows for linking up to 28 units at 277V or 14 units at 120V, providing unparalleled flexibility. Upgrade your job site lighting with the PROTEMP-100 HID Jbox Worklight 100W.

  • Fixture has a custom wiring terminal allowing you to add your cords to fit your specific needs, when wiring you can use the provided strain relief connectors or the 1/2" threaded hubs.
  • Adjustable output with 3 brightness settings: 100%, 50%, OFF
  • Robust, UV-resistant polycarbonate housing with metal wire guard & foldable mounting hook
  • Linkable up to 280 ft. (up to 28 units) dependent on wire gauge used
  • 120-277V with 360° light output
Spec Sheet

    Family Spec Sheet

    Sell Sheet

    Installation Instructions


    Info
    Watts 100W
    Color Temp 5000K
    Lumens 12,000/6000 lm
    Efficacy 120 lm/W
    Color Accuracy 80 CRI
    L70 Lifespan 50,000 Hours
    Installation Method Customized wiring terminals and 1/2" threaded hubs that can accept many wiring gauges
    Mounting Hand-held or foldable mounting hook
    Base Type Industrial grade, high-impact design ANSI 2-prong plug and receptacle with weatherproof cover
    Linkable

    @120V
    8 units with 18/2 18/3 AWG;
    10 units with 16/2 16/3 AWG;
    12 units with 14/2 14/3 AWG;
    14 units with 12/2 12/3 AWG

    @277V
    16 units with 18/2 18/3 AWG;
    20 units with 16/2 16/3 AWG;
    24 units with 14/2 14/3 AWG;
    28 units with 12/2 12/3 AWG



    Additional Info

    THD <20%
    Power Factor >0.9
    Input Voltage 120-277V
    Operating Frequency 60 Hz
    Surge Protection 6kV
    Operating Temperature -30°C to 60°C
