RAB Lighting

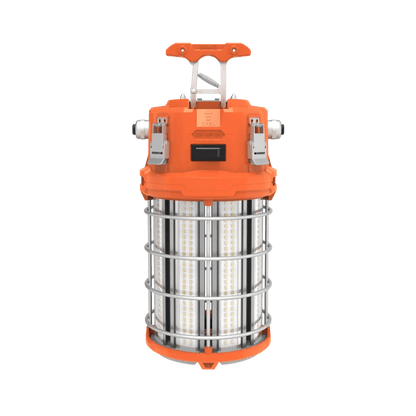

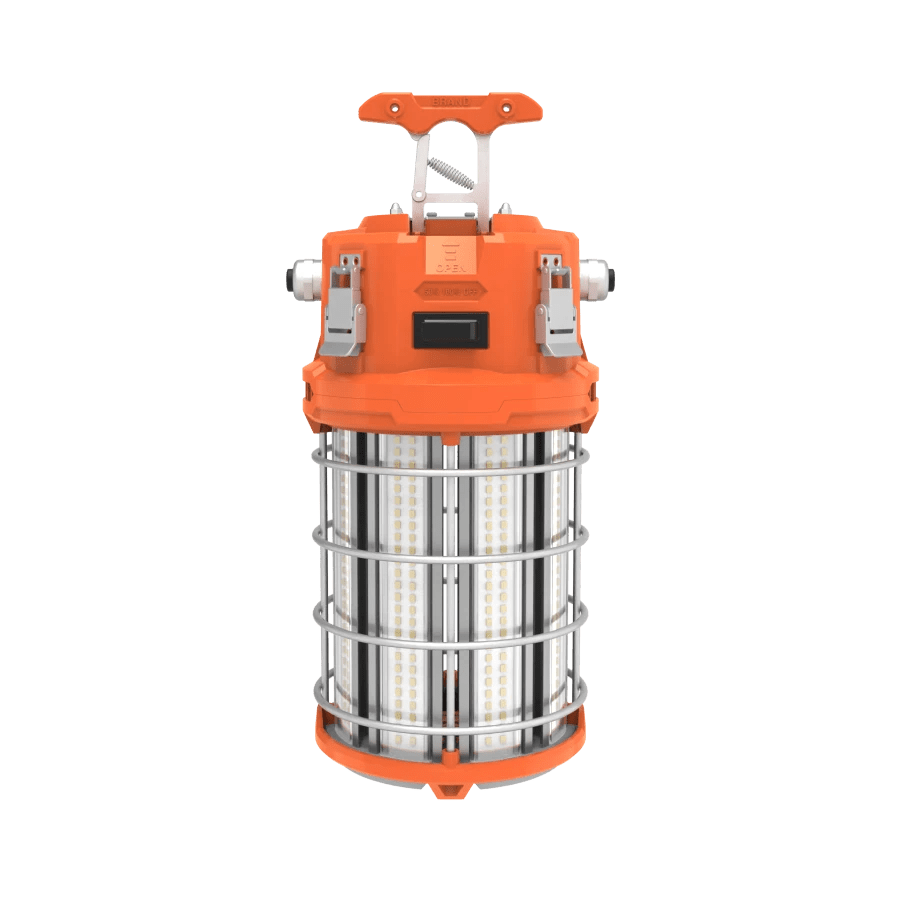

RAB PROTEMP-150 HID Jbox Worklight 150W Selectable Wattage

RAB PROTEMP-150 HID Jbox Worklight 150W Selectable Wattage

Regular price $170.00
Regular price Sale price $170.00
Sale Sold out
Shipping calculated at checkout.
Color Temperature
Watage

LED Temporary HID Jbox Worklight 100W

The PROTEMP-150 HID Jbox Work light 150W offers exceptional 360° illumination in two configurations, with versatile power and adjustable brightness settings. Constructed with a durable UV-resistant polycarbonate housing and a metal cage, it can withstand the toughest conditions on job sites. Its custom wiring terminal allows for easy customization with provided strain relief connectors or 1/2" threaded hubs. With a 5000K color temperature and 80 CRI, it provides brilliant output to keep work on track. Its universal voltage operation allows for linking up to 20 units at 277V or 10 units at 120V, providing unparalleled flexibility. Upgrade your job site lighting with the PROTEMP-150 HID Jbox Work light 100W.

    • Fixture has a custom wiring terminal allowing you to add your cords to fit your specific needs, when wiring you can use the provided strain relief connectors or the 1/2" threaded hubs.
    • Adjustable output with 3 brightness settings: 100%, 50%, OFF
    • Robust, UV-resistant polycarbonate housing with metal wire guard & foldable mounting hook
    • Linkable up to 280 ft. (up to 28 units) dependent on wire gauge used
    • 120-277V with 360° light output
    Spec Sheet

      Family Spec Sheet

      Sell Sheet

      Installation Instructions


      Info
      Watts 150W
      Color Temp 5000K
      Lumens 18,000/9,000 lm
      Efficacy 120 lm/W
      Color Accuracy 80 CRI
      L70 Lifespan 50,000 Hours
      Installation Method Customized wiring terminals and 1/2" threaded hubs that can accept many wiring gauges
      Mounting Hand-held or foldable mounting hook
      Base Type Industrial grade, high-impact design ANSI 2-prong plug and receptacle with weatherproof cover
      Linkable



      @120V
      6 units with 18/2 18/3 AWG;
      7 units with 16/2 16/3 AWG;
      8 units with 14/2 14/3 AWG;
      10 units with 12/2 12/3 AWG

      @277V
      12 units with 18/2 18/3 AWG;
      14 units with 16/2 16/3 AWG;
      16 units with 14/2 14/3 AWG;
      20 units with 12/2 12/3 AWG





      Additional Info

      THD <20%
      Power Factor >0.9
      Input Voltage 120-277V
      Operating Frequency 60 Hz
      Surge Protection 6kV
      Operating Temperature -30°C to 60°C
