RAB Lighting

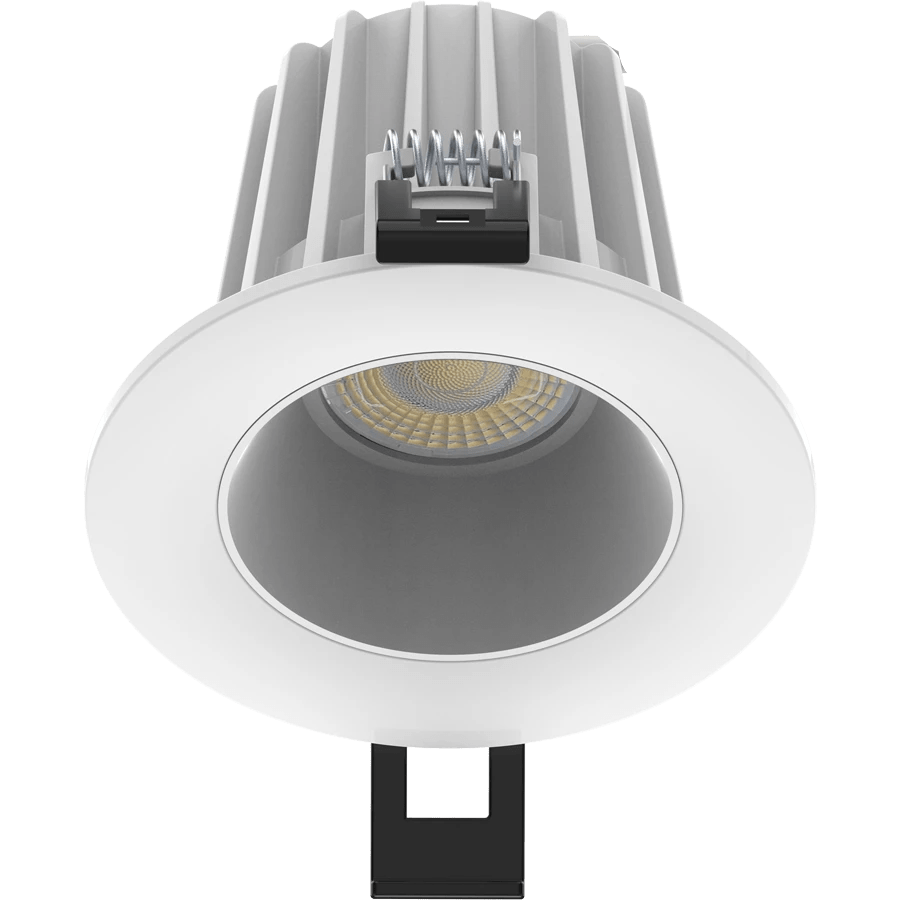

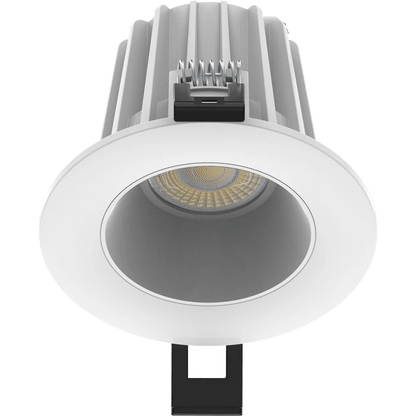

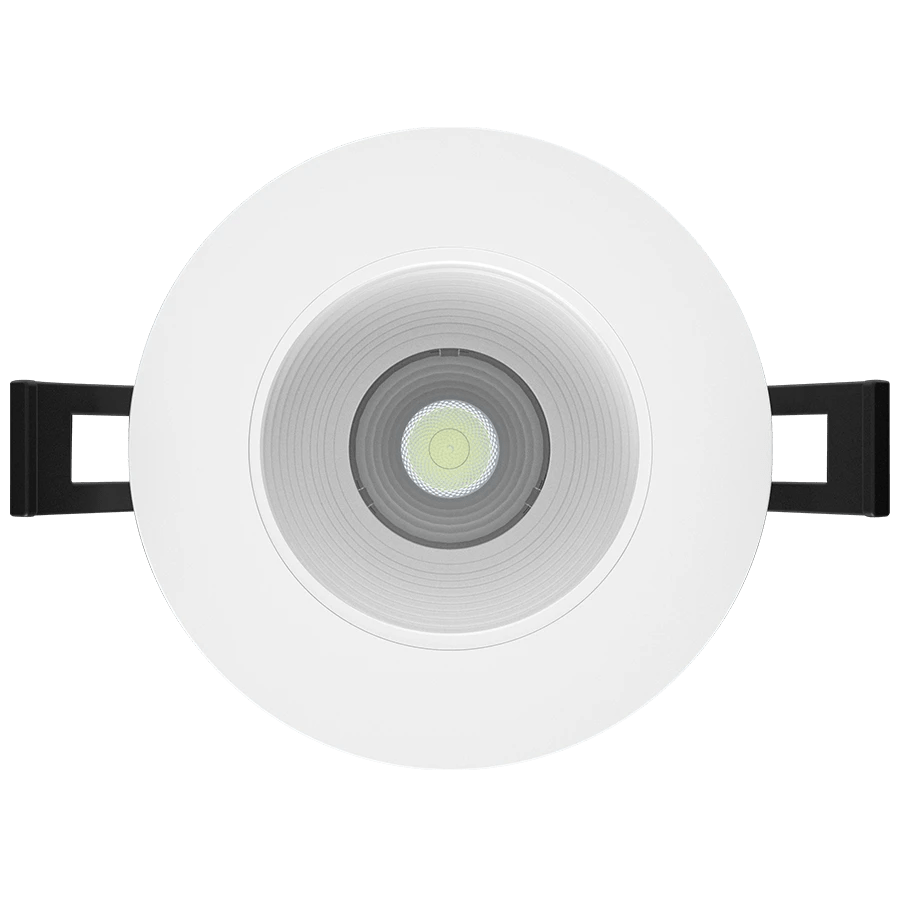

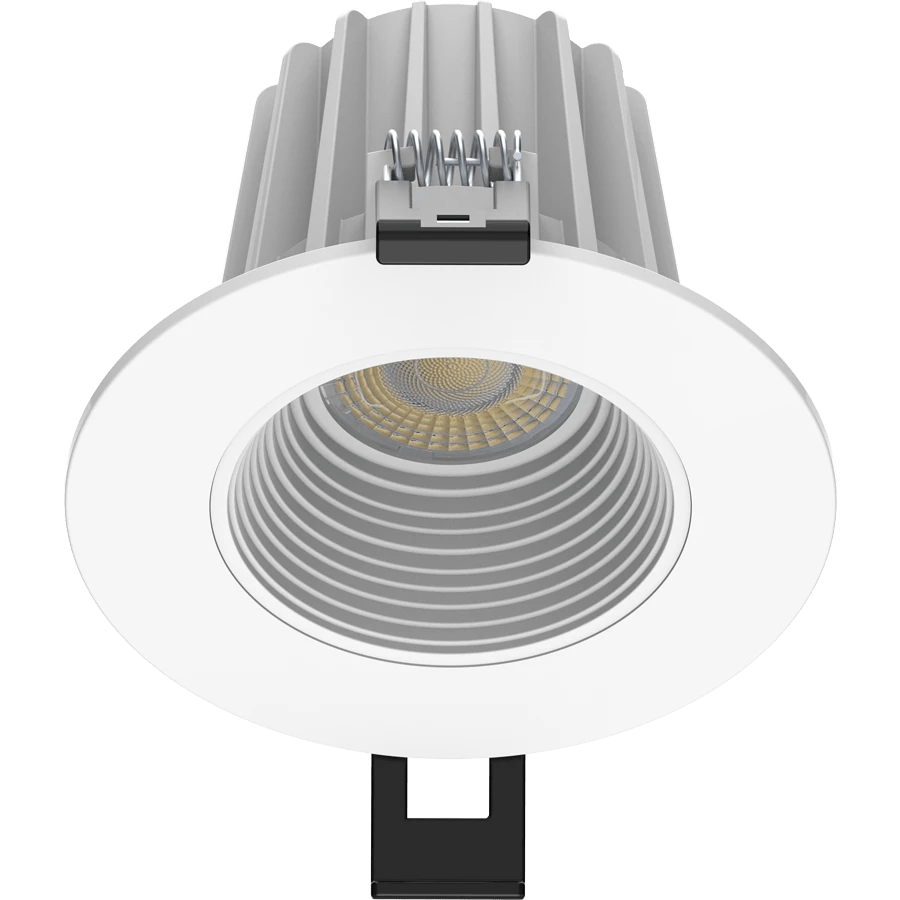

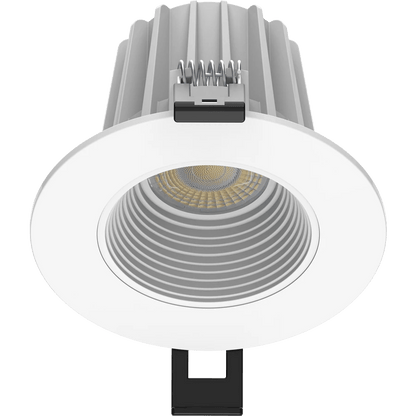

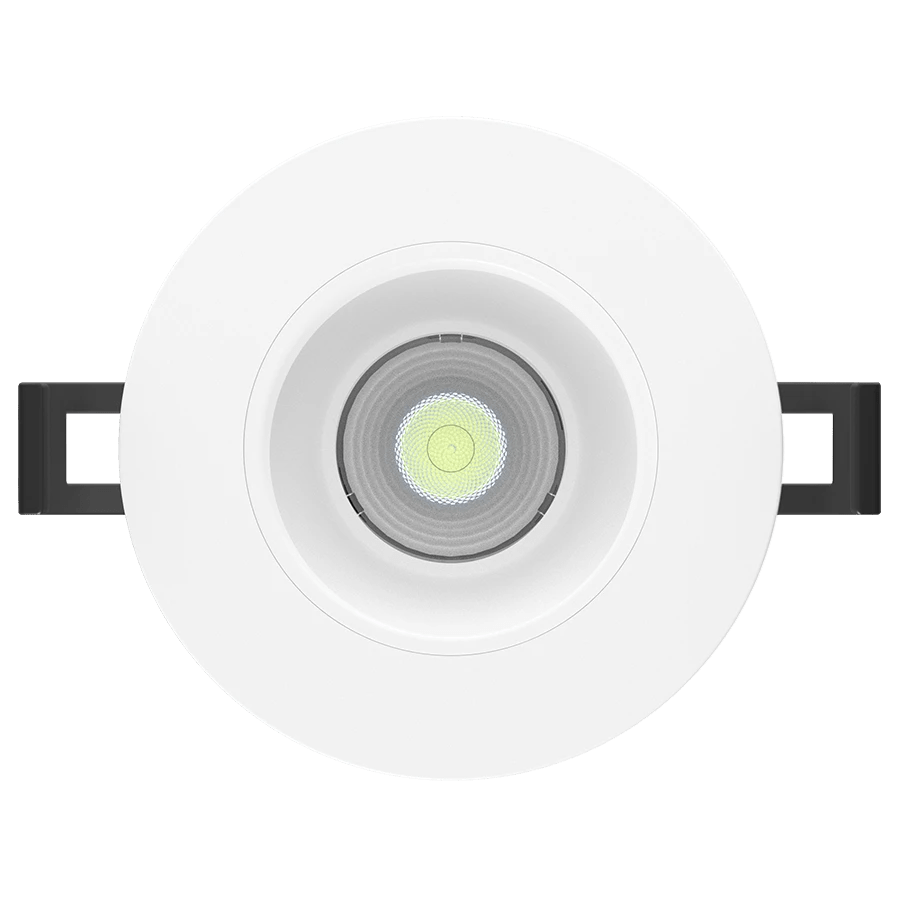

RAB R3 9W/15W LED 3" Round Recessed Downlight Selectable CCT

RAB R3 9W/15W LED 3" Round Recessed Downlight Selectable CCT

$34.21
$34.21
Sale Sold out
Shipping calculated at checkout.
Style
Wattage
Color Temperature

3" Recessed Downlight

  • 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
  • Deep regress remote driver downlight
  • No recessed housing or J-box required
  • New construction or retrofit applications
  • Spring loaded retention clips
Spec Sheets
9W 15W
Smooth Spec Sheet Spec Sheet
Baffle Spec Sheet Spec Sheet

Installation Instructions

Family Spec Sheet

Info
Product Type  Recessed Downlights
Wattage 9W/15W
Lumen 650/1000
Color Temp. Selectable CCT
CRI 90
Mounting Recessed, no housing required
Size 3"
Shape Round
Finish White
Enclosure Material Metal
Trim Style Smooth

Additional Info
                                               Compliance
Safety Listing Suitable for use in dry, damp, and wet environments.
Listings ETL Listed
IC Rated Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Approved This product is ENERGY STAR® Version 2.2 Certified.
Energy Star ID:

9W- 2571966

15W- 2571992
Air Tight Housing certified Air Tight as per ASTM E283
RoHS Mercury and UV free. RoHS-compliant components
                                               Electrical
Driver Constant Current, Class 2, 60 Hz, 120V 0.07A
Power Factor ≥0.9
Input Voltage 120V
THD ≤25%
Dimming Yes, dims down to 10% on compatible TRIAC/ELV systems.

  Note All values are typical (tolerance +/- 10%)
