RAB Lighting

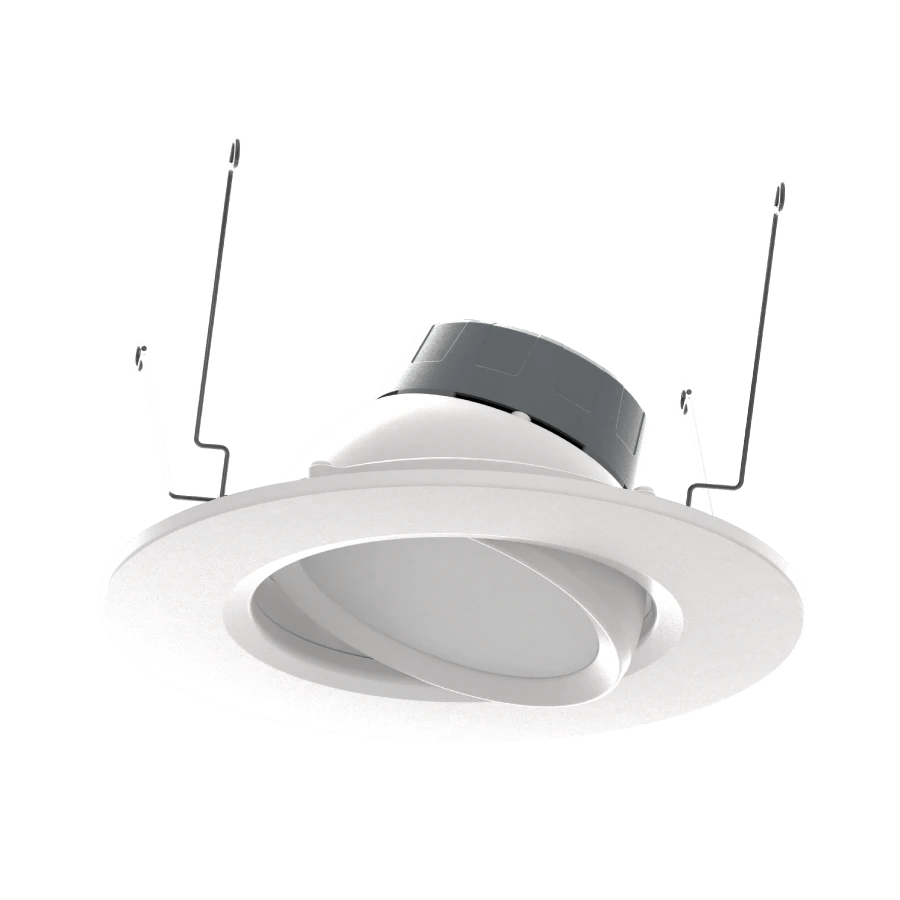

RAB RA6R11 11W LED 6" Round Retrofit Downlight Adjustable Gimbal Selectable CCT

RAB RA6R11 11W LED 6" Round Retrofit Downlight Adjustable Gimbal Selectable CCT

Regular price $24.00
Regular price Sale price $24.00
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

6" Retrofit Downlight Adjustable Gimbal - Field Adjustable

    • Use to replace traditional halogen and incandescent light sources
    • Durable metal construction: dent and scratch resistant
    • 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K
    • Compatible with most standard recessed housings
    • Color trims sold separately
    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
     Product Type  Retrofit Gimbal
    Wattage 11W
    Lumen 1100
    Color Temp. Field Adjustable
    CRI 90
    L70 Lifespan 50,000
    Housing Material Constructed from durable steel sheet metal
    Finish  White Trim
    Style Smooth
    Base Type
    E26
    Beam Angle Adjustable Gimbal with 35° tilt angle
    Lens Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution
    Mounting Torsion springs are pre-installed and adjust to fit 5" or 6" compatible housing
    Gaskets Achieve restrictive airflow requirements without additional caulking
    Additional Info
                                                   Compliance
     Safety Listing UL Listed
     Environment/Fixture Rating Wet Location
    T24 JA8 Compliant Complies with Title 24 Appendix JA8
    IC Rated Yes
    Energy Star Compliant Yes
    Air Tight Yes
    FCC Complies with Part 15 of the FCC Rules
    RoHS Mercury and UV free. RoHS-compliant components
                                                   Electrical
    THD ≤20%
     Power Factor ≥0.9
    Input Voltage 120V
    Operating Frequency 60Hz
    Operating Temperature -30°C to 40°C
    Dimming TRIAC compatible dimmer with dimming as low as 10%
