RAB RLB2-2 40W 2FT Retrofit Light Bar Selectable CCT/Wattage

RAB RLB2-2 40W 2FT Retrofit Light Bar Selectable CCT/Wattage

$58.00
$58.00
Sale Sold out
Shipping calculated at checkout.
Lens
Color Temperature
Wattage

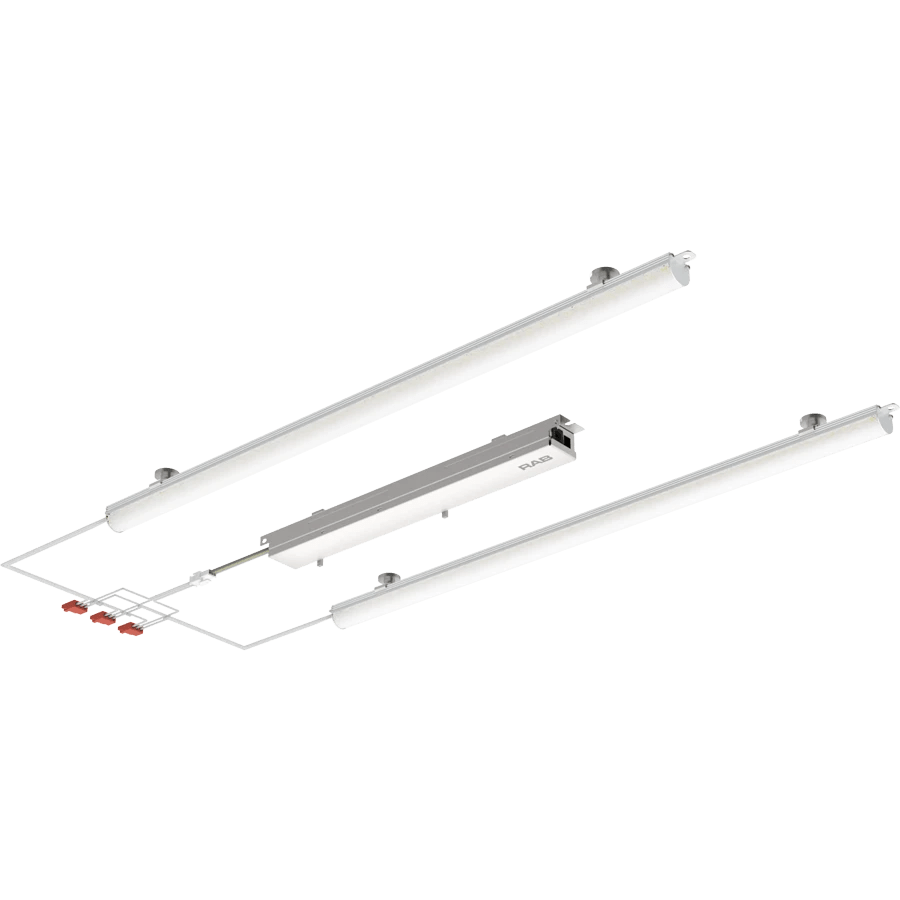

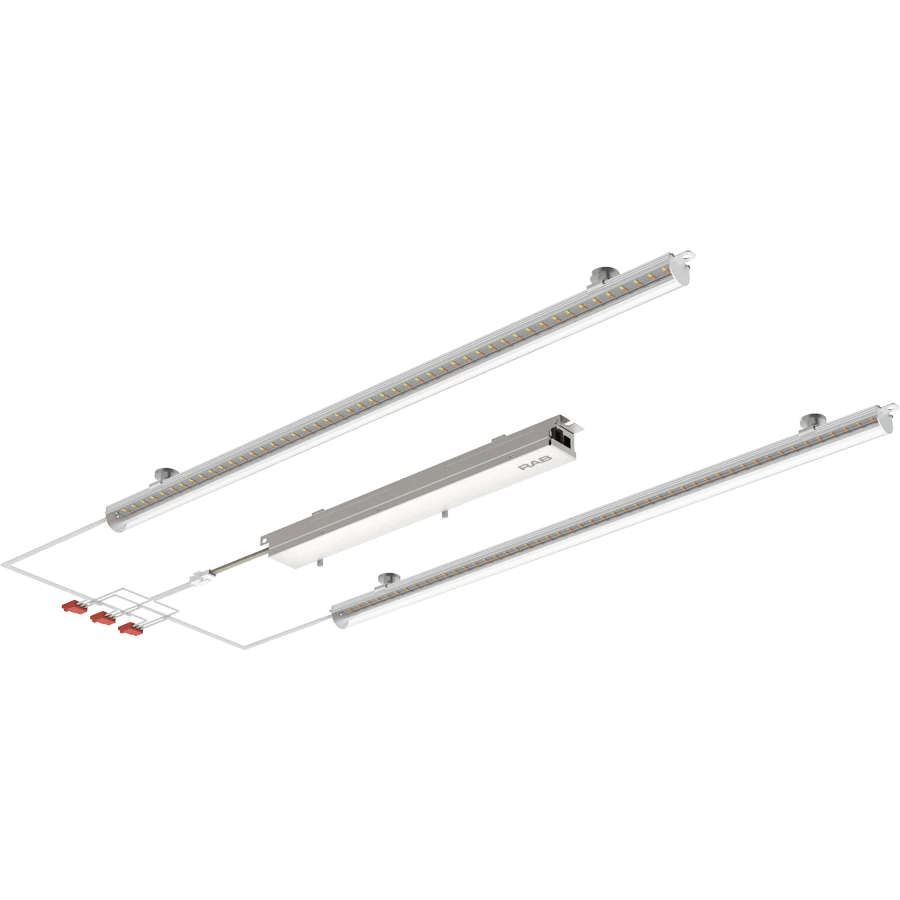

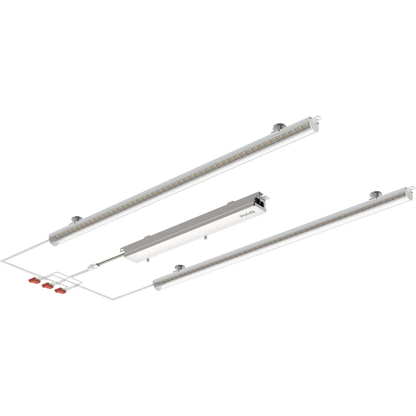

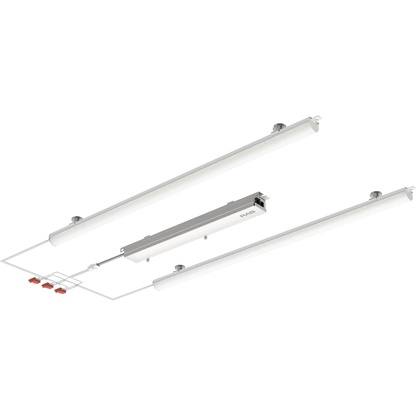

2FT 40W Retrofit Light Bar

Upgrade your fluorescent fixtures in minutes with the RAB RLB2-2 40W 2FT Retrofit Light Bar. This versatile and cost-effective solution works for troffers, wraps, and strips, providing a modern and hassle-free installation process. With options for 2, 3, and 4 ft lengths and single or double configurations, the RLB offers maximum flexibility for a perfect fit in any space. Its innovative magnetic mounting system makes it quick and easy to install, and with up to five field-adjustable wattages and five CCTs, you can customize your lighting to meet your specific needs. Plus, the RLB integrates seamlessly with standard 0-10V dimming systems for long-lasting performance in various environments.



  • RLB2-2: 2X2' - 40/35/30/25/20W
  • Selectable CCT: 3000/3500/4000/5000/6500K
  • DLC Listed
  • Clear or frosted domed lens
  • Driver: 120-277V, 0-10V dimming
  • Battery backup, motion sensor & Lightcloud accessories (sold separately)
  • Multi-sensor remote (sold separately)
Spec Sheets

Clear Spec Sheet / Frosted Spec Sheet

Family Spec Sheet

Sell Sheet

Installation Instructions

Info

Wattage 20/25/30/35/40W
Lumen 3,098-6,016 lm
Color Temp. 3000/3500/4000/5000/6500K
Efficacy 152-163.1 lm/W
CRI 83-87 CRI
L70 Lifespan 100,000 Hrs
Lens Clear/Frosted polycarbonate lens
Housing Aluminum
Finish Formulated for high durability and long-lasting color
Additional Info
Driver
 Constant Current, Class 2 , 120-277V, 50/60 Hz:
40W: 120V: 0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.16A
35W: 120V: 0.32A, 208V: 0.19A, 240V: 0.16A, 277V: 0.14A
30W: 120V: 0.28A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A
25W: 120V: 0.23A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
20W: 120V: 0.18A, 208V: 0.11A, 240V: 0.09A, 277V: 0.08A
Dimming Driver Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
 6.1% at 120V, 11.5% at 277V
Aux Power Supply Yes
Dim to Off Yes
Surge Protection L-N:1KV, L/N-PG:2KV
